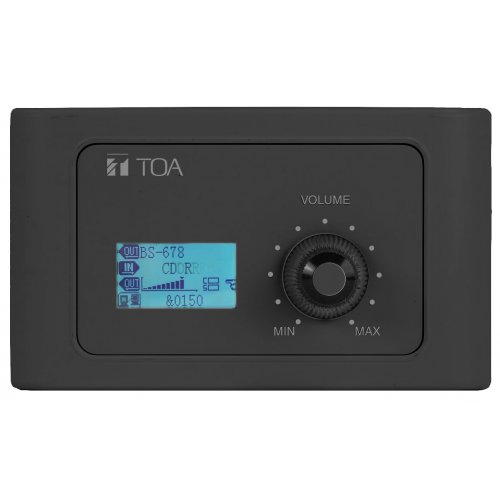

TOA M-802RC Remote Volume Control Panel w/ Audio Out for M-8080D-AM (Black)
Model: M-802RCB-AM
About: TOA M-802RC Remote Volume Control Panel w/ Audio Out for M-8080D-AM (Black)
Designed for exclusive use with the M-8080D, the M-802RC Remote Audio Control Panel with two audio output has a volume/routing control knob.
- Input/Output signal routing
- Volume control
- Direct power supply by network cable
- 2 analog outputs
- LCD screen with output level display
- RD port IN, for connection to M-8080D
- 100m CAT5e cable length
Specifications
- Power source - 24 V DC Powered by M-8080D or M-804EX or external
- Frequency response - 20 Hz - 20 kHz
- Distortion - < 0.01 %
- S/N ratio - 105 dB(A) (A weighted)
- Indicator
- LC-Display
- Displays device information: ID, Volume, communication status
- LC-Display
- Crosstalk - 79 dB
- Inputs
- RD In:
- Transmits and receives AES3 digital audio plus control data
- Connect to M-8080D or M-804EX, RJ45 connector
- RD In:
- Outputs
- Audio Output:
- Line output 1 - 2: 0 dBV, 1.8kOhm, Maximum output 20dBu (7.75V), electronic balanced, screw terminal (3 pins x 2)
- Audio Output:
- Control keys, buttons and knobs - Volume / Routing
- Sampling frequency - 48 kHz, 24 bit
- Operating temperature - 0°C to +40°C
- Operating humidity - 90% RH or less (no condensation)
- Finish - Polycarbonate resin, ABS resin, black, Panel.
- Dimensions (WxHxD) - 5.79 x 3.39 x 2.56 inch (147 x 86 x 65 mm)
- Weight - 0.66 lb (0.3 kg)
What's Included
- 1x Front cover
- 4x Wall mounting screw (4 x 30)
- 4x Plastic anchor
