TOA F-1300 Wide-Dispersion Design Speaker - Black
Model: F-1300BT

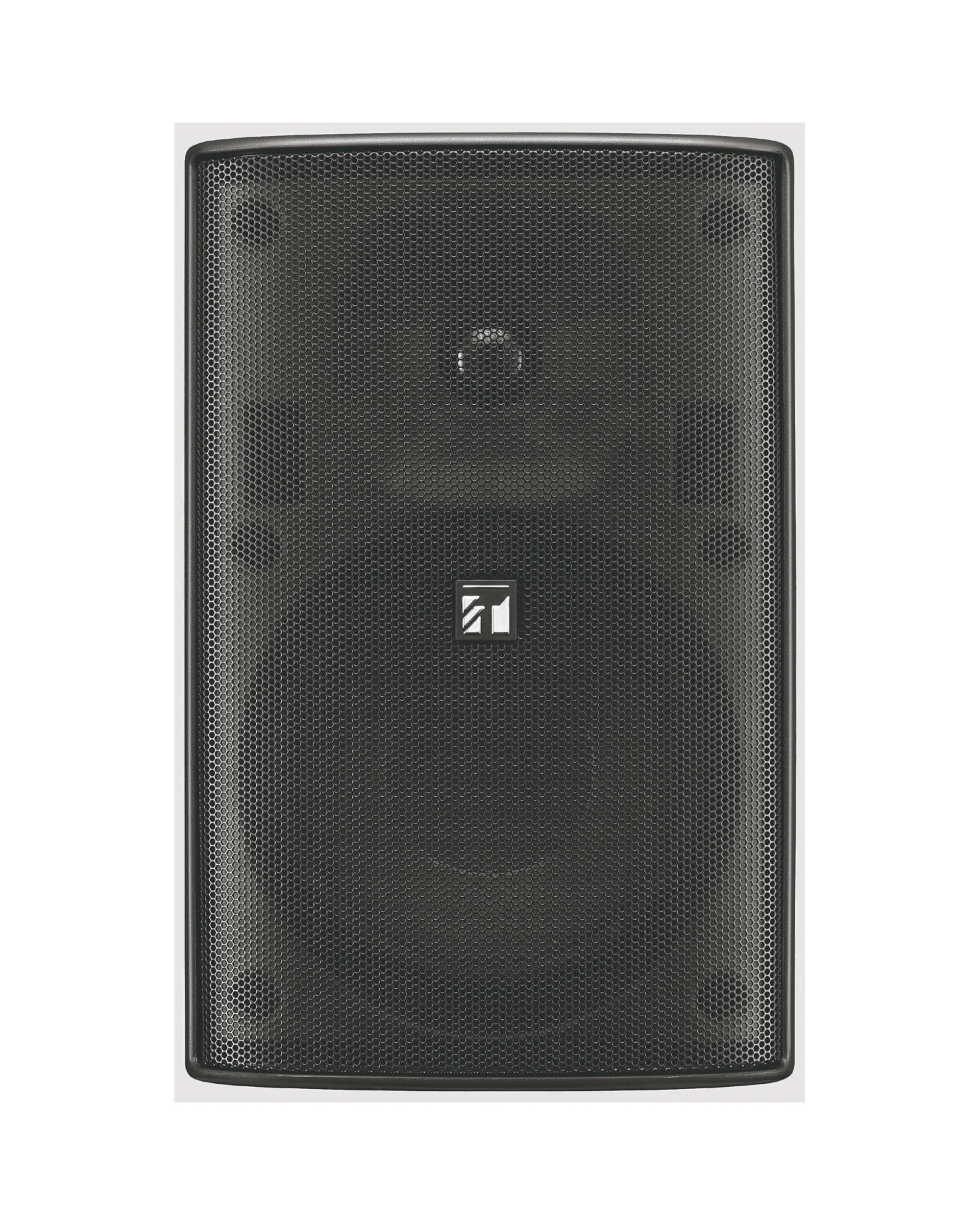

About: TOA F-1300 Wide-Dispersion Design Speaker - Black
The F-1300 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.
- Compact wide-dispersion speaker
- Up to 150 W continuous program
- Dispersion angle of 90° x 90°
- 2-way speaker with high quality 13 cm woofer and balanced dome tweeter
- Paintable
Specification
- Enclosure - Bass-reflex type
- Rated Input - 30 W (high impedance)
- Power Handling
- Continuos pink noise: 50 W (low impedance)
- Continuos program: 150 W (low impedance)
- Rated Impedance
- 8 Ω
- 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
- 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
- Sensitivity - 90 dB (1 W, 1 m) at installation in 1/2 free sound field
- Frequency Response - 80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
- Crossover Frequency - 2 kHz
- Directivity Angle - Horizontal: 110°, Vertical: 100°
- Speaker Component
- Low frequency: 13 cm (5) cone-type
- High frequency: 25 mm (1) dome tweeter
- Input Terminal - Push-in terminal
- Finish
- Enclosure: HIPS, black
- Punched net: Surface-treated steel plate, black, paint
- Joint bracket, wall bracket: Steel plate, t1.6, black, paint
- Speaker bracket: Die-cast aluminum, black, paint
- Dimensions - 162 (W) x 250 (H) x 161 (D) mm (6.38 x 9.84" x 6.34")
- Weight - 3.6 kg (7.94 lb) (including the supplied brackets)
- Included Accessories
- 1x Speaker bracket
- 1x Joint bracket
- 1x Wall bracket
- 1x (set) Bracket fixing screw
Reviews: TOA F-1300 Wide-Dispersion Design Speaker - Black
Warranty: TOA F-1300 Wide-Dispersion Design Speaker - Black
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Audio - 5 Years
With the exception of Microphones (Headset, Lavaliere, etc., 5000 Series and Trantec Series) which are warranted for 90-days from the invoice date. All Batteries have a 1 year warranty
Intercom - 5 Years
All Batteries have a 1 year warranty
Parts
All parts have a 90-day warranty. All Batteries have a 1 year warranty.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and TOA Canada do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
