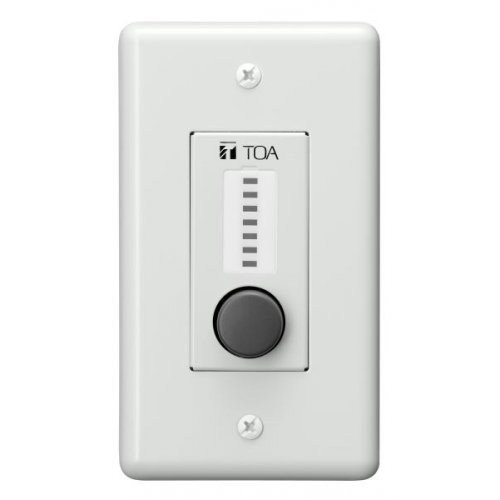

TOA ZM-9012 Remote Control Panel
Model: ZM-9012
About: TOA ZM-9012 Remote Control Panel
Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the ZM-9012 is a wall mounted remote control panel having a volume control knob. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 1-gang electrical box in the wall.
Specification
- Power Source: 24 V DC (supplied from RC-001T or M-864D)
- Current Consumption: 50 mA or less
- Terminal Removable: terminal block (10 pins)
- Connection Cable: Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP)
- Operating Section: 1 volume control
- Indicator: Level indicators (green LEDs)
- Operating Temperature: 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
- Operating Humidity: 35 % to 80 %RH (no condensation)
- Finish: Surface-treated steel plate, white, paint
- Dimensions: 72 (W) × 127 (H) × 57.5 (D) mm (2.83" × 5" × 2.26")
- Weight: 208 g (0.46 lb)
- Accessory: Box mounting screw (No.6-32UNC × 30) …2, Box mounting screw (M4 × 30) …2, Panel mounting screw …2, Removable terminal plug (10 pins) …1
