Bose DM2C-LP DesignMax 20W In-Ceiling Loudspeaker (Pair)

About: Bose DM2C-LP DesignMax 20W In-Ceiling Loudspeaker (Pair)

A complete loudspeaker assortment to enhance any space, DesignMax loudspeakers offer rich lows, and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The 20-watt Bose Professional DesignMax DM2C-LP loudspeaker makes it easy to bring great sound to tight spaces. Ideal for background music, the DM2C-LP loudspeaker features a 2.25-inch transducer and 85 Hz – 19 kHz frequency range. The in-ceiling DM2C-LP has a low-profile backcan and is installed easily via QuickHold mounting arms.

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver instantly impressive sound with custom Bose Professional drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

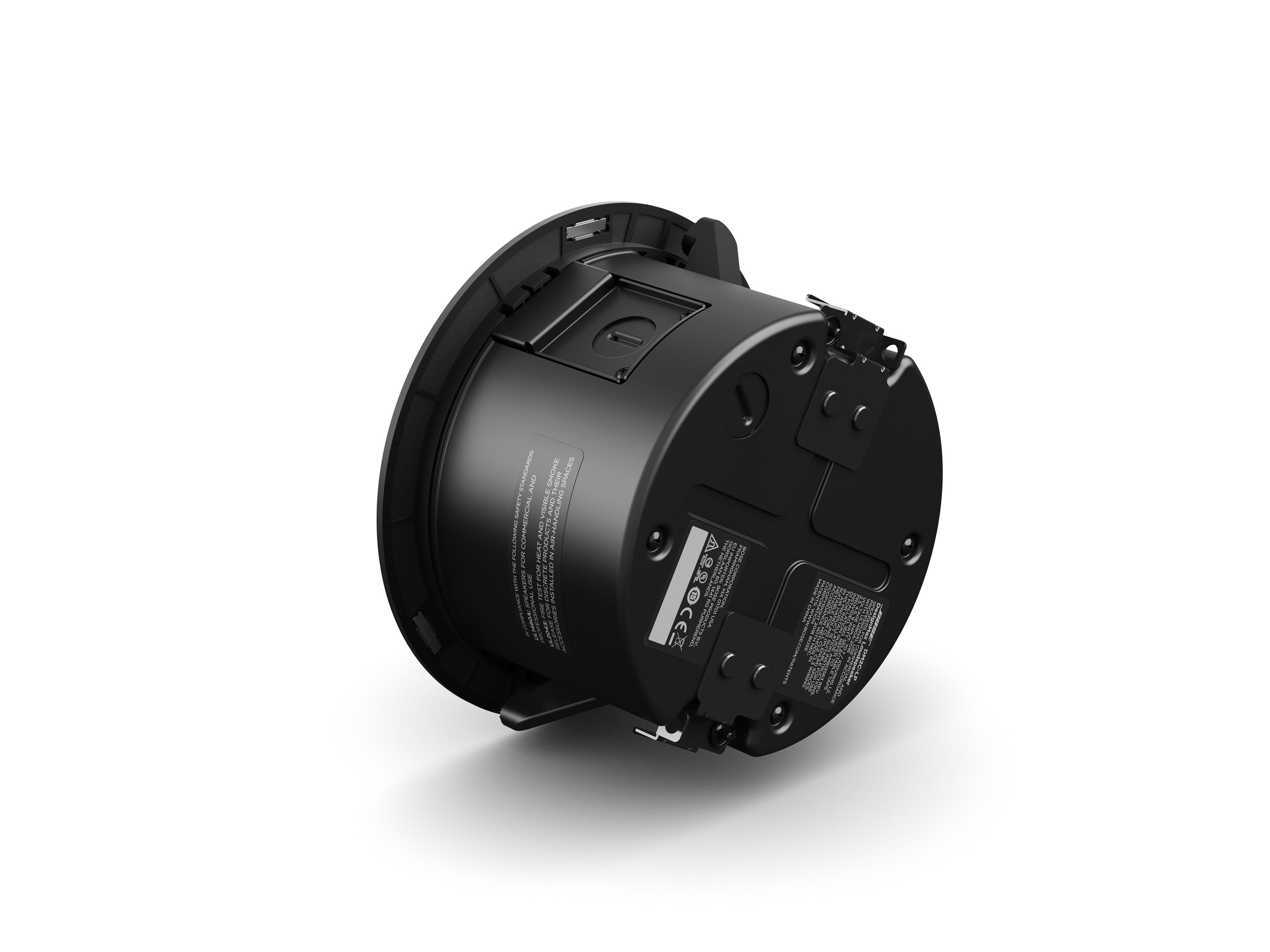

• Install in confined ceiling spaces with low-profile backcan measuring just 10 centimeters (3.9 inches) high
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • NOTE: DesignMax in-ceiling loudspeakers are only sold in white. An optional black grille is available to purchase separately

Specifications

• PERFORMANCE
  • Frequency Range (-10 dB): 85 Hz – 19,000 Hz
  • Coverage, Horizontal: 150° conical
  • Calculated Maximum SPL @ 1 m: 97 dB
  • Nominal Impedance: 16 Ω (transformer bypass)
  • Power Handling, long-term continuous: 20 W
  • Power Handling, Peak: 80 W
  • Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m): 84 dB
  • Transformer Taps, 100V: 2.3, 4.5, 9 W, bypass
  • Transformer Taps, 70V: 1.2W, 2.3 W, 4.5 W, 9 W, bypass
• TRANSDUCERS
  • Driver Protection: Recommended high-pass protection 85 Hz with recommended 24 dB/octave filter
  • Low-Frequency: 1 x 2.25 in (57 mm) woofer
• COMPLIANCE
  • Safety Agency Ratings: UL-1480A, S5591/ UL Listed, in compliance with UL2043 for plenum-space installation, NFPA70 & NFPA90-A, CE compliant
• PHYSICAL
  • Colors: White, paintable
  • Enclosure Material: Engineered-plastics front baffle with integrated steel-formed backcan
  • Environmental: Indoor only

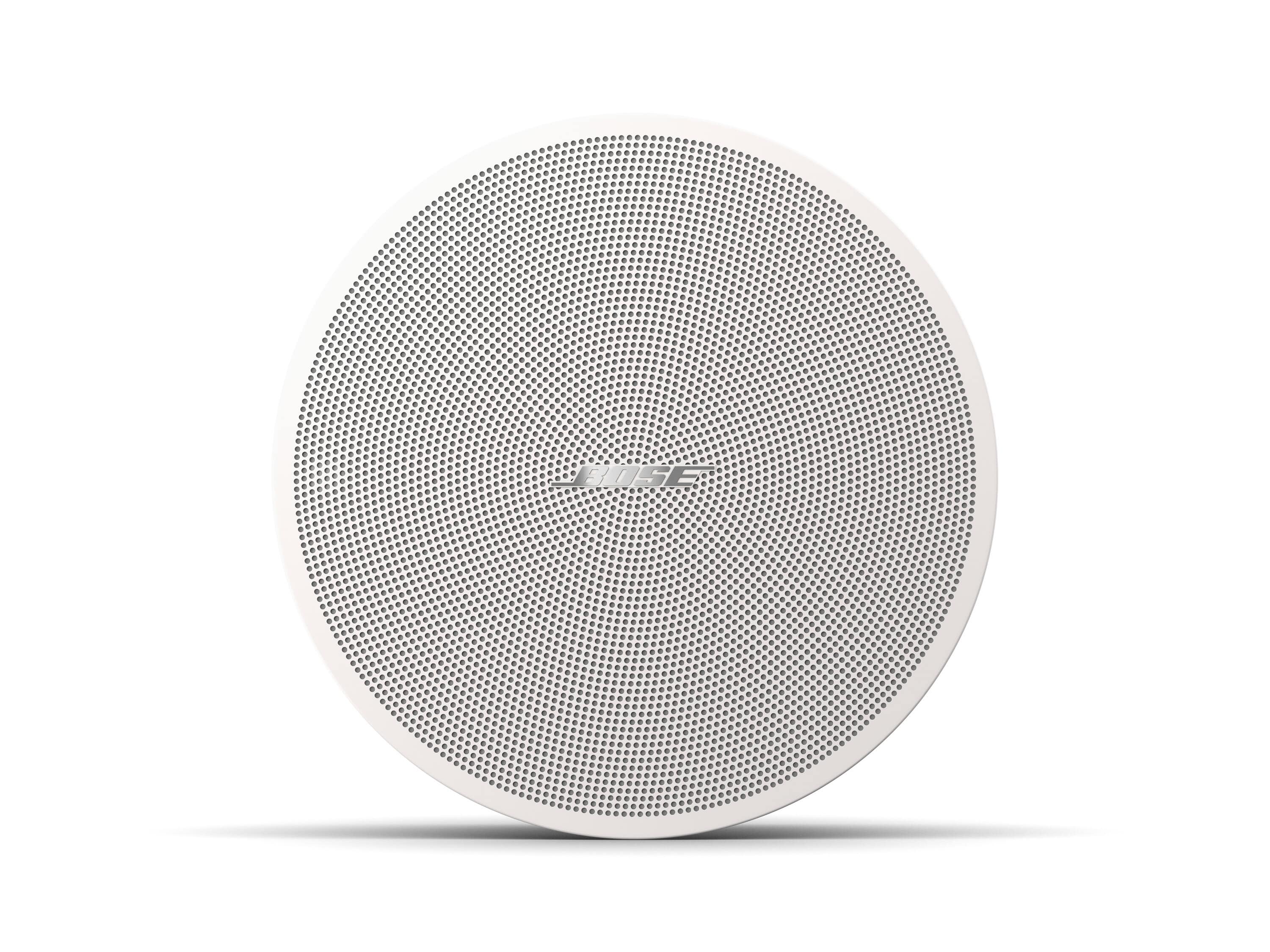

  • Grille: Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
  • Ceiling Cutout: 6.5 in (165 mm)
  • Logo: Rotatable, removable

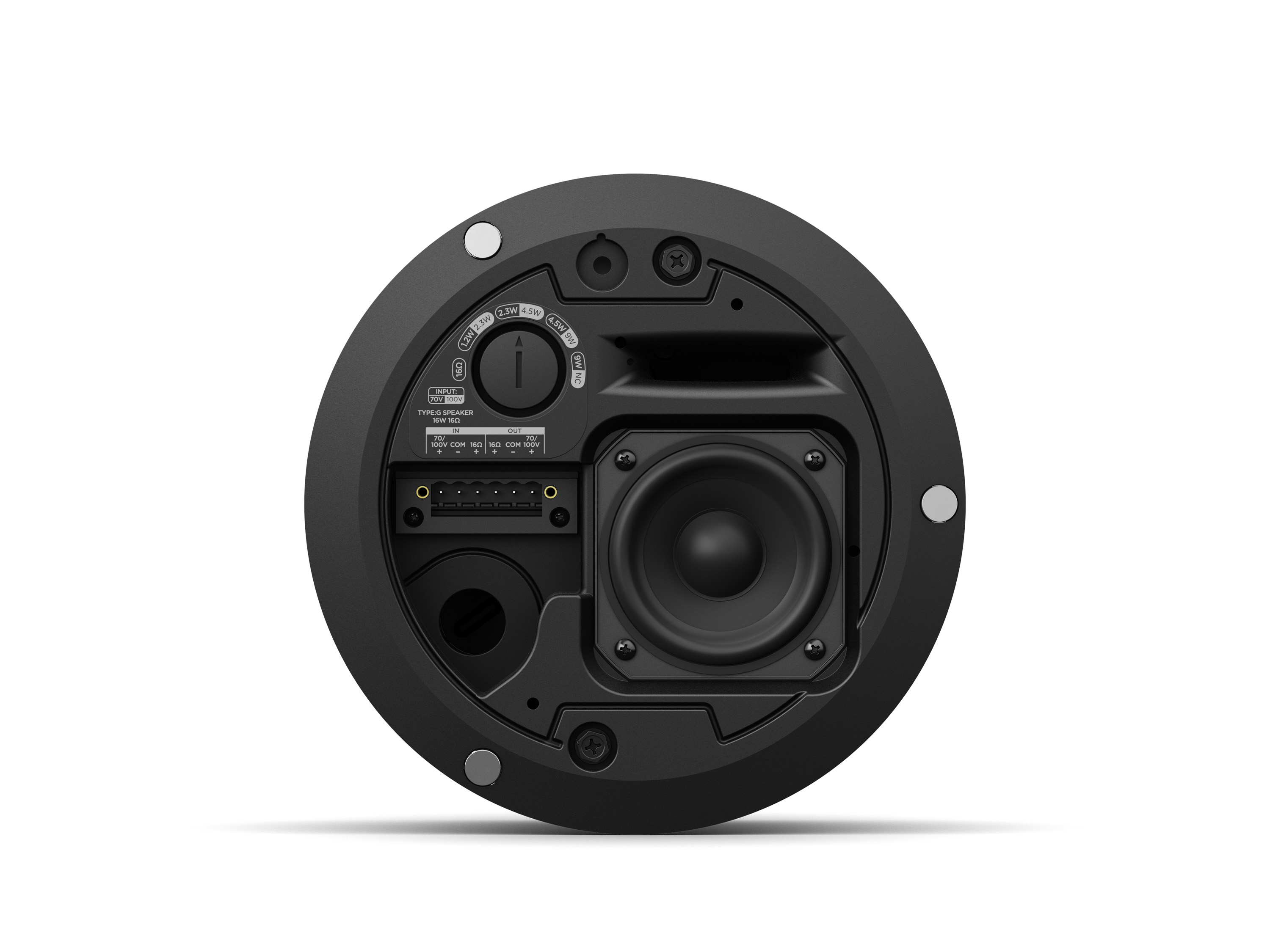

  • Connectors -  Euroblock 6-pin connector with loop-through, front-baffle mounted.
    • Accepts 18 AWG(0.8 mm) to 14 AWG (2.5 mm) size wire
  • Suspension/Mounting
    • (2) QuickHold spring-loaded mounting arms
    • (2) safety cable attachment points
  • Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (HxWxD)
    • Loudspeaker Diameter x Depth: 7.8 x 4.3 in (198 x 110 mm)
    • Backcan Diameter x Depth: 6.1 x 3.9 in (155 x 99 mm)
• Weight (each)
  • Loudspeaker w/ grille: 3.6 lb (1.6 kg)
  • Tile bridge: 1.6 lb (0.7kg)

What's in the Box

• 2x DesignMax DM2C-LP Loudspeakers
• 2x White Grilles

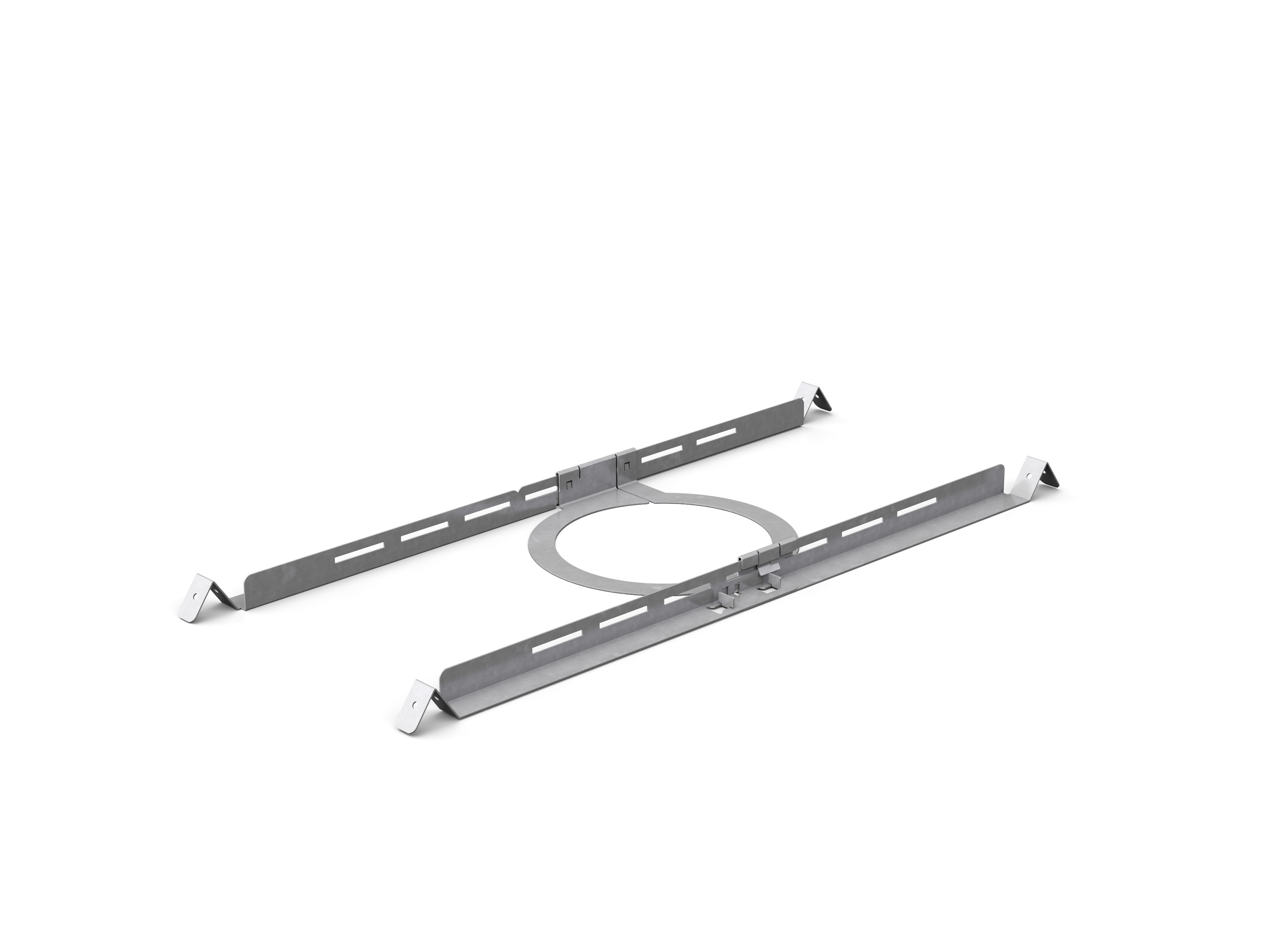

• 2x Tile bridges
• 1x Cutout template
• 1x Installation guide
