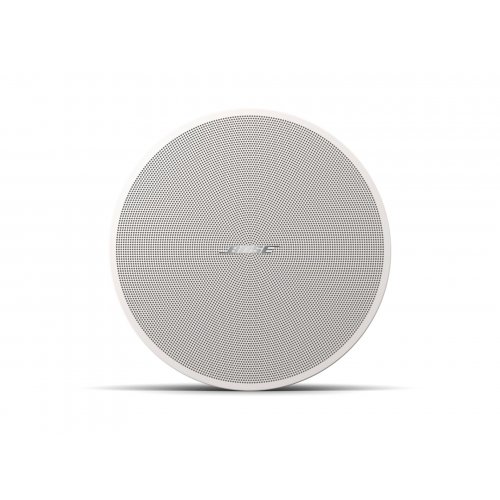

Bose DM3C DesignMax 30W In-Ceiling Loudspeaker (Pair)

About: Bose DM3C DesignMax 30W In-Ceiling Loudspeaker (Pair)

With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3C loudspeaker offers clear, intelligible highs and surprising low end for their size — along with premium aesthetics that complement any commercial sound installation. The DM3C features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3C is ceiling-mounted, installed easily via QuickHold mounting arms.

• Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • NOTE: DesignMax in-ceiling loudspeakers are only sold in white. An optional black grille is available to purchase separately

Specifications

• PERFORMANCE
  • Frequency Range (-10 dB): 75 Hz – 20,000 Hz
  • Coverage, Horizontal: 135° conical
  • Coverage, Vertical: 135° conical
  • Calculated Maximum SPL @ 1 m: 98 dB
  • Nominal Impedance: 8 Ω (transformer bypass)
  • Power Handling, long-term continuous: 30 W
  • Power Handling, Peak: 120 W
  • Recommended Signal Processing: Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m): 83 dB
  • Transformer Taps, 100V: 6, 12, 25 W, bypass
  • Transformer Taps, 70V: 3 W, 6 W, 12 W, 25 W, bypass
• TRANSDUCERS
  • Driver Protection: Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter
  • Crossover: 1.7 kHz, passive 2-way crossover
  • Low-Frequency: 1 x 3.25 in (83 mm) woofer
  • High-Frequency: 1 x 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted
• COMPLIANCE
  • Safety Agency Ratings: UL 1480A, in compliance with UL 2043 for plenum-space installation, NFPA 70 & NFPA 90A, CE-compliant
• PHYSICAL
  • Colors: White, paintable
  • Enclosure Material: Engineered-plastics front baffle with integrated steel-formed backcan
  • Environmental: Indoor only
  • Grille: Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether
  • Ceiling Cutout: 8.2 in (208 mm)
  • Logo: Rotatable, removable
  • Connectors -  Euroblock 6-pin connector with loop-through, front-baffle mounted.
    • Accepts 18 AWG(0.8 mm) to 14 AWG (2.5 mm) size wire
  • Suspension/Mounting
    • (3) QuickHold spring-loaded mounting arms
    • (3) safety cable attachment points
  • Operating Temperature Range: 0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (HxWxD)
    • Loudspeaker Diameter x Depth: 10 x 6 in (225 x 154 mm)
    • Backcan Diameter x Depth: 8 x 5.7 in (203 x 144 mm)
  • Weight (each)
    • Loudspeaker w/ grille: 5.9 lb (2.7 kg)
    • Tile bridge: 1.7 lb (0.8kg)

What's in the Box

• 2x DesignMax DM3C Loudspeakers
• 2x White Grilles
• 2x Tile Bridges
• 1x Cutout Template
• 1x Installation Guide
