Clear-Com HME EQUIP 3 User System
Model: EQP-3UP-US
About: Clear-Com HME EQUIP 3 User System
Clear communication is essential for your production and event crews. The EQP-3UP puts everything you need to bring reliable, high-quality wireless communication to your teams all in one box.
At the heart of the system is the EQP-Base, a wall-mount base station with a clear touchscreen interface for quick setup and monitoring. Pairing headsets is a breeze with NFC tap-to-connect, and the base supports up to four remote transceivers for smooth roaming across your space. It handles up to 40 wireless headsets (sold separately) on the network with 10 simultaneous talkers, and includes Ethernet for browser-based control, remote management, and connection to Clear-Com LQ for tying into other intercom systems or virtual clients.
This bundle includes three EQP-WH dual-channel 5 GHz wireless headsets, each designed for clear, comfortable communication with hands-free operation, plus rechargeable batteries to keep them powered through rehearsals, services, or show days. For hassle-free daily operation, the package also comes with the AC70/PSU-00004 four-bay battery charger, so you can rotate batteries, keep spares ready, and avoid mid-show power surprises.
Get a turnkey wireless intercom solution where rock-solid transmission, ease of use, and reliability come standard. Get the EQP-3UP-US.

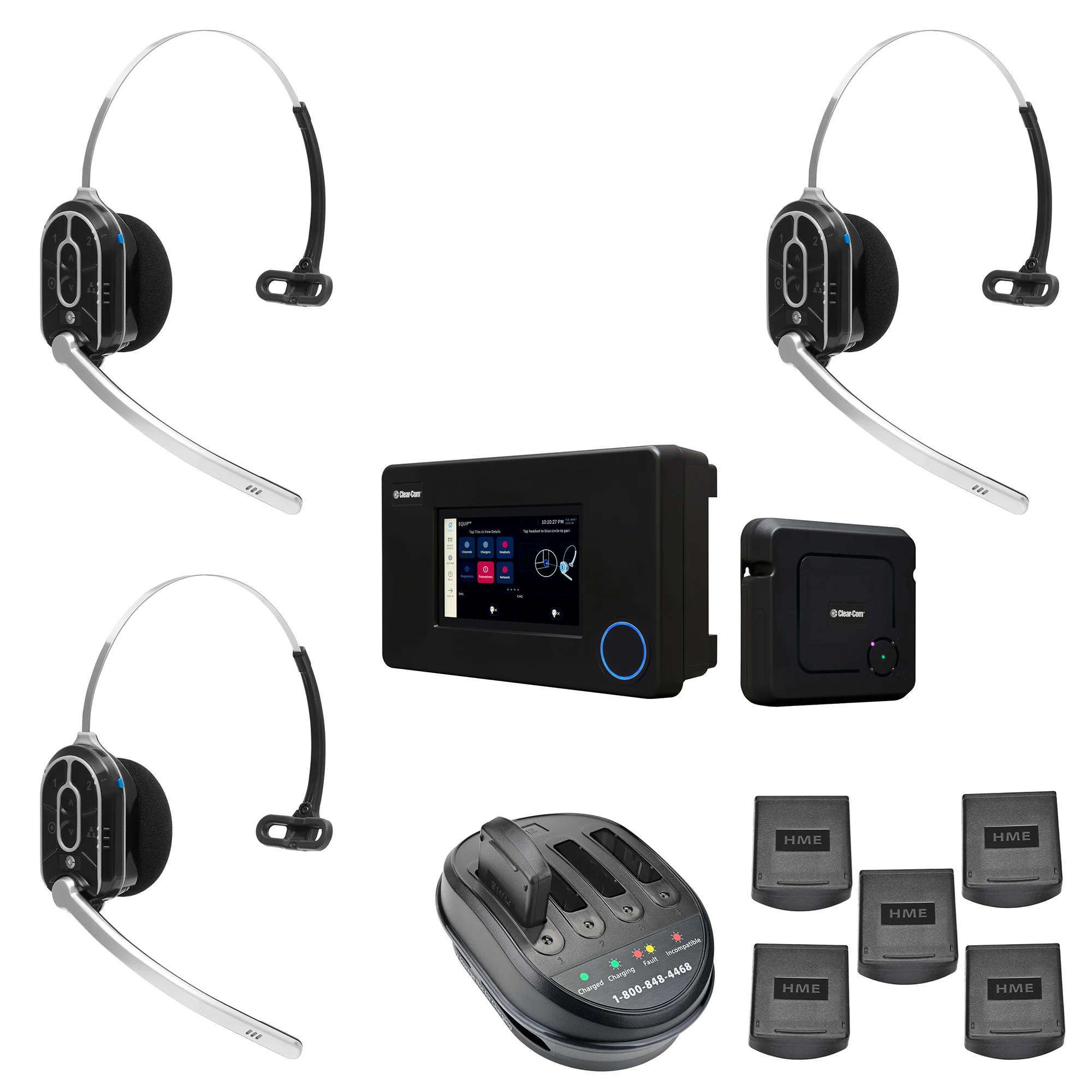

Clear-Com EQP-3UP-US Includes
- 1 x EQP-BASE-US Base Unit
- 1 x EQP-TCVR Transceiver
- 3 x EQP-WH Headsets
- 1 x AC70 4-Way Charger W/ PSU
- 6 x BAT70 Rechargeable Batteries
Clear-Com EQP-3UP-US Features
- Turnkey wireless intercom bundle for production and event crews
- EQP-Base wall-mount station with clear touchscreen for fast setup and monitoring
- NFC tap-to-connect pairing and support for up to four remote transceivers for roaming coverage
- Supports up to 40 wireless headsets (sold separately) with up to 10 simultaneous talkers
- Ethernet connectivity for browser-based control, remote management, and Clear-Com LQ integration
- Includes three EQP-WH dual-channel 5 GHz wireless headsets with hands-free operation
- Rechargeable batteries included; four-bay charger keeps rotation simple and prevents power interruptions
- Reliable, easy-to-run communication system built for rehearsals, services, and live show environments
- Digital audio connection to Clear-Com LQ provides intercom connections and access to virtual clients
Clear-Com EQP-BASE-US Specifications
- LAN: Gbit Ethernet, RJ45
- Audio Bandwidth: 100 Hz to 7 kHz
- Front Panel: LCD type: 800x480 TFT w/ capacitive touch
- Input Voltage: 100 - 240V AC
- Output Voltage: 48V DC
- Current: 1.88A
- Power: 90W
- Operating: 32º-125ºF (0º-50ºC)
- Storage: 32º-150ºF (0º-70ºC)
- Humidity: Between 20% and 90%, Non-Condensing
- Tapered design at largest points
- 7.62 x 12.58 x 3.7 in (HxWxD), (193.6 x 319.5 x 93.2mm)
- Weight: 3.5lbs (1.59 kg)
Reviews: Clear-Com HME EQUIP 3 User System
Warranty: Clear-Com HME EQUIP 3 User System
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All Clear-Com brand systems and products, including wired and wireless belt packs, have a Limited Warranty of two years, with the following exceptions:
- Clear-Com headsets, handsets, microphones, UHF wireless IFB products, and the following DX and PRO products: AC850 Charger, BAT850 Battery, BAT41 and BAT850 batteries, HS12, headsets, remote antenna cables, SP10 Speaker, XLR Adapters and HS20-2 headsets have a Limited Warranty of one year.
- Cables, accessories, components and consumable items including the BP850 battery sled, Beltpack antennas, Beltpack configuration cable, HS4-2 Earpiece, RMK850 Mounting Kit, RAK850 Remote Kit, Beltpack pouch, DX headset extension cable, HS4-3 Earpiece, HSI6000, RMK200, Splitter/Combiner, WS200 Battery Sled, Foam inserts in travel case, CAT-5 cable, base antenna have a Limited Warranty of 90 days.
- Any Clear-Com product that has been classified as obsolete at the time of sale has a Limited Warranty of 90 days from sale and will be replaced with the same product or a sales credit will be issued, at the sole discretion of Clear-Com.
- Clear-Com PRO 850 series wireless base station and Beltpacks have a Limited Warranty of three years.
- Clear-Com UHF WBS Analog wireless intercom systems have a Limited Warranty of three years.
- All software products, including Concert (Client and Server), ECS, EHX, Production Maestro Pro and Logic Maestro are warranted for one year and shall substantially conform to published specifications. The media on which the Software is furnished is warranted to be free of defects in material and workmanship (under normal use) for a period of one year.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Clear-Com do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
