Clear-Com FSII-SPL FreeSpeak II Splitter with Fiber
Model: FSII-SPL
About: Clear-Com FSII-SPL FreeSpeak II Splitter with Fiber

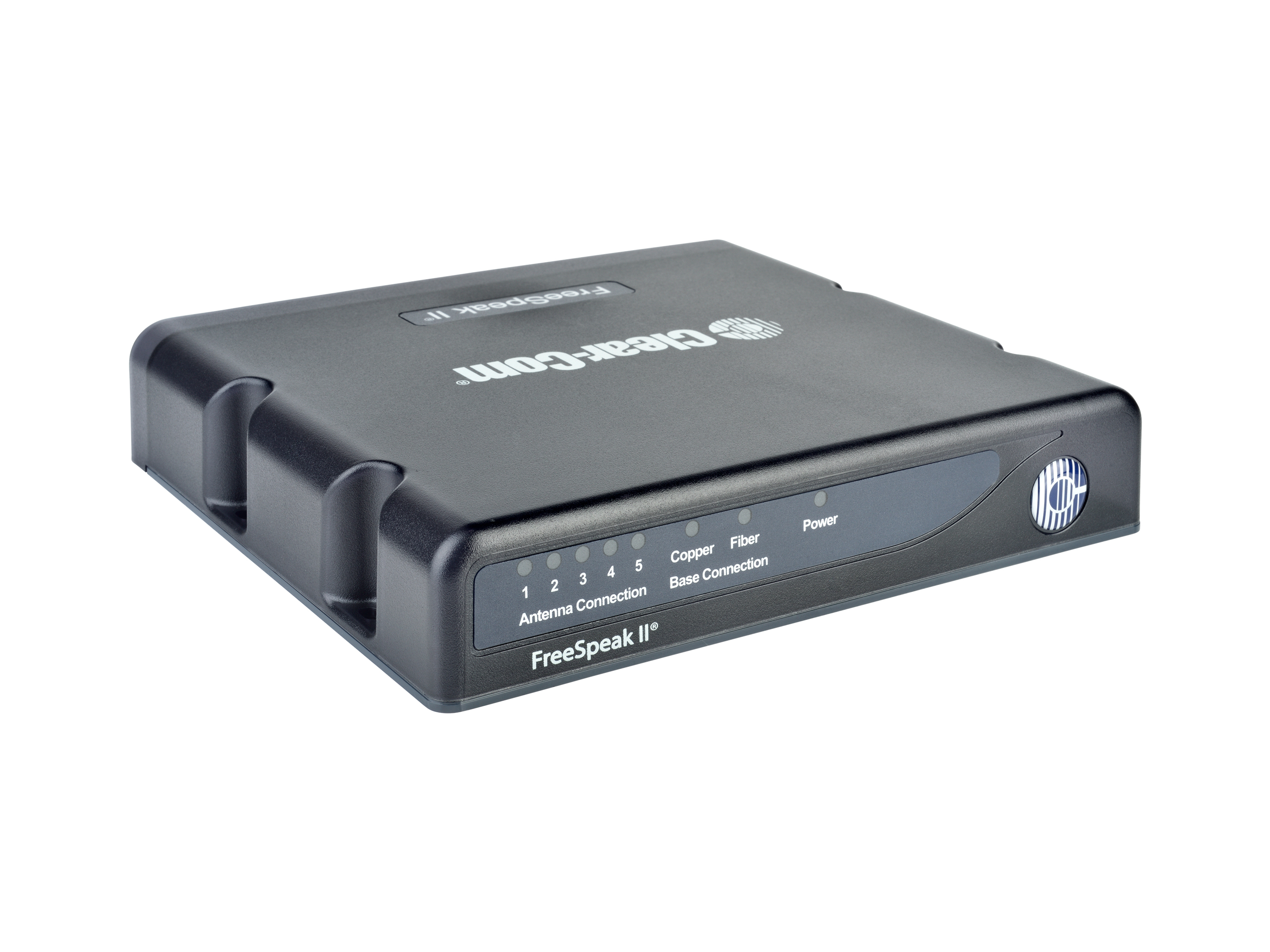

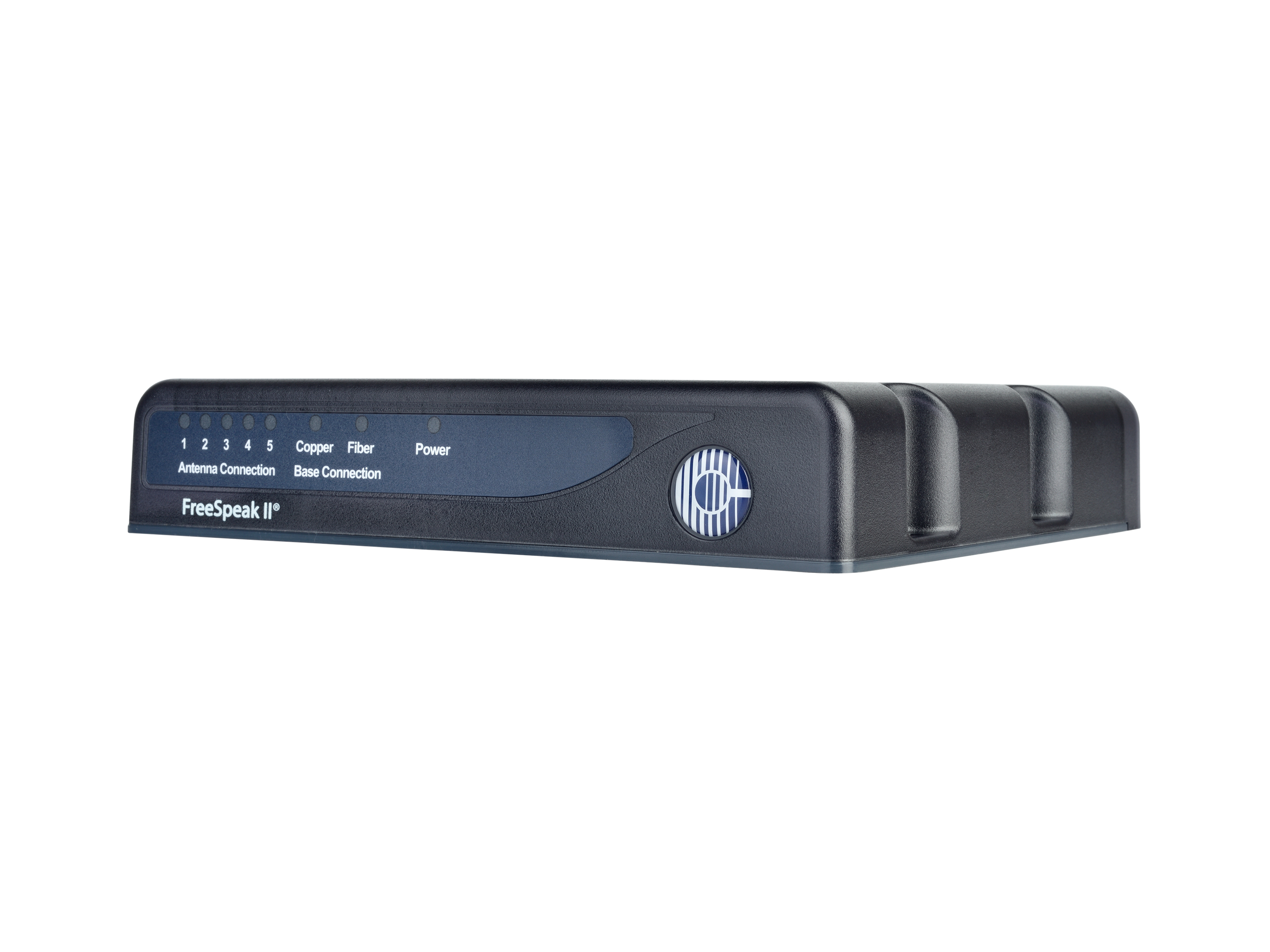

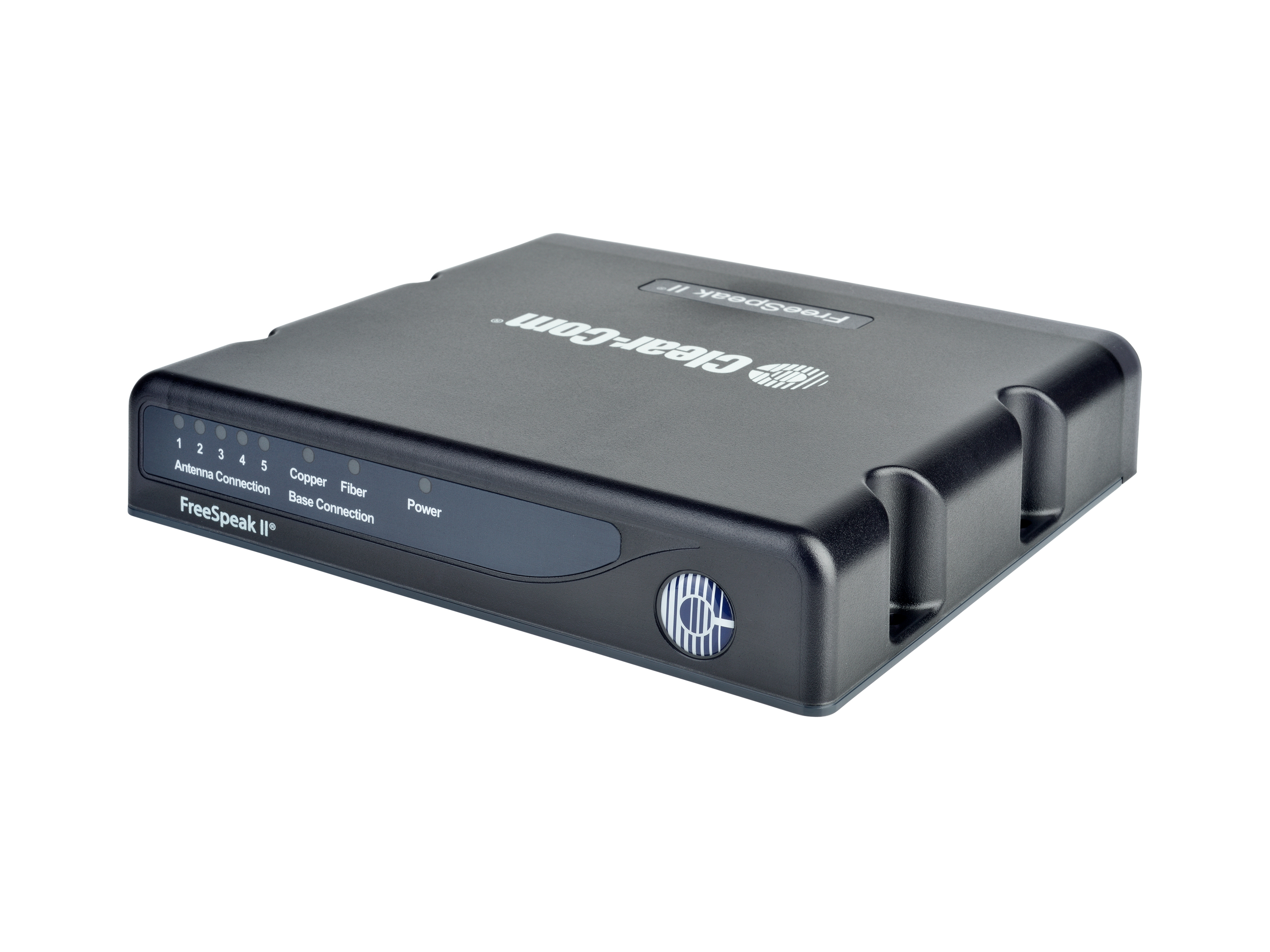

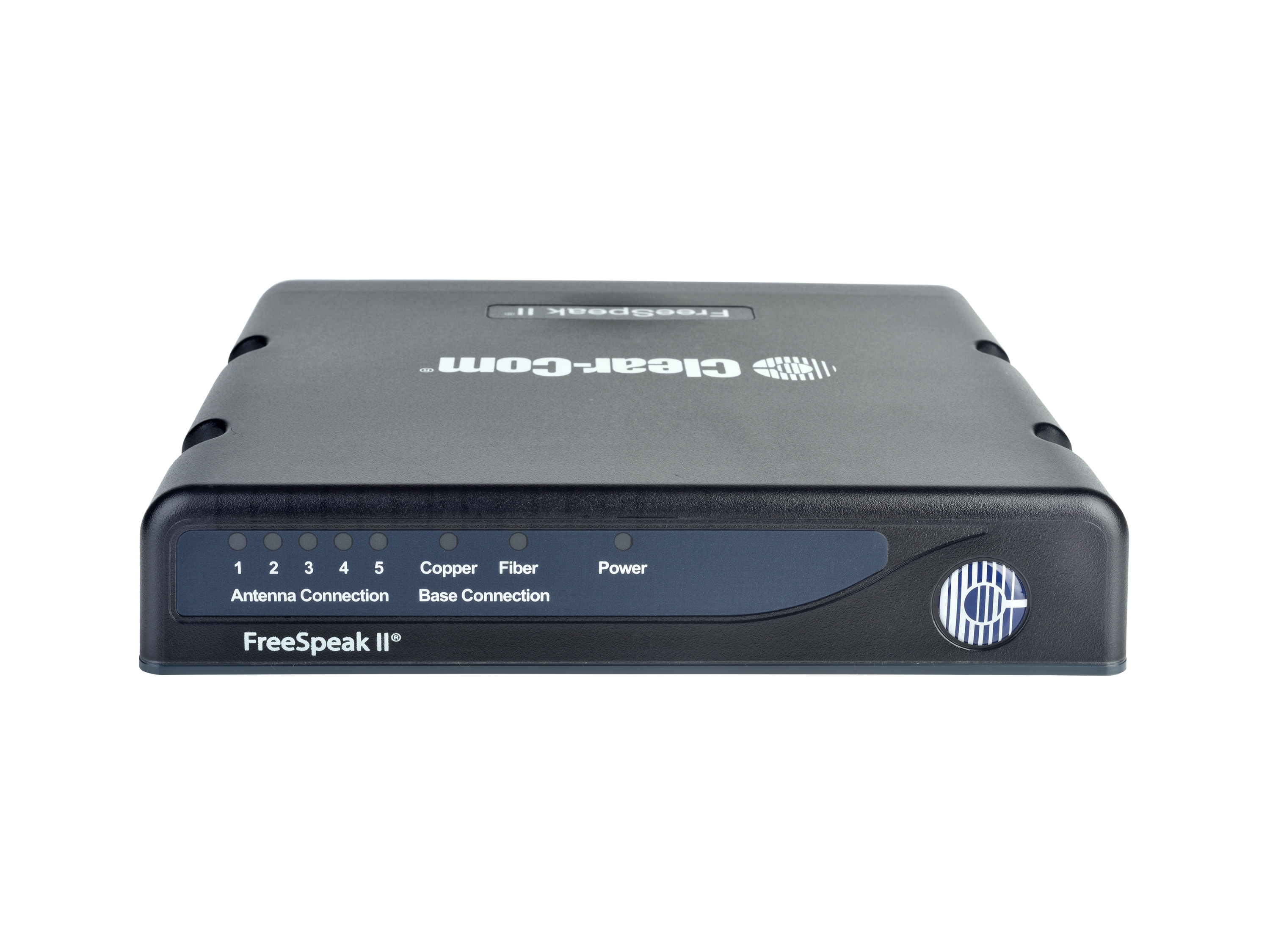

The FSII-SPL is a splitter that connects multiple FreeSpeak II transceiver antennas to an Eclipse HX matrix (via E-IPA-HX card) or a FreeSpeak II base station. The splitter provides up to five antenna feeds from one antenna port and has an SFP fiber slot for fiber connectivity.
- Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards
- Provides 5 FSII transceiver antenna feeds on 1 antenna port on FSII-BASE-II station or E-IPA-HX card
- SFP fiber slot for fiber link to FSII-BASE-II or for connecting FSII-BASE-II
- Supports both multi-mode and single-mode fiber
- Configure settings using DIP switches

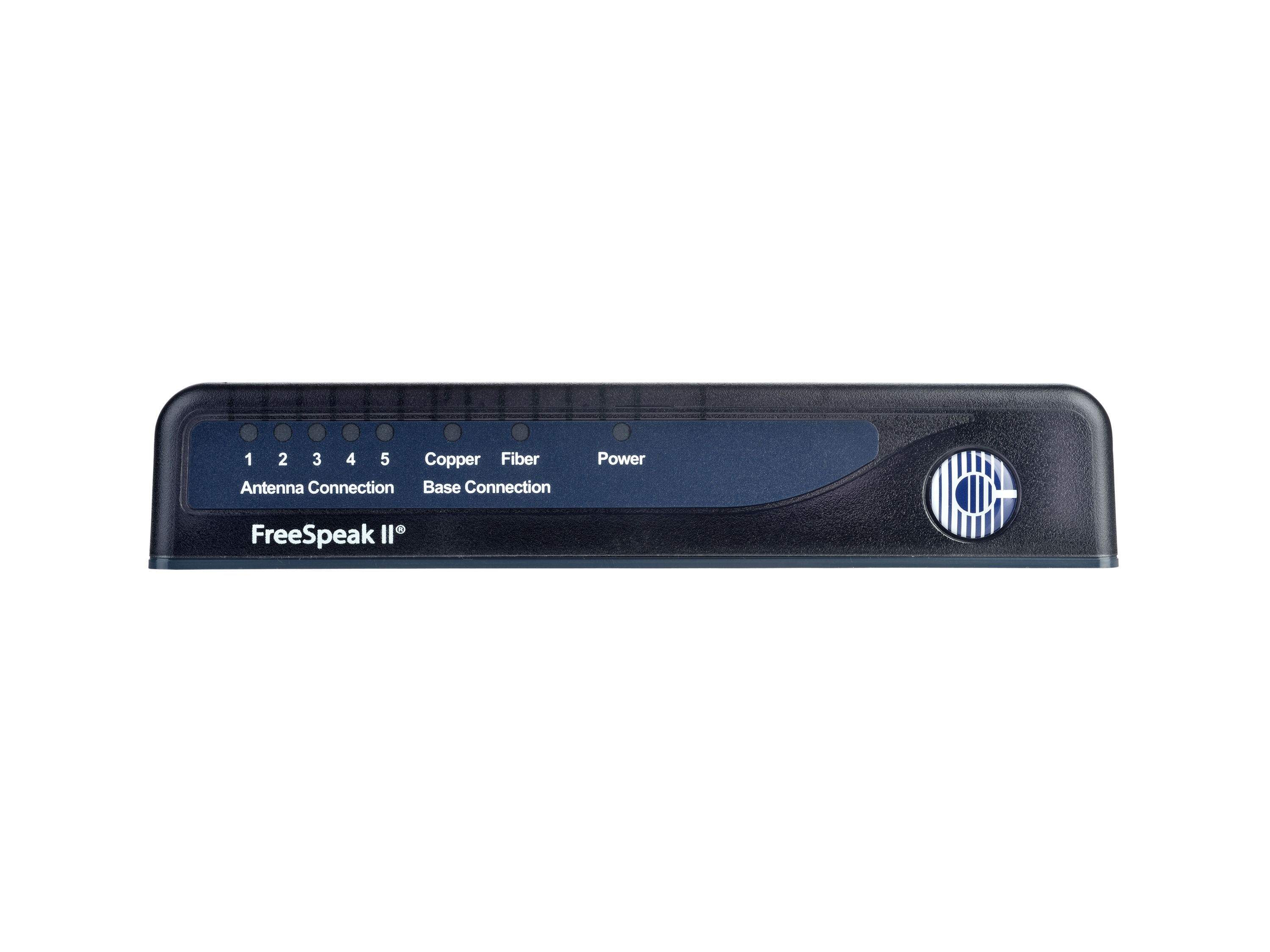

- LED status indicator on front and back
- Mic stand or wall mount orientation (metric and imperial threads)
Fiber Connectivity
Using the SFP fiber slot, the FSII-SPL provides a fiber link between the FSII-BASE-II base station and splitter (base-to-splitter) or it can be used to connect on legacy FreeSpeak II base stations and the Eclipse HX frames over fiber via the E-QUE-HX interface card (splitter-to-splitter).
Mounting Options
The splitter can be mounted on a flat surface or on a microphone stand. LED indicators are located on the front and back of the unit to show status in any mounted position. Requires an external power supply (included).
Specifications

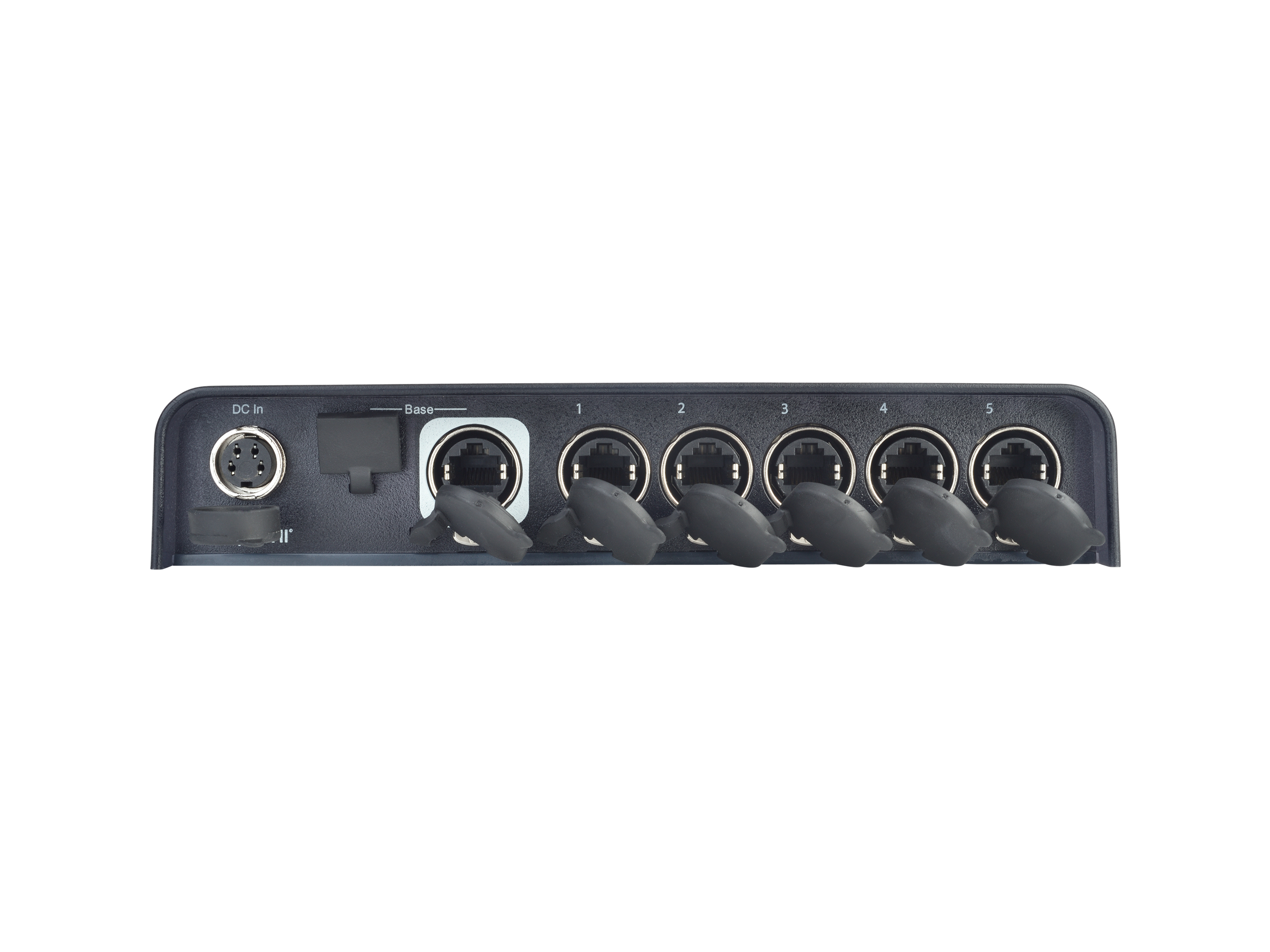

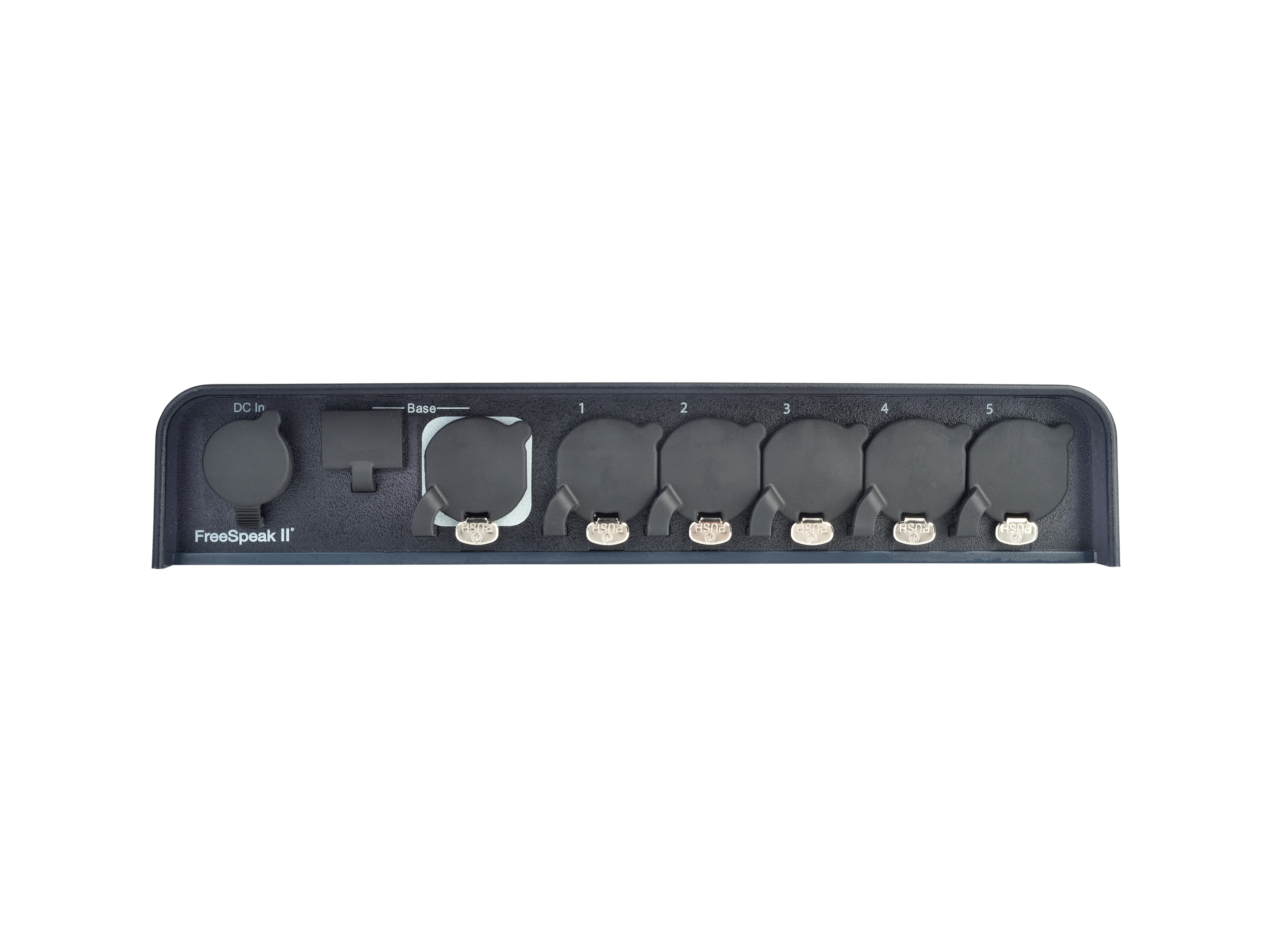

- Connections
- Transceiver Antenna: 5 Ethercon RJ45, each with yellow LED indicators on front and back
- Matrix: 1 Ethercon RJ45, with yellow LED indicator on front and back
- Fiber: 1 SFP port
- Power
- Splitter: Requires external power supply (included)
- Transceiver Antenna: Provides power to antennas via RJ45 connections
- Mounting Options
- Wall Mount with 4 mounting points
- Mic Stand Mount (metric and imperial threads)
- Environmental
- IP Rating: IP63 water resistance for outdoor use
- Operating: 32º-125ºF (0º-50ºC)
- Dimensions (HxWxD): 1.7 x 8.8 x 7.7 in (43.2 x 223.5x 195.6mm)
- Weight: 1.52 lbs (0.69kg)
