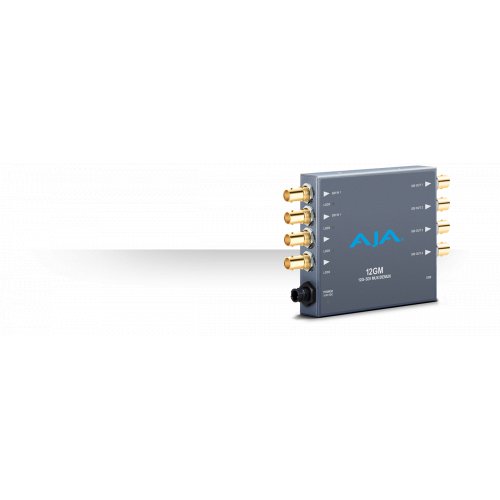

AJA 12GM - 12G-SDI to/from SDI Muxer/DeMuxer

About: AJA 12GM - 12G-SDI to/from SDI Muxer/DeMuxer

12GM is a compact SDI transport converter that enables 12G-SDI to Quad 3G-SDI and Quad 3G-SDI to 12G-SDI conversion. The Muxer/ DeMuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from multi-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates.

Features

• Compact 12G to/from 3G conversion
• SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs
• Converts SMPTE 425M A to/from SMPTE 425M B
• Fully equalizing and reclocking with jitter attenuation
• If SMPTE 292M is input, all outputs are 1.5G SMPTE 292M
• DWP-U-R1 power supply included
• Five Year warranty

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed

All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.
