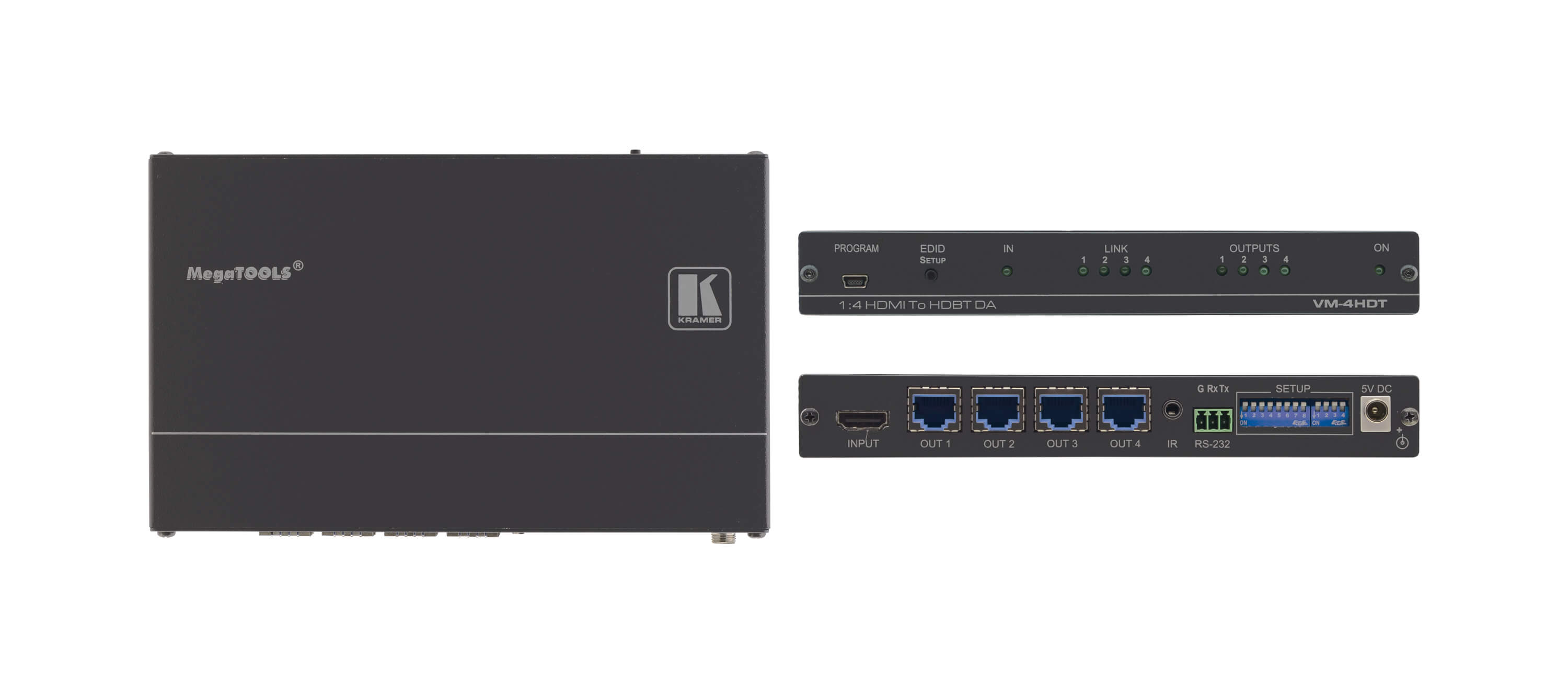

Kramer VM-4HDT 4K HDMI to HDBaseT 1x4 DA

About: Kramer VM-4HDT 4K HDMI to HDBaseT 1x4 DA

VM-4HDT is a high−quality, long−reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one HDMI input, with IR and RS−232 control signals, converts them to HDBaseT extension line signal and distributes it to four HDBaseT outputs that connect to compatible HDBaseT receivers.

• High Performance Distribution — Distributes one HDMI signal to four long–reach HDBaseT extension outputs with up to 4K video resolution, and additional HDMI LOOP output for connecting a local monitor or an additional unit in a daisy chain.
• Extension–line Distribution — Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long–reach, and even further for lower video resolutions.
• Standard Compatibility — Connects to any HDBaseT compliant extension product on the market.
• HDMI Signal Transmission — HDMI 2.0 and HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ — An intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
• User–Friendly Operation — Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
• Easy Installation — Twisted–pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side rack mounting.

Specifications:

Inputs

• 1 HDMI: On an HDMI female connector

Outputs

• 4 HDBT: On RJ–45 female connectors
• 1 Loop HDMI: On an HDMI female connector

Ports

• 1 IR: On a 3.5mm mini jack for IR link extension
• 1 RS−232: On a 3–pin terminal block for serial link extension

Video

• Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
• Max. Resolution: Up to 4K@60Hz (4:2:0) 24bpp
• Standards Compliance: Supports HDMI 2.0, HDCP 1.4 and HDBaseT 1.0

Extension Line

• Up to 40m (130ft): At 4K@60Hz (4:2:0) (when using Kramer HDBaseT cables)
• Up to 70m (230ft): At full HD (1080p @60Hz 36bpp) (when using Kramer HDBaseT cables)

User Interface

• Controls: EDID setup button, 12 setup DIP switches
• Indicator LEDs: Outputs, inputs, communication link and power
• 1 RS-232: On a Mini–USB female connector for firmware upgrade

Power

• Source: 5.2V DC, 4A
• Consumption: 5V DC, 2.1A

Enclosure

• Size: MegaTool
• Type: Aluminum
• Cooling: Convection ventilation

Environmental Conditions

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

Accessories

• Included: Power supply

Product Dimension

• 18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H

Product Weight

• 0.5kg (1.1lbs) approx.
