ATC SCS120iW Pro 15in Active Subwoofer - In-Wall

About: ATC SCS120iW Pro 15in Active Subwoofer - In-Wall

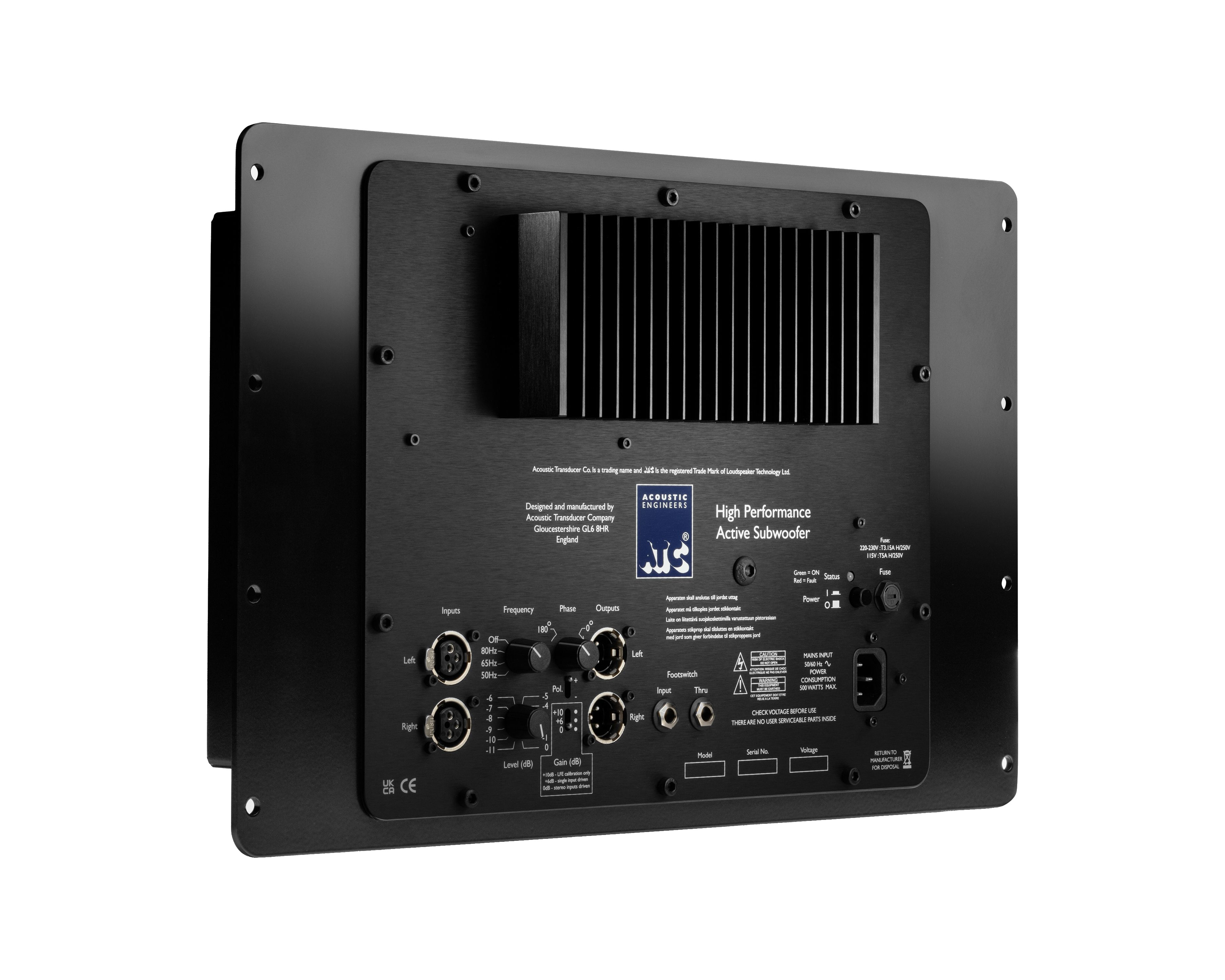

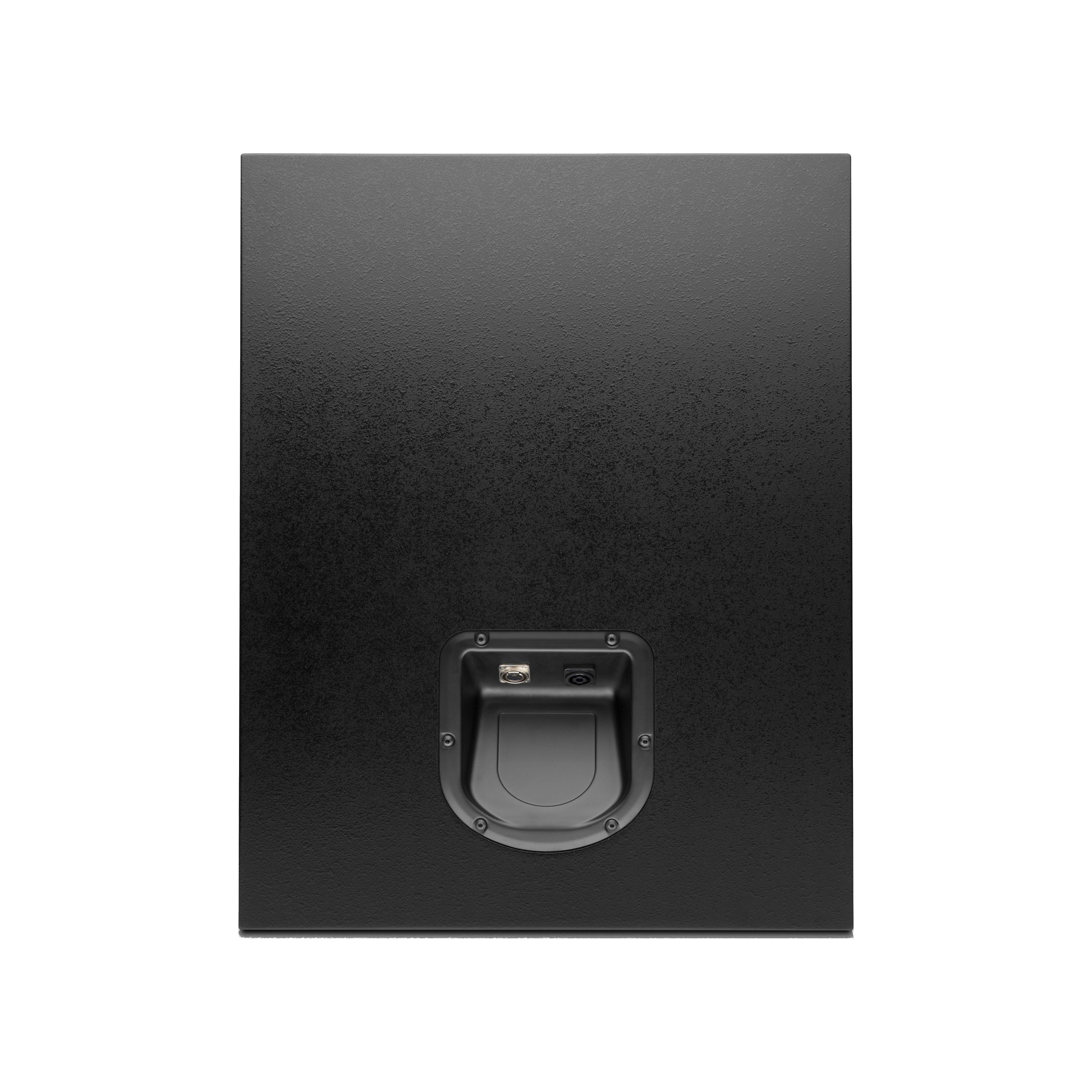

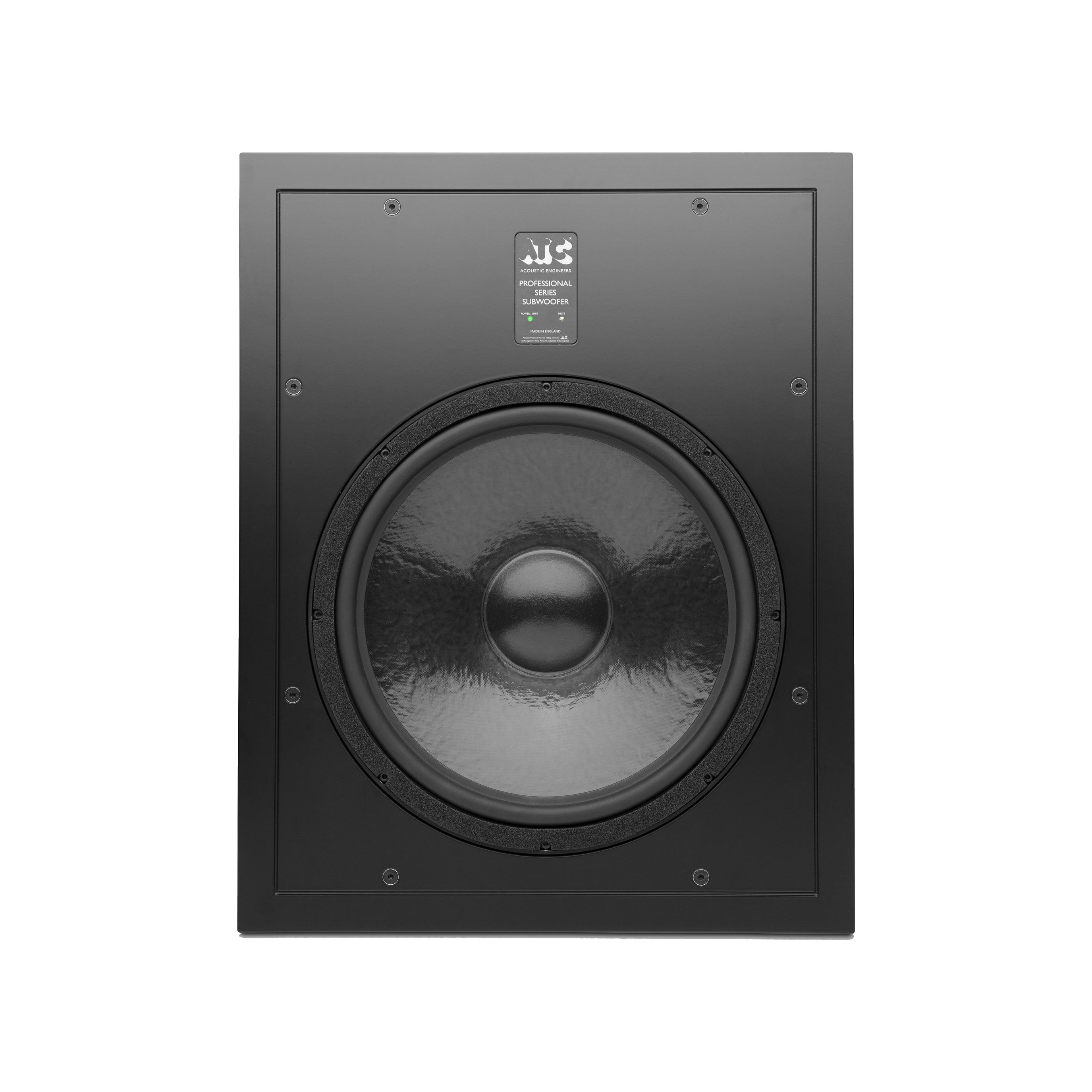

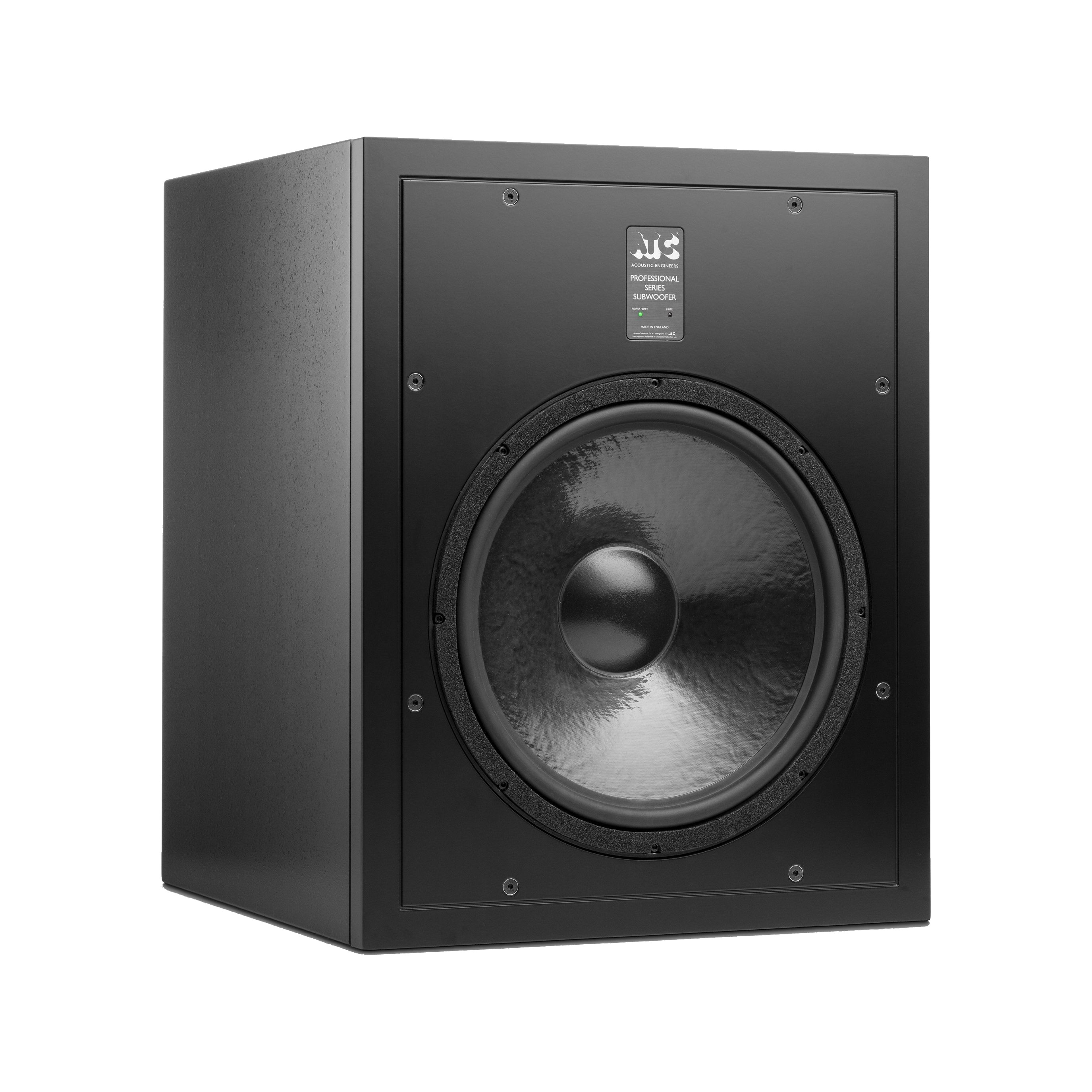

The ATC SCS120iW Pro is a 15” (375mm) active subwoofer optimized for flush in-wall mounting, featuring a shallower cabinet, and recessed rear input connector panel, maximizing floor space. It is the ideal partner to in-wall mounted mid-field and main ATC monitors in stereo, multichannel, and immersive audio applications. The accompanying R1-300 Pro remote-mounted 7U/19” amplifier offers the user the flexibility to install the amplifier in a suitable wall close to the subwoofer, in a control room rack, or in a machine room, with connections made via NL4 speaker and 5-pin XLR cables (sold separately).

• High performance sealed box design using 15” (375mm) ATC proprietary sub driver
• Ideal partner to the SCM45A/SCM50A/SCM100A/SCM110A/SCM150A/SCM200A/SCM300A Pro monitors
• Suitable for use in stereo, surround and immersive audio applications
• R1-300 Pro 7U/19" 300W convention cooled discrete MOSFET class A/B rack mount amplifier
• 2x balanced XLR inputs
• 2x balanced XLR outputs (un-filtered/processed)
• User adjustable gain, low pass frequency, polarity and phase settings
• Remote sub muting via latching footswitch*
  • * Footswitch supplied separately, latching type, ¼”/6.35mm jack connection
• Free standing variant also available – the SCS120 Pro

Specifications

• Acoustic
  • Drive Unit – Bass: 1 x ATC SS75-375SC 8Ω
  • Low Frequency Cut-off: 20Hz (-6dB, half space, low pass filter set at 80Hz)
  • Low Pass Filters: 50Hz, 65Hz, 80Hz, 320Hz. (-6dB, 4th order Linkwitz Riley)
  • MaxSPL: 113dB continuous, 119dB peak (IEC Weighted Pink Noise, measured at 1m, half space, low pass filter set at 80Hz)
  • Sensitivity: 85dBC, ref. -17dBu (single channel driven, Gain +6dB, Level 0dB, pink noise, low pass filter set at 80Hz)
• Electronic
  • Balanced Input: 2 x Female XLR, pin 2 hot
  • Input Impedance: Approx. 20kΩ (differential)
  • Input CMRR: 90dB at 200Hz
  • Input Sensitivity: 1.12Vrms for full power (single channel driven, Gain 0dB, Level 0dB)
  • Gain Control: 0, +6dB, +10dB
  • Level Control: 0dB -11dB in 1dB steps. Total range 21dB with use of Gain switch
  • Phase Control: 0-180° ref. Input
  • Polarity Control: In-phase/Out-of-phase ref. Input
  • Low Pass Filters: 4th Order Linkwitz Riley
  • Output Impedance: Approx. 100Ω (differential)
  • Amplifier type: Grounded Source MOSFET based Class A-B, convection cooled
  • Output Power: 300W in to 8Ω
  • THD+N: <0.003%/-90dB, at 100Hz, 300W into 8Ω over 90kHz bandwidth
  • Frequency Response: <2Hz (-3dB) – 320Hz (-6dB, set by panel-controlled LP filter)
  • Limiter: ATC Active FET Momentary Gain Reduction, active limiter indicated on front panel
  • Electronic Amp Protection: Amplifier D.C Offset and over-temperature (both indicated on rear panel)
  • Power Consumption: Idle 16W/60VA, 1/8th Power 170W/230VA, Full Power 500W / 600VA
  • Mains Input: 220-230V, 115V – Factory set. Please observe panel markings and labels
  • Heat Output: Idle 47.8 BTU/hr, 1/8th Power 458.9 BTU/hr, Full Power 682.4 BTU/hr
  • Additional: Mute via ¼”/ 6.35mm Jack socket, controlled via latching footswitch
• Physical
  • Dimensions (WxHxD)
    • ​Subwoofer: 19.61 x 24.8 x 20.39 in (498 x 630 x 518mm)
    • R1-300 Amp: 19.02 x 12.21 x 4.96 in (483 x 310 x 126mm)
  • Weight
    • Subwoofer: 77.8 lbs (35.3 kg)
    • R1-300 Amp: N/A
