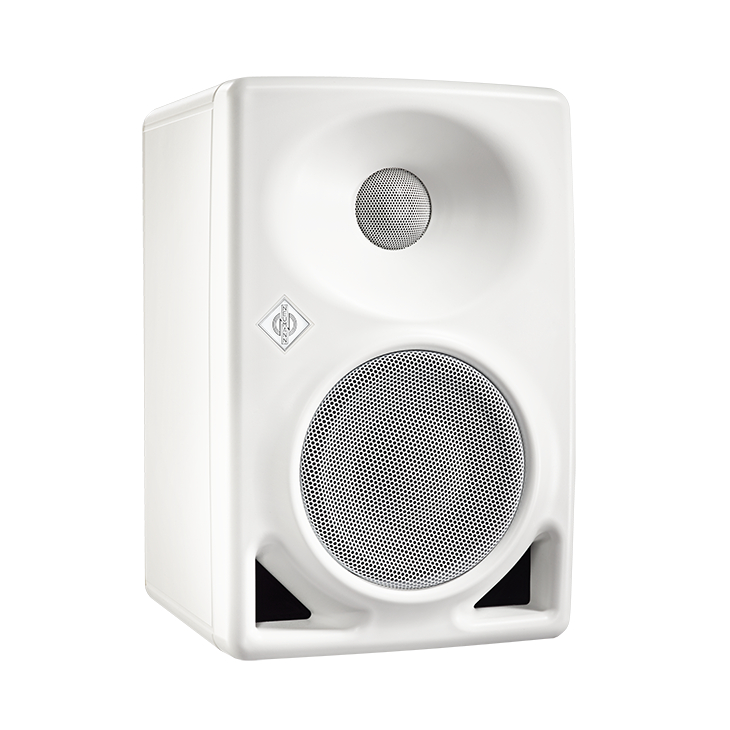

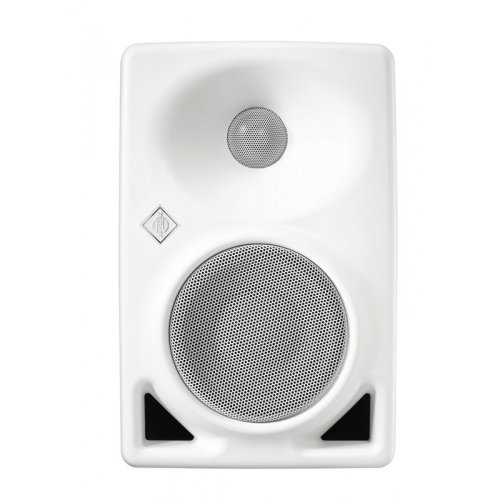

Neumann KH 80 DSP Studio Monitor (Each) - White

About: Neumann KH 80 DSP Studio Monitor (Each) - White

Ultra-compact, DSP-controlled bi-amplified near-field monitor with exceptional power reserves.

With its digital core, the KH 80 DSP enables filtering functions and room adjustment options, which brings reference level reproduction to any environment. Even with its compact design, it has extraordinary reserve capacity - as well as the classic strengths of the Neumann monitor philosophy: clearly defined dispersion angle, distortion-free design and sophisticated material selection.

• New DSP engine optimizes output to achieve reference class sound
• Mathematically optimized dispersion to deliver excellent detail in any surroundings
• Optional tools for room alignment, configuration und control

The perfect sound of higher mathematics at work

The Neumann developers know every nuance, every angle and every wave reflection of the KH 80 DSP. It sounds so pure because they are directing every sound wave so precisely. The KH 80 DSP’s design is based on computer simulations that calculate with a level of accuracy that no one other than Neumann does. The Mathematical Modeled Dispersion Waveguide (MMD) provides the studio series with a solid base for precise sound direction that remains unique. Maths has never sounded so good.

Neumann even includes the biggest unknown factor in our calculations: Your room

It might be a project studio, an outside broadcast van, a corner at work or just a brick building: The room defines the sound. Surfaces and corners in the room cause interference, diffraction, reflection, and refraction: all are forms of distortion. For a really true sound, without acoustic-physical “accidents”, you normally need expensive equipment plus plenty of time and expertise to align it correctly – or smart algorithms. An easy adjustment to the monitor position (free standing, small/medium/large desk) is possible via the rear "Acoustical Control" switch.

For even more precise adjustments we offer the following options:

• Automatic Monitor Alignment – Automatic room correction of stereo systems using the Neumann MA 1 measurement microphone (software for Mac/PC)
• Neumann.Control – Free iPad-App for setup, operation, and room correction of up to nine KH 80 DSP monitors via guided and/or manual alignment

A tool for everyone who has professional standards

Highest quality components, high-end protection systems and power reserves are what you would expect from this studio class product even under the most demanding circumstances. Its design makes the KH 80 DSP a versatile near-field monitor, which delivers professional-quality sound wherever you need it – in project and music studios, editing and broadcasting rooms or in outside broadcast vans. Some of our customers like it so much, they use the KH 80 DSP in their living rooms. Why not? After all, the KH 80 DSP delivers digital precision for a masterpiece of analog technology: your ears.

The KH 750 DSP subwoofer is the perfect complement to the KH 80 DSP.

The KH 80 DSP has also been developed true to the Neumann philosophy for monitor loudspeakers. Every component, every shape, every signal and every wave motion is a consequence of this philosophy. No form or component is there without reason. There are hundreds of tangible reasons built into the KH 80 DSP, which all stand for exceptionally pure and neutral sound. These include, for example, curvatures of the housing that reduce edge diffraction. Also included is the pistonic output of the bass driver which does not give rise to harmonic distortions, even with the highest sound peaks. Some of these reasons are obvious in the KH 80. Others Neumann prefers to keep to itself. But together, each can be heard – sound professionals in both large and small studios all around the world can testify to this.

Advice

This device supports Sennheiser Sound Control (SSC) based on TCP and IPv6. The static IPv6 address of the device can be found using mDNS. For more information on SSC, please refer to the Sennheiser website.

• In-house simulated tweeter with alloy fabric dome
  • Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion
  • Low-distortion high frequency reproduction
• Elliptical Mathematically Modelled Dispersion (MMD) waveguide
  • Smoother off-axis response
  • More forgiving of diverse acoustical environments
  • Wide horizontal dispersion
    • Freedom of movement across the mixing console
  • Narrow vertical dispersion
    • Reduces reflections off the mixing console
• Two-color Neumann logo
  • Displays operation status and activation of the extensive protection system
• In-house modelled long-throw composite sandwich cone bass driver with Extremely Linear Force Factor (ELFF) and flow optimized die cast basket
  • Damping of break up modes brings low distortion at high sound levels
  • Linear pistonic motor gives a very low harmonic distortion even at high excursions
  • Reduced air noise and improved rocking modes
• Robust metal grilles
  • Protects against mechanical damage
• Large high-capacity flow-optimized bass reflex ports with pipe resonance damping
  • Fast bass transient response
  • Reduced bass compression at high output levels
  • No coloration from organ pipe resonance
  • Easier to mount in tight spaces
• Compact polycarbonate composite cabinet
  • Robust package for a long life
  • No standing wave resonances
  • One-piece front panel with no discontinuities
    • Reduced diffraction and smoother frequency response
• Standby function
  • Reduces power consumption when product is not in use
  • Control function
  • Use the back panel controls or the control set defined by the Neumann.Control iPad@ app
• 4-position low-mid acoustical control
  • Compensates for nearby desktops
  • Fast acoustical set up in mobile applications
  • Repeatable acoustical settings after moving loudspeakers
• Wide range input gain and output level controls
  • Easier interfacing with signal sources
• Fully documented extensive mounting hardware range
  • More flexibility in mounting cabinets in more diverse locations and backwards compatible to previous products
  • Easy advanced planning for installations
• Universal double-insulated switched-mode power supply (100 … 240 V)
  • One version works in any country and robust to poor quality mains supply
  • Ground loops are impossible
• Network connector using standard IP protocol and your existing network infrastructure
  • Loudspeaker system can be controlled via the Neumann.Control iPad@ app
• Analogue input socket can accept XLR or 6.3 mm (1/4”) Jack plugs, electronically balanced with completely symmetrical internal signal chain
  • Completely symmetrical internal signal routing minimizes noises caused by external electromagnetic interference

More Features

• Production consistency due to automated computer optimized alignment in final testing
  • Any KH 80 DSP is “pair matched” to any other KH 80 DSP
• Separate fast acting thermo limiters for woofer and tweeter to protect the voice coils and power amplifiers
  • Woofer soft clip and excursion limiters
  • Fast acting and highly reliable
  • Allows extraction of the maximum performance
• Low heat dissipation amplifiers with large headroom and overheat limiting
  • Improved transient response
  • Assured reliability and safety
• Linear phase crossover
  • Flat phase response for timing transparency
• With Neumann.Control iPad app:
  • 8 x Precision Alignment acoustical controls: Accurate and flexible alignment of the loudspeaker in the room and within systems
  • Lip-sync delay: To align audio and video signals up to 1.75 frames at 50 Hz or 2.1 frames at 60 Hz
  • Time-of-flight delay: To compensate for listening distance differences up to 24 m (79 ft.)
  • Dimming the Neumann logo for low lighting level conditions or behind the screen applications

Specifications

• Acoustics
  • Free field frequency response ±6 dB: 53 Hz … 21 kHz
  • Free field frequency response ±3 dB: 57 Hz … 21 kHz
  • Pass band free field frequency response (reproduction accuracy): 61 Hz … 20 kHz, ±1.25 dB
  • Free field frequency linearity deviation between 100 Hz and 10 kHz: ± 0.7 dB
  • Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced: ±0.26; ±0.23; ±0.17 dB
  • Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu): <20 dB(A) SPL
  • Sine wave output with a THD < 0.5 % at 1 m in half space: 90 dB SPL (>200 Hz)
  • Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 108.8 dB SPL
  • Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 102.8 dB SPL
  • Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz): 96.8 dB SPL
  • Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions: 104 dB(C) SPL
  • Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range): 93 dB(C) SPL
  • Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer): 100 dB(C) SPL
  • Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range): 88 / 93 dB(C) SPL
  • Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer): 91 / 96 dB(C) SPL
  • Dolby DARDT. Max SPL fullrange: 113 dB
  • Dolby DARDT. Max SPL bass managed: 118 dB
  • Recommended Listening Distance: 0.75 … 2.0 m (2'6" … 6')
  • Feasible Listening Distance: 0.5 … 3.0 m (2`… 9`)
  • Acoustical Principle: Bassreflex, Ports at the front
• Analog Inputs and Outputs
  • Analog input(s): XLR / 6.3 mm (¼”) Jack: analog electronically balanced
  • Analog input impedance: 14k Ohms
  • Max. input level: +24 dBu for 94 dB SPL setting; +18 dBu for 100 dB SPL setting; +10 dBu for 108 dB SPL setting; +4 dBu for 114 dB SPL setting
  • Common mode rejection ratio (CMRR): >56 dB @ 15 kHz
  • Volume control: via Neumann.Control software
  • Volume control range; resolution: 0 … -∞ dB; 0.1 dB
  • Analog dynamic range; THD+N (A-D-A): 111 dB(A) woofer; 112 dB(A) tweeter
• Digital Inputs and Outputs
  • Digital converter: resolution; design: 24-bit DAC; Δ∑
  • Digital converter: sampling rate: 48 kHz
  • Digital internal sampling rate: 48 kHz
  • Dynamic range A-D: 114 dB(A)
  • Dynamic range D-A: 114 dB(A) woofer; 117 dB(A) tweeter
  • Latency ADA / DA: 2 ms (A-D-A linear phase)
  • Delay: User adjustable delay range: 0 … 70 ms
  • Delay: Resolution: time; distance: 0.1 ms; 3.44 cm (1 3/8”)
  • Delay: Max. frames Audio-video synchronisation (lip sync): 1.75 (40 ms frames); 2.1 (33 ms frames)
  • Delay: Time-of-flight maximum distance: 24 m (79 ft)

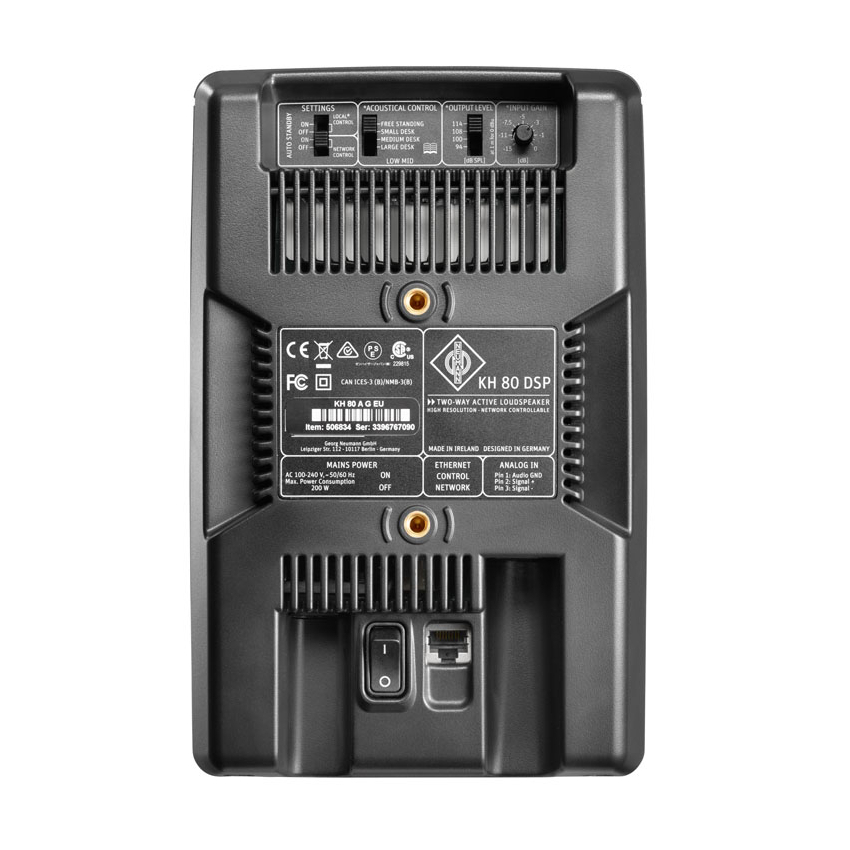

• User Interfaces (Backplate)
  • Input gain control (sensitivity): 0 dB ... -15 dB
  • Output level control (output level in 1 m based on 0 dBu input level): 94; 100; 108; 114 dB SPL
  • Equalization: Low-Mid: 0; -1.5; -3; -4.5 dB
  • Control: Local; Network
• Electronics - Controller
  • Controller design: Digital; active
  • Crossover frequency: 1.8 kHz
  • Crossover slope: 48 dB/oct; 8th order with phase correction
  • Equalization: via Neumann.Control software: 8 x full parametric IIR + low / high shelf global balance
  • Automatic room calibration via MA 1: yes
  • FIR phase correction: Linear phase (170 Hz ... 16 kHz; +/- 45°)
  • Protection circuitry: Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
  • Infrasonic filter: frequency; slope: 61 Hz; 12 dB/Okt.
  • Remote control: Neumann.Control software via an RJ45 connector carrying standard IP data
  • Display: On; Normal Operation: Neumann logo “White”
  • Display: Identification: Neumann logo “Rosé”
  • Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute: Neumann logo “Red”
  • Display Brightness: via Neumann.Control
• Electronics - Amplifiers and Power Supply
  • Output power woofer amplifier (THD+N with limiter deactivated: 10%): 120 W
  • Output power tweeter amplifier (THD+N with limiter deactivated: 10%): 70 W
  • Output power woofer amplifier (THD+N with limiter deactivated: 0.1%): 90 W
  • Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%): 50 W
  • Mains Power Supply: input voltage; frequency: 100-240 V; 50/60 Hz
  • Power consumption (230 V / 100 V): Standby: <330 / <50 mW
  • Power consumption (230 V / 100 V): Idle: 9 / 8 W
  • Power consumption (230 V / 100 V): Full output: 180 W
  • Standby: Disabled; 90 mins (default); user defined in software
• Mechanics
  • Cabinet material: Composite polycarbonate
  • Cabinet surface finish; color (front / back): Painted, White (RAL 9016)
  • Operating conditions: +10° C to +40° C (+50° F to +104° F); <75% RH; non-condensing
  • Transport/storage conditions: -25° C to +60° C (-13° F to 158° F); <90% RH; non-condensing
  • Woofer: 100 mm (4") with protecting white metal grille
  • Tweeter: 25 mm (1") with protecting white metal grille
  • Mounting points: 2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm (5/8”)
  • Product dimensions (height x width x depth): 233 x 154 x 194 mm (9 1/8" x 6" x 7 5/8")
  • Internal net volume: 3.7 liters
  • External net volume: 6.7 liters
  • Product weight: 3.5 kg (7 lbs 8 oz)
  • Acoustical Axis horizontal: 77 mm
  • Acoustical Axis vertical (from bottom): 129 mm

What's Included

• 1 x KH 80 DSP Studio Monitor
• 4 x Self-adhesive feet
• 1 x Mains Cable US
• 1 x Safety Guide
• 1 x Supplement “Getting Started Quickly”
