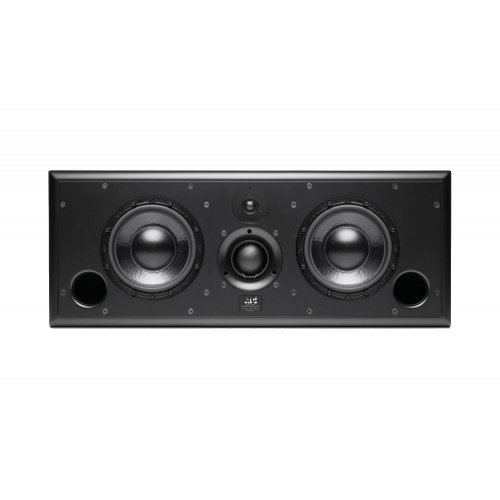

ATC SCM105AC Pro 3-Way Active Mid-Field Centre Channel Studio Monitor

Model: ATC-SCM105AC

$13,499.00 CAD

Find it for Less? Let us Know.

Shipping Charges Apply
More Coming Soon! Contact us for Lead Time
Not yet reviewed

More models to choose from:

In-Wall$13,499.00

Standing$13,499.00

About: ATC SCM105AC Pro 3-Way Active Mid-Field Centre Channel Studio Monitor

The SCM105AC has been designed specifically as a centre channel monitor, with reduced cabinet height, to ease fitment in crowded control rooms.

It is based upon the SCM110A Pro mid-field monitor and can partner a range of ATC 3-way mid-field monitors in 5.1, 7.1 surround or immersive audio formats such as Dolby Atmos.

Low height cabinet design to simplify install in crowded control rooms.
Symmetrical driver layout.
Ideal partner for the SCM50/100/110A Pro stereo monitor loudspeakers*.
- * Can also partner SCM150A Pro but max SPL capability must be considered.

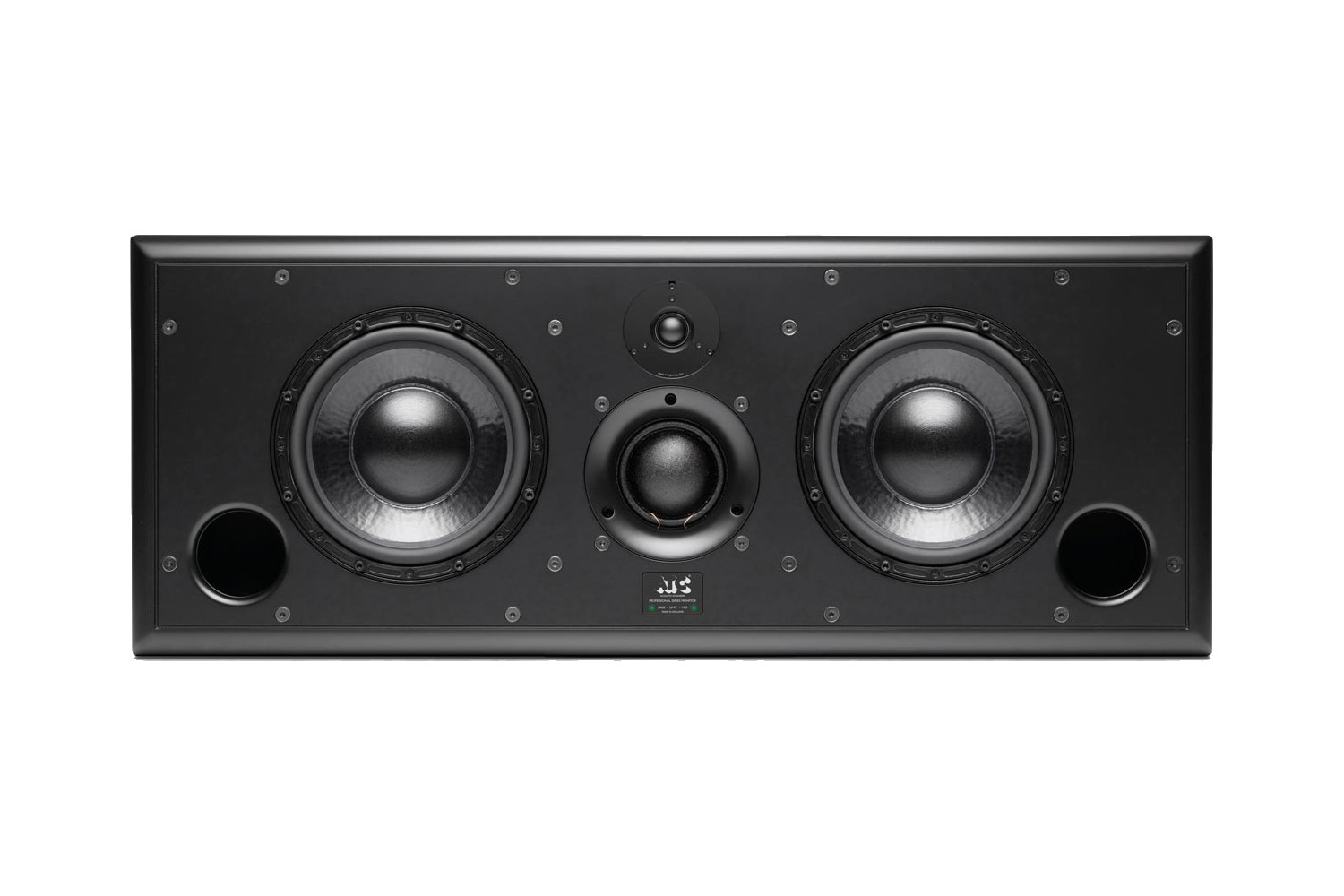

Dual 9”/234mm SL bass drivers, 3”/75mm soft-dome mid, 1”/25mm soft-dome tweeter.
3-way active design featuring precision active crossovers & discrete MOSFET power amplifers, integrated as proprietary ‘Amp-Pack’.
Wide dynamic range and bandwidth.
In-Wall variant with remote amplifier also available – the SCM105AiWC Pro.

Specifications

Acoustic
- Drive Units
  - Bass: 2 x SB75-234SL 16Ω.
  - Mid: 1 x SM75-150S 16Ω.
  - HF: 1 x SH25-76S 6Ω.
- Low Frequency Cut-off: 30Hz (-6dB, anechoic).
- High Frequency Cut-off: 25kHz (-6dB).
- Amplitude Linearity: 50Hz - 17kHz (+/- 2dB).
- Matched Response: +/-0.5dB.
- Crossover Points: 380Hz & 3.5kHz.
- Max SPL: 115dB continuous, 121dB peak (per pair, IEC Weighted Pink Noise, 1m, anechoic).
- System Sensitivity: 85dBC ref. -20dBu (per single unit, 1m, pink noise, bass boost 0dB, sensitivity 2.2dBu/1V).
Electronic

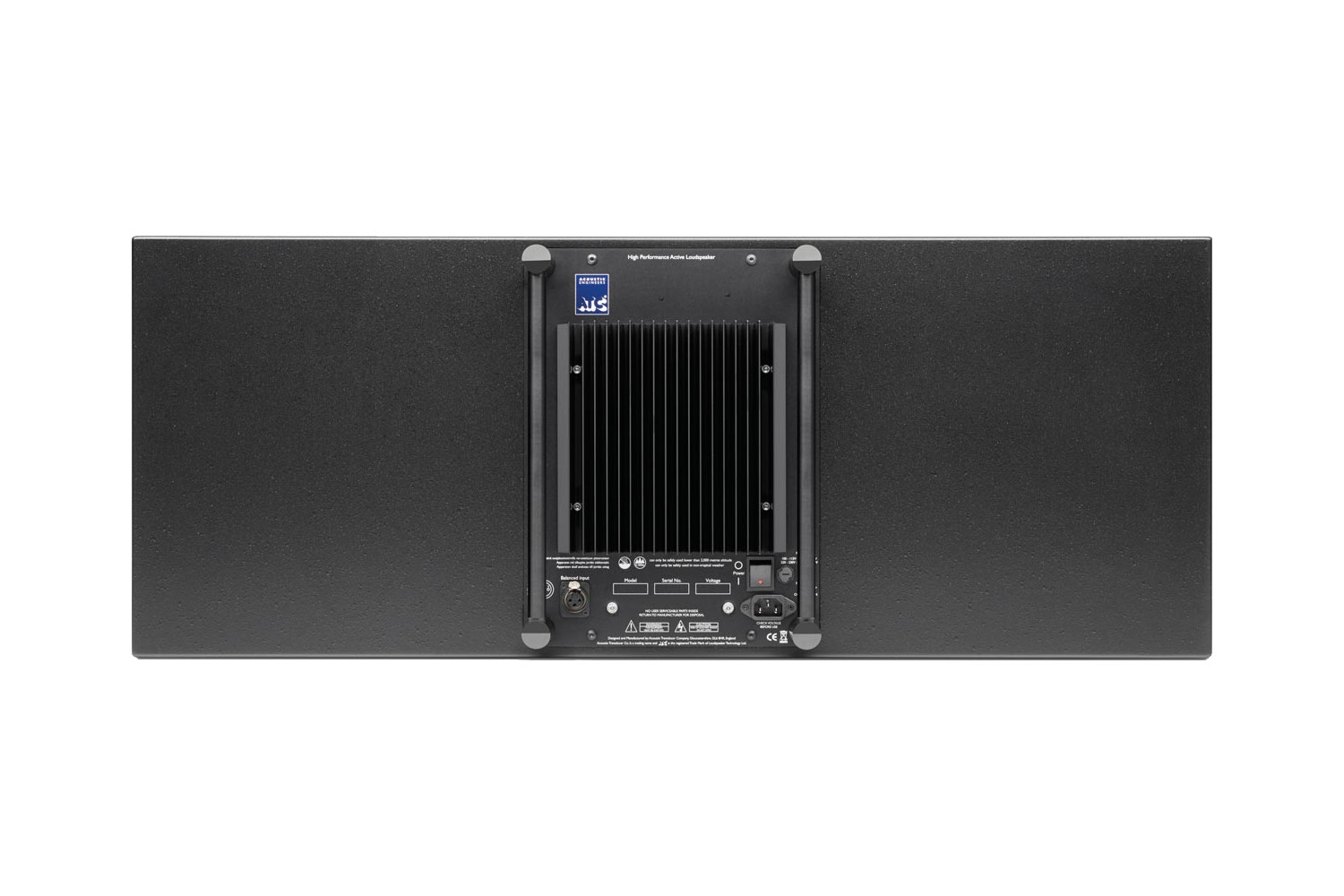

- Balanced Input: 1 x Rear Panel Mounted Female XLR, pin 2 hot.
- Input Impedance: 20kΩ (differential).
- Input CMRR: >82dB (10kHz).
- Input Sensitivity: 2.2dBu/1Vrms for full power.
- Input Sensitivity Control: Continuously Variable from 2.2dBu - 8.2dBu / 1Vrms - 2Vrms (-6dB).
- Bass Boost Control: Continuously variable from 0dB to +6dB.
- Crossover Filters: 4th Order Linkwitz-Riley.
- Frequency Response: <2Hz to >200kHz (-3dB).
- Amplifier type: Grounded Source MOSFET based Class A/B, convection cooled.
- Output Power: Bass 200W (8Ω), Mid 100W (16Ω), HF 50W (6Ω).
- THD+N: <0.003%/-92dB (1kHz, 1dB below rated power, 90kHz BW).
- Limiter: ATC Active FET Momentary Gain Reduction, limiter 'active' indicated via front panel LED.
- Mains Input: Rear panel mounted, 220-230V or 115V - Factory set. Please observe panel markings and labels!
- Power Consumption: Idle 37W /51VA. 1/8th Power 132W/178VA. Full Power 321W/403VA.
- Heat Output: Idle 126 BTU/hr. 1/8th power 366 BTU/hr. Full Power 413BTU/hr.
Physical
- Dimensions (WxHxD): 37.4 x 14.57 x 19.69 in (950 x 370 x 500mm)
  - with heatsink (WxHxD): 37.4 x 14.57 x 22.84 in (950 x 370 x 580mm)
- Weight: 146.61 lbs (66.5 kg)
