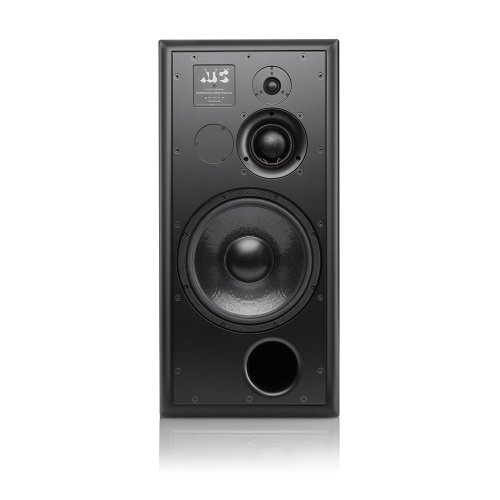

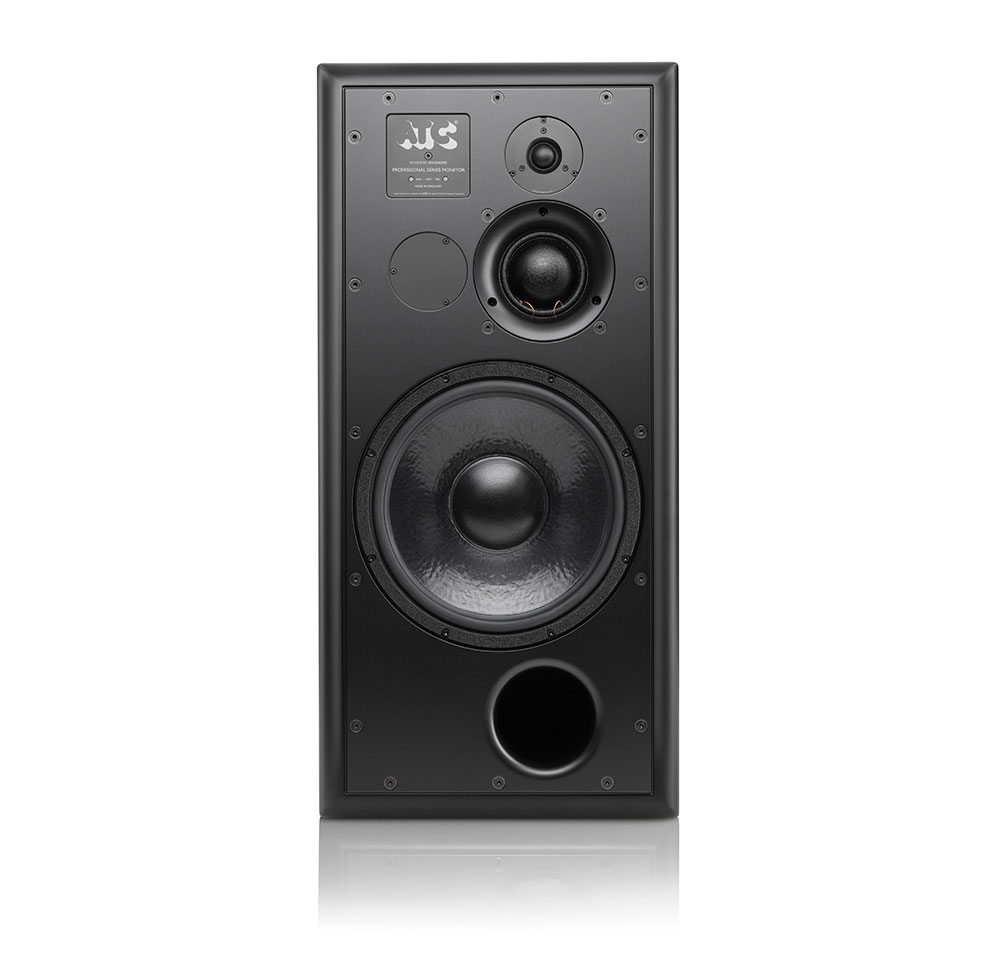

ATC SCM100A SL Pro - 3 Way Active Studio Monitor
Model: ATC-SCM100ASL
About: ATC SCM100A SL Pro - 3 Way Active Studio Monitor
- ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
- Full “SL” spec 12˝/314mm bass driver.
- ATC 3″/75mm “Super Dome” mid driver.
- On board grounded source 350W Tri-amp pack.
- LF contour control.
- Clip indication.
- 6 year warranty.
Specifications
- Drivers - HF 1″/25mm, Mid 3″/75mm, LF 12″/314mm
- Amplitude Linearity (±2dB) - 65Hz-17kHz
- Cut-off Frequencies (-6dB, free-standing) - 32Hz, 25kHz
- Horizontal Dispersion - ±80°, Coherent
- Vertical Dispersion - ±10°, Coherent
- Max. Continuous SPL (1 metre) - 115dB
- Crossover Frequencies - 380Hz, 3.5kHz
- Audio Input - Rear panel mounted female xlr (pin 2 +)
- Input Sensitivity - 1V
- Input Sensitivity Trim - 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
- Input Impedance - Balanced > 10kΩ
- Amplifier Output - Bass 200W, Mid 100W, High 50W
- Filters - Even Order Critically Damped
- Overload Protection - Active FET momentary gain reduction plus thermal tweeter protection
- Front Panel Indicators - Power On indicator, Gain Reduction warning
- LF EQ - 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
- Dimensions (HxWxD) - 832 x 398 x 581mm (32.8˝ x 15.7˝ x 22.9˝) Depth with amplifier at rear adds 3˝
- Weight - 55.2kg / 122lbs
Reviews: ATC SCM100A SL Pro - 3 Way Active Studio Monitor
There are currently no product reviews.
Warranty: ATC SCM100A SL Pro - 3 Way Active Studio Monitor
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Loudspeaker Technology Ltd provides you with a two-year product warranty for your ATC product, valid from the date of purchase from an authorised ATC dealer. This warranty can be extended up to a period of six years by registering the product with ATC.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
