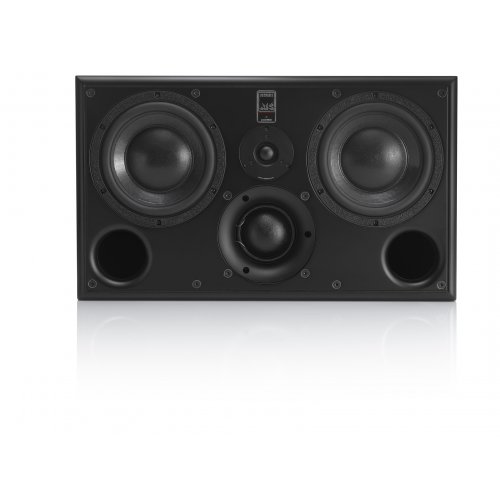

ATC SCM45A - 3 Way Active Studio Monitor
Model: ATC-SCM45A
About: ATC SCM45A - 3 Way Active Studio Monitor
- Mid-size very high performance active 3-way studio monitor
- Ideally suited to:
- Critical near-field listening applications in all control rooms
- LCR surround monitoring in medium control rooms
- Surround channels in medium-to-large contol rooms
- ATC hand built 6.5˝/164mm carbon-paper cone bass driver.
- ATC 25mm/1” Dual-Suspension ‘S-Spec’ Tweeter
- Discrete MOSFET class A/B tri-amp pack with 150W/60W/25W continuous power output
Specifications
- Drivers - HF 1″/25mm Dual-Suspension ‘S-Spec’, Mid 3″/75mm Soft Dome, LF 6.5″/164mm short-coil carbon paper cone
- Amplitude Linearity (±2dB) - 70Hz-17kHz
- Cut-off Frequencies (-6dB, free-standing) - 42Hz-25kHz
- Dispersion - ±80° Coherent Horizontal, ±10° Coherent Vertical
- Max. Continuous SPL (1 metre) - 112dB
- Audio Input - Rear panel mounted female xlr (pin 2 +)
- Input Sensitivity - 1V rms (ref. full output)
- Input Sensitivity Trim - 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
- Input Impedance - Balanced > 10kΩ
- Amplifier Output Power - Bass 150W rms, Mid 60W rms, High 25W rms
- Crossover Frequencies - 380Hz & 3.5Khz
- Crossover Filters - 4th order critically damped with phase compensations
- Low Frequency Boost - 0dB to +3dB at 40Hz (continuously variable via rear panel trimmer)
- Overload Protection - Active FET momentary gain reduction
- Dimensions (HxWxD) - 353 x 600 x 375mm (13.9˝ x 23.6˝ x 14.8˝). Handles add an additional 39mm/1.5″ to depth.
- Weight - 36kg / 79.2lbs (per cabinet)
Reviews: ATC SCM45A - 3 Way Active Studio Monitor
There are currently no product reviews.
Warranty: ATC SCM45A - 3 Way Active Studio Monitor
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Loudspeaker Technology Ltd provides you with a two-year product warranty for your ATC product, valid from the date of purchase from an authorised ATC dealer. This warranty can be extended up to a period of six years by registering the product with ATC.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
