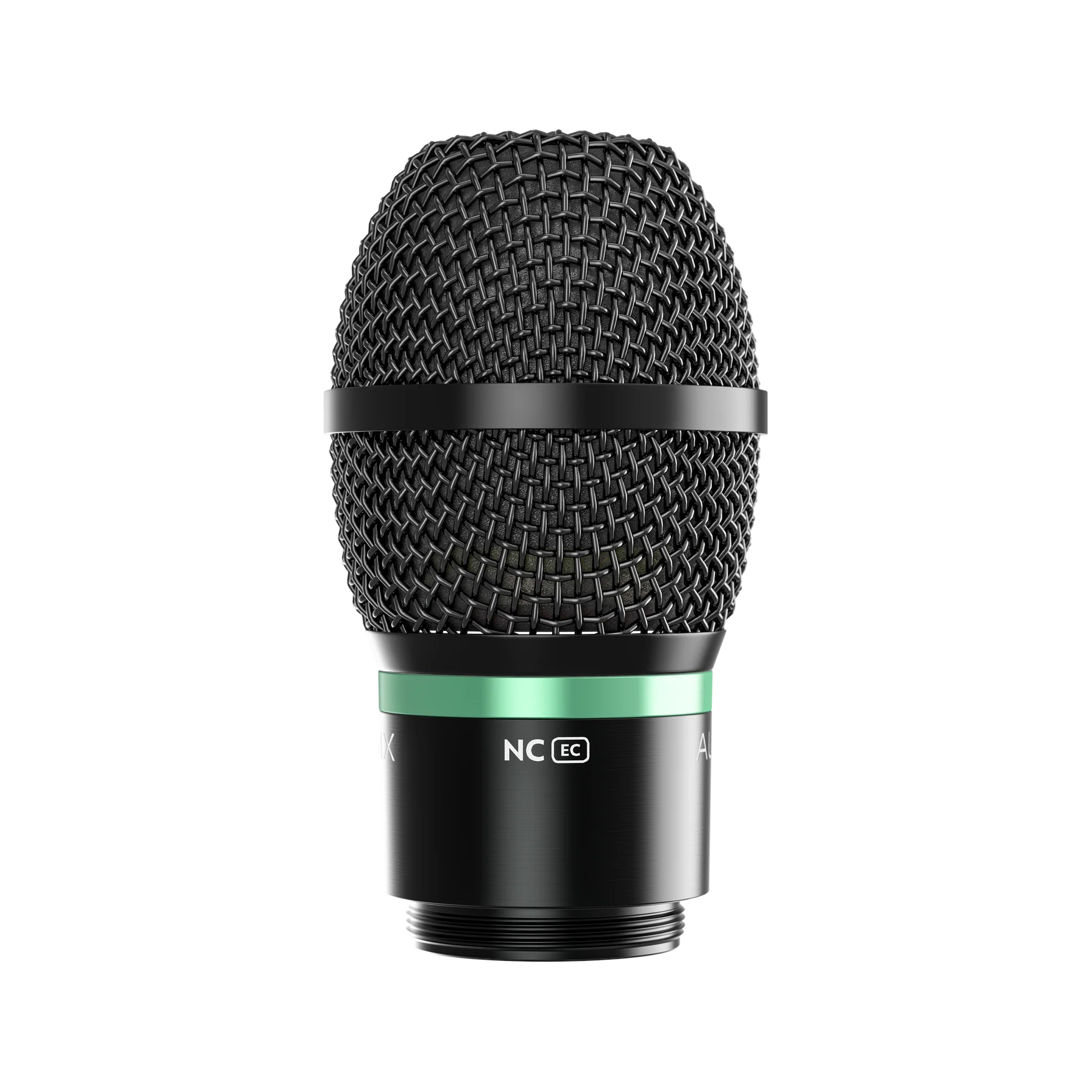

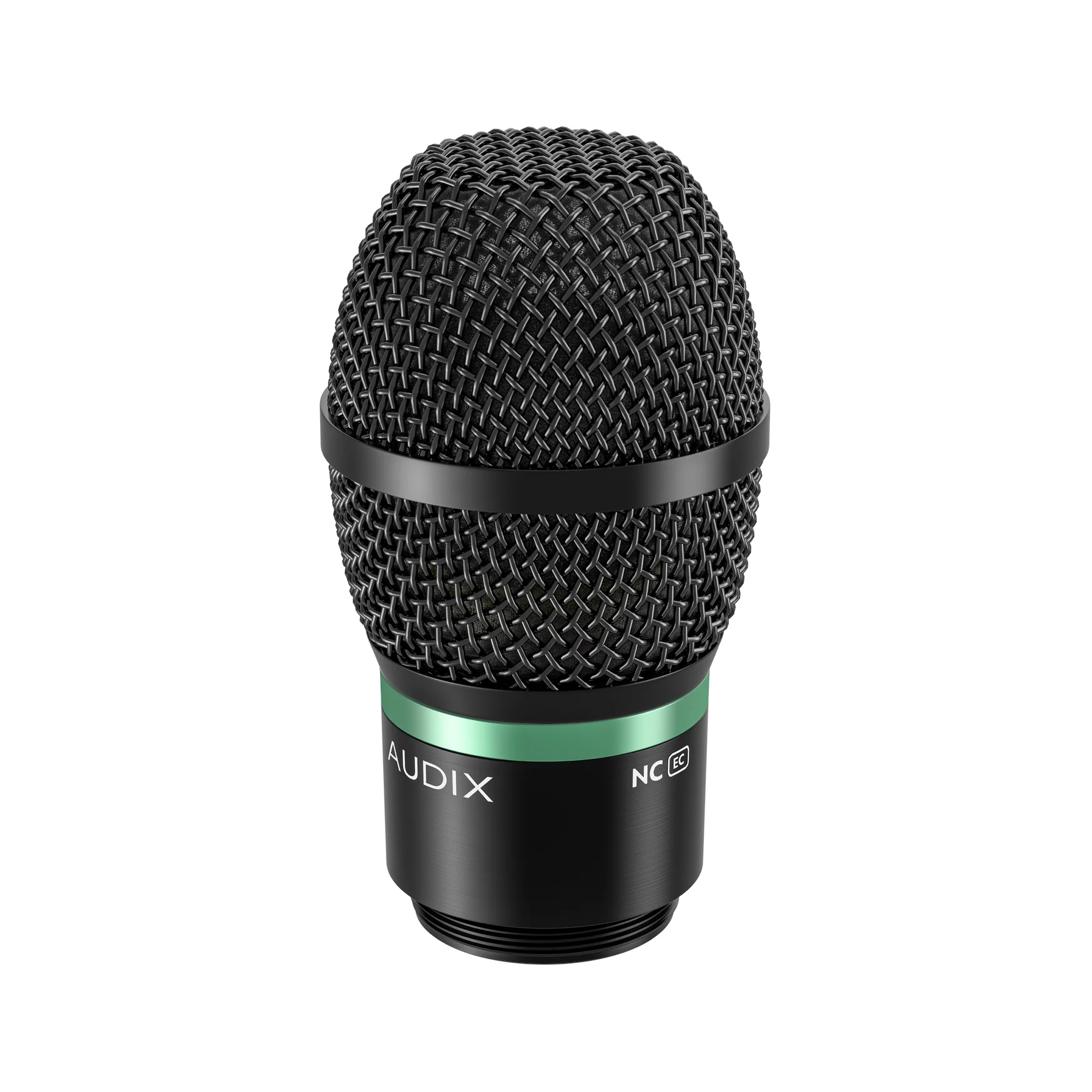

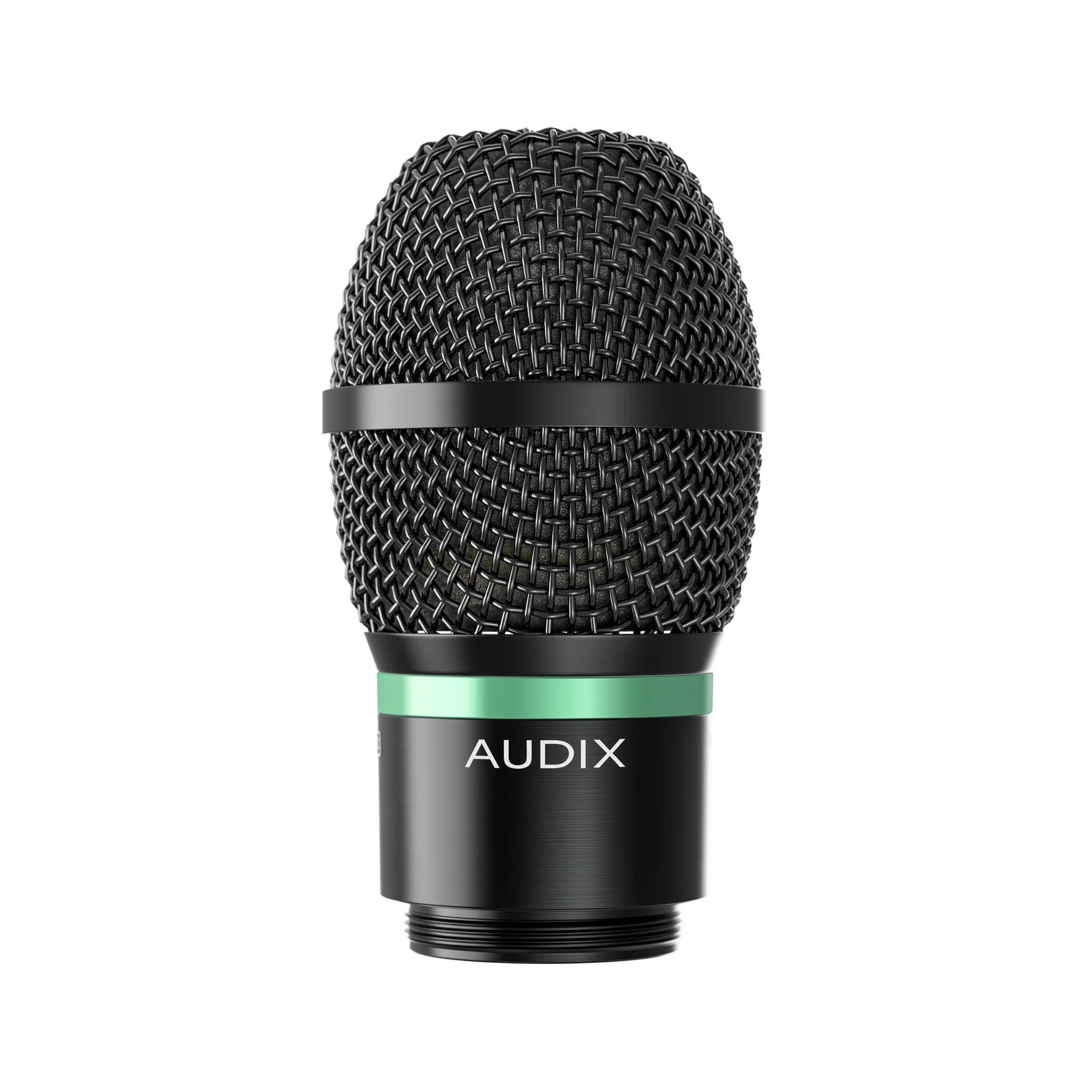

Audix NCEC Novacore Extended Cardioid Wireless Capsule

About: Audix NCEC Novacore Extended Cardioid Wireless Capsule

The AUDIX Novacore NCEC is a professional extended cardioid wireless capsule engineered for balanced vocal clarity across a wide dynamic range. Its voicing is derived from the AUDIX OMX series of stage microphones, applying the same proprietary VLM capsule technology — valued for natural sound reproduction and strong transient response — to the Novacore wireless platform.

• Extended cardioid pickup pattern for balanced vocal clarity and consistent tone across a wide dynamic range
• Voicing derived from the AUDIX OMX series — proprietary VLM capsule technology for natural sound and strong transient response
• Internal vibration isolation minimizes handling noise during active stage use
• Optimized for digital wireless transmission on the Novacore platform; interchangeable with NCTH

The extended cardioid polar pattern provides a broader pickup angle and more consistent off-axis response compared to tighter patterns, making it the preferred choice for vocalists and presenters who move during performance and need reliable, even-sounding coverage without frequent gain adjustments. Internal vibration isolation reduces handling noise for clean vocals even during active stage movement.

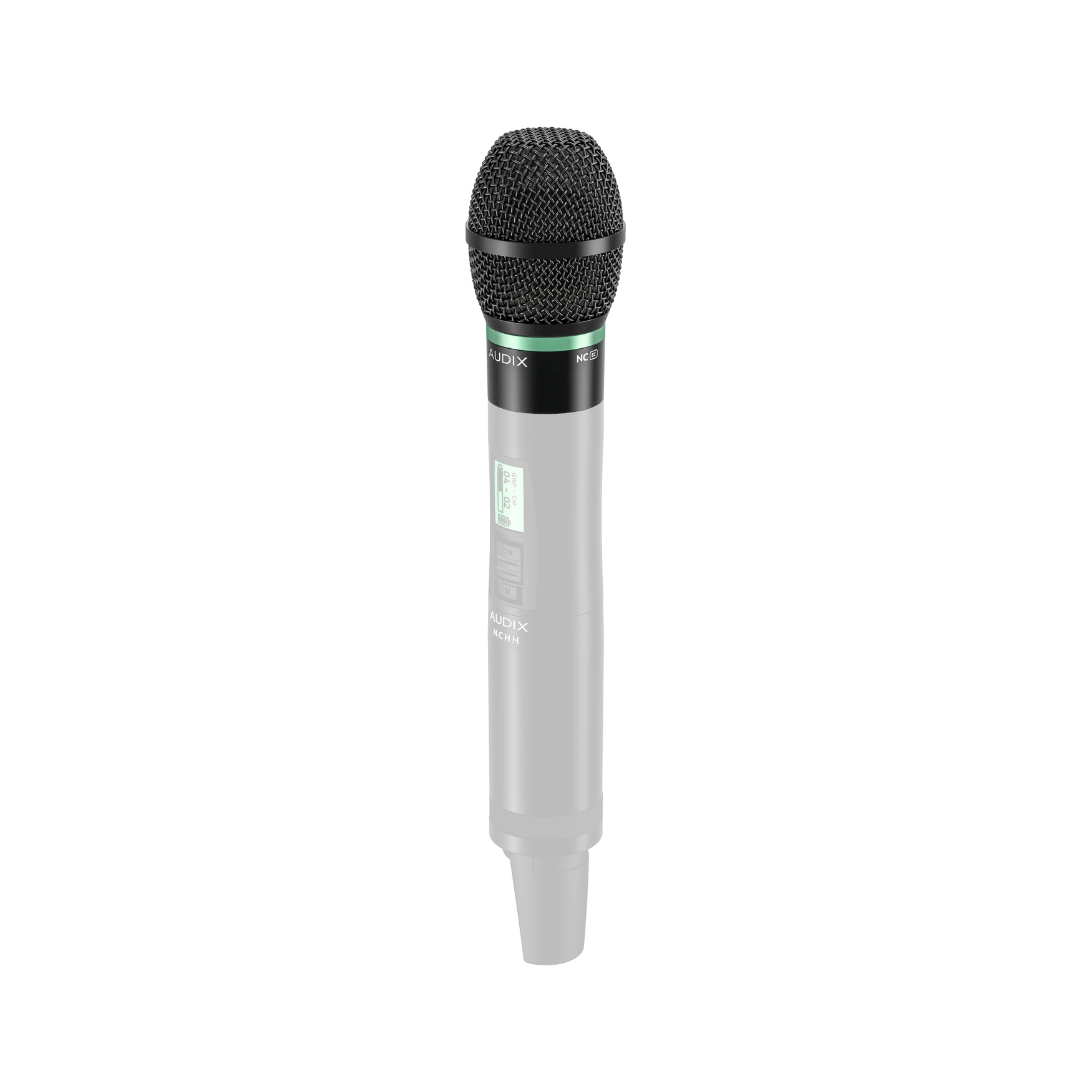

The NCEC mounts via standard "S" thread to the AUDIX NCHH handheld transmitter and is also compatible with many third-party S-thread wireless handheld transmitters, making it an immediate sonic upgrade option for engineers already invested in another wireless platform. It is sold individually and is also included in the NCHHEC bundle.

Specifications

• Transducer Type: Dynamic
• Frequency Response: (-6dB) 50 Hz - 14 kHz
• Polar Pattern: Cardioid
• Capsule Impedance: 280 Ohms
• Sensitivity: 1.5 mVrms / Pa @ 1 kHz / @ 0.25 m
• Capsule Technology: VLM
• Off-Axis Rejection: > 25 dB
• Maximum SPL: 144 dB SPL
• Power Requirements: None
• Connector: 1 1/4-28 UN thread pitch, S-Type

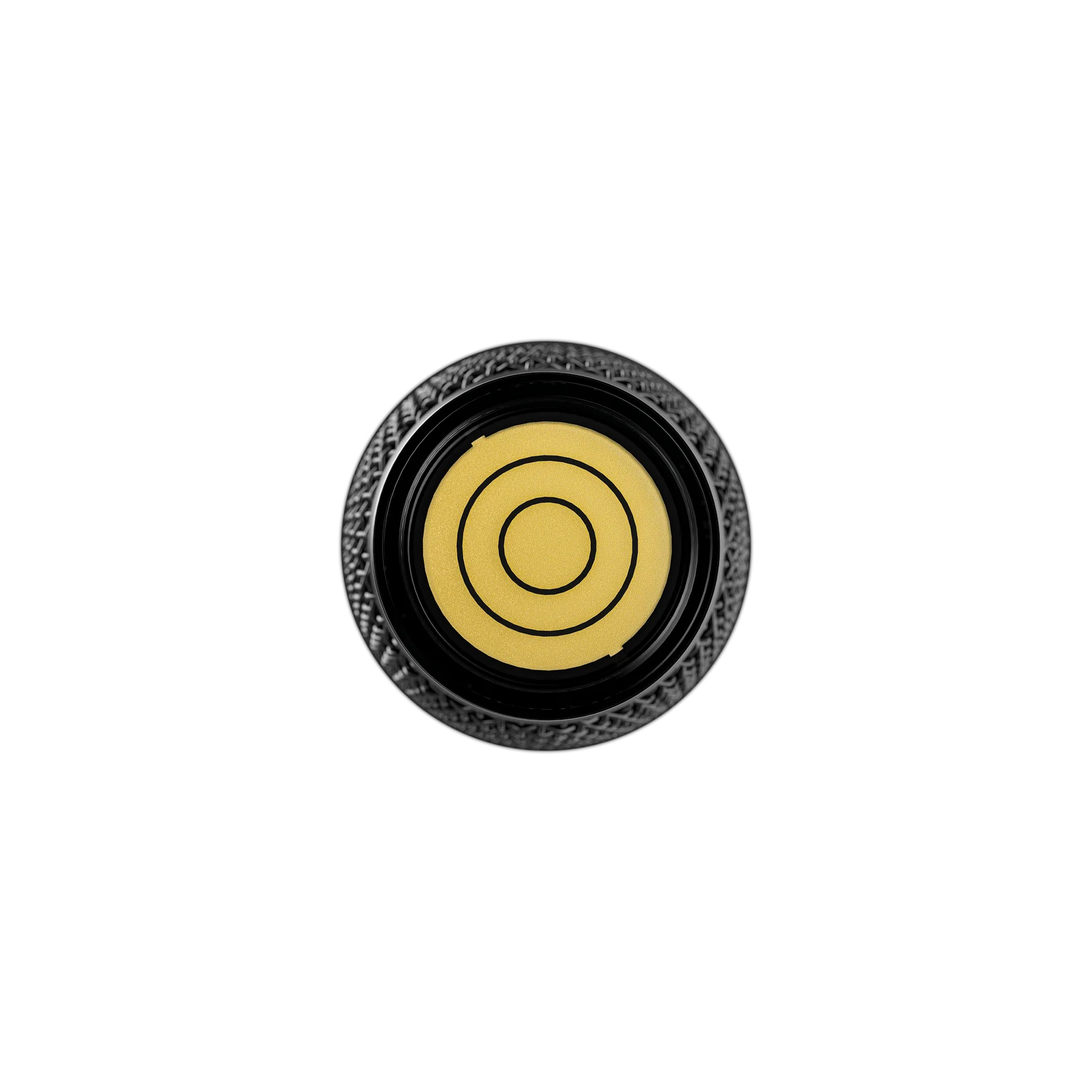

• Polarity: Positive pressure on diaphragm produces positive voltage on center ring pad relative to outer ring pad
• Materials / Finish: Aluminum / Black Finish
• Weight: 0.41 lbs (188 g)
• Dimensions (LxD): 3.5 x 1.98 in (88.9 x 50.29 mm)

What's in the Box

• NCEC — Novacore Extended Cardioid Wireless Capsule
