Audix NCHH Novacore UHF Digital Handheld Transmitter w/Cardioid Capsule

About: Audix NCHH Novacore UHF Digital Handheld Transmitter w/Cardioid Capsule

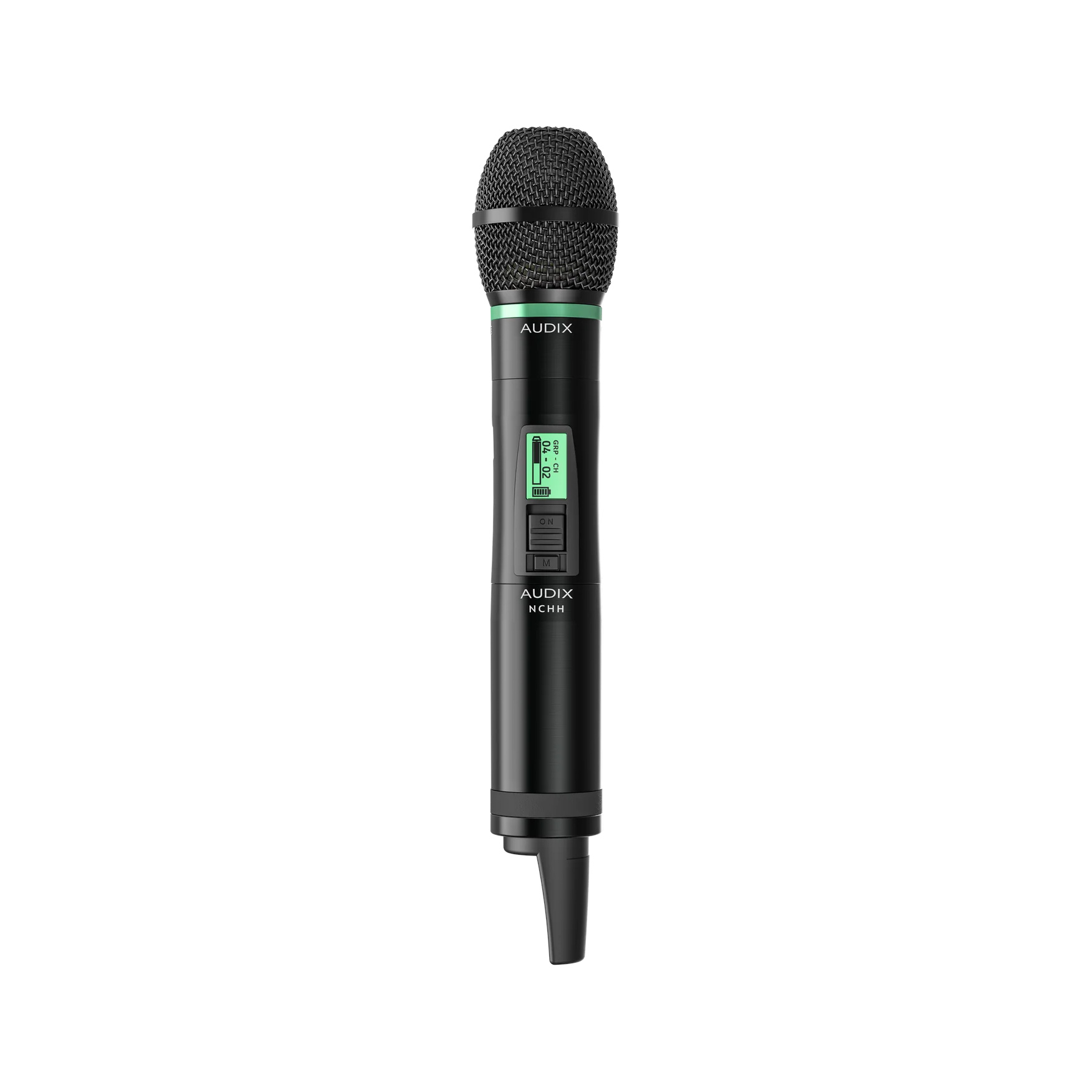

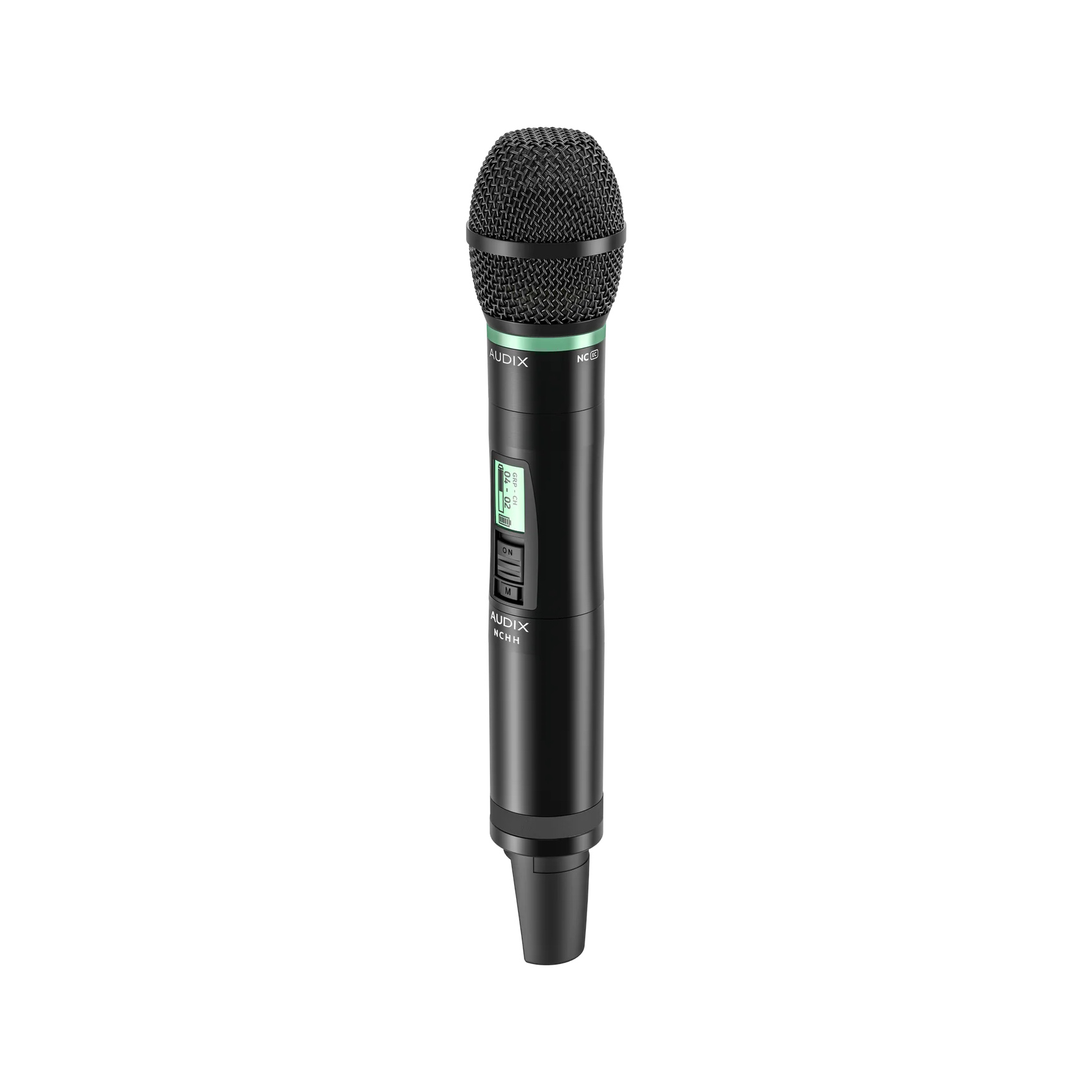

The NCHHEC bundles the AUDIX Novacore NCHH digital handheld transmitter with the NCEC Extended Cardioid Wireless Capsule — a complete, performance-ready wireless handheld for vocalists and presenters who need natural, balanced vocal clarity straight out of the box. The NCEC's extended cardioid pattern delivers consistent, even-sounding coverage with strong transient response, voiced from the same proprietary VLM capsule technology found in the AUDIX OMX series of stage microphones.

• NCEC extended cardioid capsule — balanced vocal clarity with natural transient response, voiced from the AUDIX OMX series
• AES-256 encryption with one-touch IR sync; 48 MHz tuning range (494–542 MHz); <3 ms latency
• Switchable RF output: 1 mW / 10 mW; three selectable mute modes (Standard, Auto, Bypass)
• Standard "S" thread capsule mount — swap to NCTH Tight Hypercardioid at any time, no tools required
• 9+ hour runtime on 2x AA alkaline or 1x NCLB rechargeable lithium-ion; USB-C charging built in

The NCHH transmitter delivers AES-256 encrypted UHF digital transmission across a 48 MHz tuning range with less than 3 ms latency. One-touch IR sync pairs to any Novacore receiver in seconds. On-board controls provide access to variable input gain, low-cut filter, limiter, RF power level, and three selectable mute modes — all accessible via the front-panel LCD and the controls beneath the battery cover.

The NCHHEC operates on 2x AA alkaline batteries or 1x NCLB rechargeable lithium-ion battery with 9+ hours of runtime, with USB-C charging built into the transmitter body. The NCEC capsule is interchangeable — swap to an NCTH Tight Hypercardioid at any time using the same "S" thread mount, with no tools required.

Specifications

• Handheld Transmitter
  • Type: UHF Digital Handheld Transmitter
  • RF Frequency Range: UHF 494‑542 MHz (country dependent)
  • RF Bandwidth: 48 MHz
  • Display: LCD
    • Displays GRP‑CH, battery status, RF signal strength, and settings menu
  • Control Interface: Sync sensor, settings buttons, lock switch, mute button
  • Encryption: AES 256‑bit
  • Compatible Microphone Capsules: AUDIX NCEC, NCTH, Other S‑thread.
  • Audio Control: Variable gain: 0 dB, +3 dB, or +6 dB; low cut; limiter
  • Mic Input
    • Configuration: unbalanced
    • Maximum Input Level: 1760 mVrms (@ 1% THD)
  • RF Output
    • Power: 1 mW / 10 mW switchable
    • Antenna type: Integrated single band helical
    • Occupied Bandwidth: < 200 kHz
    • Modulation Type: AUDIX Proprietary Digital
  • Power Requirements: (1) NCLB Li‑ion battery (1500mAH) or (2) AA alkaline

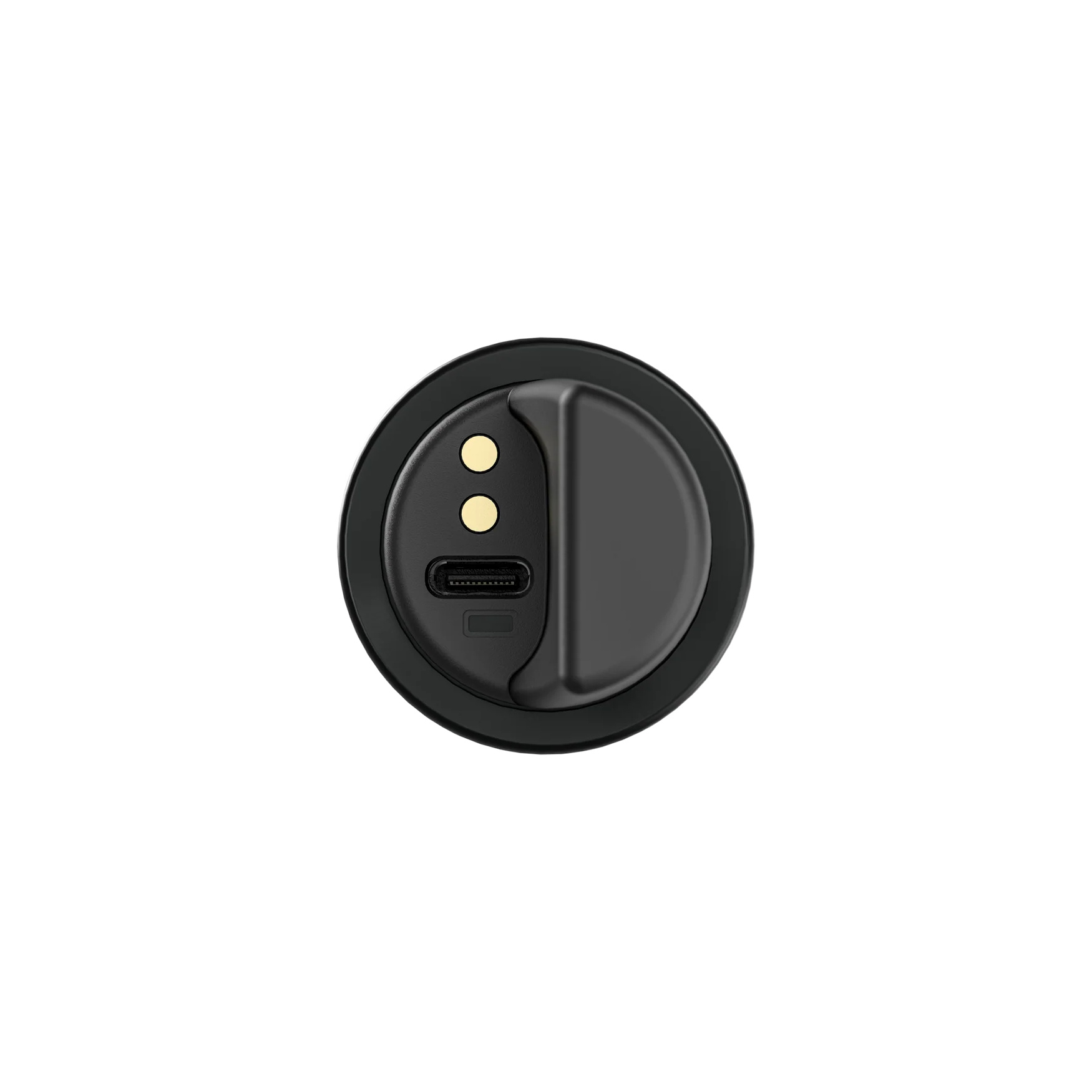

  • Battery Charging: Audix NCC1 or NCC2 charging station, or USB‑C
  • Materials / Finish: Aluminum / Black Finish
  • Weight: 0.38lbs (172g)
    • w/ AUDIX NC capsule, no battery: 0.8lbs (0.36 kg)
  • Dimensions (LxD): 7.42 x 1.49 in (188.34 x 37.85 mm)
    • w/ AUDIX NC capsule: 10.95 x 1.97 in (278 x 50 mm)
• Extended Cardioid Capsule
  • Transducer Type: Dynamic
  • Frequency Response: (-6dB) 50 Hz - 14 kHz
  • Polar Pattern: Cardioid
  • Capsule Impedance: 280 Ohms
  • Sensitivity: 1.5 mVrms / Pa @ 1 kHz / @ 0.25 m
  • Capsule Technology: VLM
  • Off-Axis Rejection: > 25 dB
  • Maximum SPL: 144 dB SPL
  • Power Requirements: None
  • Connector: 1 1/4-28 UN thread pitch, S-Type
  • Polarity: Positive pressure on diaphragm produces positive voltage on center ring pad relative to outer ring pad
  • Materials / Finish: Aluminum / Black Finish
  • Weight: 0.41 lbs (188 g)
  • Dimensions (LxD): 3.5 x 1.98 in (88.9 x 50.29 mm)

What's in the Box

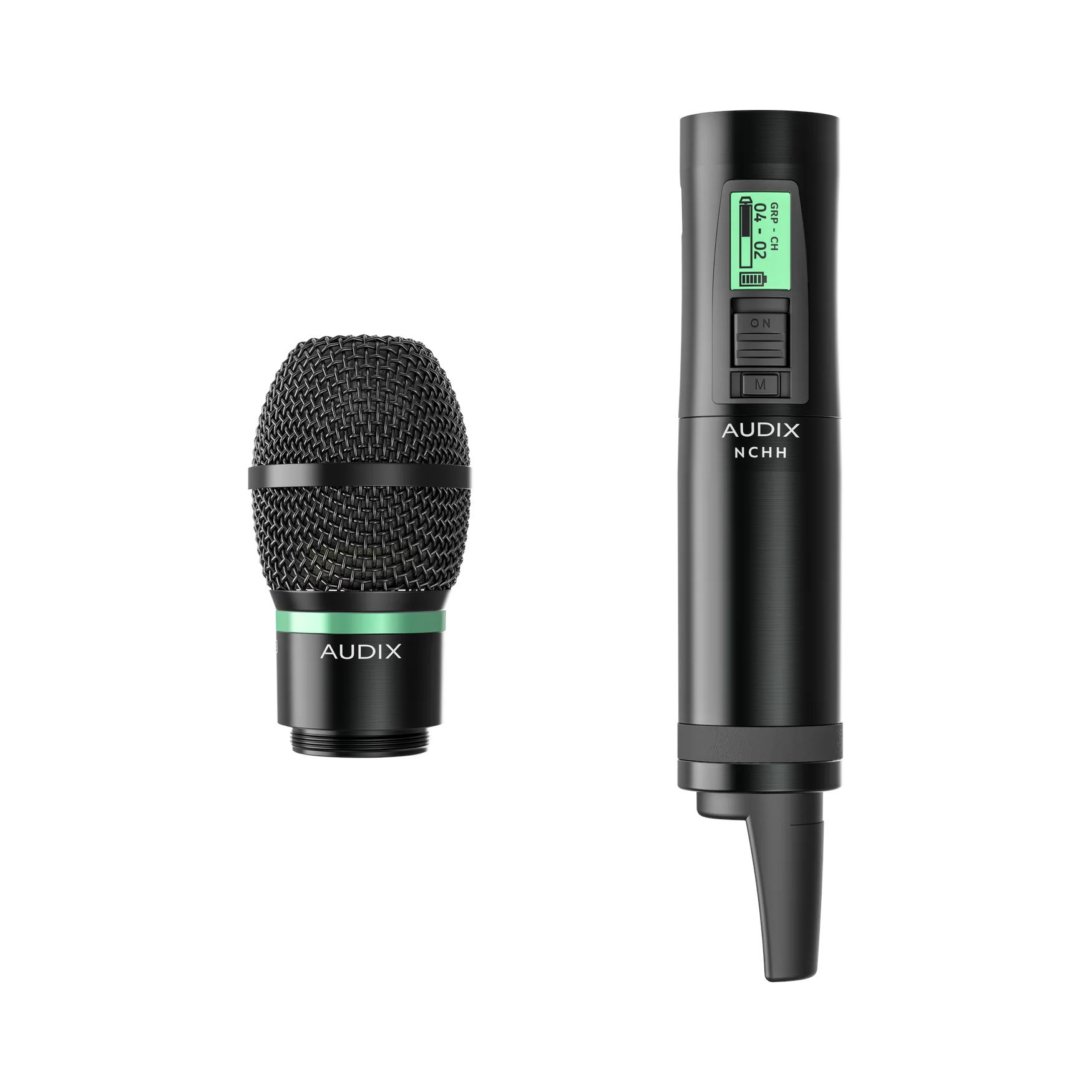

• NCHH — Novacore UHF Digital Handheld Transmitter Body
• NCEC — Novacore Extended Cardioid Wireless Capsule

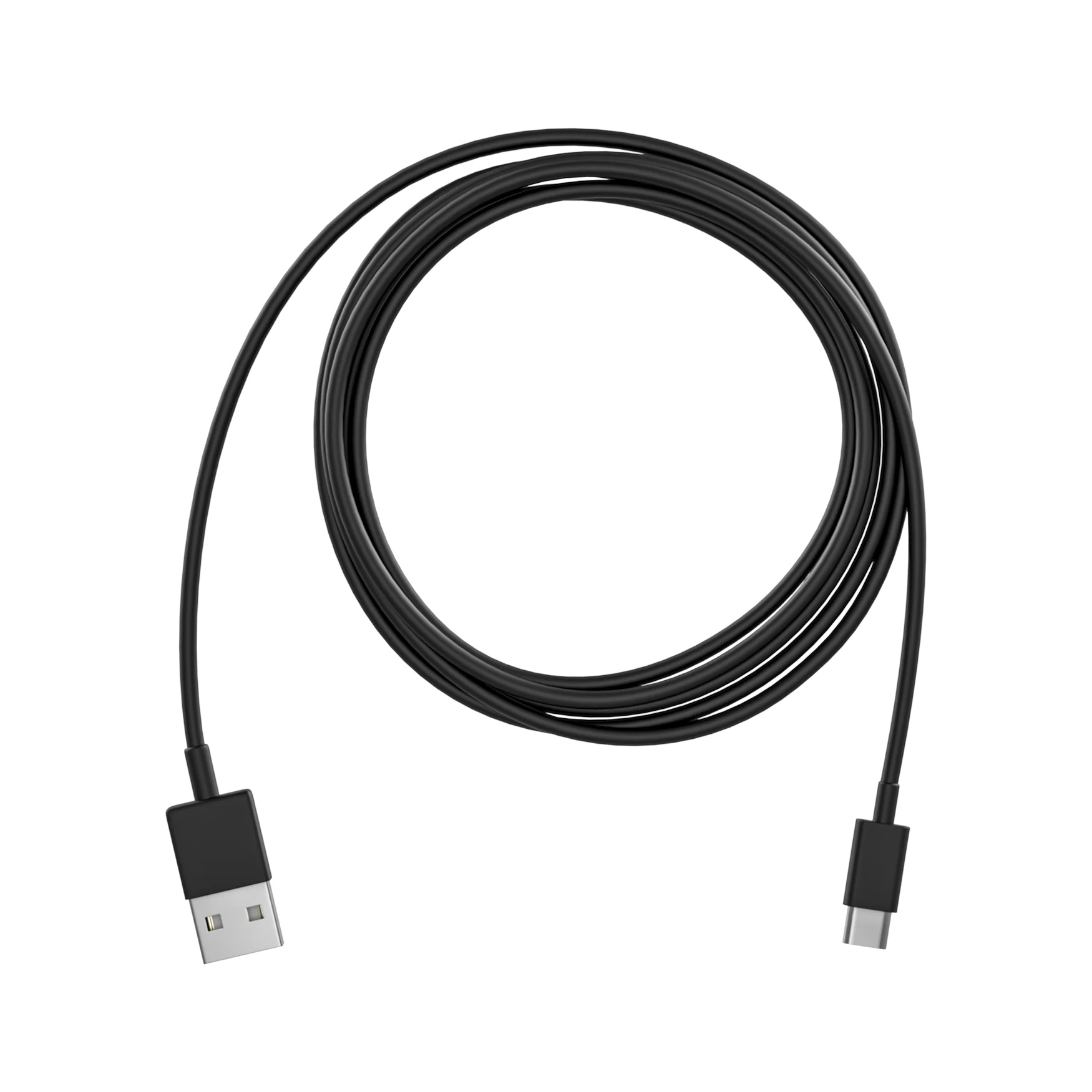

• NCCC — 20" Charging Cable, USB-A to USB-C
