Audix NCTH Novacore Tight Hypercardioid Wireless Capsule

About: Audix NCTH Novacore Tight Hypercardioid Wireless Capsule

The AUDIX Novacore NCTH is a professional tight hypercardioid wireless capsule engineered for high-gain environments where maximum feedback rejection and precise, controlled pickup are critical. Its voicing is consistent with the AUDIX OMX series of stage microphones, delivering the natural sound and strong transient response that AUDIX capsules are known for — optimized for the demands of loud stages, monitor-heavy rigs, and controlled theatrical applications.

• Tight hypercardioid pickup pattern for maximum feedback rejection in high-gain and loud-stage environments
• Voicing consistent with the AUDIX OMX series — natural sound and strong transient response with minimal EQ required
• Internal vibration isolation minimizes handling noise during active stage use
• Standard "S" thread mount — drop-in compatible with AUDIX NCHH and many S-thread third-party wireless handhelds

The tight hypercardioid polar pattern provides a narrow pickup angle and substantially improved off-axis rejection compared to cardioid and extended cardioid patterns, making it the preferred choice for vocalists performing in front of loud stage monitors, in wedge-heavy theatrical productions, or in any environment where gain-before-feedback is the primary concern. Internal vibration isolation reduces handling noise for clean, consistent vocals throughout a performance.

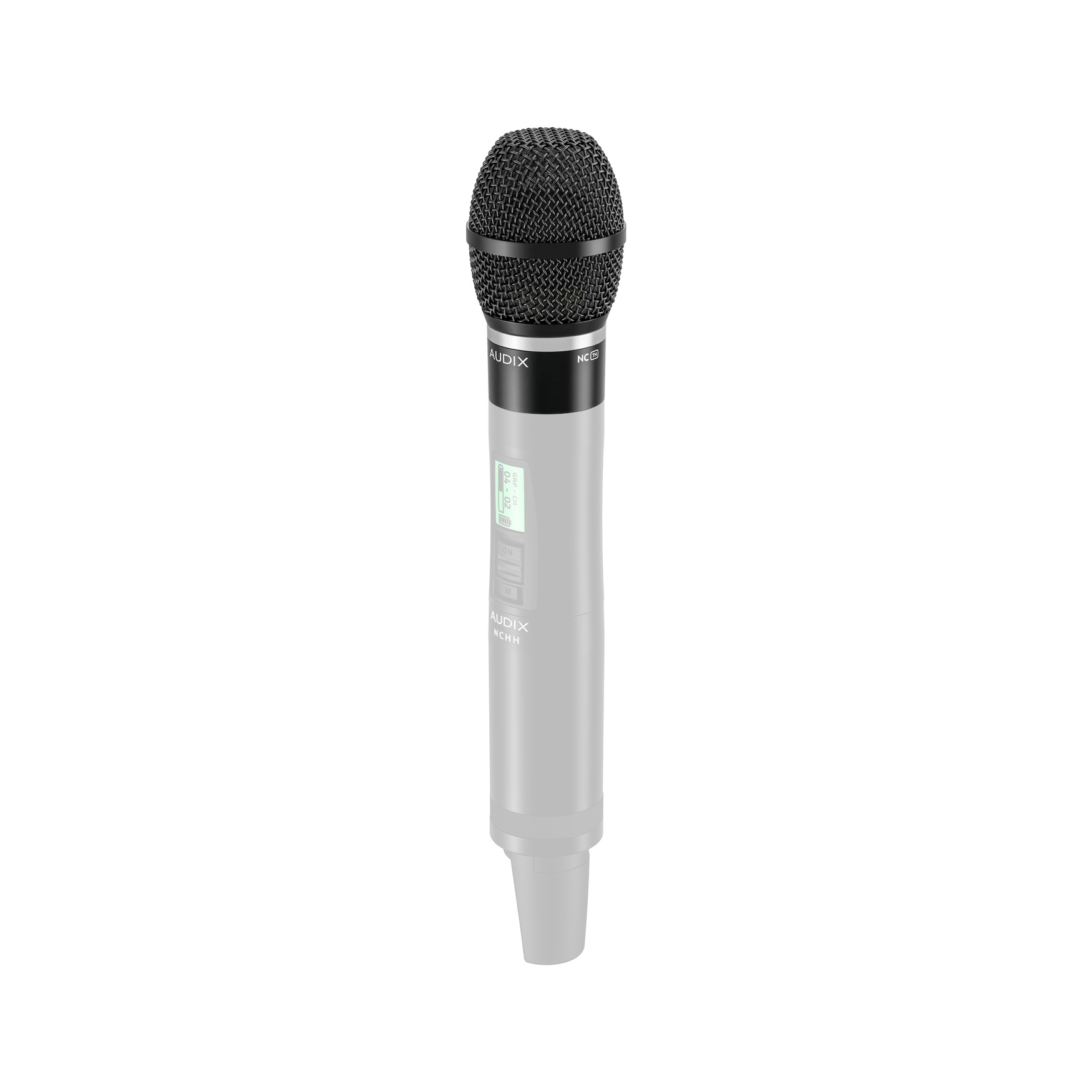

The NCTH mounts via standard "S" thread to the AUDIX NCHH handheld transmitter and is also compatible with many S-thread wireless handheld transmitters by other leading brands in the category, offering an immediate sonic upgrade for engineers on other wireless platforms. It is sold individually and is also included in the NCHHTH bundle.

Specifications

• Transducer Type: Dynamic
• Frequency Response: (-6dB) 68 Hz - 15 kHz
• Polar Pattern: Hypercardioid
• Capsule Impedance: 50 Ohms
• Sensitivity: 0.65 mVrms / Pa @ 1 kHz / @ 0.25 m
• Capsule Technology: VLM
• Off-Axis Rejection: > 30 dB
• Maximum SPL: 144 dB SPL
• Power Requirements: None
• Connector: 1 1/4-28 UN thread pitch, S-Type

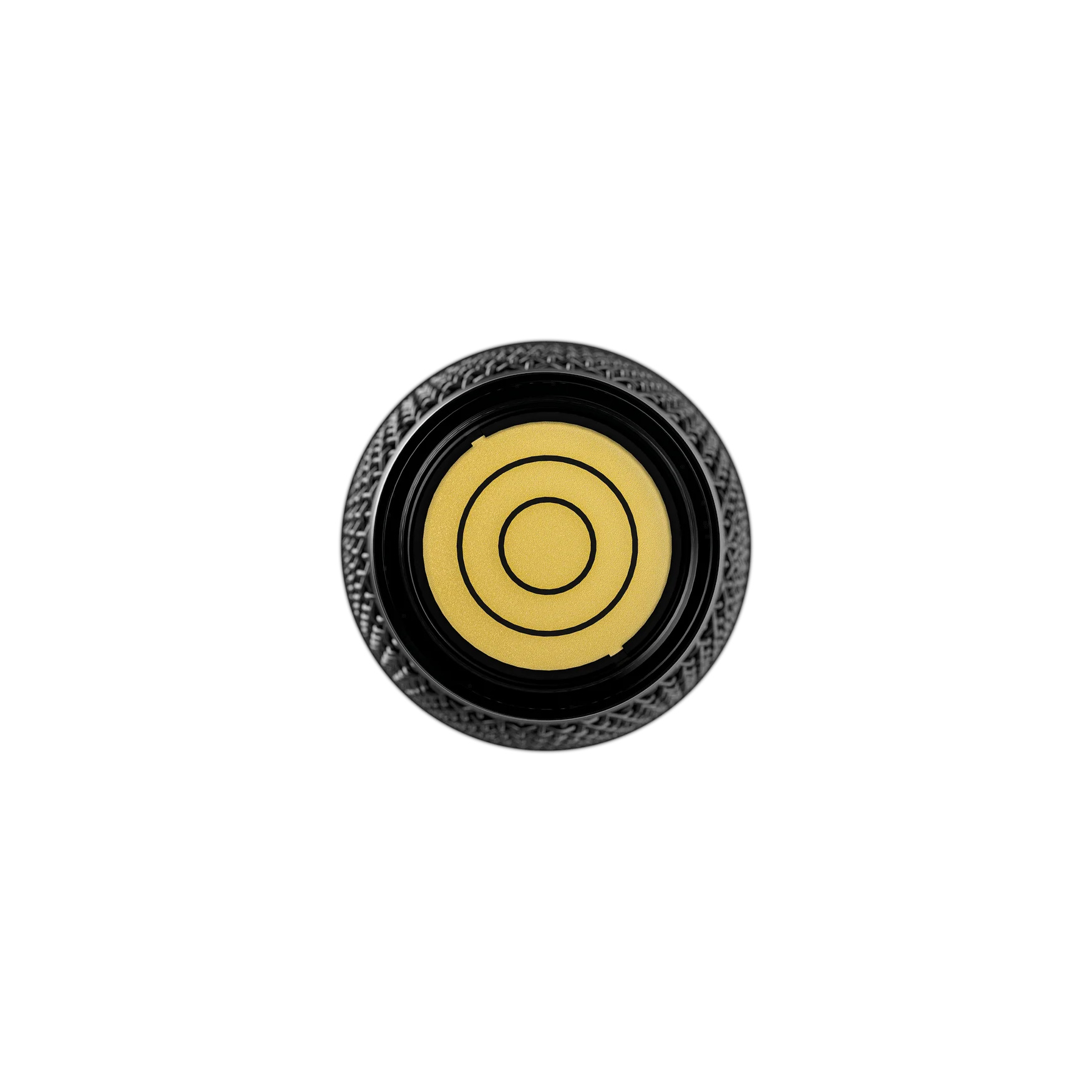

• Polarity: Positive pressure on diaphragm produces positive voltage on center ring pad relative to outer ring pad
• Materials / Finish: Aluminum / Black Finish
• Weight: 0.41 lbs (188 g)
• Dimensions (LxD): 3.5 x 1.98 in (88.9 x 50.29 mm)

What's in the Box

• NCTH — Novacore Tight Hypercardioid Wireless Capsule
