Audix NCBP Novacore UHF Digital Bodypack Transmitter w/ADX10 Lavalier Mic

About: Audix NCBP Novacore UHF Digital Bodypack Transmitter w/ADX10 Lavalier Mic

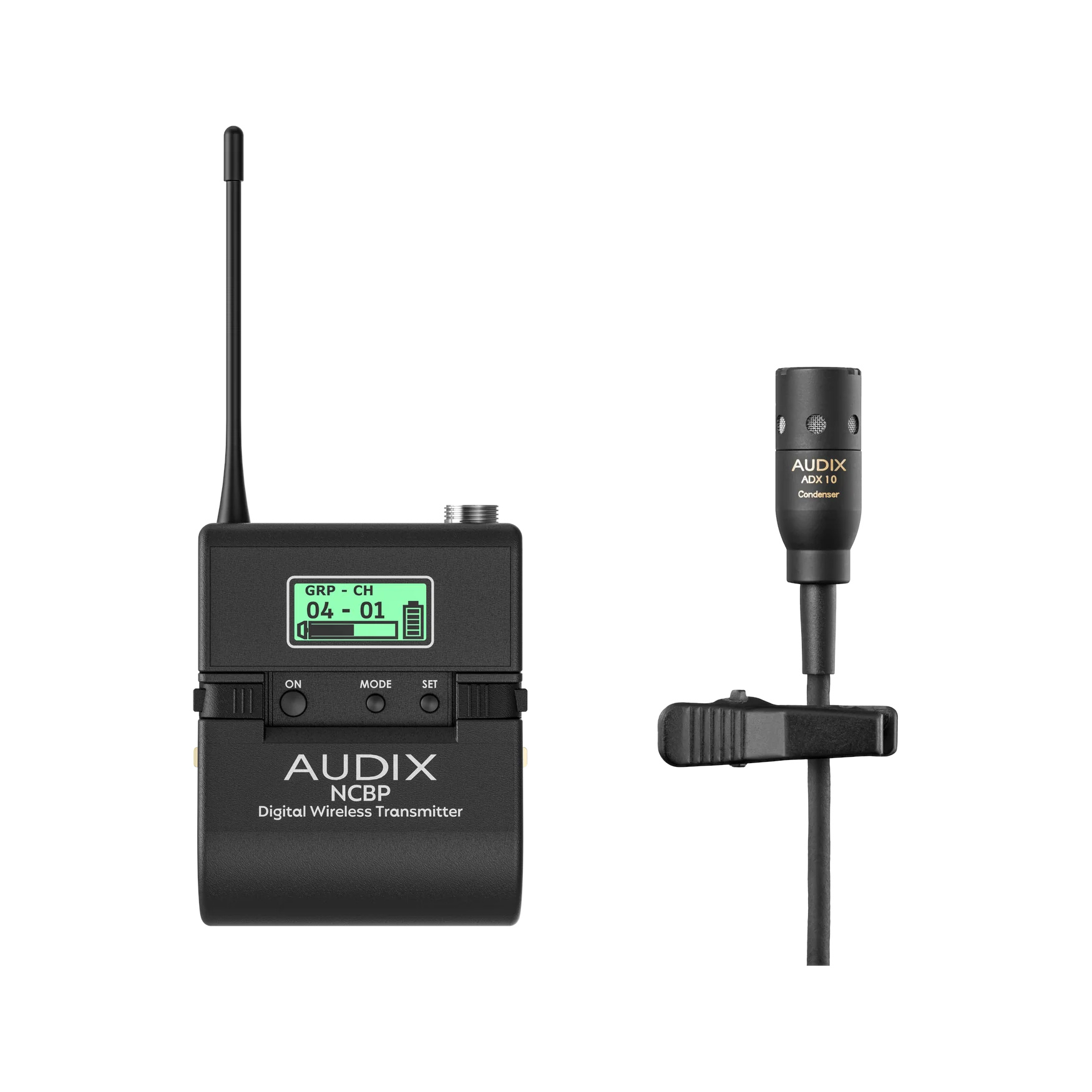

The NCBP+ADX10 bundles the AUDIX Novacore NCBP digital bodypack transmitter with the AUDIX ADX10 cardioid lavalier condenser microphone — a complete, performance-ready wireless lavalier system for clergy, presenters, performers, and broadcast talent who need discreet, hands-free wireless audio straight out of the box. The ADX10's miniature cardioid capsule delivers natural vocal clarity with strong off-axis rejection, making it well suited for podium applications, theatrical productions, and houses of worship where feedback control and clean, unobtrusive placement are equally important.

• ADX10 cardioid lavalier condenser microphone — natural vocal clarity with strong off-axis rejection for podium, stage, and worship applications
• AES-256 encryption with one-touch IR sync; 48 MHz tuning range (494–542 MHz); <3 ms latency
• Variable input gain –12 to +18 dB in 6 dB steps; low-cut filter, limiter, and phase invert
• Dedicated 3.5 mm remote mute input for external latching or momentary switch (not included)
• 9+ hour runtime on 2x AA alkaline or 1x NCLB rechargeable lithium-ion; USB-C charging built in

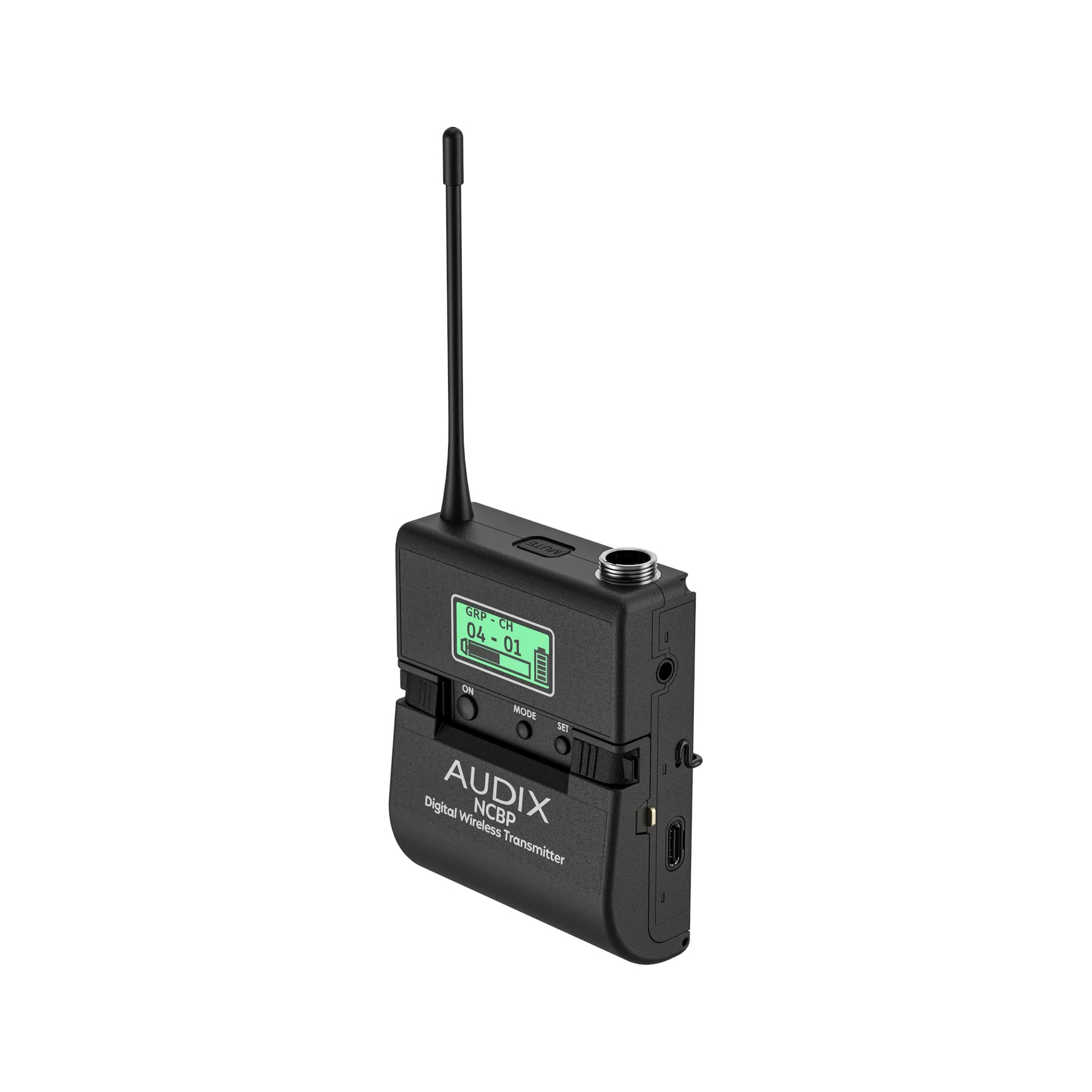

The NCBP transmitter accepts the ADX10 via its TA3M input (TA3F connector, Pin 2 hot) and delivers AES-256 encrypted UHF digital transmission across a 48 MHz tuning range with less than 3 ms latency. One-touch IR sync pairs to any Novacore receiver in seconds. Variable input gain from –12 to +18 dB in 6 dB steps lets engineers dial in the ADX10's signal precisely at the transmitter. A dedicated 3.5 mm remote mute input supports an external latching or momentary switch (not included) for hardwired mute control at a podium or from front-of-house.

The bundle operates on 2x AA alkaline batteries or 1x NCLB rechargeable lithium-ion battery with 9+ hours of runtime, with USB-C charging built into the transmitter body. The NCBP is also compatible with other AUDIX lavalier and headset microphones — including the L5, L5O, HT5, HT7B3P, and HT7BG3P — and any third-party mic terminated with a TA3F connector, allowing the system to grow as application needs evolve.

Specifications

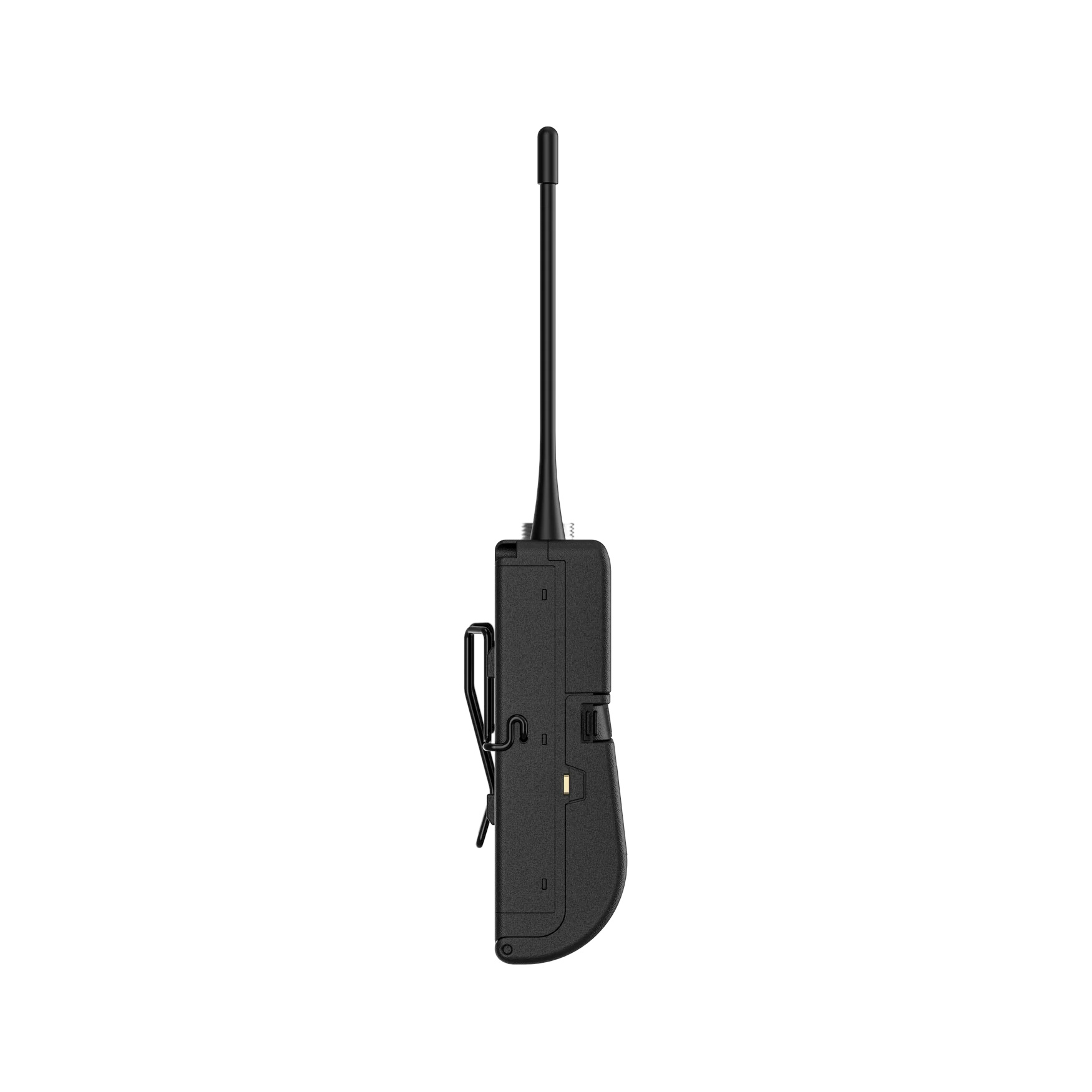

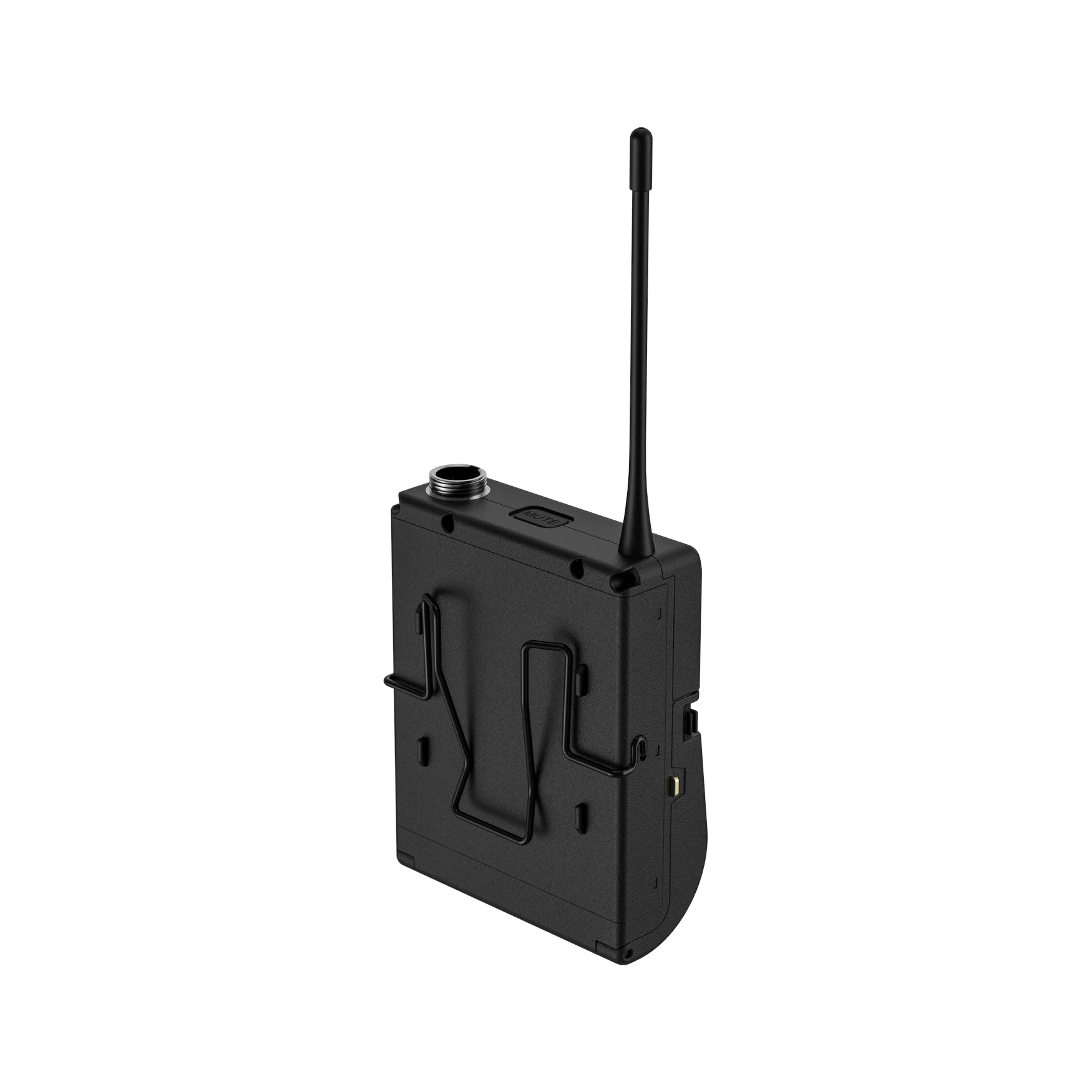

• ​Bodypack Transmitter
  • Type: UHF Digital Bodypack Transmitter
  • RF Frequency Range: UHF 494‑542 MHz (country dependent)
  • RF Bandwidth: 48 MHz
  • Display: LCD
    • Displays GRP‑CH, battery status, RF signal strength, and settings menu
  • Control Interface: Sync sensor, ON button, MUTE button, MODE button, SET button
  • Encryption: AES 256‑bit
  • Compatible Microphones: Microphones terminated with TA3F connectors (Pin 2 Hot)
    • e.g.ADX10, L5, L5O, HT5, etc.
  • Audio Control: 12 dB to +18 dB in 6 dB steps; low cut; limiter; phase invert
  • Mic Input

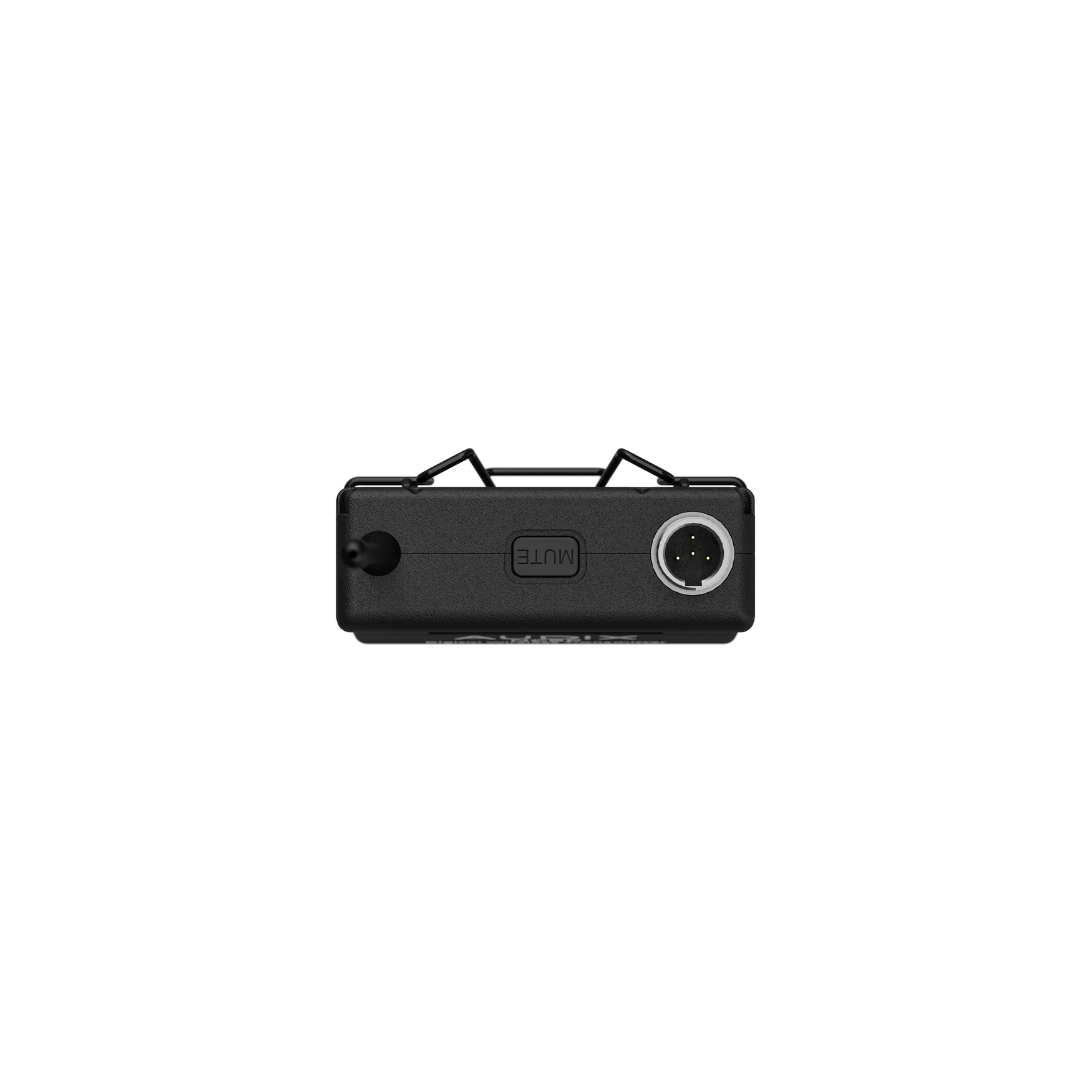

    • Connector: 3‑Pin male mini connector (TA3M)
    • Configuration: Unbalanced
    • Impedance: 1 MΩ
    • Maximum Input Level: 1725 mVrms (@ 1% THD)
    • Remote Mute Control Input: 3.5 mm TRS
  • ​RF Output
    • Power: 1 mW / 10 mW switchable
    • Antenna type: 1/4‑wave whip; fixed
    • Occupied Bandwidth: < 200 kHz
    • Modulation Type: AUDIX Proprietary Digital
  • Power Requirements: (1) NCLB Li‑ion battery (1500mAH) or (2) AA alkaline
  • Battery Charging: Audix NCC1 or NCC2 charging station, or USB‑C
  • Materials / Finish: ABS Plastic / Aluminum / Black Finish
  • Weight (no battery): 0.22lbs (0.1 kg)
  • Dimensions (WxHxD): 2.6 x 3.15 x 0.98 in (66 x 80 x 25 mm)

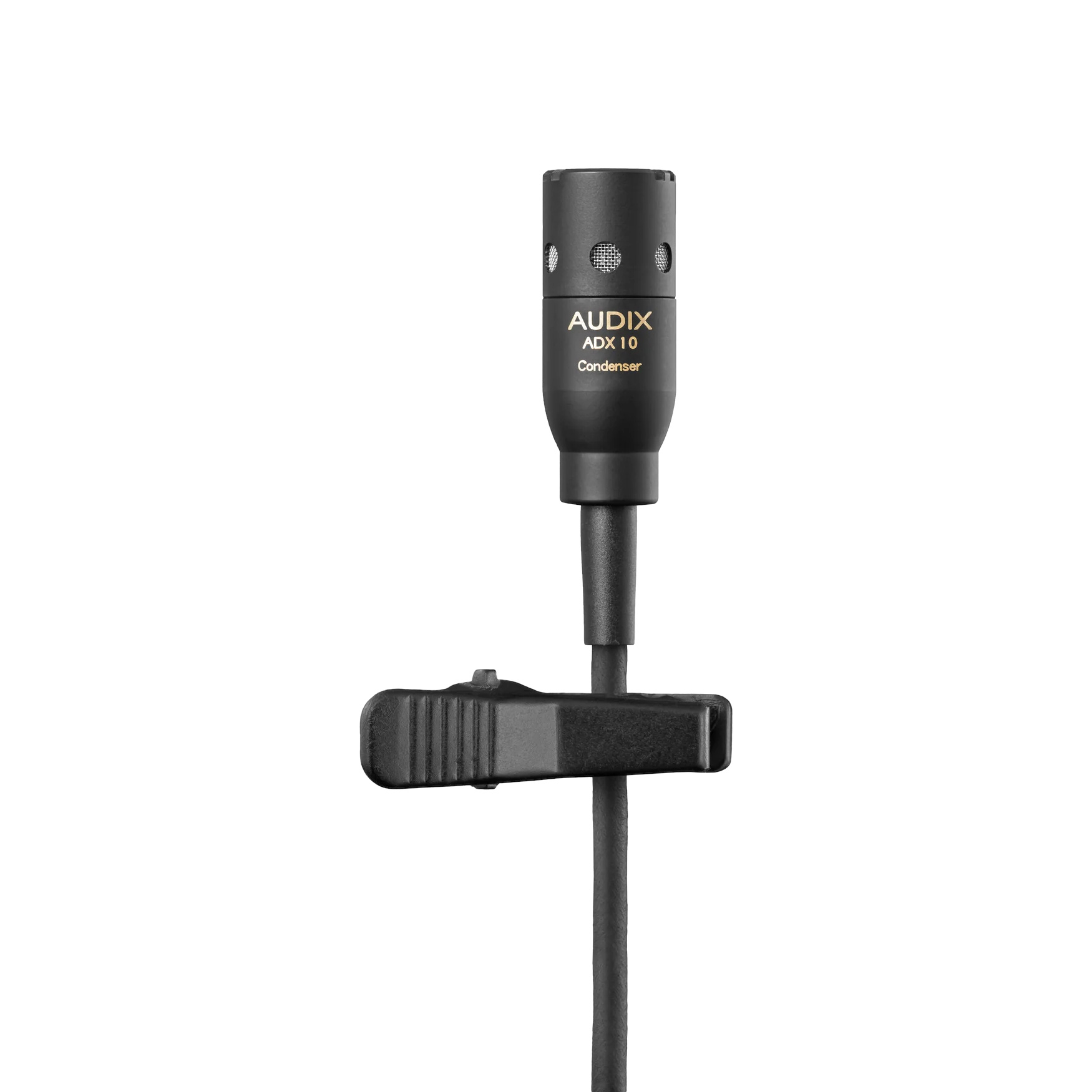

• ADX10 Lavalier Condenser Microphone
  • Transducer Type: Pre-Polarized Condenser
  • Frequency Response: 50 Hz - 18 kHz
  • Polar Pattern: Cardioid
  • Output Impedance: 800 ohms
  • Sensitivity: 5 mV / Pa @ 1k
  • Equivalent Noise Level: <29 dB (A-weighted)
  • Signal to Noise Ratio: >65 dB
  • Maximum SPL: ≥120 dB
  • Power Requirements: 9-52 V phantom
  • Connector: Shielded 3’ terminating to a miniature 3 pin Female XLR connector
  • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
  • Materials / Finish: Machined Brass / Black Finish
  • Weight: 0.05 lbs (21 g)
  • Dimensions
    • Capsule (LxD): 0.98 x 0.39 in (25 x 10 mm)
    • Cable Length: 3ft

What's in the Box

• NCBP — Novacore UHF Digital Bodypack Transmitter
• ADX10 — Cardioid Lavalier Condenser Microphone
• NCBC — Belt Clip

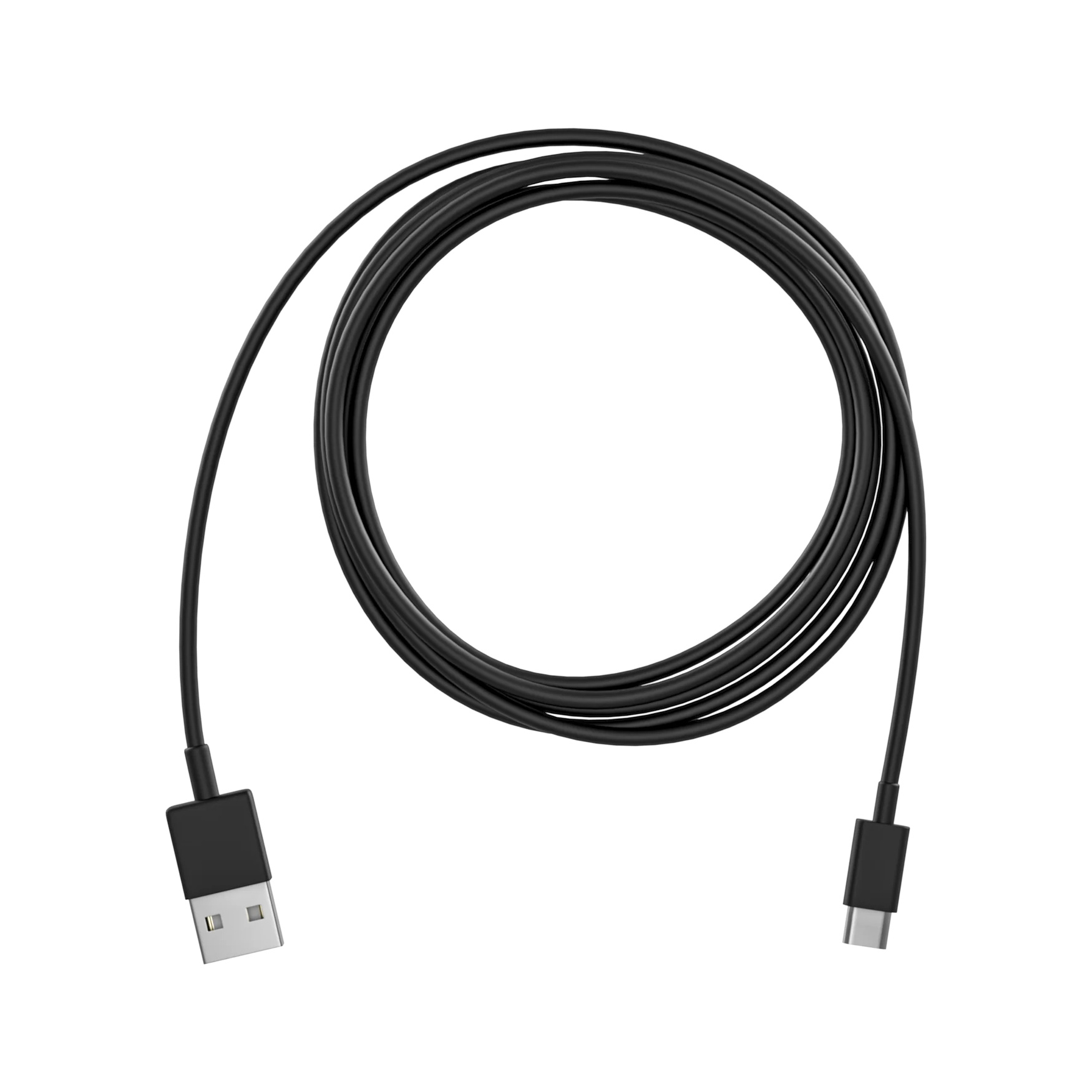

• NCCC — 20" Charging Cable, USB-A to USB-C
