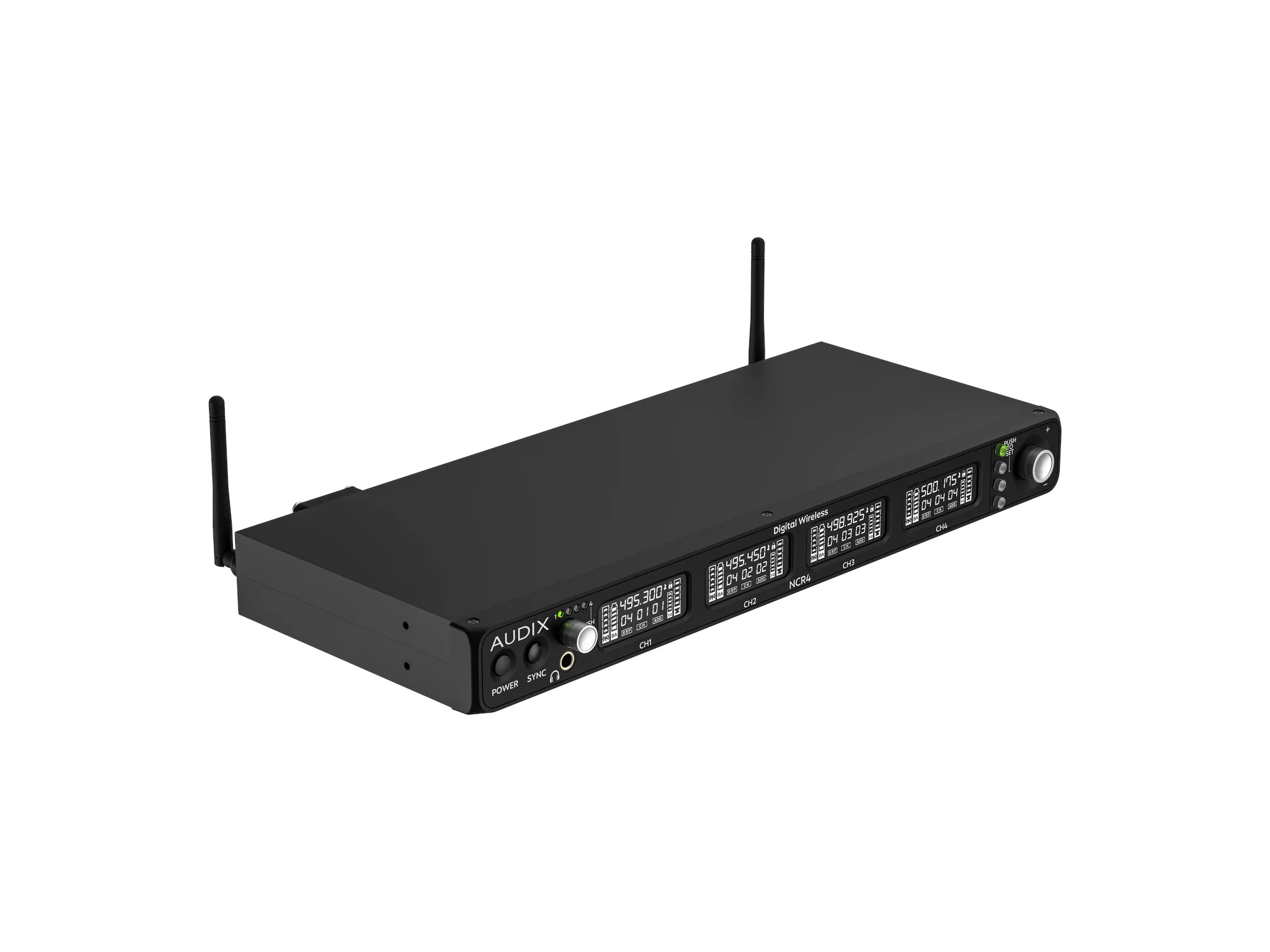

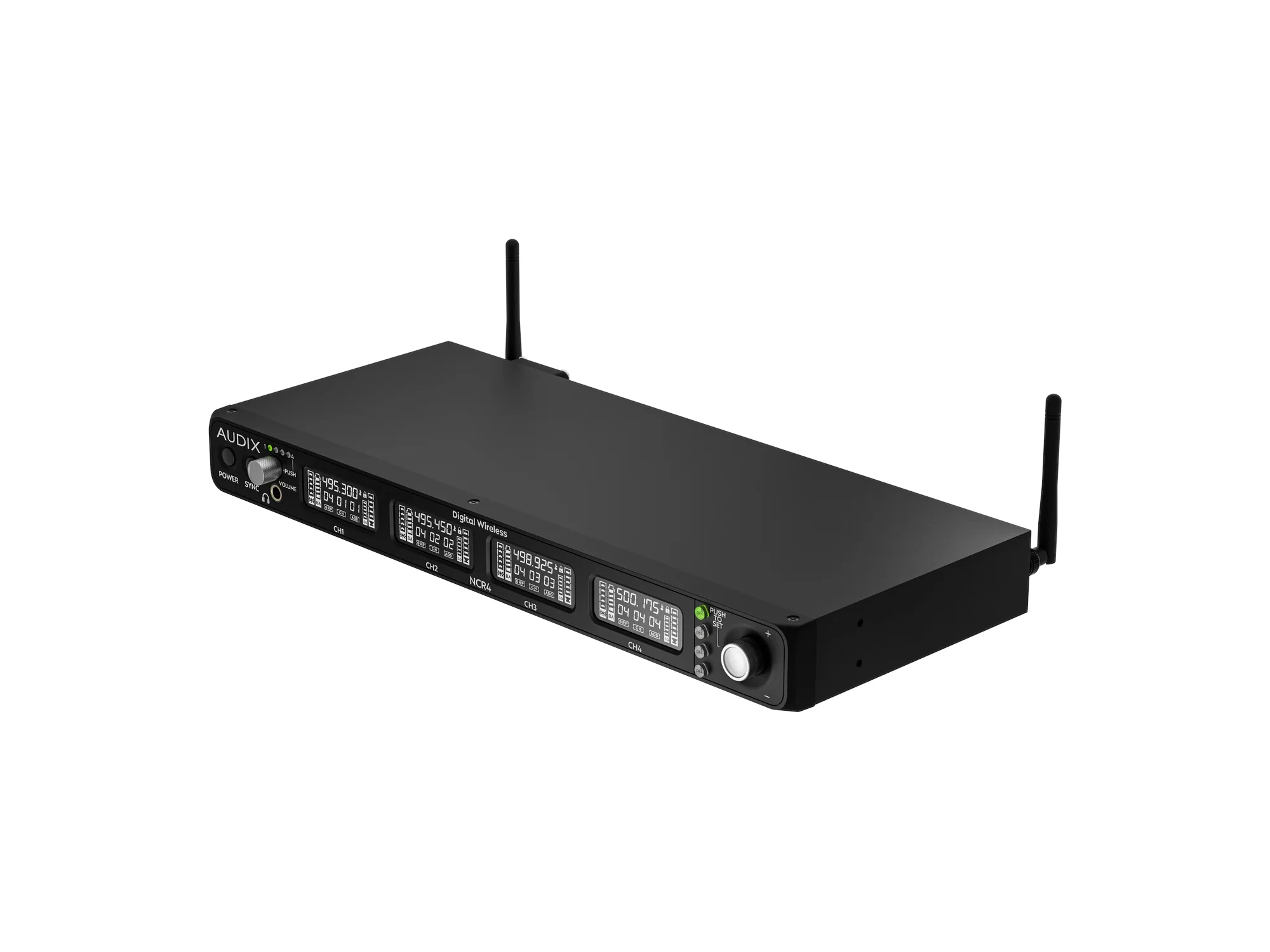

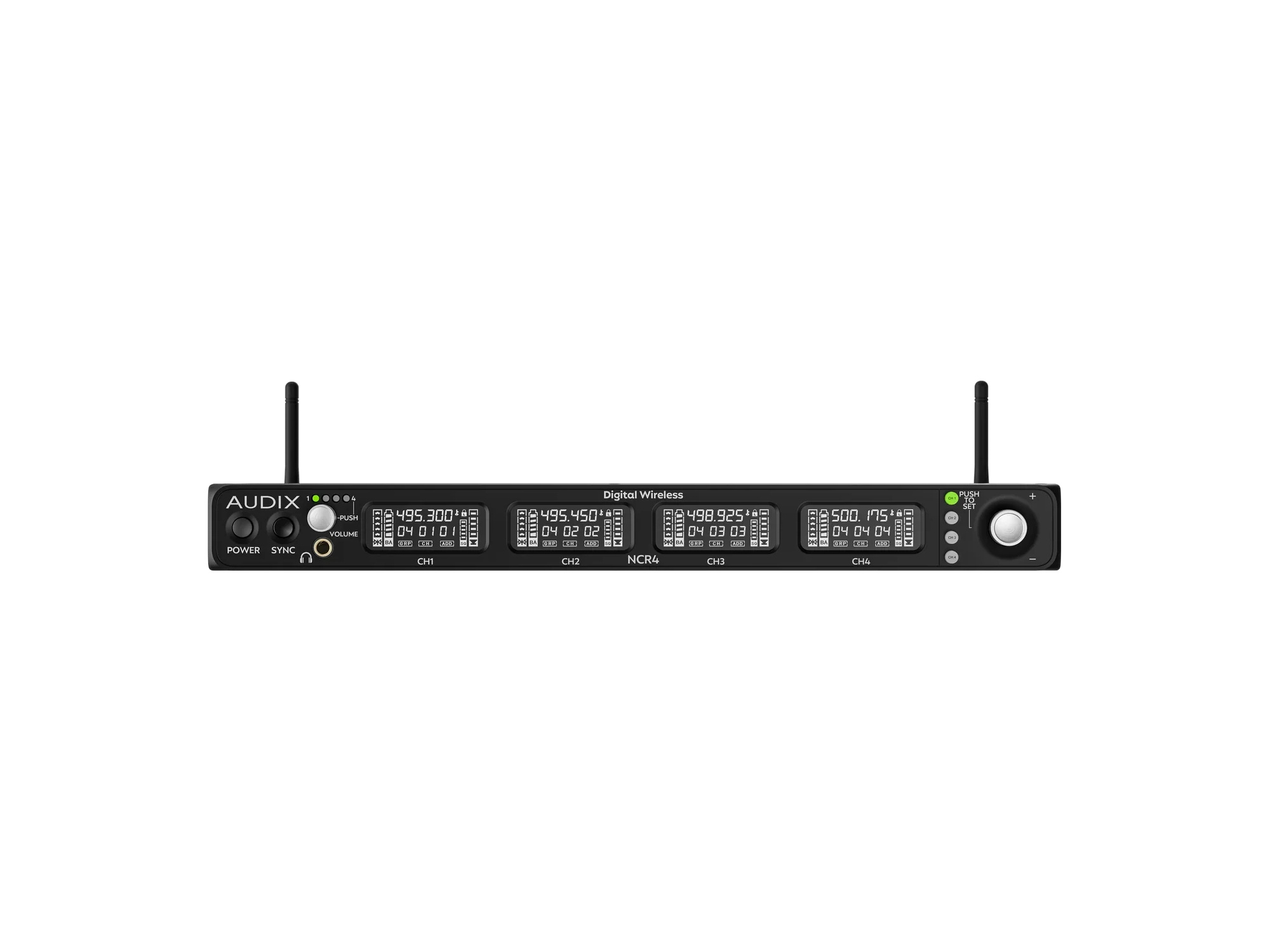

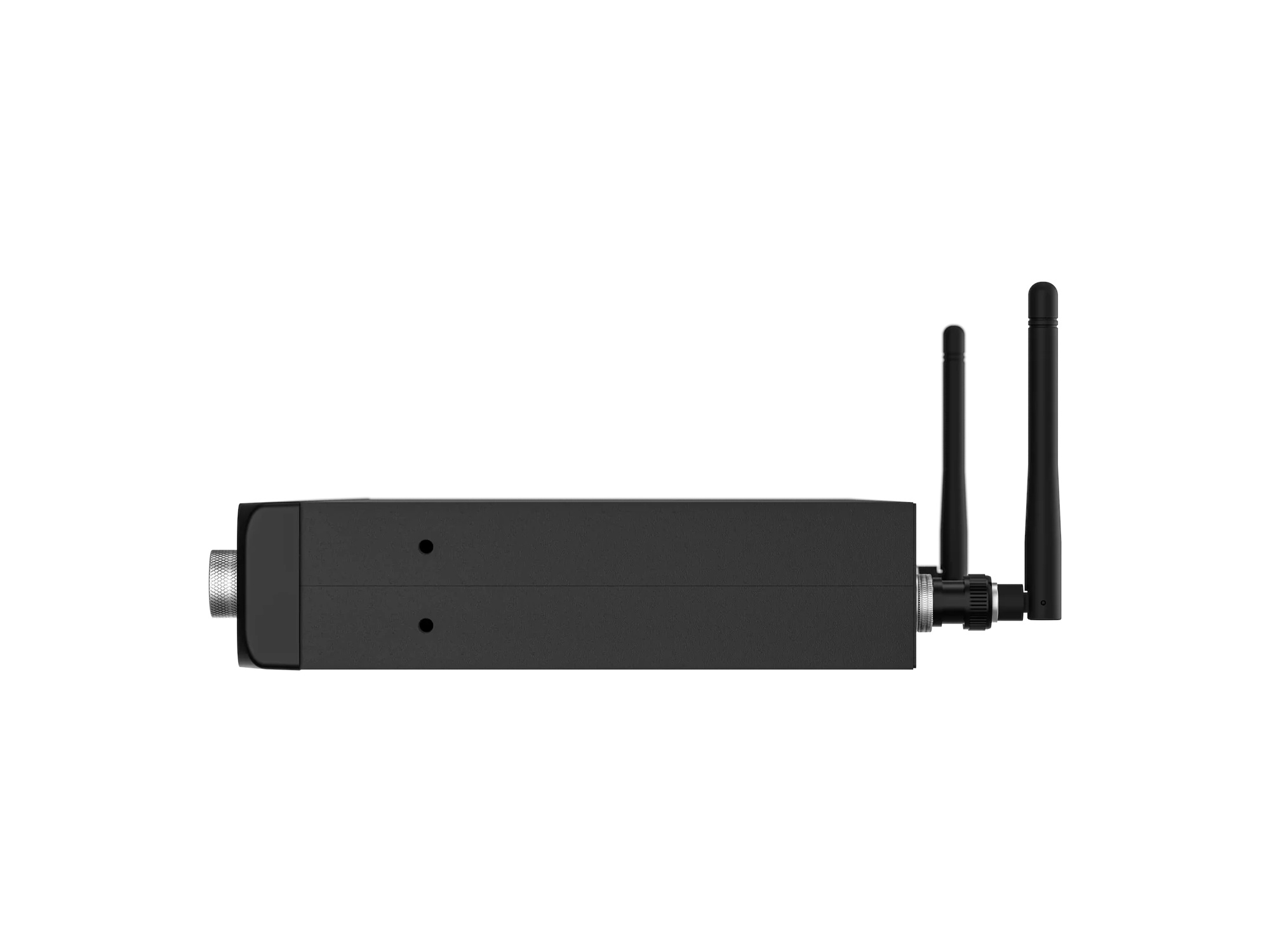

Audix NCR4 Novacore Quad-Channel Digital Receiver

About: Audix NCR4 Novacore Quad-Channel Digital Receiver

The AUDIX Novacore NCR4 digital wireless receiver is meticulously engineered to satisfy the rigorous demands of complex RF deployments. Utilizing a sophisticated state‑of‑the‑art digital architecture, Novacore delivers unparalleled audio quality characterized by crystal-clear sound reproduction and minimal latency. This advanced design philosophy not only ensures sonic fidelity but also contributes to exceptional spectral efficiency, allowing for a greater number of simultaneous operating channels within increasingly crowded radio frequency spectra.

• 20 simultaneous channels per band
• 110 dB dynamic range
• AES-256 encryption
• Dante/AES67 and Balanced XLR Audio outputs

The system’s robust performance guarantees rock-solid wireless stability, making it a dependable choice across a diverse range of professional applications. Novacore is perfectly suited for intimate settings such as houses of worship, where audio clarity and reliability are paramount for spoken word and musical performances. Furthermore, its secure and interference-resistant transmission capabilities make it an ideal solution for critical corporate meetings, as well as high-stakes governmental and legislative events where every word must be captured without fail. On the grand scale, Novacore systems possess the power and flexibility necessary to handle the complex, high-channel-count requirements of large-scale professional tour sound productions, providing world-class performance night after night in challenging live environments. The combination of pristine digital audio, spectral efficiency, and unwavering reliability positions the AUDIX Novacore as a premier choice for audio professionals demanding the very best in digital wireless technology.

AUDIX NCR4 receivers include both balanced analog and Dante outputs. By integrating Dante, a single Ethernet cable can route signals from multi‑channel receivers, which simplifies connections with Dante‑enabled mixers and peripherals. This configuration supports easy system expansion while ensuring compatibility with AES67‑compliant devices.

Specifications

• Type: UHF Digital Receiver
• Channels: 4
• RF Frequency Range: UHF 494‑542 MHz (country dependent)
• RF Bandwidth: 48 MHz
• Display: LCD
• Control Interface: Power button, Sync button, Jog Dial, Channel Select Buttons, Headphone Monitoring Control
• Encryption: AES 256‑bit
• Frequency Response: 20 Hz–20 kHz (< ‑2 dB)
• Latency: < 3 ms
• Audio Processing: 44.1 kHz / 24‑bit digital sampling
• Dynamic Range: > 110 dBA
• Receiving Mode: Digital Diversity
• RF Input
  • Spurious Rejection: > 80 dB
  • Antenna Type: 1/4‑wave
  • Connector Type: Detachable; 50 Ω BNC Female connector provides bias for antenna systems
  • Sensitivity: ‑85 dBm

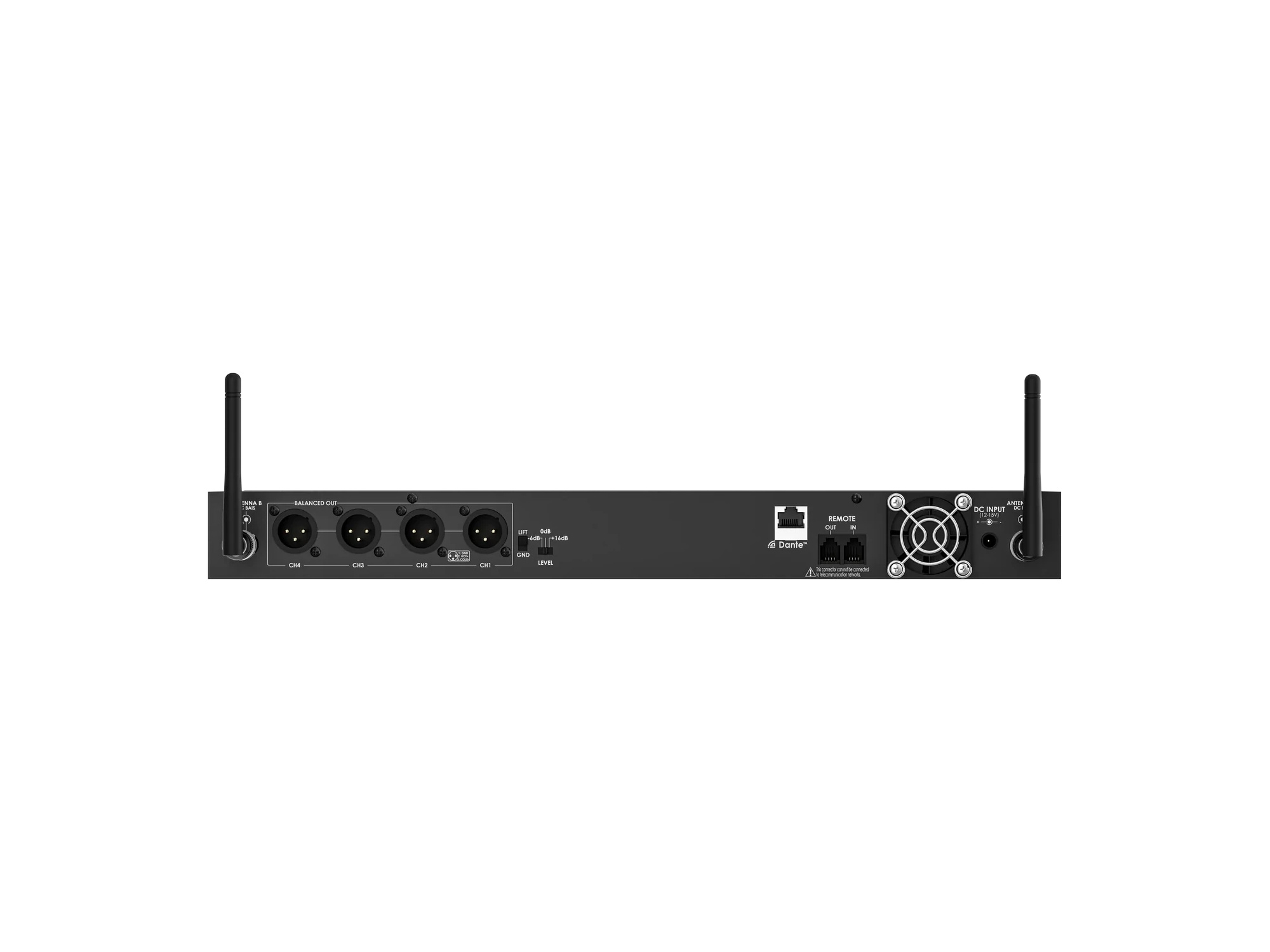

• Audio Output
  • Level Switch: ‑6 dB, 0 dB, +16 dB
  • Switch: Ground / Lift
  • Connector: XLR; Balanced (1 = ground, 2 = audio +, 3 = audio – )
  • Impedance: XLR Line Level : 600 Ω
  • Output: +18 dBV
  • Dante/AES67: via RJ45
• Networking: RJ11 x2 for PC software control
  • Recommended Connection Distance: < 100 meters
• Power Requirements: 12 VDC @ 300 mA (supplied by external power supply ‑ tip positive)
• Chassis: 1U (19”)
• Materials / Finish: Steel / Black Finish
• Weight (without antennas): 5.07 lbs (2.3 kg)
• Dimensions (WxHxD): 16.5 x 1.73 x 8.5 in (419 x 44 x 216 mm)

What's in the Box

• NCR4 — Novacore Quad-Channel Digital Receiver
• 2x BNC detachable antennas

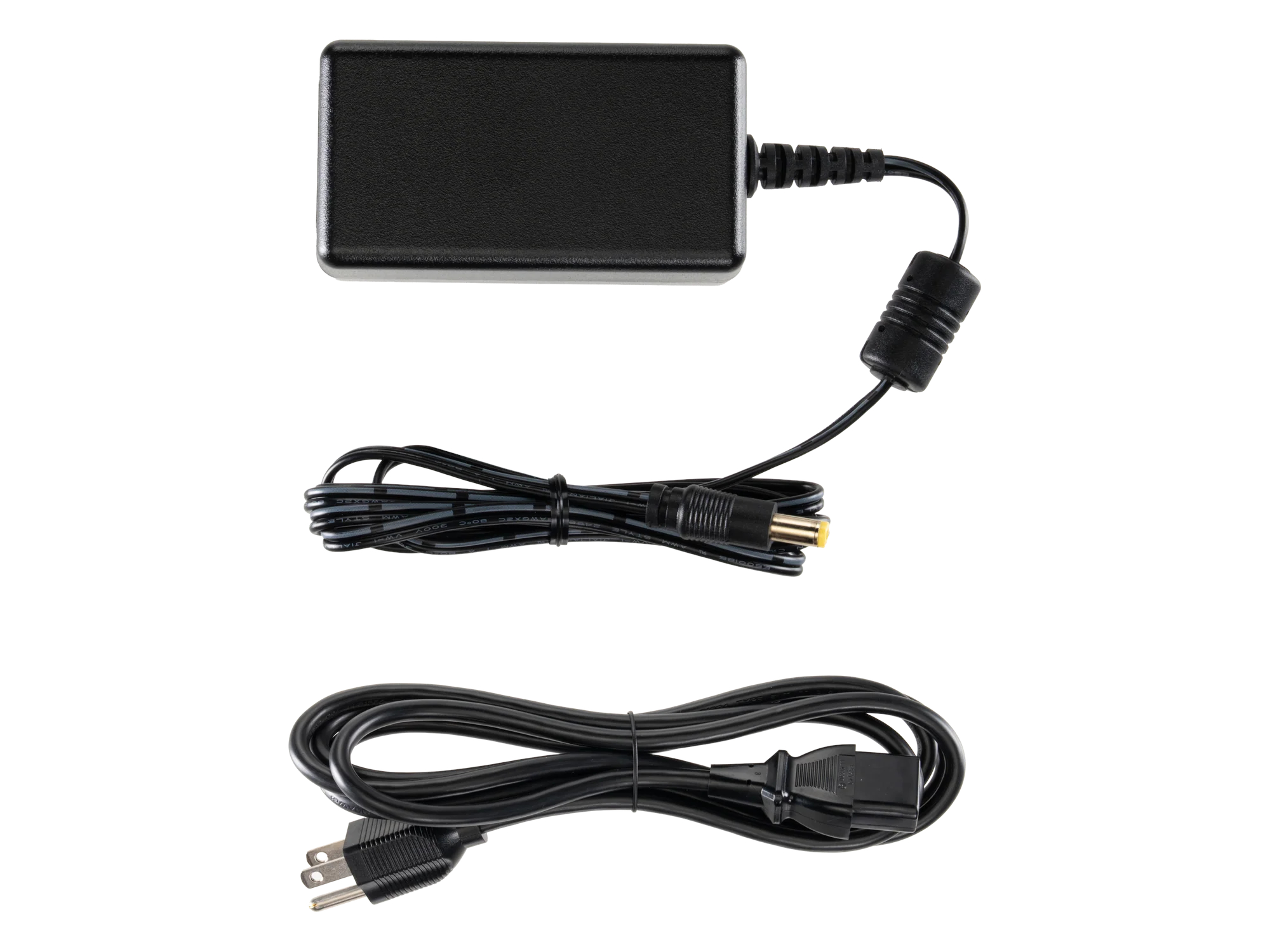

• PS12V — 12 VDC external power supply (100–240 VAC / 50/60 Hz universal)
