Audix NCBP Novacore UHF Digital Bodypack Transmitter

About: Audix NCBP Novacore UHF Digital Bodypack Transmitter

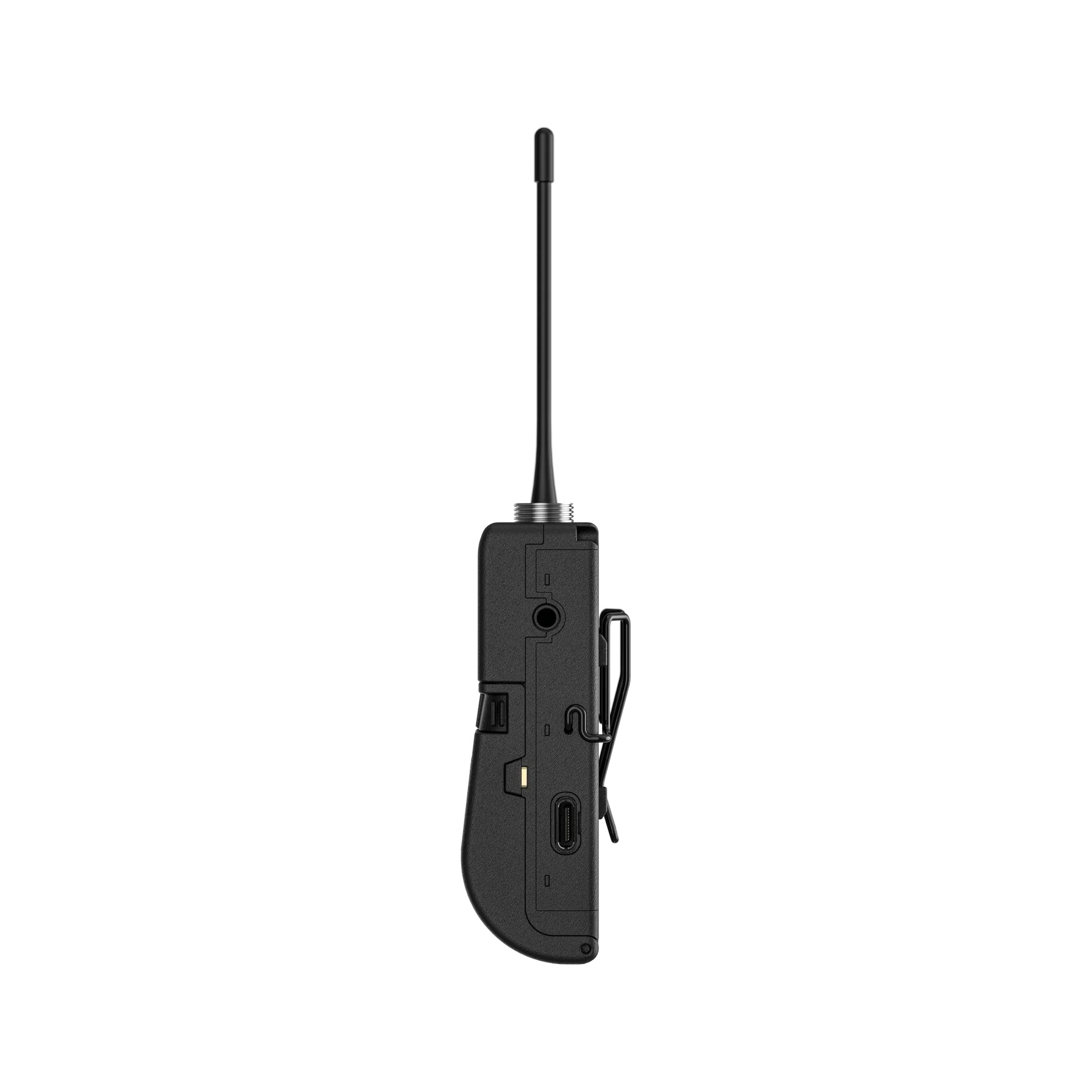

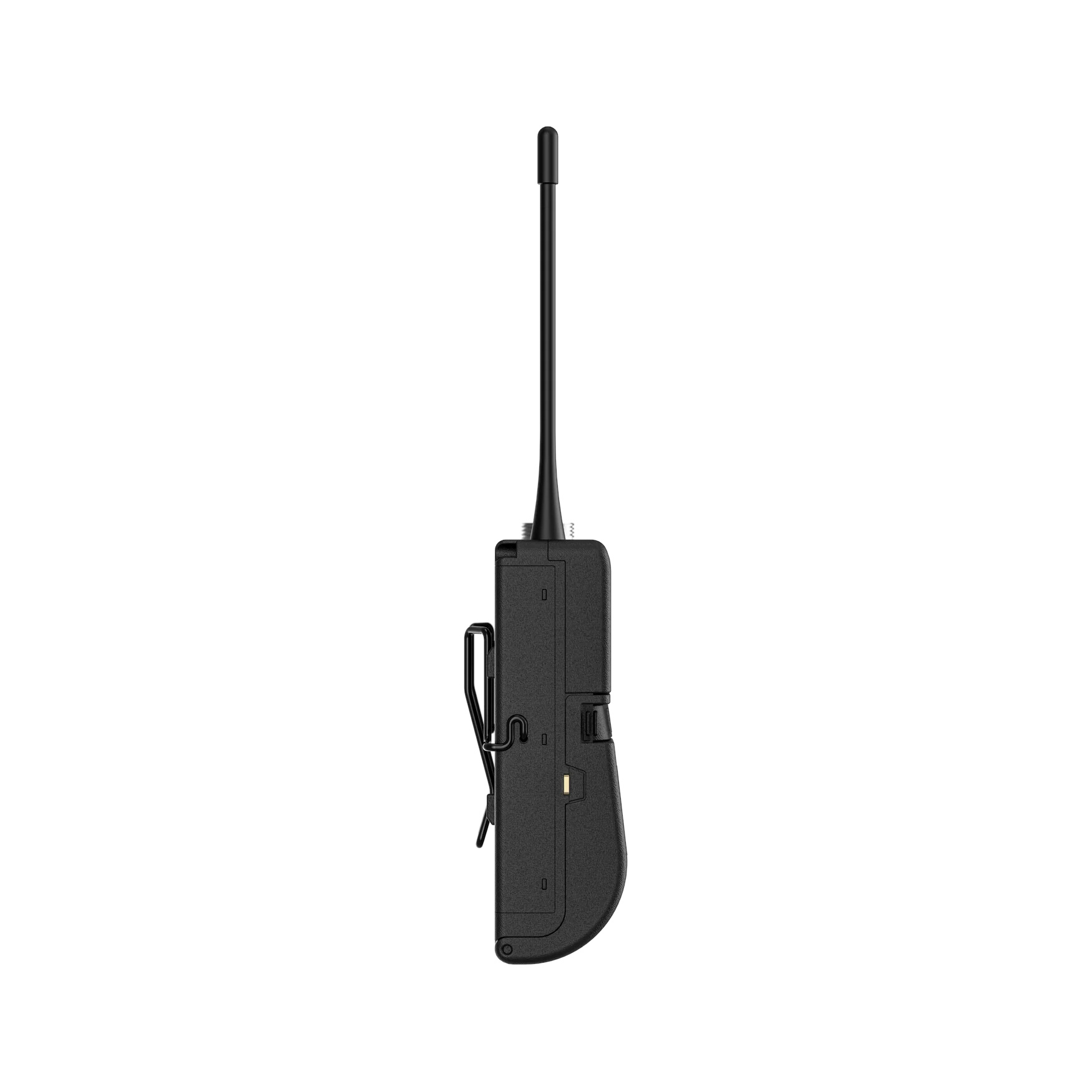

The AUDIX Novacore NCBP is a compact, professional-grade UHF digital bodypack transmitter designed for clergy, performers, presenters, broadcast talent, and anyone requiring discreet hands-free wireless operation. Its ABS and aluminum construction houses a TA3M (3-pin mini) mic input compatible with AUDIX lavalier and headset microphones — including the ADX10, L5, L5O, HT5, HT7B3P, and HT7BG3P — as well as any third-party mic terminated with a TA3F connector (Pin 2 hot).

• TA3M mic input compatible with AUDIX ADX10, L5, L5O, HT5, HT7B3P, HT7BG3P, and any TA3F-terminated mic
• Dedicated 3.5 mm remote mute input for latching or momentary external switch (not included)
• AES-256 encryption with one-touch IR sync; 48 MHz tuning range (494–542 MHz); <3 ms latency
• Variable input gain (–12 to +18 dB in 6 dB steps), low-cut filter, limiter, and phase invert
• 9+ hour runtime on 2x AA alkaline or 1x NCLB rechargeable lithium-ion; USB-C charging built in

AES-256 encrypted digital transmission is synchronized to the receiver via one-touch IR sync. All controls — power button, mute button, and SET/MODE buttons — are located on the exterior of the unit for easy access. A dedicated 3.5 mm TRS remote mute input accepts a latching or momentary external switch (not included) for hardwired mute control, making the NCBP well suited for podium installations and theatrical applications where the operator controls muting from front-of-house.

The NCBP operates on 2x AA alkaline batteries or 1x NCLB rechargeable lithium-ion battery with 9+ hours of runtime. A built-in USB-C port supports direct cable charging, and the optional NCC2 charging station enables managed multi-unit charging for venues with high weekly usage. Sold as body only; a bundle with AUDIX ADX10 lavalier microphone is available as NCBP+ADX10.

Specifications

• Type: UHF Digital Bodypack Transmitter
• RF Frequency Range: UHF 494‑542 MHz (country dependent)
• RF Bandwidth: 48 MHz
• Display: LCD
  • Displays GRP‑CH, battery status, RF signal strength, and settings menu
• Control Interface: Sync sensor, ON button, MUTE button, MODE button, SET button
• Encryption: AES 256‑bit
• Compatible Microphones: Microphones terminated with TA3F connectors (Pin 2 Hot)
  • e.g.ADX10, L5, L5O, HT5, etc.
• Audio Control: 12 dB to +18 dB in 6 dB steps; low cut; limiter; phase invert
• Mic Input

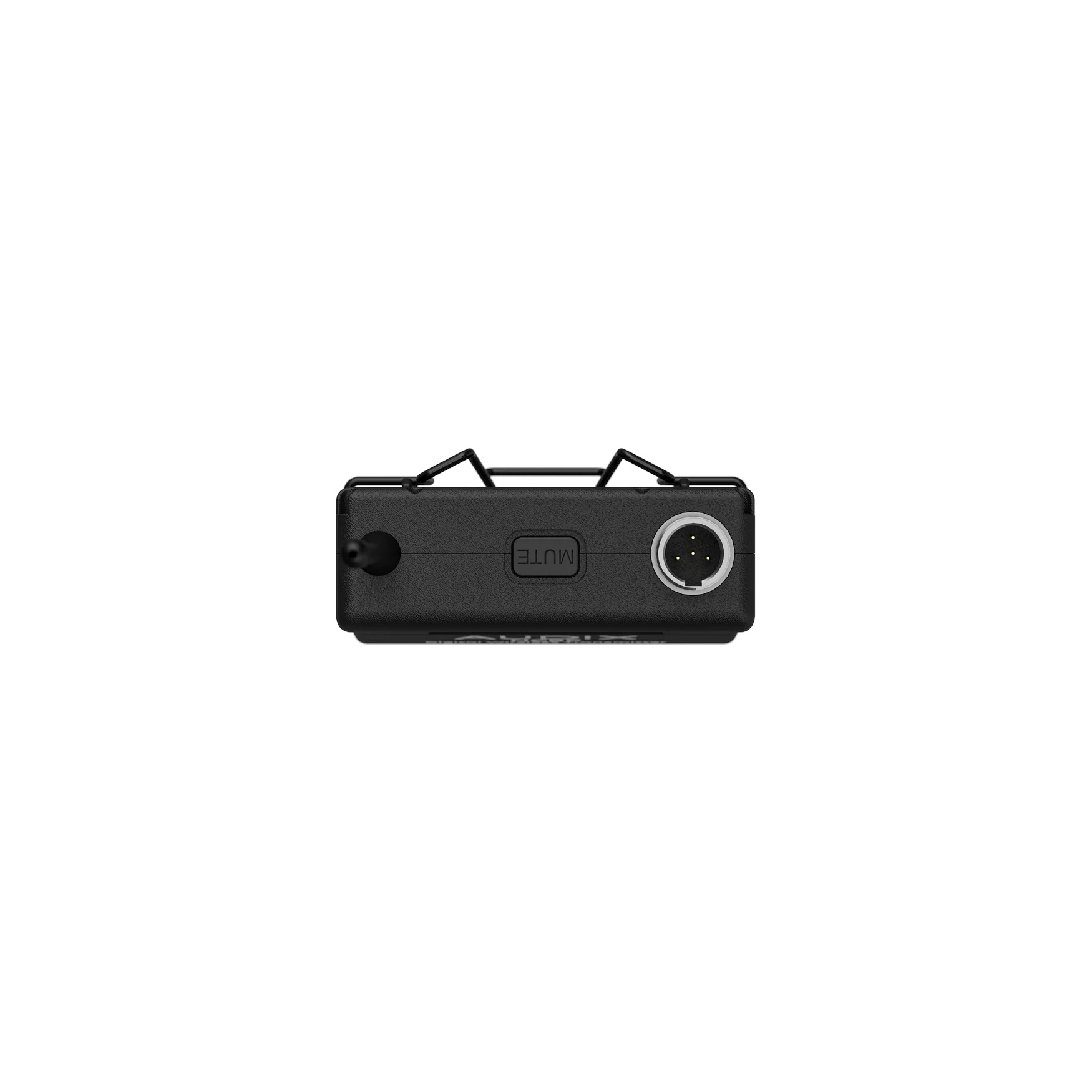

  • Connector: 3‑Pin male mini connector (TA3M)
  • Configuration: Unbalanced
  • Impedance: 1 MΩ
  • Maximum Input Level: 1725 mVrms (@ 1% THD)
  • Remote Mute Control Input: 3.5 mm TRS
• ​RF Output
  • Power: 1 mW / 10 mW switchable
  • Antenna type: 1/4‑wave whip; fixed
  • Occupied Bandwidth: < 200 kHz
  • Modulation Type: AUDIX Proprietary Digital
• Power Requirements: (1) NCLB Li‑ion battery (1500mAH) or (2) AA alkaline
• Battery Charging: Audix NCC1 or NCC2 charging station, or USB‑C
• Materials / Finish: ABS Plastic / Aluminum / Black Finish
• Weight (no battery): 0.22lbs (0.1 kg)
• Dimensions (WxHxD): 2.6 x 3.15 x 0.98 in (66 x 80 x 25 mm)

What's in the Box

• NCBP — Novacore UHF Digital Bodypack Transmitter

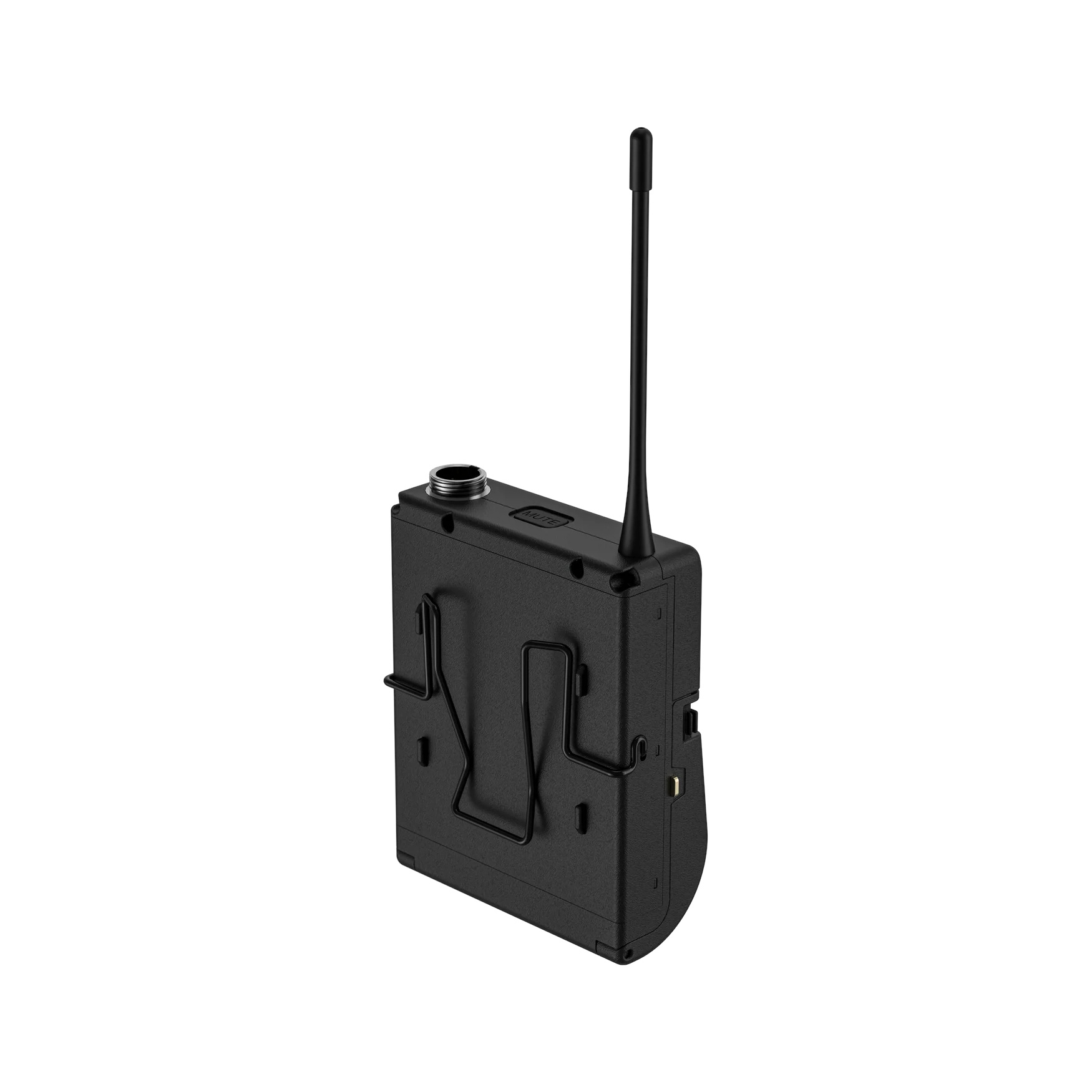

• NCBC — Belt Clip

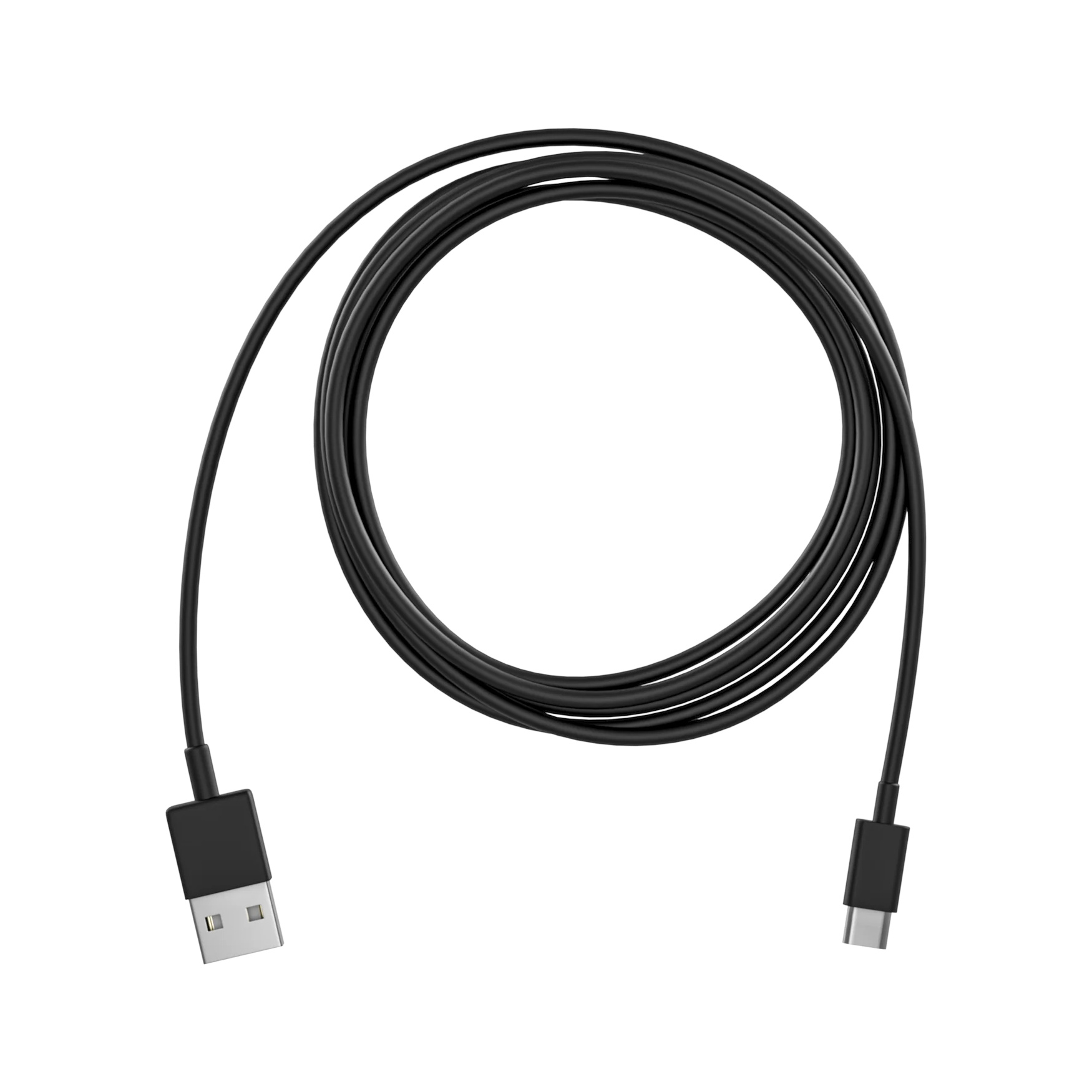

• NCCC — 20" Charging Cable, USB-A to USB-C
