Audix NCR1 Novacore Single-Channel Digital Receiver

About: Audix NCR1 Novacore Single-Channel Digital Receiver

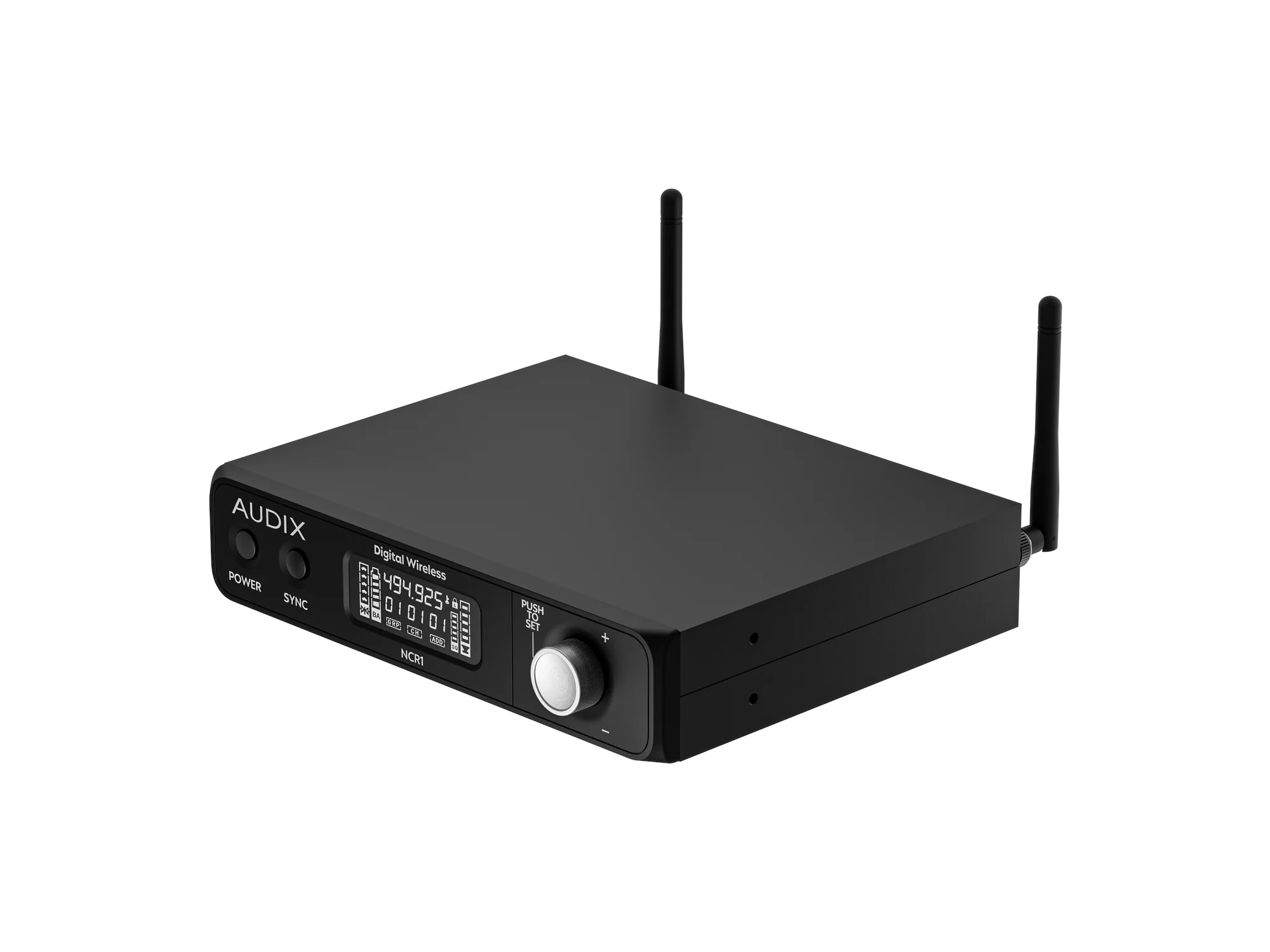

The AUDIX Novacore NCR1 is a compact, single-channel digital UHF wireless receiver and the entry point into the Novacore digital wireless ecosystem. Designed for small systems and portable use, it delivers professional-grade encrypted digital audio across a 48 MHz tuning range (494–542 MHz, country dependent), with one-touch IR sync pairing for fast setup with any Novacore handheld or bodypack transmitter.

• Single-channel digital UHF reception with 48 MHz tuning range (494–542 MHz) and <3 ms latency
• AES-256 encryption with one-touch IR sync pairing to any Novacore handheld or bodypack transmitter

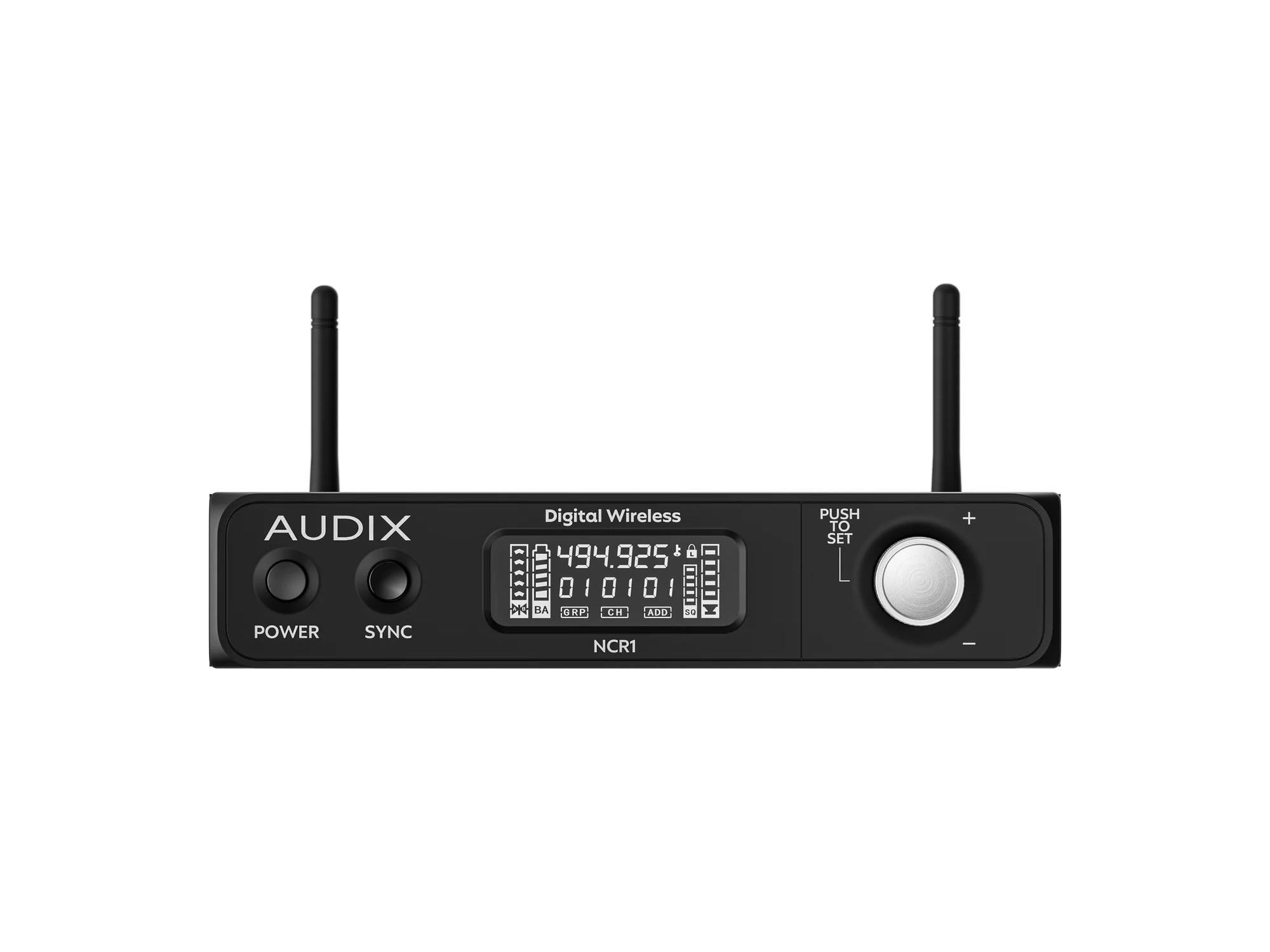

• Front-panel LCD with RF/AF metering, group/channel, diversity status, battery, and settings menu
• Daisy-chainable RJ11 ports for AUDIX Frequency Coordination software — no network switch required
• Balanced XLR output with switchable pad (–6/0/+16 dB) and ground lift; universal 100–240 VAC power supply

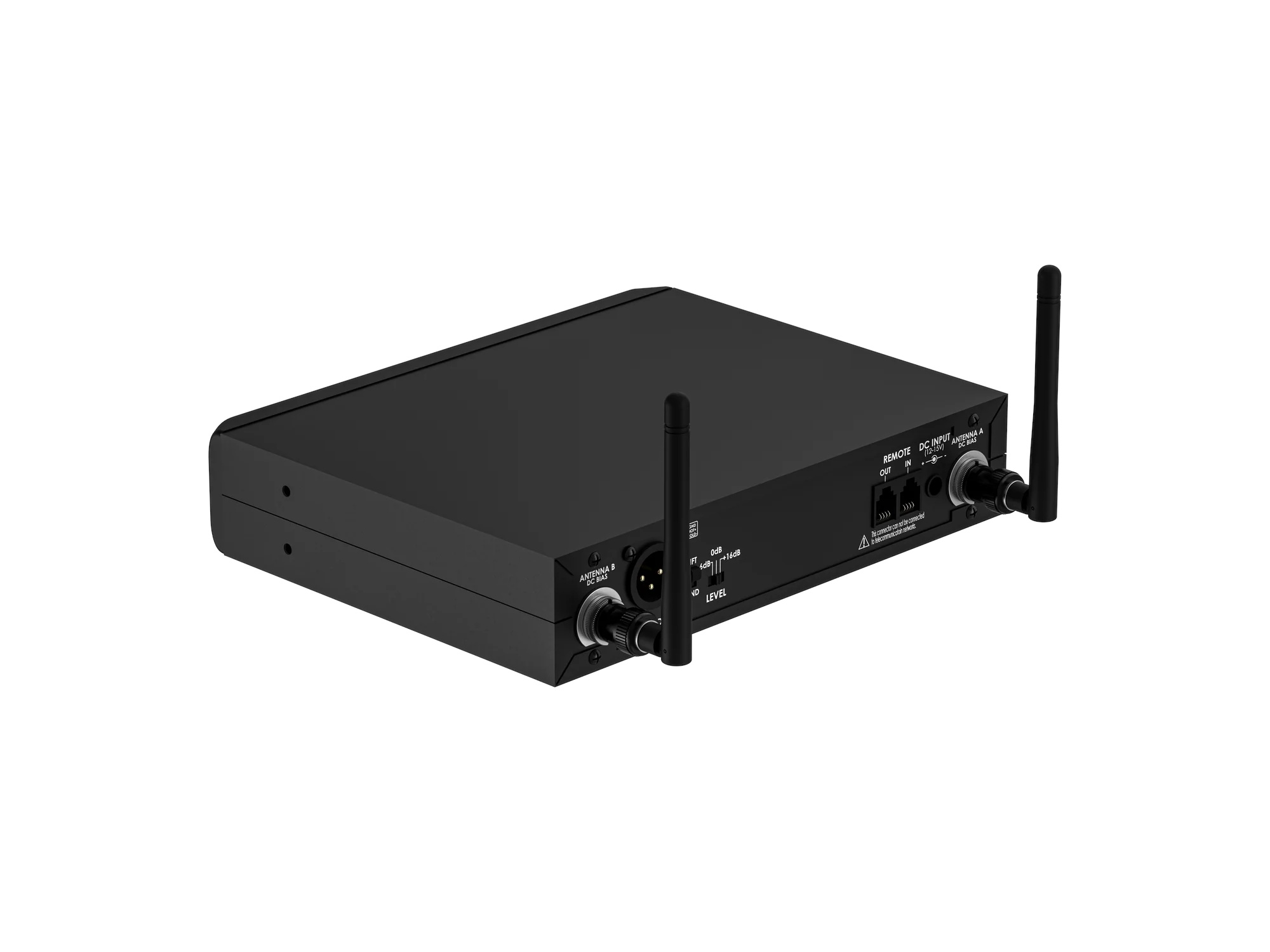

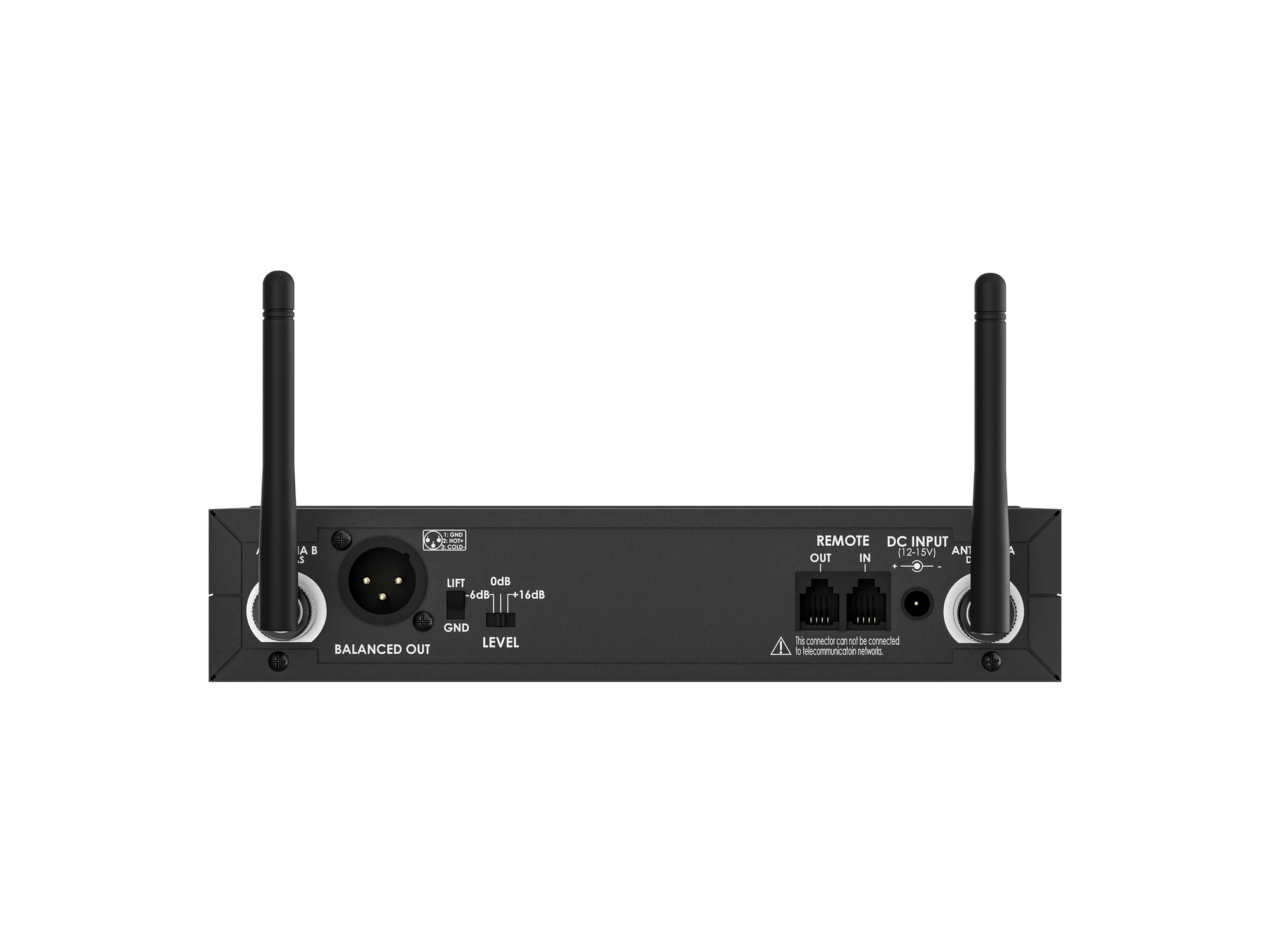

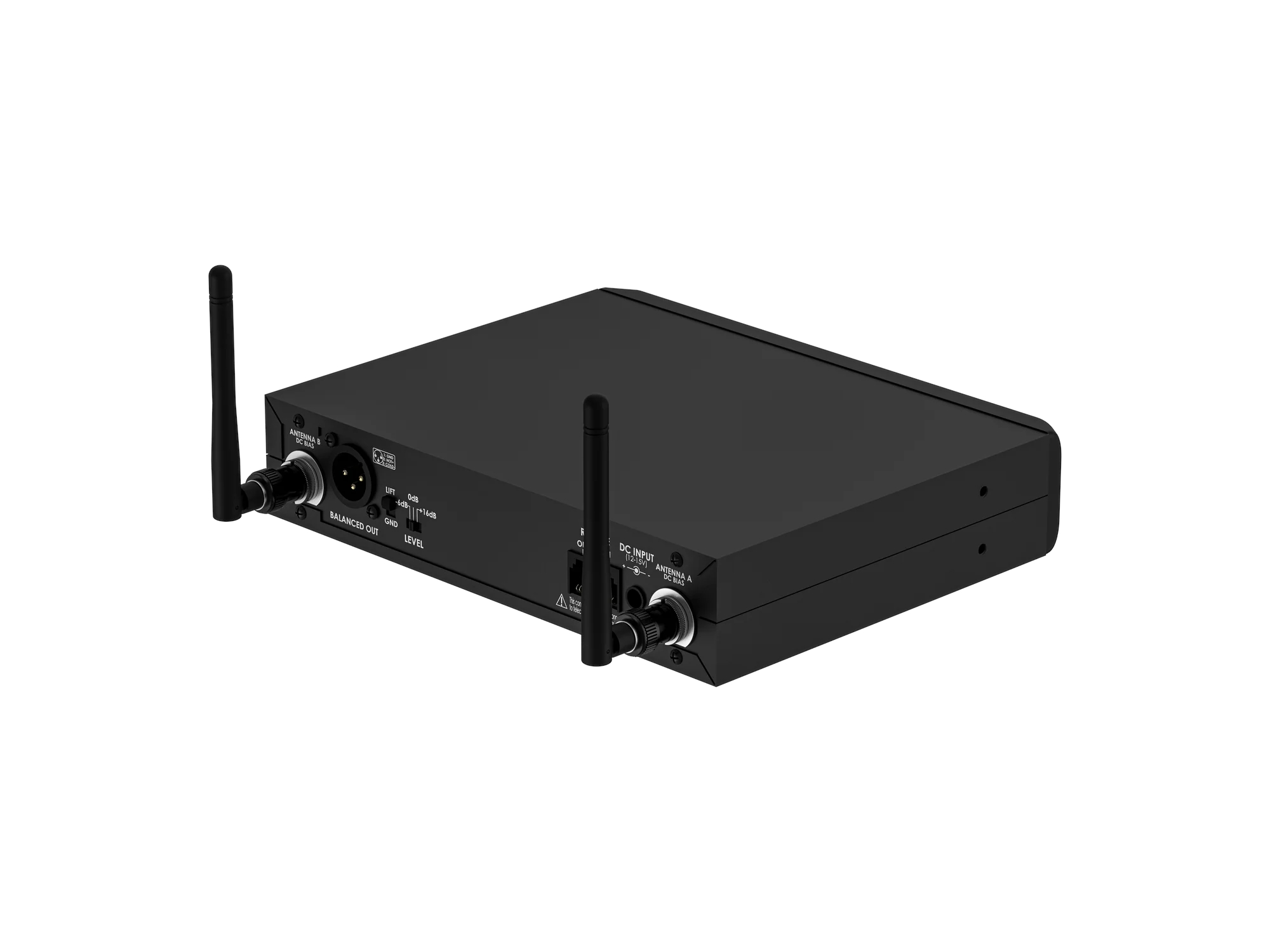

The front-panel LCD provides real-time visibility into RF and audio levels, group/channel assignment, diversity status, battery condition, and squelch — with additional parameters accessible through the MODE menu. Dual rear RJ11 ports allow direct daisy-chaining to AUDIX Frequency Coordination software without a network switch, keeping setup simple in any environment.

Audio is delivered via a balanced XLR output at line level with switchable pad and ground lift. The NCR1 operates on a universal 100–240 VAC power supply and mounts in standard rack infrastructure via the optional single or dual rack mount kit. It is fully compatible with all Novacore transmitters, capsules, and accessories, and shares the same RF platform as the NCR2 and NCR4 for mixed-receiver deployments.

Specifications

• Type: UHF Digital Receiver
• Channels: 1
• RF Frequency Range: UHF 494‑542 MHz (country dependent)
• RF Bandwidth: 48 MHz
• Display: LCD
• Control Interface: Power button, Sync button, Jog dial
• Encryption: AES 256‑bit
• Frequency Response: 20 Hz–20 kHz (< ‑2 dB)
• Latency: < 3 ms
• Audio Processing: 44.1 kHz / 24‑bit digital sampling
• Dynamic Range: > 110 dBA
• Receiving Mode: Digital Diversity
• RF Input
  • Spurious Rejection: > 80 dB
  • Antenna Type: 1/4‑wave; adjustable
  • Connector Type: Detachable; 50 Ω BNC Female connector provides bias for antenna systems
  • Sensitivity: 12 dBμV @ S/N > ‑85 dBm
• Audio Output
  • Level Switch: ‑6 dB, 0 dB, +16 dB,
  • Switch: Ground / Lift
  • Connector: XLR; Balanced (1 = ground, 2 = audio +, 3 = audio – )
  • Impedance: XLR Line Level : 600 Ω
  • Output: +18 dBV
• Networking: RJ11 × 2 for PC software control
  • Recommended Connection Distance: < 100 meters
• Power Requirements: 12 VDC @ 300 mA (supplied by external power supply ‑ tip positive)
• Chassis: 1U Half‑rack (9.5”)
• Materials / Finish: Steel / Black Finish
• Weight (without antennas): 1.98 lbs (0.9 kg)
• Dimensions (WxHxD): 8.27 x 1.73 x 6.42 in (210 x 44 x 163 mm)

What's in the Box

• NCR1 — Novacore Single-Channel Digital Receiver
• 2x BNC detachable antennas

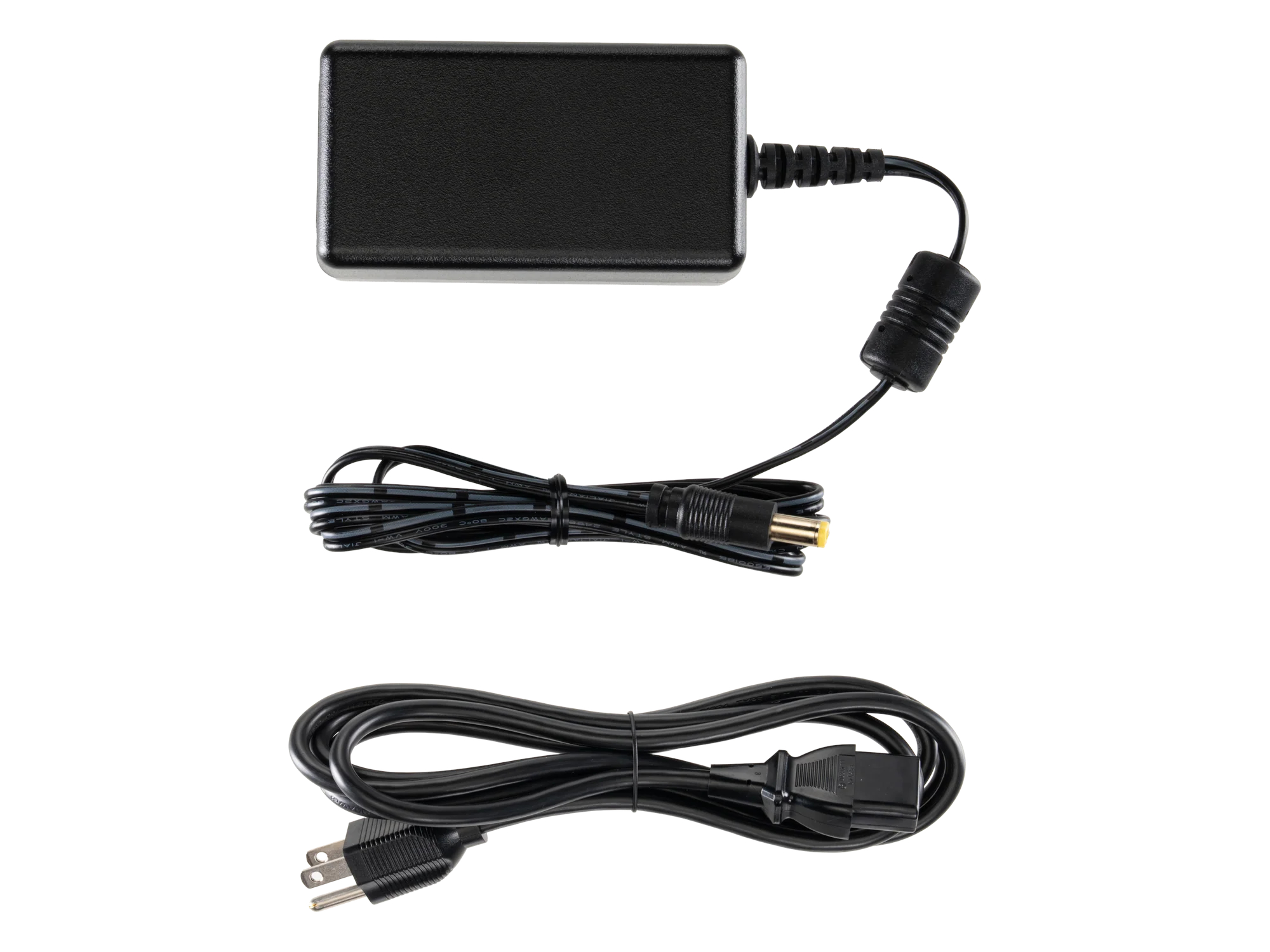

• PS12V — 12 VDC external power supply (100–240 VAC / 50/60 Hz universal)
