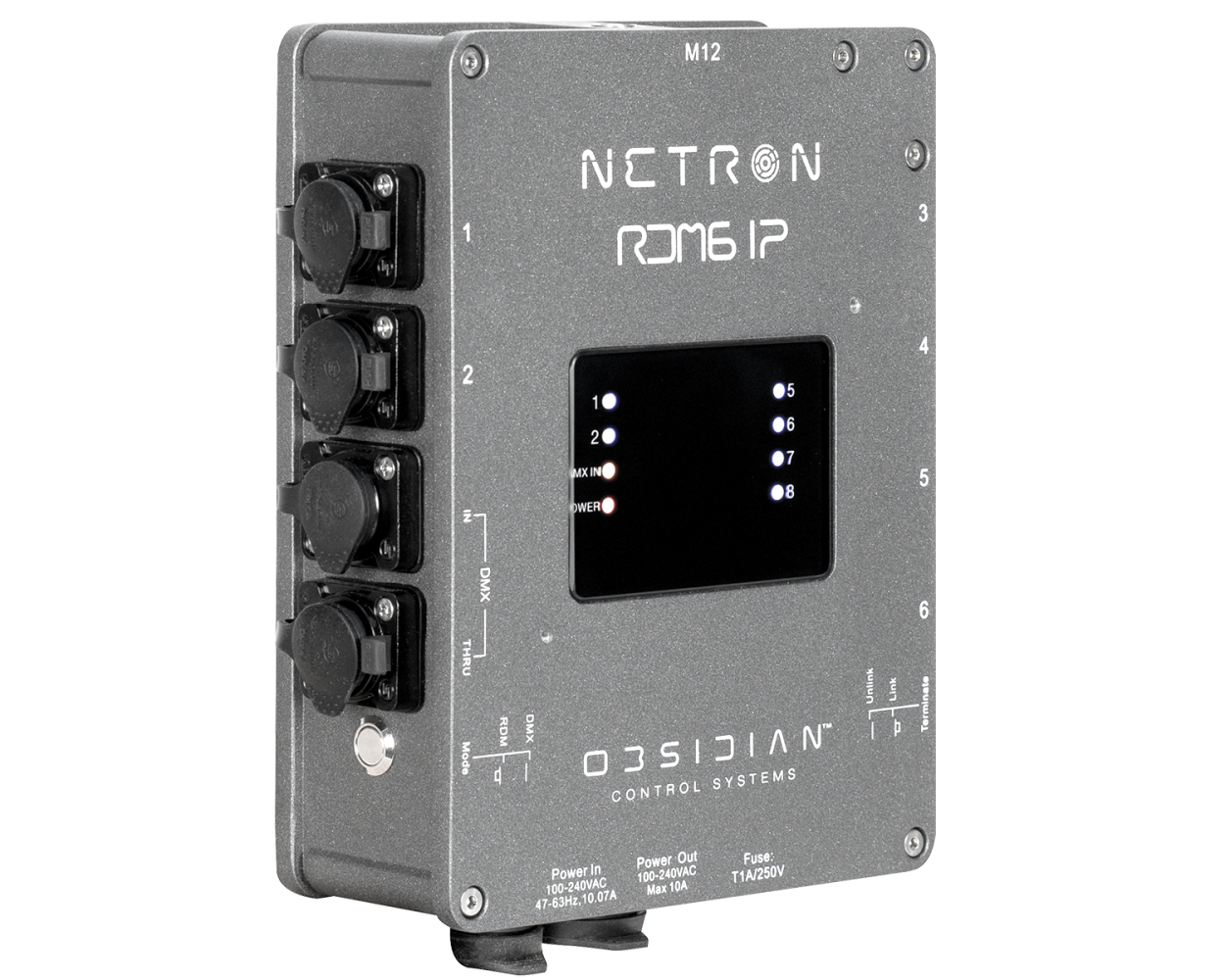

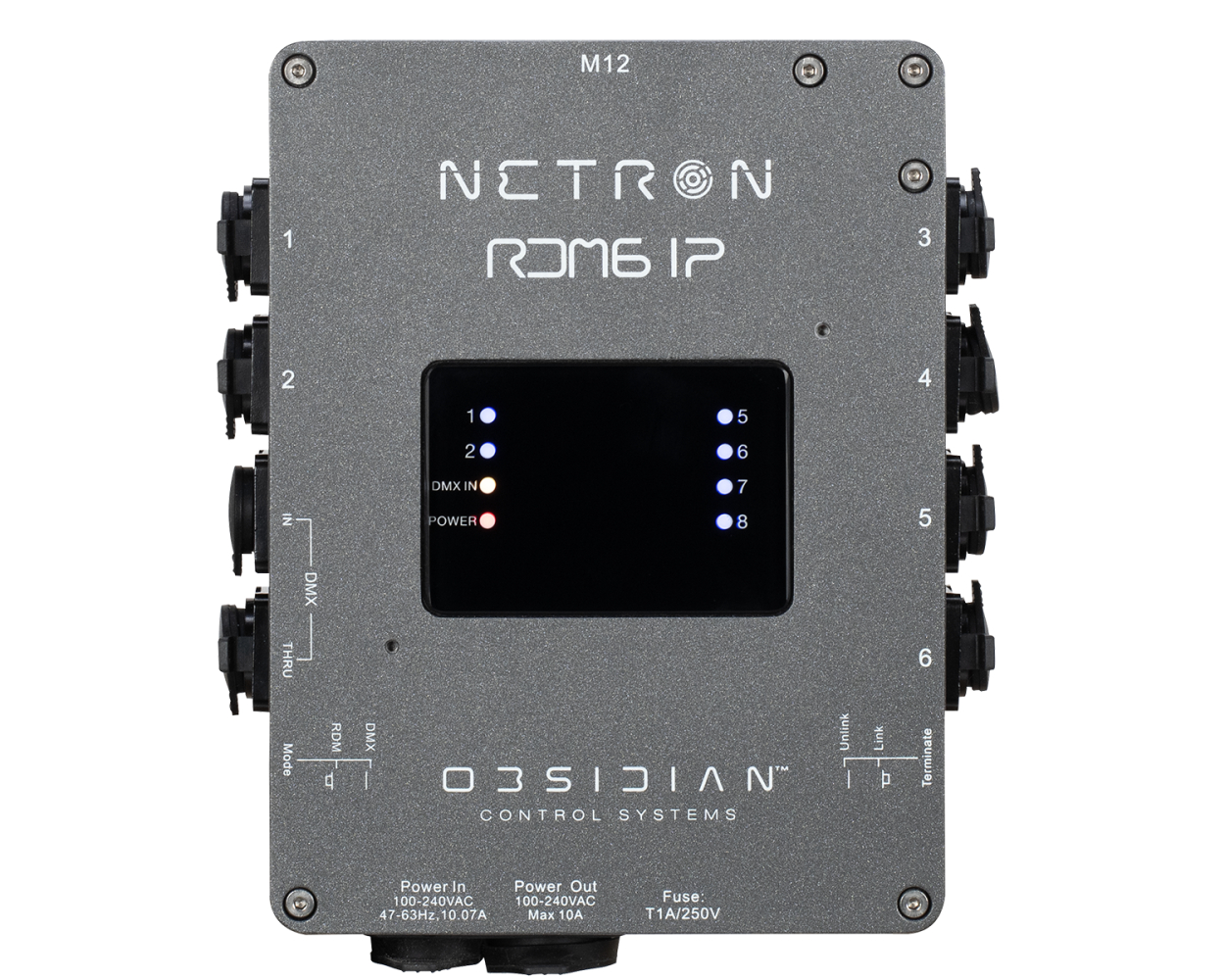

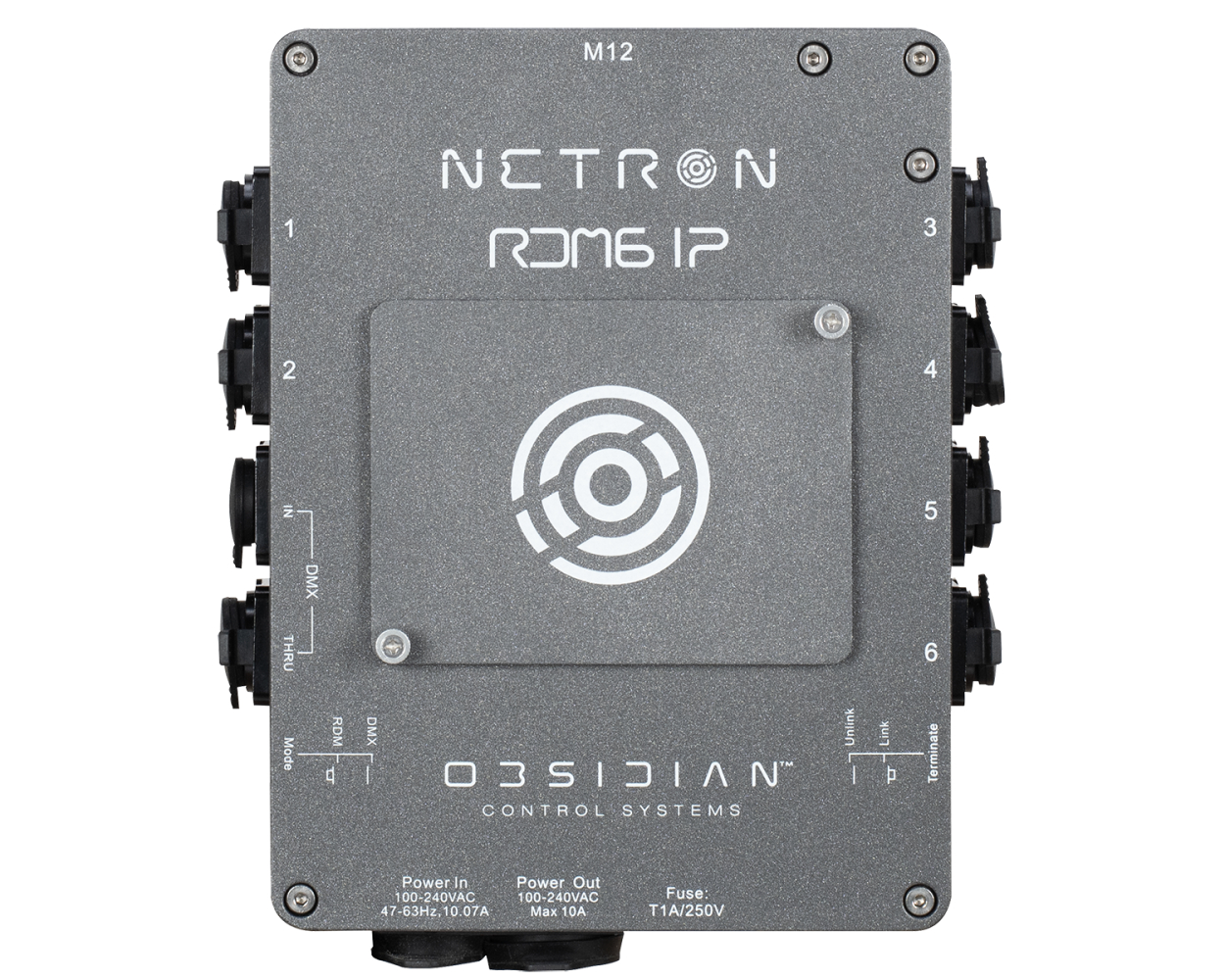

Obsidian Control RDM6 IP66 Rated 6-Port DMX/RDM Splitter
Model: RDM6 IP
About: Obsidian Control RDM6 IP66 Rated 6-Port DMX/RDM Splitter
The Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.
- IP66 DMX Data Splitter
- (6) XLR 5pin outputs
- DMX and RDM compliant
- Optically isolated ports
- Power / DMX Thru connectors
- Powder-coated aluminum chassis
Specifications
- Mounting
- Standalone
- Truss-mount (M10 or M12)
- Wall-mount
- Connections

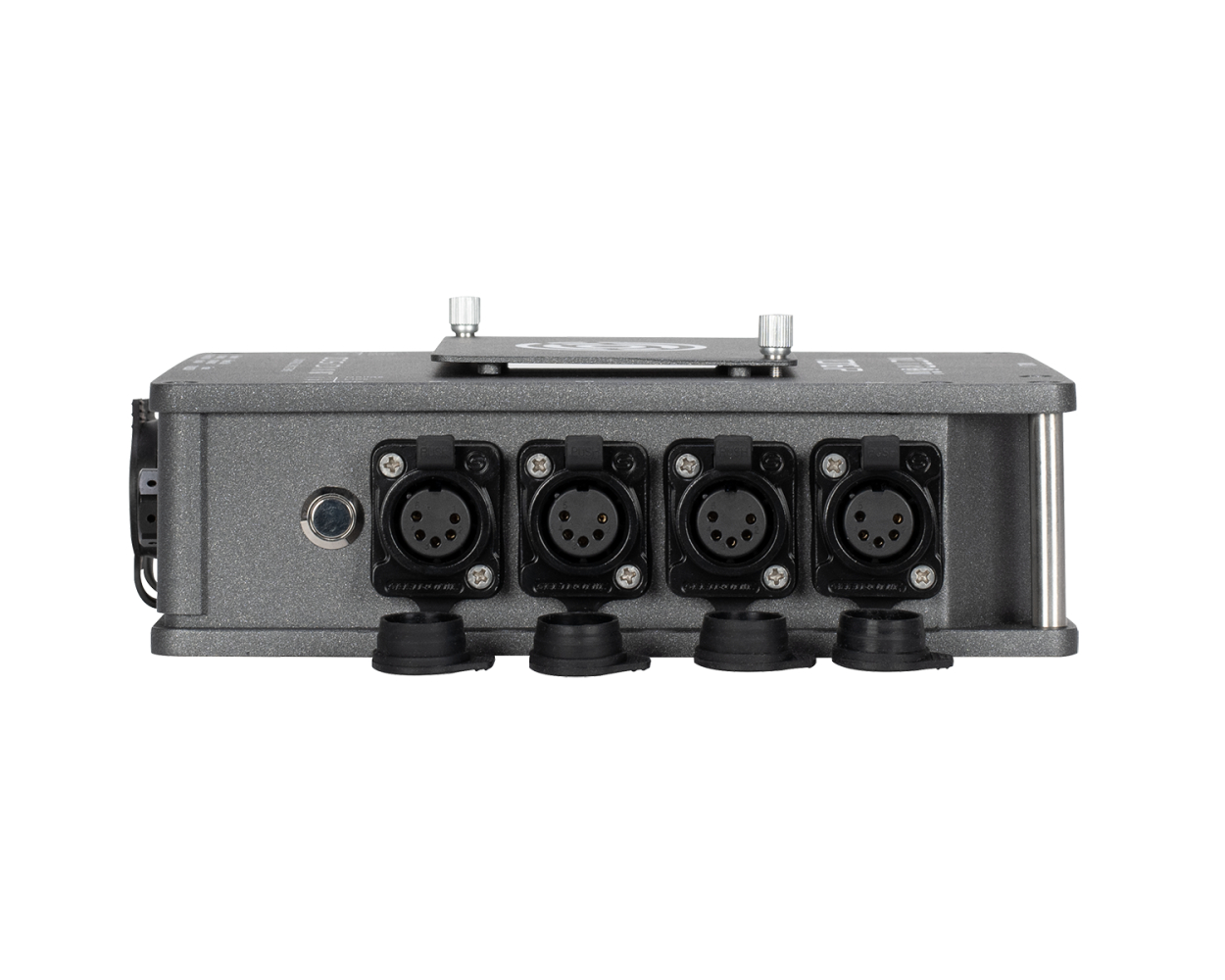

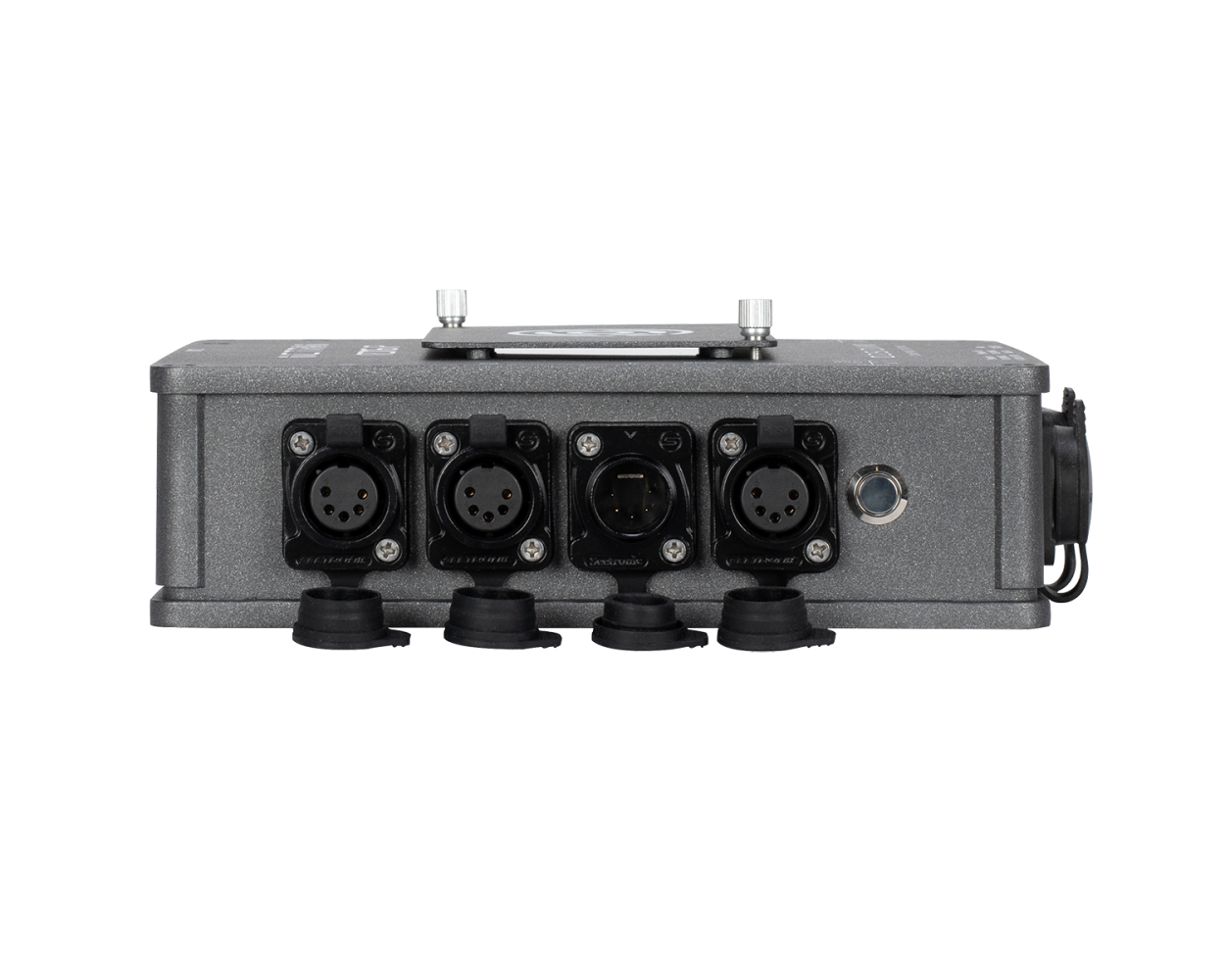

- Sides
- (1) 5pin IP66 DMX In
- (1) 5pin IP66 DMX Thru
- (6) 5pin IP66 DMX/RDM optically isolated ports
- DMX Termination Button
- RDM Enable / Disable Button

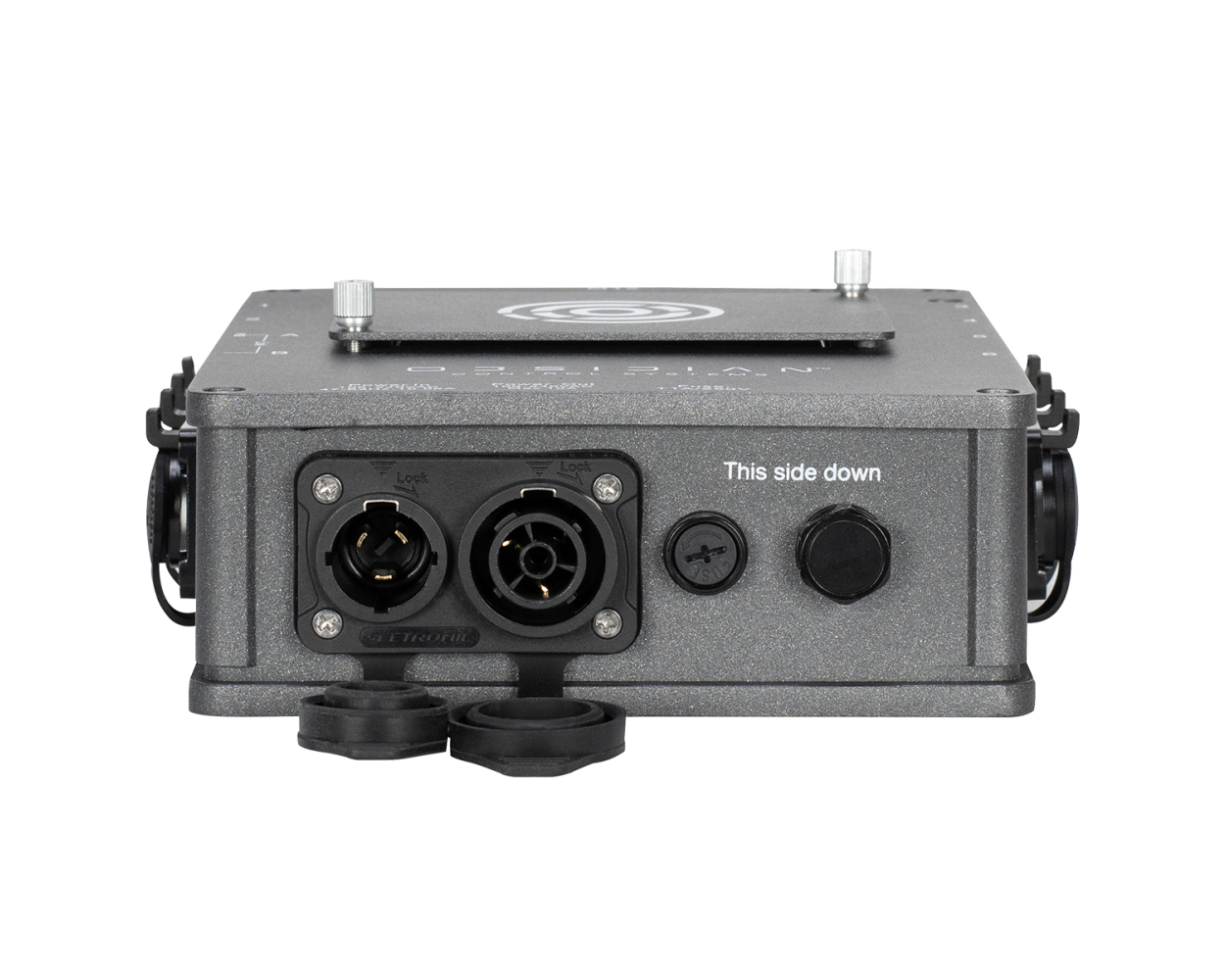

- Bottom
- Locking IP66 Power In/Thru
- Front
- LED Port Feedback
- Sides
- Physical
- Length: 242mm (9.5 in.)Â
- Width: 183mm (7.2 in.)Â
- Height: 82mm (3.2 in.)Â
- Weight: 2 kg (4.41 lbs)
- Electrical
- 100-240 V nominal, 50/60 Hz, 5W
- Approvals / Ratings
- cETLus / CE / UKCA / IP66
What's Included
- 1.5m IP65 locking power cable
- (2) Wallmount brackets
- M10 to M12 adapter
- Metal display protection cover
UPC: 810008264232
