Obsidian Control Netron RDM6XL 6ch DMX / RDM Splitter
Model: RDM6XL
About: Obsidian Control Netron RDM6XL 6ch DMX / RDM Splitter

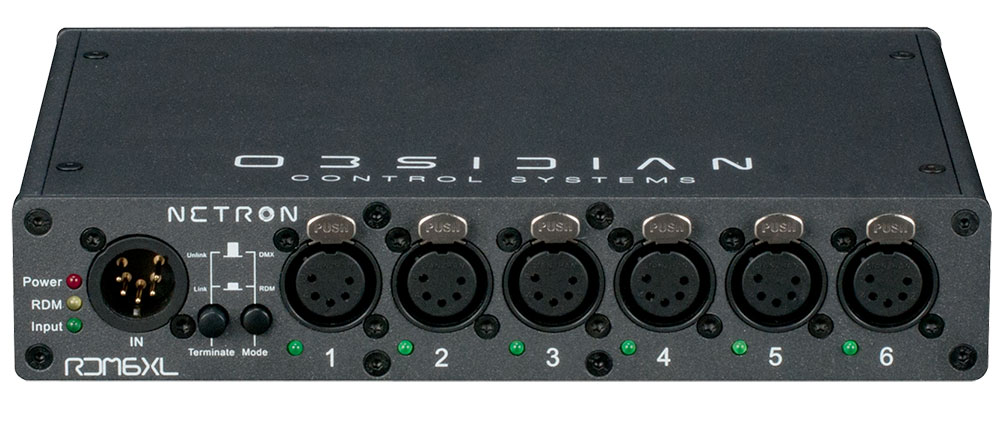

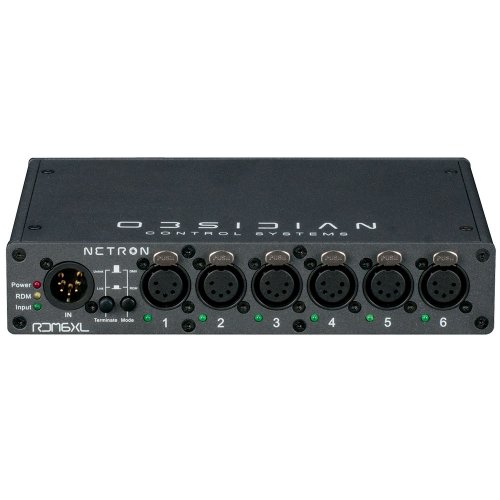

The Netron RDM 6XL is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated 5pin XLR outputs and flexible mounting options to cover any situation.
- (6) XLR 5pin outputs
- DMX and RDM compliant
- Optically isolated ports
- Power / DMX Through connectors
- Powder-coated aluminum 1/2 rack housing
Front
- 6 x 5 Pin DMX/RDM optically isolated ports
- 1 x 5 Pin DMX Inputs
- RDM Enable button
- Termination button
Back
- 1 x 5pin DMX Input (parallel with front)
- 1 x 5pin DMX Through
- Seetronic Power In/Thru
- Universal 100 - 240v 50/60Hz Power Supply
Mounting
- Standalone
- Truss-mount (M10 or M12 mounting hole)
- Wall-mount horizontal or vertical (included)
- DIN Rail horizontal or vertical (included)
- Rack-mount option (requires NET Shelf)
UPC: 810008260630
