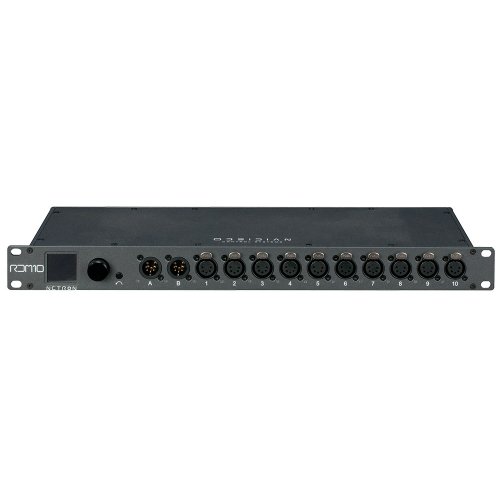

Obsidian Control Netron RDM10 10 Splitter / 2 Port Node
Model: RDM10
About: Obsidian Control Netron RDM10 10 Splitter / 2 Port Node
The Netron RDM 10AB is a universal dual input RDM splitter with an advanced feature set to cover a wide variety of applications. Its combination of a high density ten-port AB splitter with a two port EtherDMX node, DMX cue recording plus contact closures for preset and cue recall make this a truly universal tool for installations and production environments.
- 10 assignable DMX outputs
- Integrated 2 Universe Artnet/sACN node
- Configurable DMX refresh rate
- Dual DMX Inputs for backup and signal loss options
- Remote configuration via internal webpage
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing

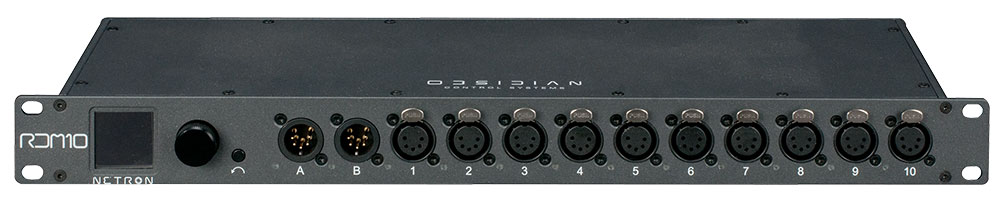

Front
- 10 x 5 Pin DMX/RDM optically isolated ports
- 2 x 5 Pin DMX Inputs
- Full color OLED display
- Encoder w. Push to Select / Exit Button
Back
- 2 x 5pin DMX Input (parallel with front)
- 2 x 5pin DMX Through
- 2 x RJ45 Ethercon network In
- 10 x Contact Closures (Terminal Block)
- Seetronic Power In/Thru
- Universal 100 - 240v 50/60Hz Power Supply
UPC: 810008260654
