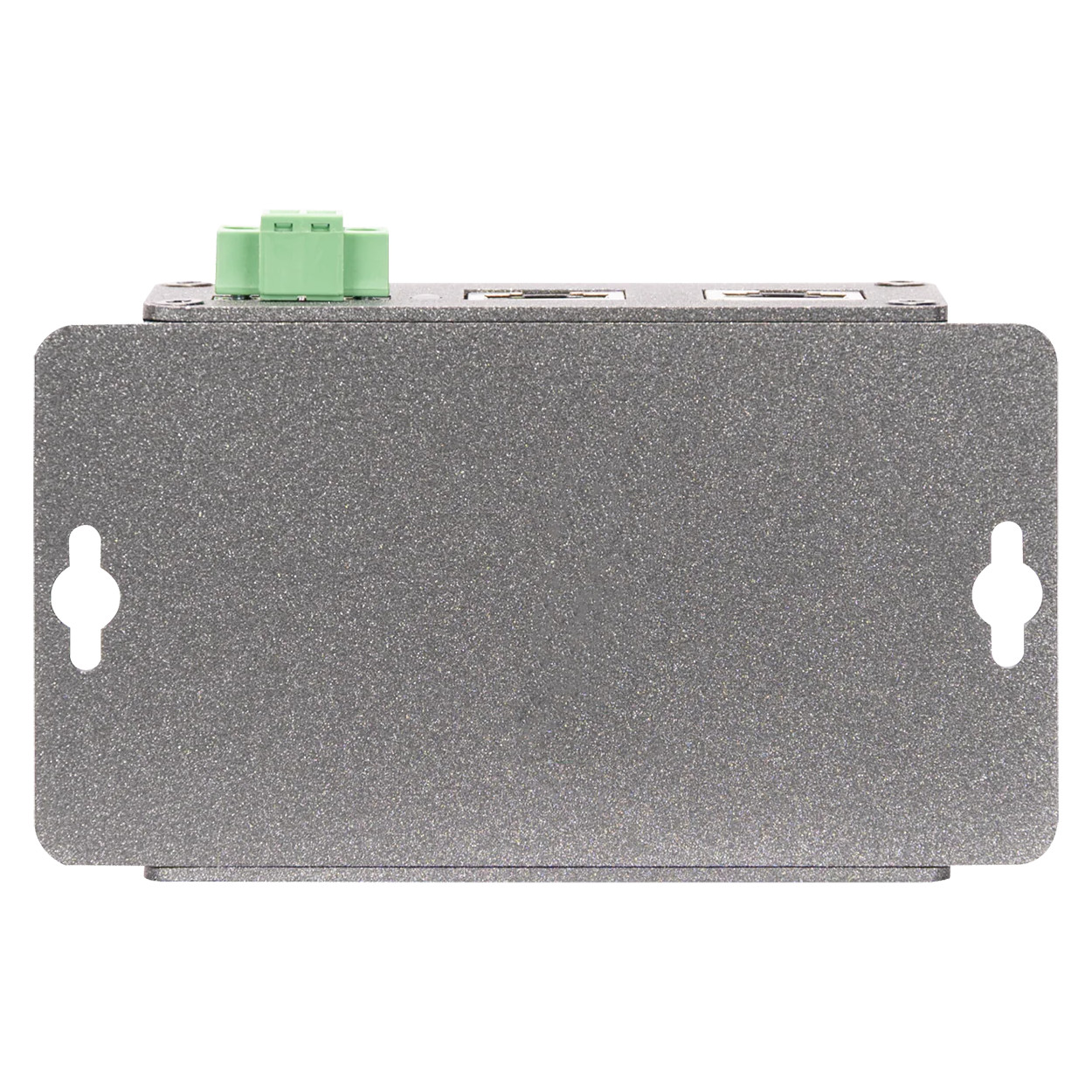

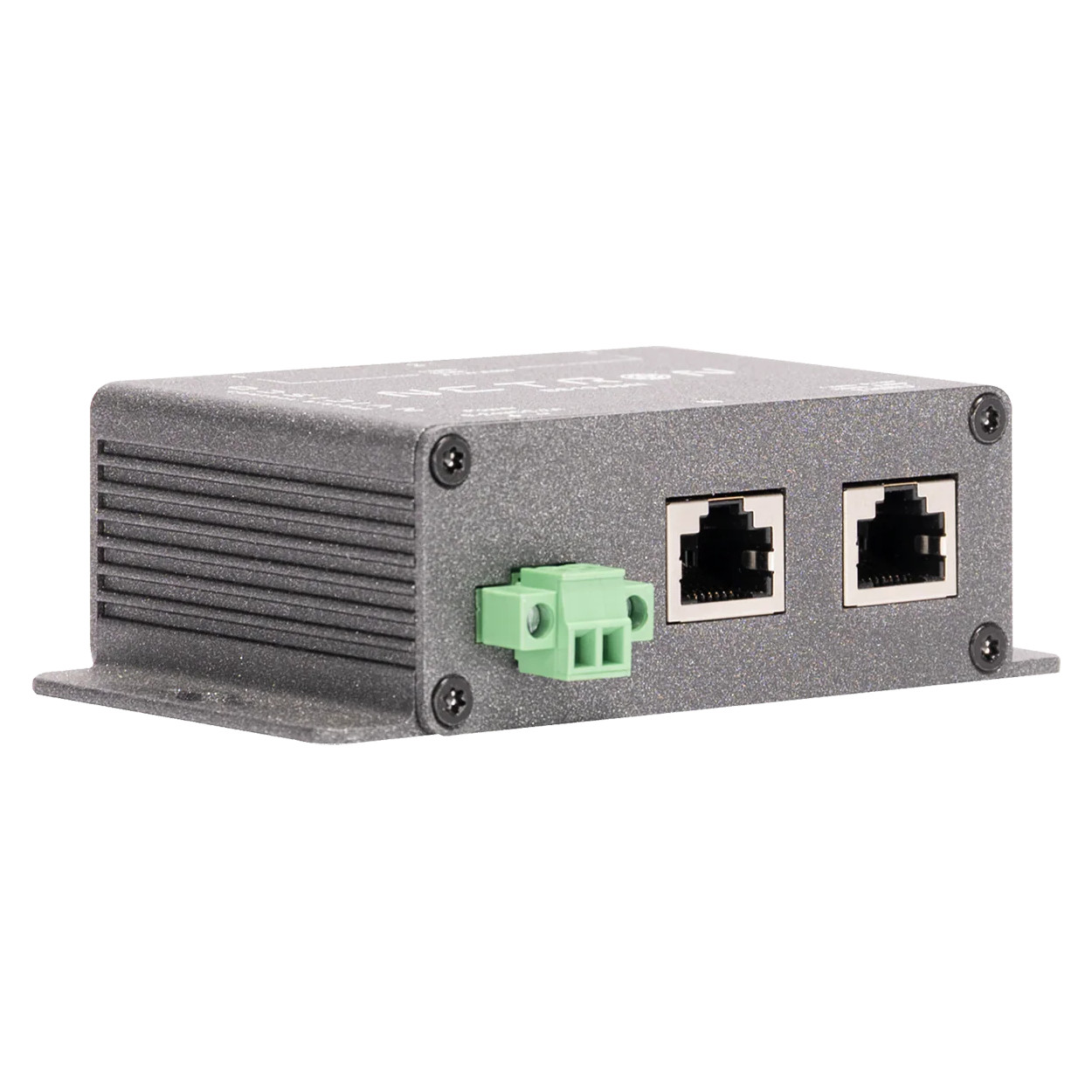

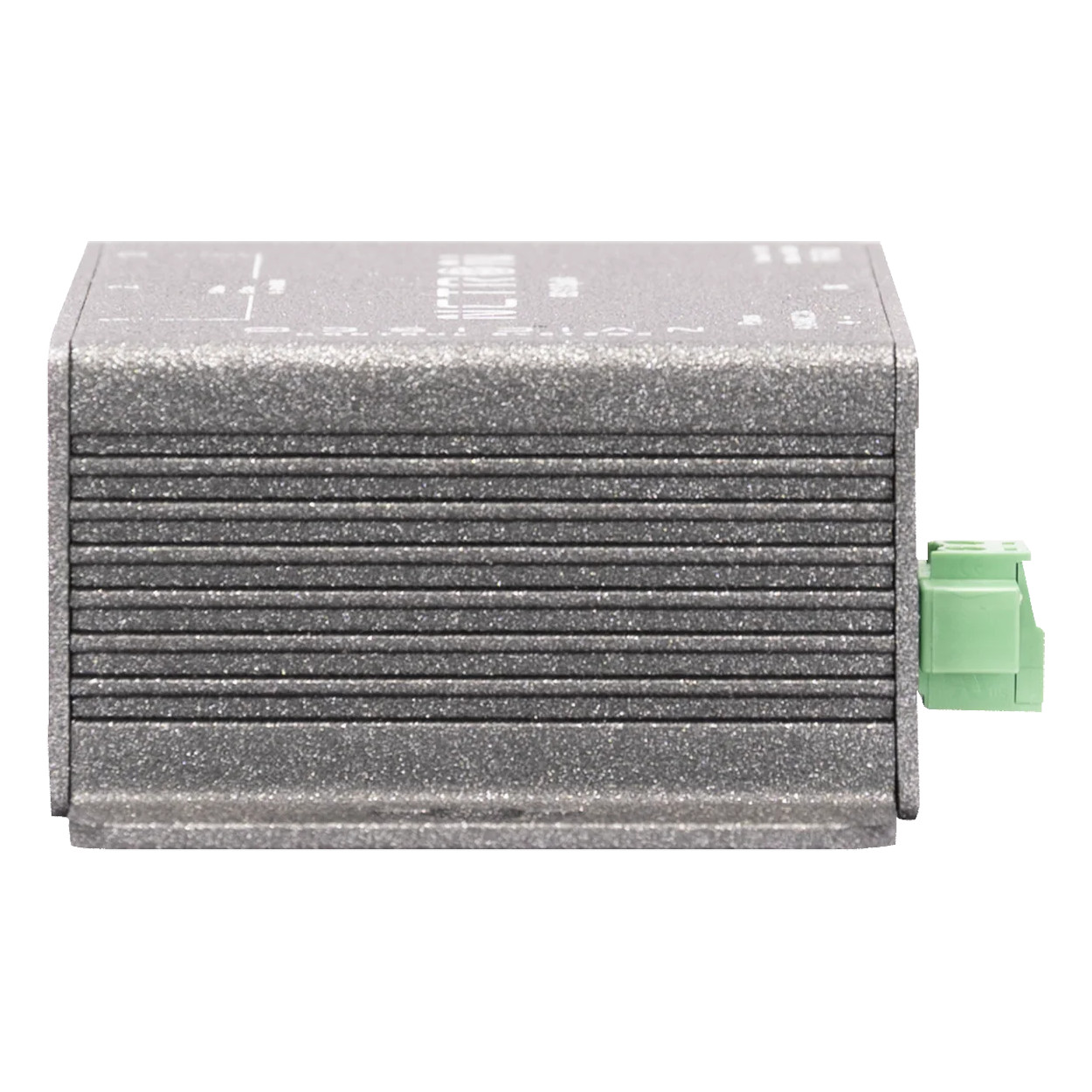

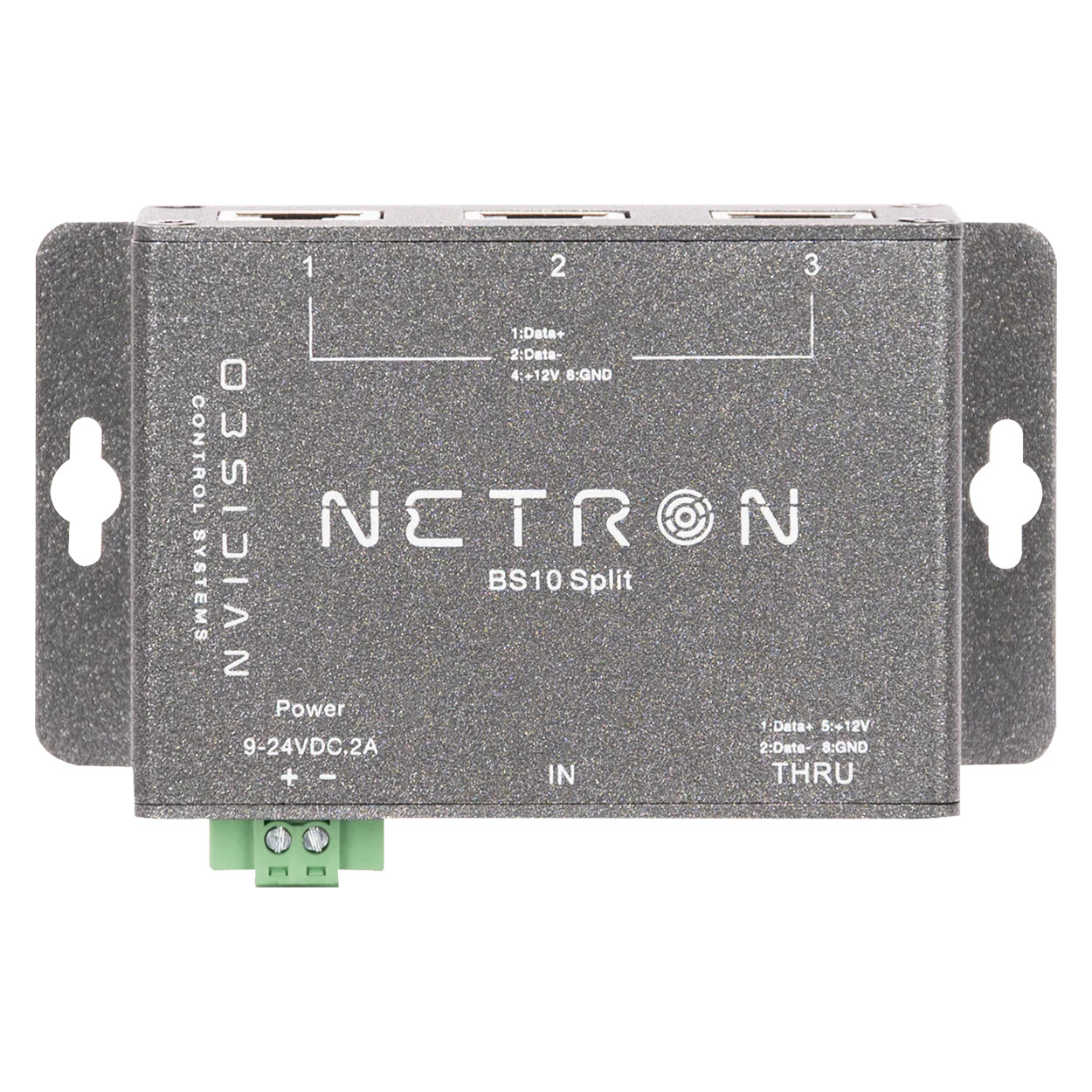

Obsidian Control NETRON BS10 Split Expansion Accessory for BS10 Station

Model: BS10 Split

Obsidian Control NETRON BS10 Split Expansion Accessory for BS10 Station
Obsidian Control NETRON BS10 Split Expansion Accessory for BS10 Station
Obsidian Control NETRON BS10 Split Expansion Accessory for BS10 Station
Obsidian Control NETRON BS10 Split Expansion Accessory for BS10 Station
Obsidian Control NETRON BS10 Split Expansion Accessory for BS10 Station
Obsidian Control NETRON BS10 Split Expansion Accessory for BS10 Station
$120.00 CAD
Find it for Less? Let us Know.
  • Free Shipping on orders over $199
  • Not In-Stock - Available to Order
  • Not yet reviewed

More models to choose from:

BS10 Split$120.00
BS10 Station$245.00


About: Obsidian Control NETRON BS10 Split Expansion Accessory for BS10 Station

The NETRON BS10 Split is a compact accessory to expand the NETRON BS10 button station from one to multiple devices and longer distances.

Simple wiring using RJ45 connections is compatible with the EN12i and BS10, allowing a maximum of ten BS10 devices to recall cues and presets in a synchronized manner.

  • Power Injector and Data Splitter for BS10 button stations
  • 3 Outputs
  • Data IN and THRU supporting NETRON EN12i and BS10 Split daisy chain
  • RJ45 connections

Specifications

  • Mounting: Wallmount
  • Connections

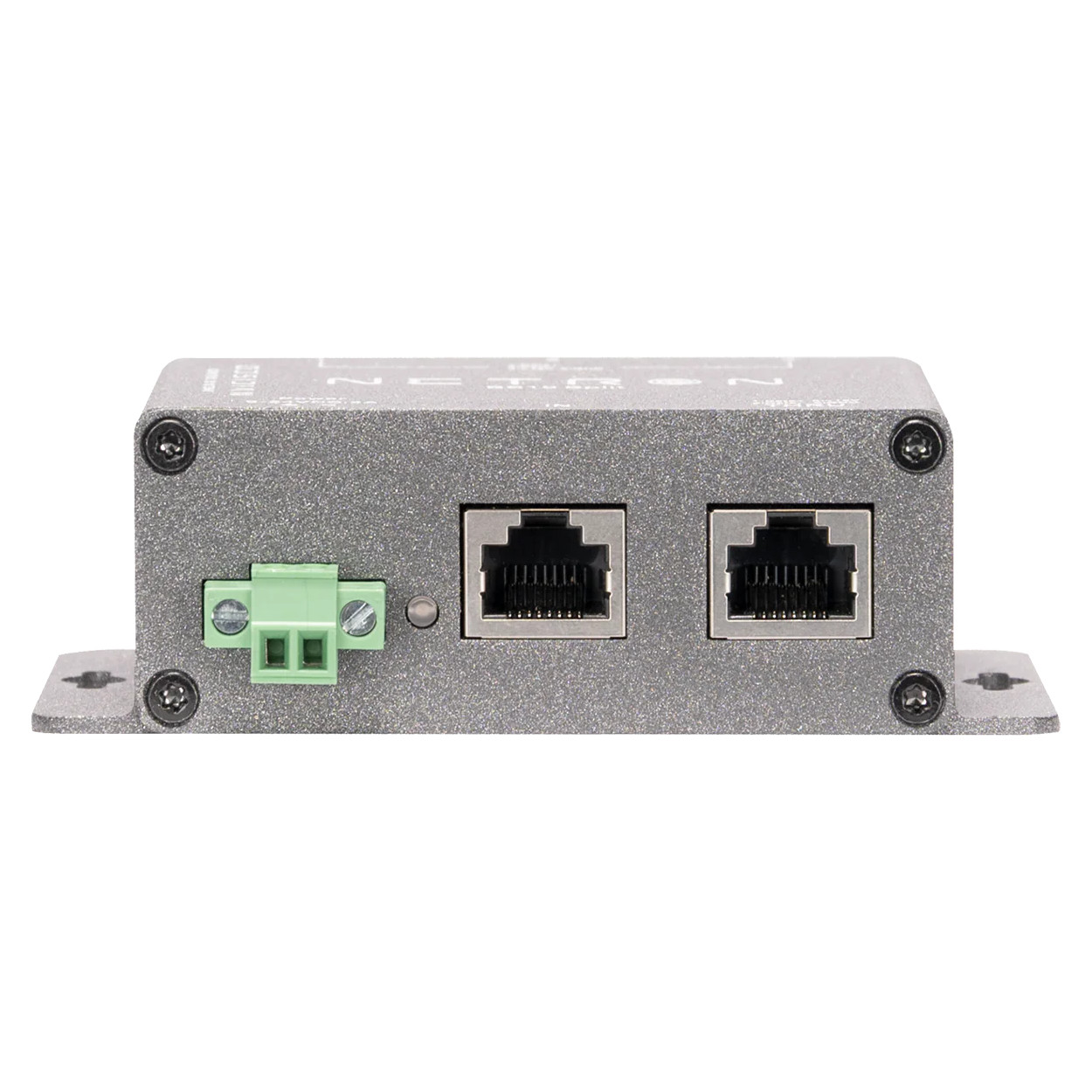

    • (2) RJ45 Data In/Thru
    • DC In (2pin Terminal Block)

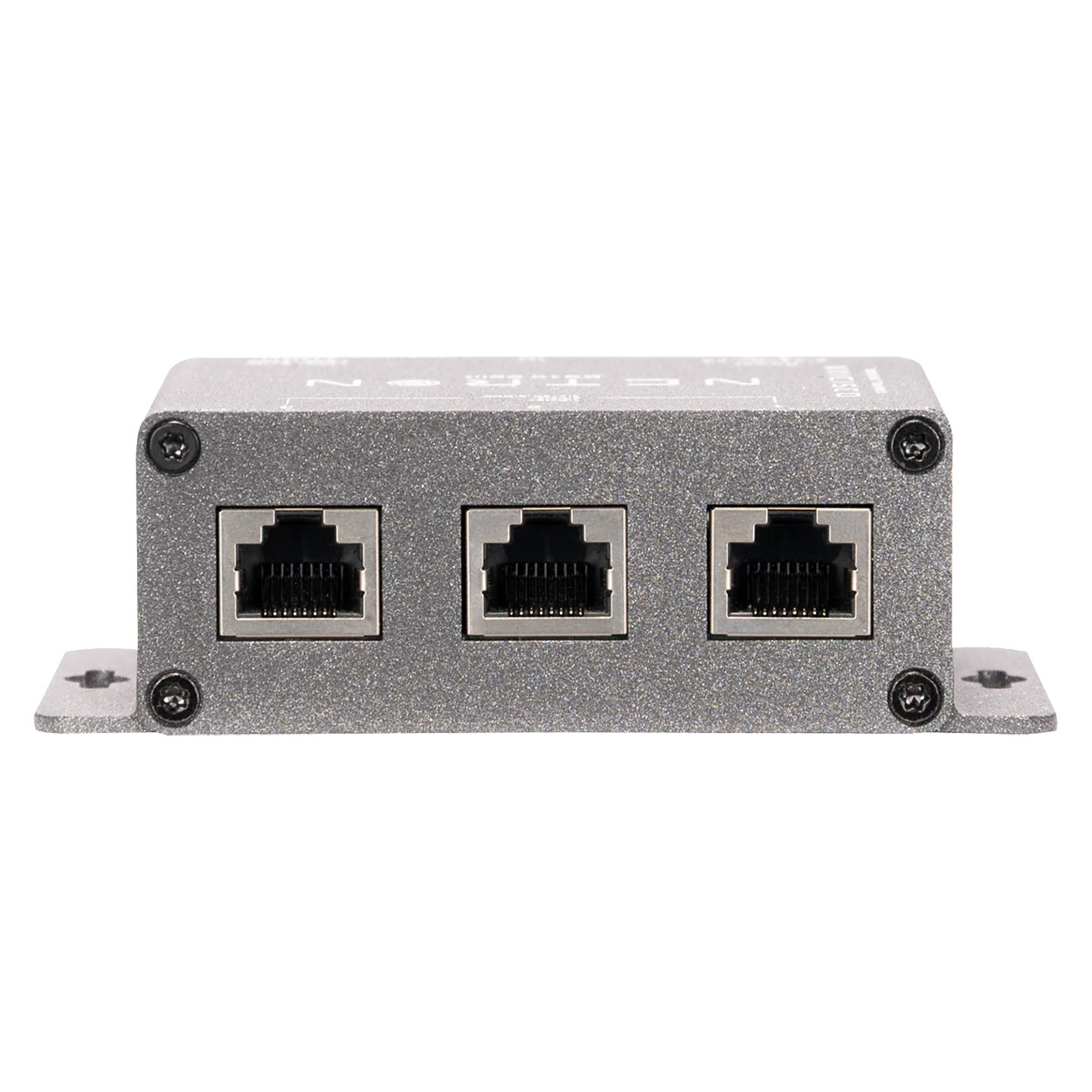

    • (3) RJ45 - BS10 Out
  • Range: CAT5e up to 300ft (100m) combined length
  • Electrical: DC 9-12V / 2A (Power Supply not included)
  • Dimensions (LxWxH): 4.1 x 2.3 x 1.3 inch (105 x 59 x 32mm)
  • Weight: 0.31 lbs (0.14kg)

UPC: 810008265727
