Obsidian Control Netron EN12i 19in Install 12-Port Node

About: Obsidian Control Netron EN12i 19in Install 12-Port Node

The Netron EN12i is a powerful high-density Art-Net and sACN to DMX gateway with twelve RDM compatible wire terminal or RJ45 outputs. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for permanent installations requiring a lot of physical DMX ports. Analog contact closures or an optional remote button station allow for recall of presets, routings, mergers or any of the internal cues.

• RJ45, screw terminal or IDC connectivity
• Back facing wiring plates for permanent rack installation
• Convenience Network and DMX port on front plate
• RDM, Art-Net and sACN support
• Factory and user presets for plug and play setups
• Line Voltage or PoE powered
• 1.8” OLED Display with rotary knob
• 99 Internal cues with fade and delay time
• Customizable routing and merging options
• Remote configuration via internal webpage
• Contact closures and Remote Button Station (optional) for cue or preset recall
• Powder-coated aluminum rackmount housing
• Unlocks ONYX NOVA 4 Universe License
• NETRON CLU for remote configuration and firmware updates

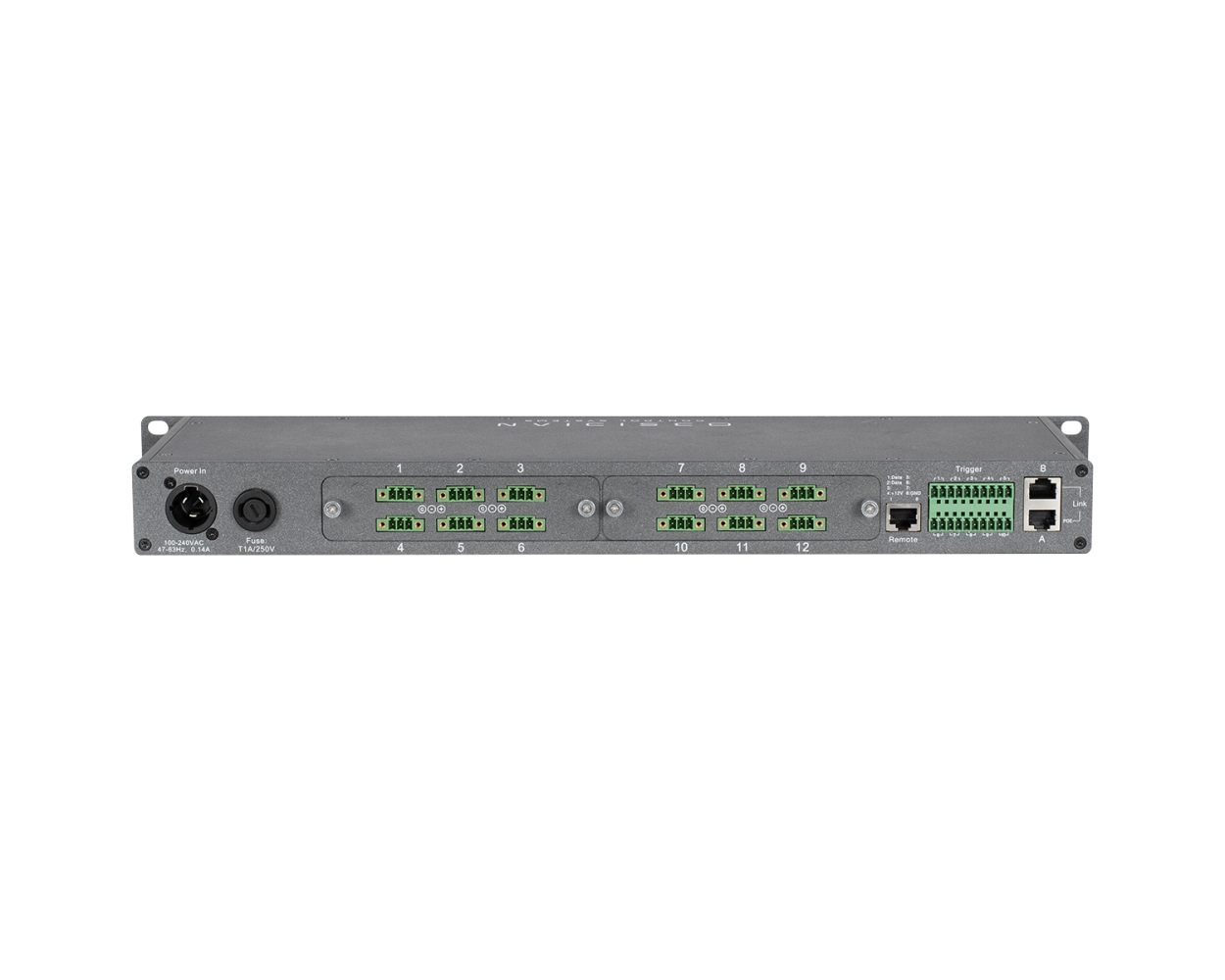

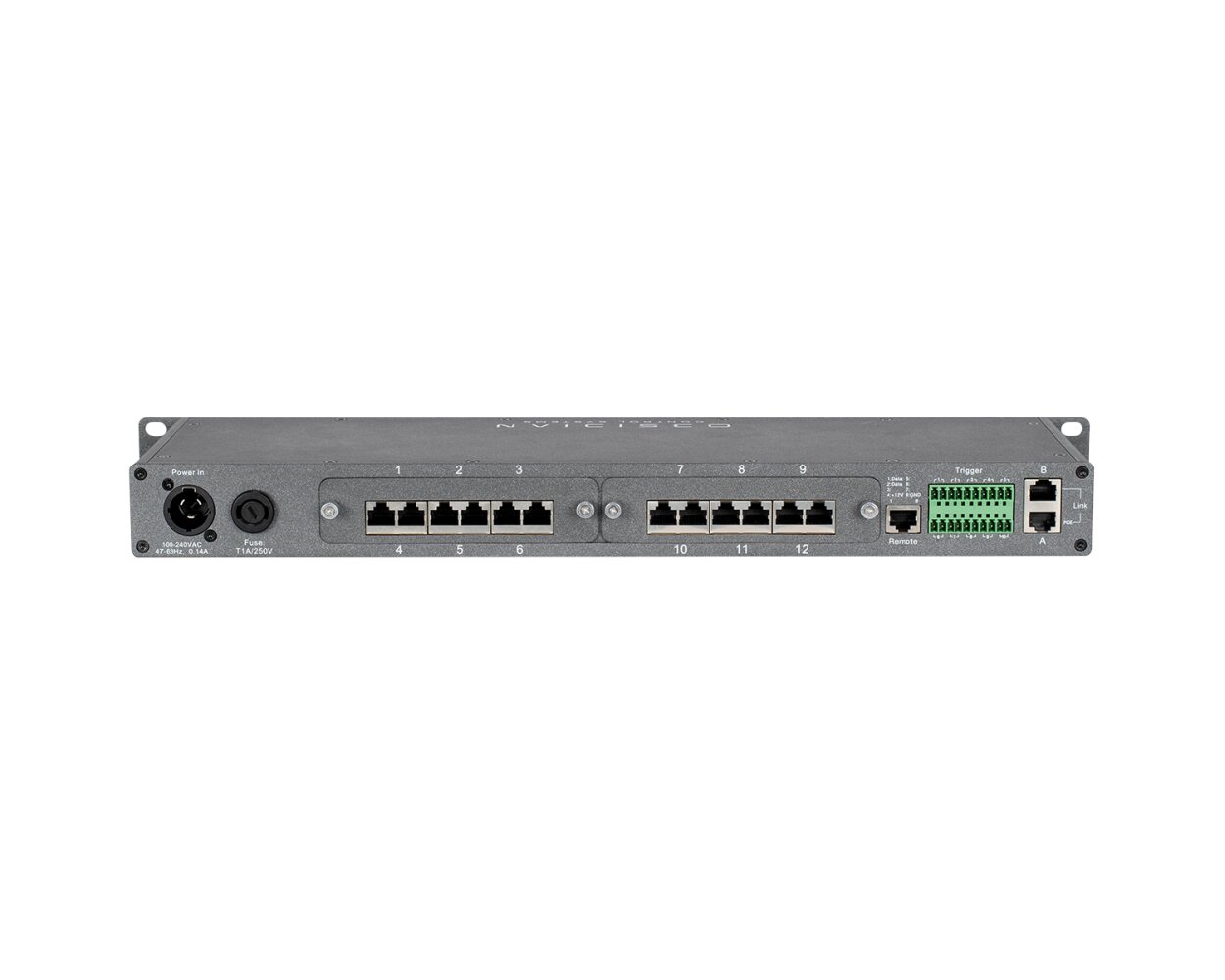

The innovate wiring configurations allow the NETRON EN12i to be configured with RJ45, screw-terminals or IDC (Insulation displacement connectors). All options are included through exchangeable backplates.

Additionally, the EN12i provides two convenient front access ports to the internal gigabit switch and a single 5pin DMX output.

Specifications

• Mounting: Rackmount
• Connections
  • Front
    • (1) 5pin XLR DMX/RDM port
    • Optical and galvanic isolation
    • Bidirectional for DMX In and Output
    • (1) Locking RJ45 Gigabit Ethernet (Low Latency Switch)
    • Full color OLED display
    • LED Status feedback array
    • Encoder w. Push to Select / Exit Button
  • Back
    • (2) Locking RJ45 Ethernet network (Low Latency Switch)
    • (2x6) DMX connection plate RJ45 (ESTA) or Terminal Block (DMX In/Out)
    • (10) Contact Closures (2x 10pin Terminal Block)
    • RJ45 Remote Port for optional BS10 Button Station
    • IP65 Locking Power In/Thru
  • Connectors
    • Insulation Displacement Connector (IDC) with locking screws, 20-22 AWG
    • Terminal Wire Connector with locking screws, 20-22 AWG
• Protocols
  • Support
    • sACN E1.31
    • Art-Net
    • DMX512-A E1.11 (In / Out)
    • RDM E1.20
  • Ethernet Features
    • Ethernet Port Speed 10/100/1000Mbps
    • VLAN Group Support
    • MDI / MDIX Port Sensing
    • HTTP Remote Commands (Post, Get)
    • HTML Web Remote
• Physical
  • Length: 165.8 mm (6.5 in.)
  • Width: 482.5 mm (19 in.)
  • Height: 44 mm (1.7 in.)
  • Weight: 1.8 kg (4 lbs.)
• Electrical
  • AC 100-240V nominal, 50/60 Hz
  • PoE802.3af
  • Power Consumption: 9W
• Approvals / Ratings
  • cETLus / CE / FCC / IP20

What's Included

• 1.5m IP65 Locking power cable
• (2) 6-port RJ45 ESTA DMX Connection plate
• (2) 6-port Terminal Block Connection plate
• (12) Screw Terminal with security screws
• (12) IDC Connector with security screws
• (2) 10-port Terminal Block for Contact Closures
