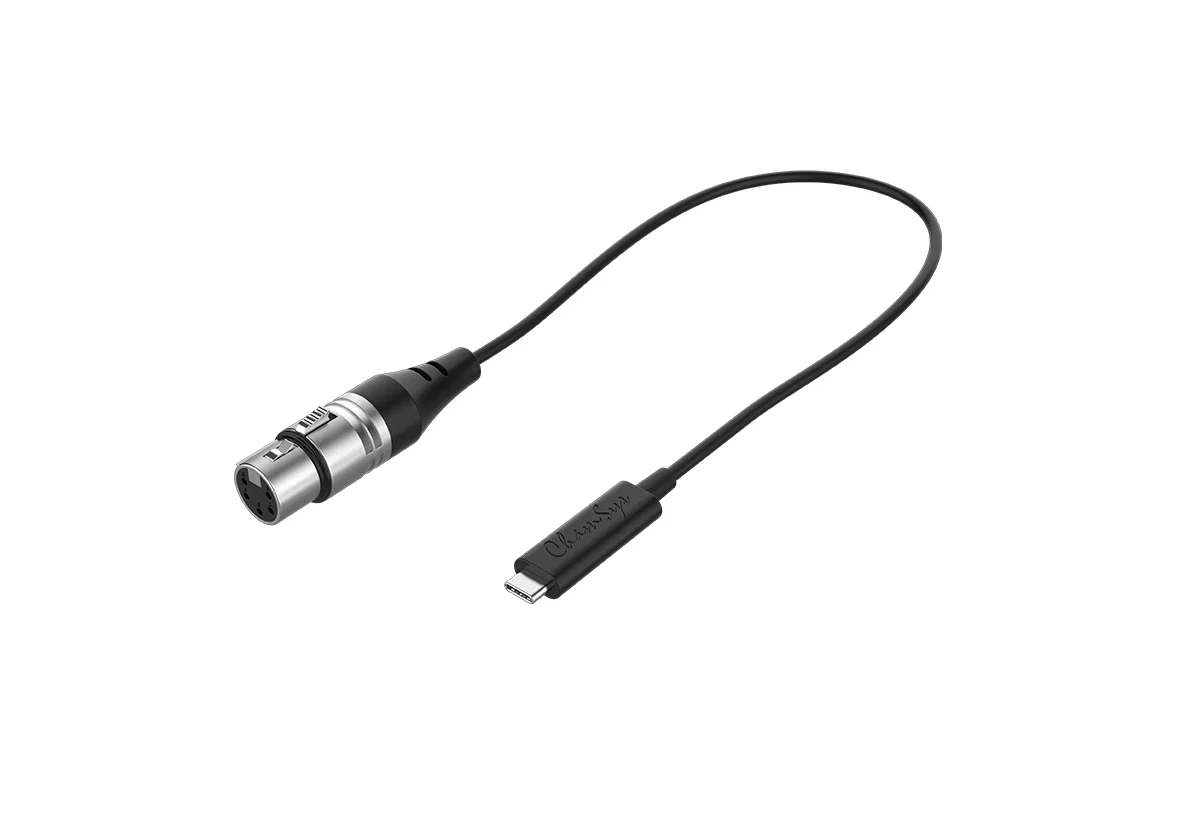

ChamSys MagicDMX Full USB-C to 5-Pin Female DMX Interface

About: ChamSys MagicDMX Full USB-C to 5-Pin Female DMX Interface

The MagicDMX Full USB to DMX Interface offers a full universe of DMX control with RDM support and without any time limit. It has the option of being used either as Output, or as an Input enabling use for monitoring DMX. Remotely set DMX addresses, select fixture modes and auto patch RDM compliant fixtures to MagicQ.

• One Universe DMX output
• 5 pin female XLR
• USB-C connector
• Basic electrical protection
• LED status indicator

MagicQ features restricted when using MagicDMX Interfaces:

• Execute Window full screen
• Scheduled Events and Automations
• iOS / Android Remote app
• 10Scene Gateway and 10Scene remote app
• Remote Control Protocol (serial, or network)
• Web Server editing (viewing is supported)
• Auto starting Playbacks
• Startup in full screen / saved window positioning
• Playback Synchronisation
• Multi Programming including Net Sessions
• Triggering of playbacks using DMX input
• Mouse control of pan/tilt (only supported when connected to a MagicQ Wing with encoders)
• Audio control and playback synchronisation with Winamp (this is supported when connected via network to a MagicQ console)
• Timecode receive from ArtNet
• Midi Notes & Timecode from 3rd Party USB/Virtual interfaces.
• Audio input from PC/Mac sound card

Specifications

• Hardware
  • DMX Port(s): 1
  • RDM Support: Yes
  • USB Port(s): 1 (USB-C)
  • Unlocks ‘demo mode features: No
  • Time Restriction: No
• Software
  • Universes: 64
  • Channels: 32,768
  • Number of fixtures: upto 32,768
  • Cues: 5000
  • Cue stacks: 2000
  • Palettes: 4096
  • Groups: 5000
  • Media server support: 50 (each different content)
• Cased Weights and Dimensions
  • Width:135mm (5.3”)
  • Depth: 93mm (3.6”)
  • Height: 38mm (1.4”)
  • Weight (MagicDMX Inside case): 0.1kg (0.22lbs)

What's Included

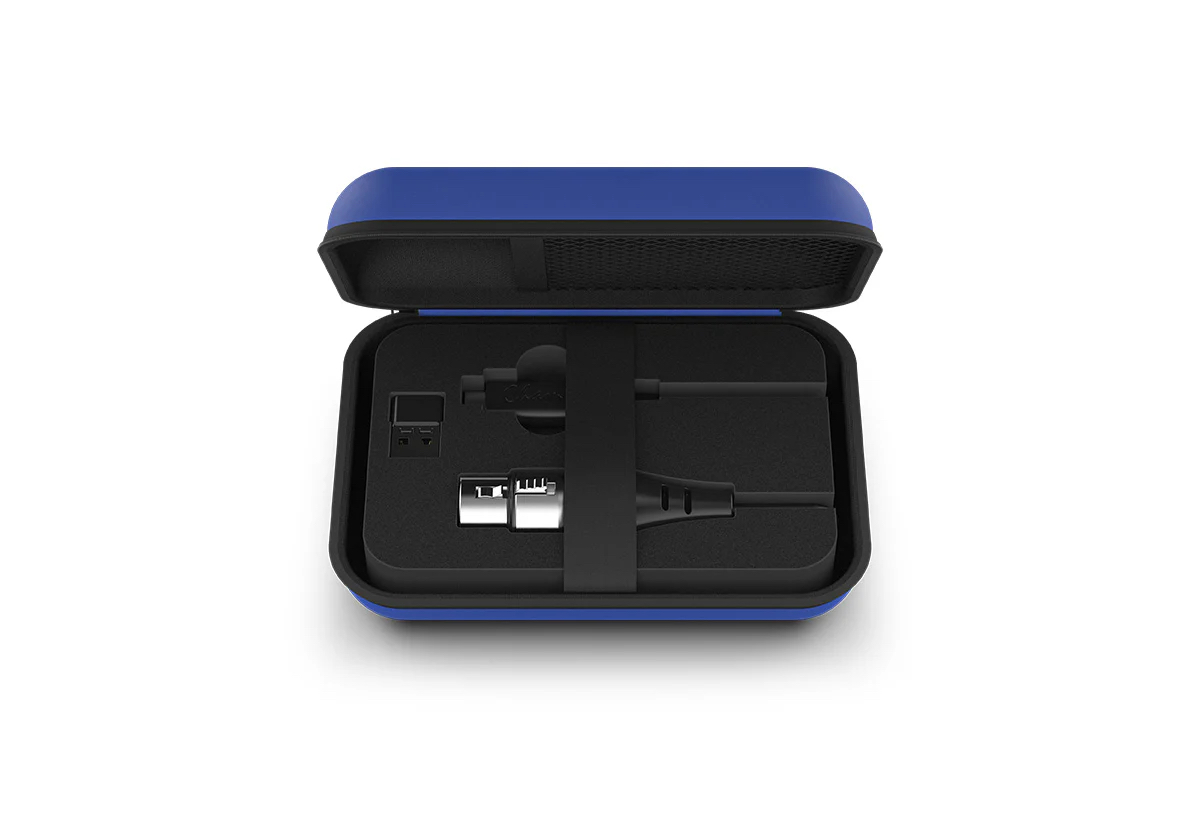

• Soft Shell Carry Case: 1

Note: MagicDMX does not unlock ‘demo mode’ features.  Gender reversing adapters for input not included.
