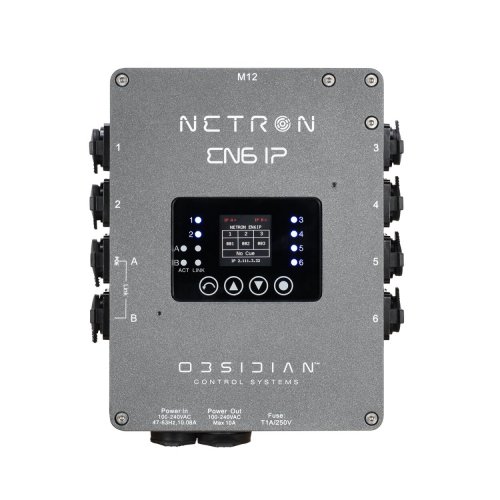

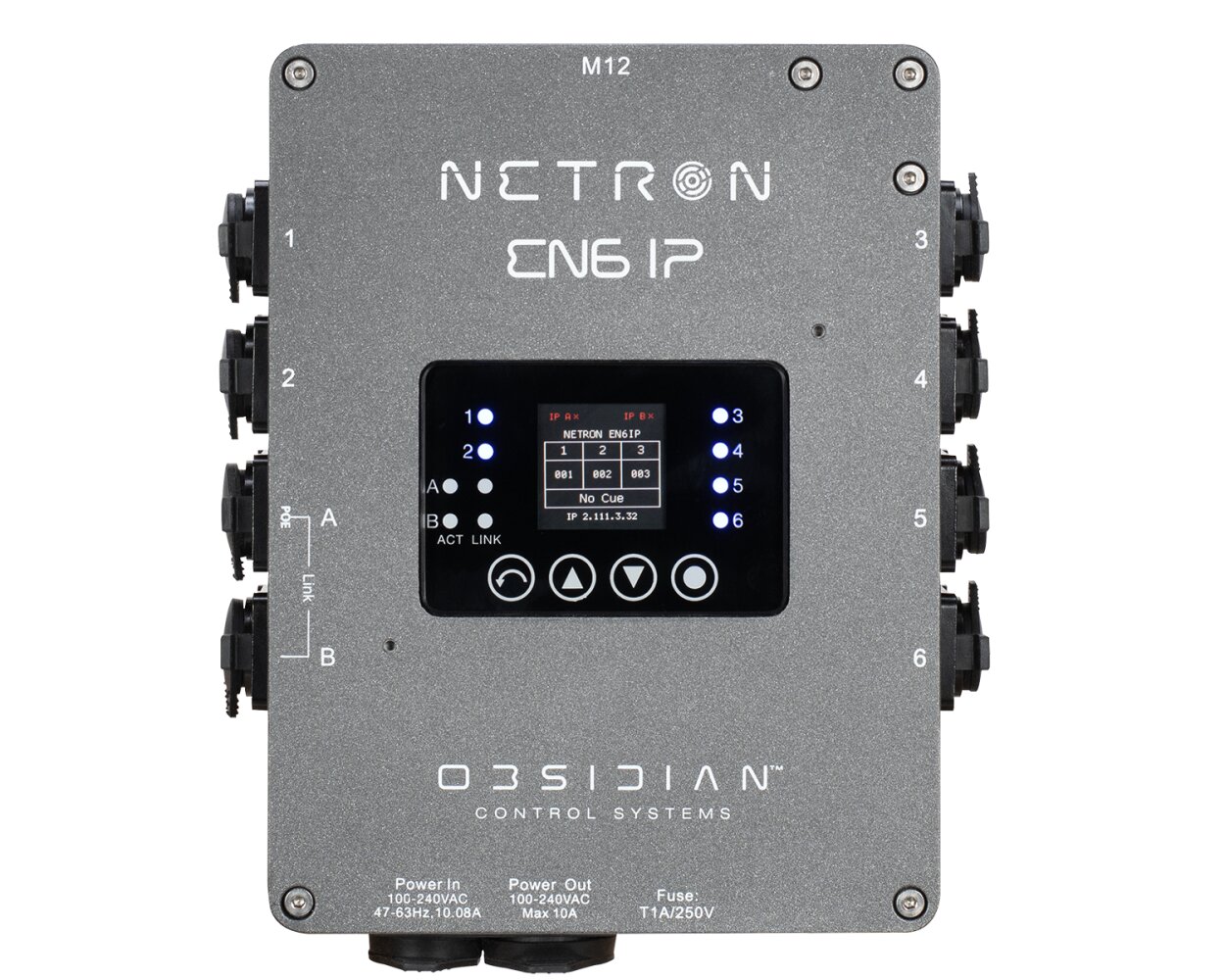

Obsidian Control EN6 IP66 Rated 6-Port Ethernet to DMX Gateway
Model: EN6 IP
About: Obsidian Control EN6 IP66 Rated 6-Port Ethernet to DMX Gateway
The Netron EN6 IP is a powerful Ethernet to DMX gateway with six RDM compatible ports in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.
- IP66 Ethernet to DMX Gateway
- RDM, Artnet and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or POE powered
- 1.8” OLED Display and waterproof touch buttons
- 99 Internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated aluminum chassis
- Unlocks ONYX NOVA 4-Universe License
Specifications
- Mounting
- Standalone
- Truss-mount (M10 or M12)
- Wall-mount
- Connections
- Sides

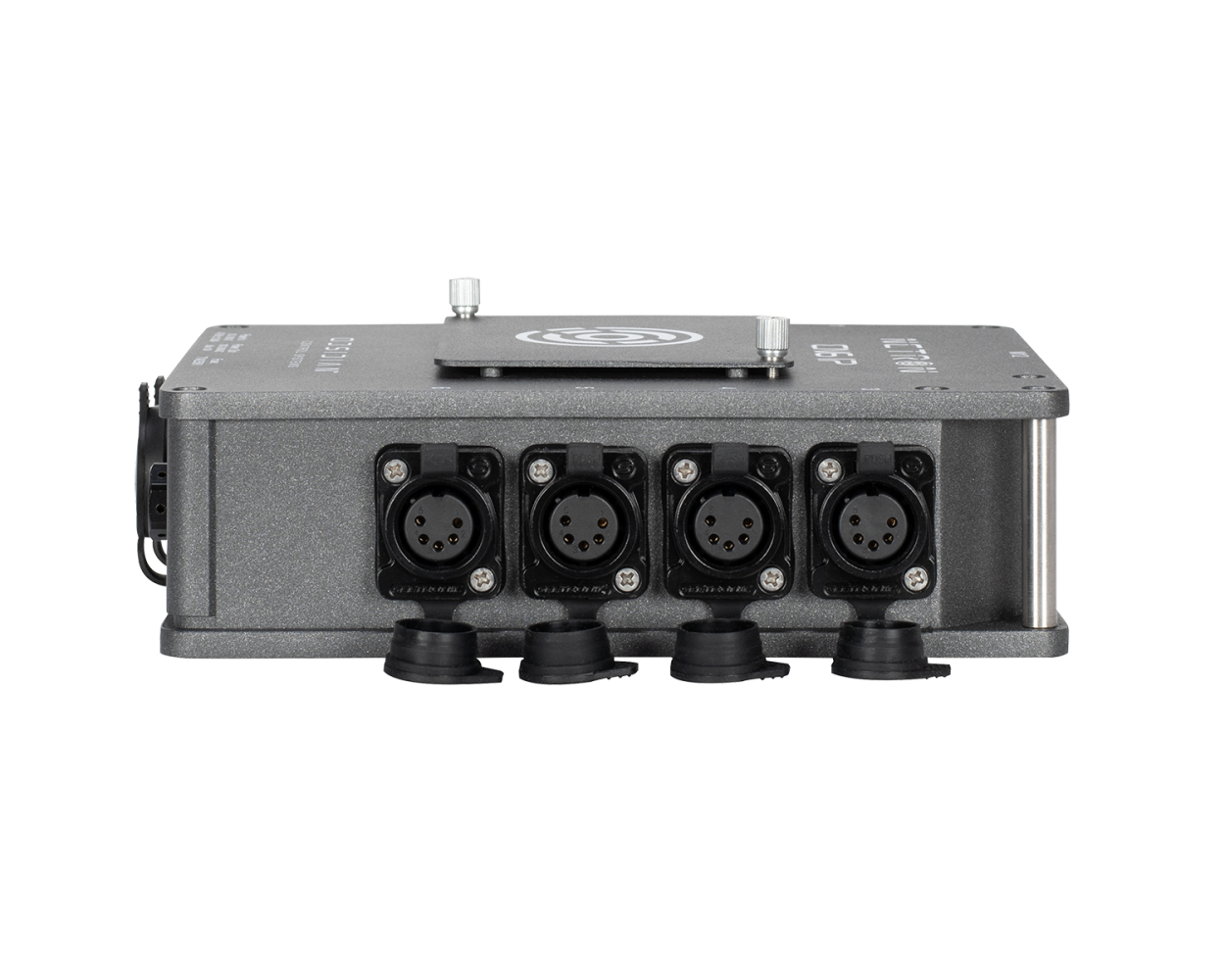

- (6) 5pin IP66 DMX/RDM optically isolated ports
- Ports are bidirectional for DMX In and Output

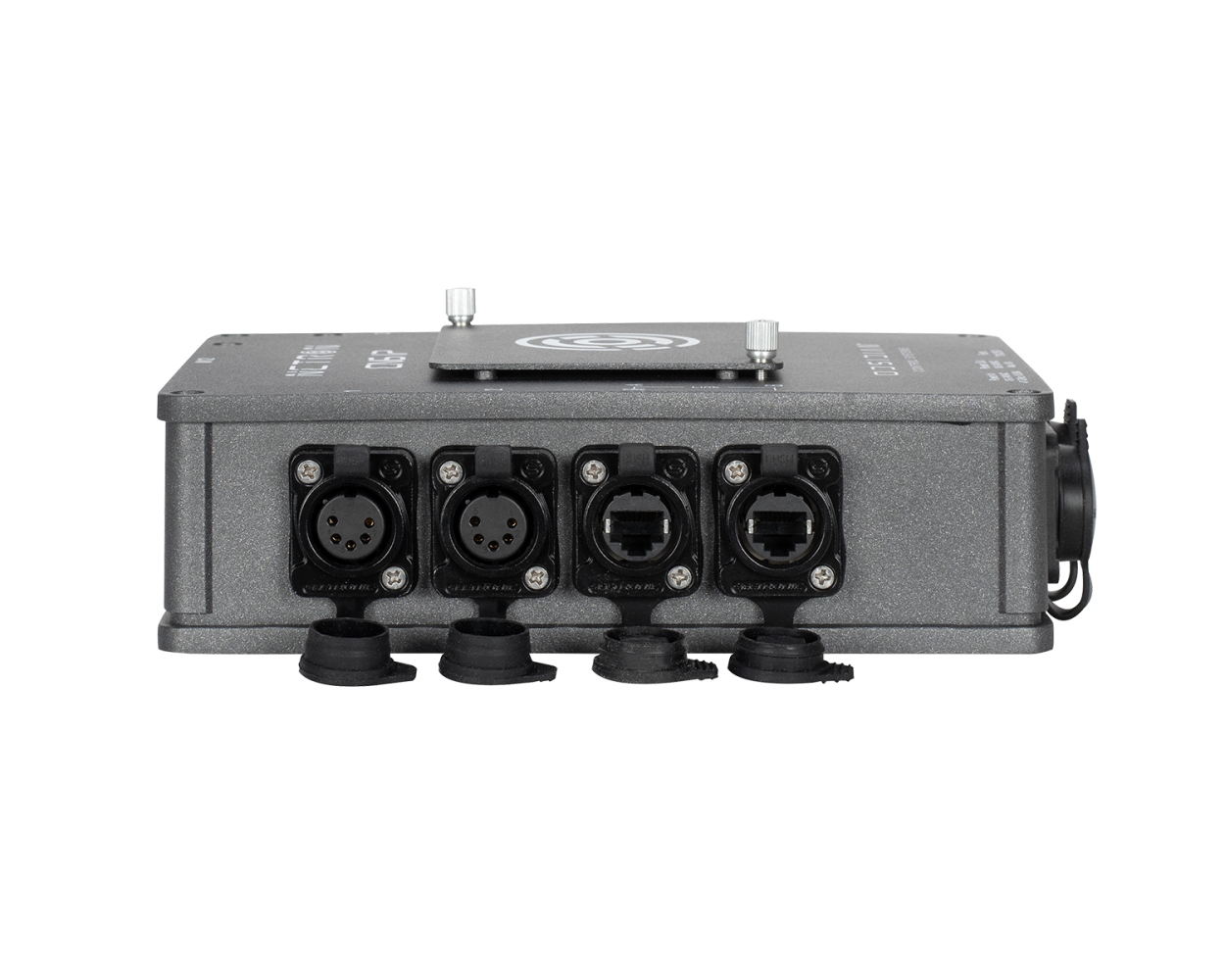

- (2) Locking IP66 RJ45 Ethernet network connections (1x POE)

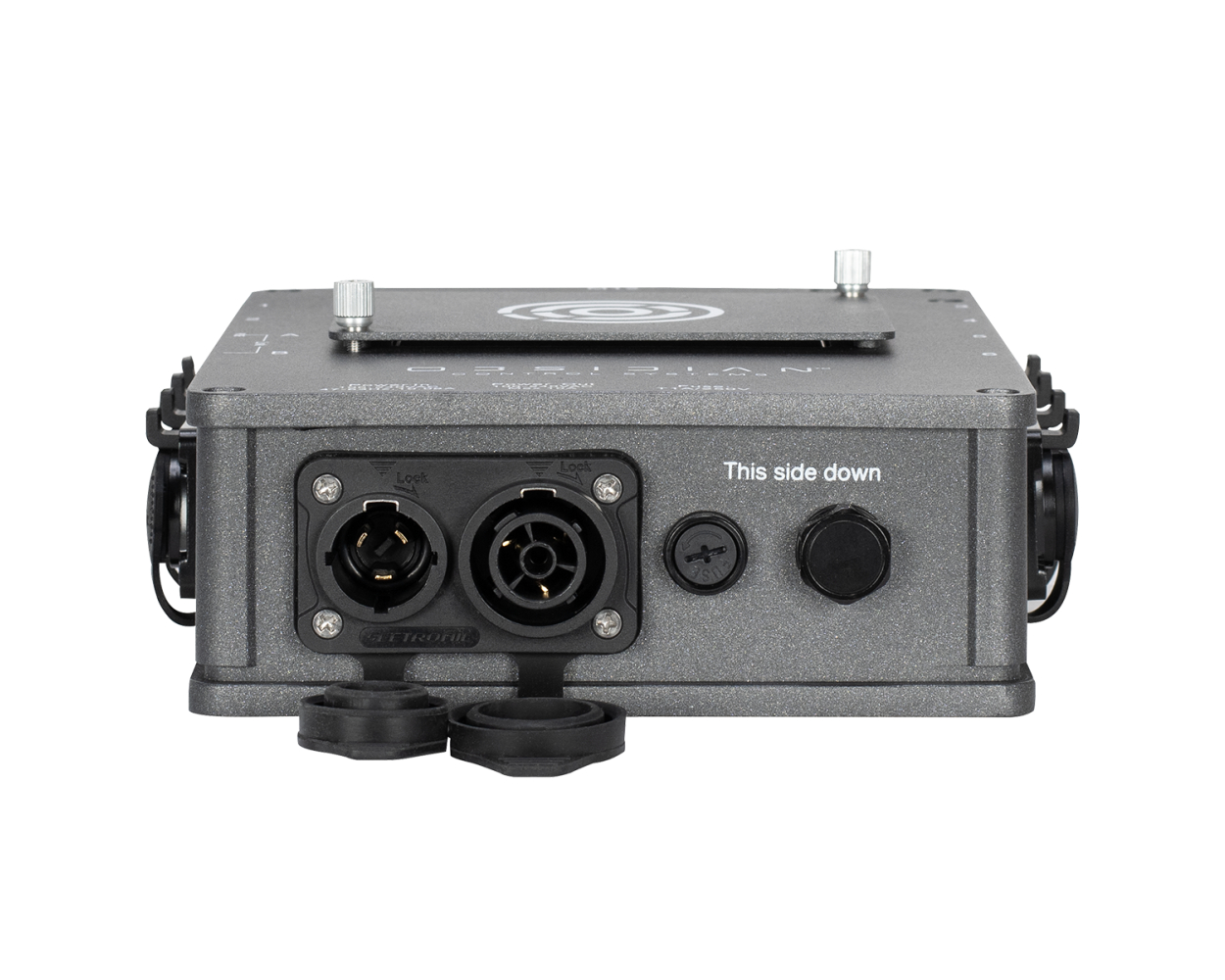

- Bottom
- Locking IP66 Power In/Thru
- Sides
- Physical
- Length: 180mm (7.1 in.)
- Width: 242mm (9.5 in.)
- Height: 82mm (3.2 in.)
- Weight: 1.8 kg (4.0 lbs)
- Electrical
- 100-240V nominal, 50/60 Hz
- POE 802.3af
- Power Consumption: 6W
- Approvals / Ratings
- cETLus / CE / UKCA / IP66
What's Included
- 1.5m IP66 locking power cable (EU or US version)
- (2) Wall Mount brackets
- M10 to M12 adapter
- Metal display protection cover
UPC: 810008264249
