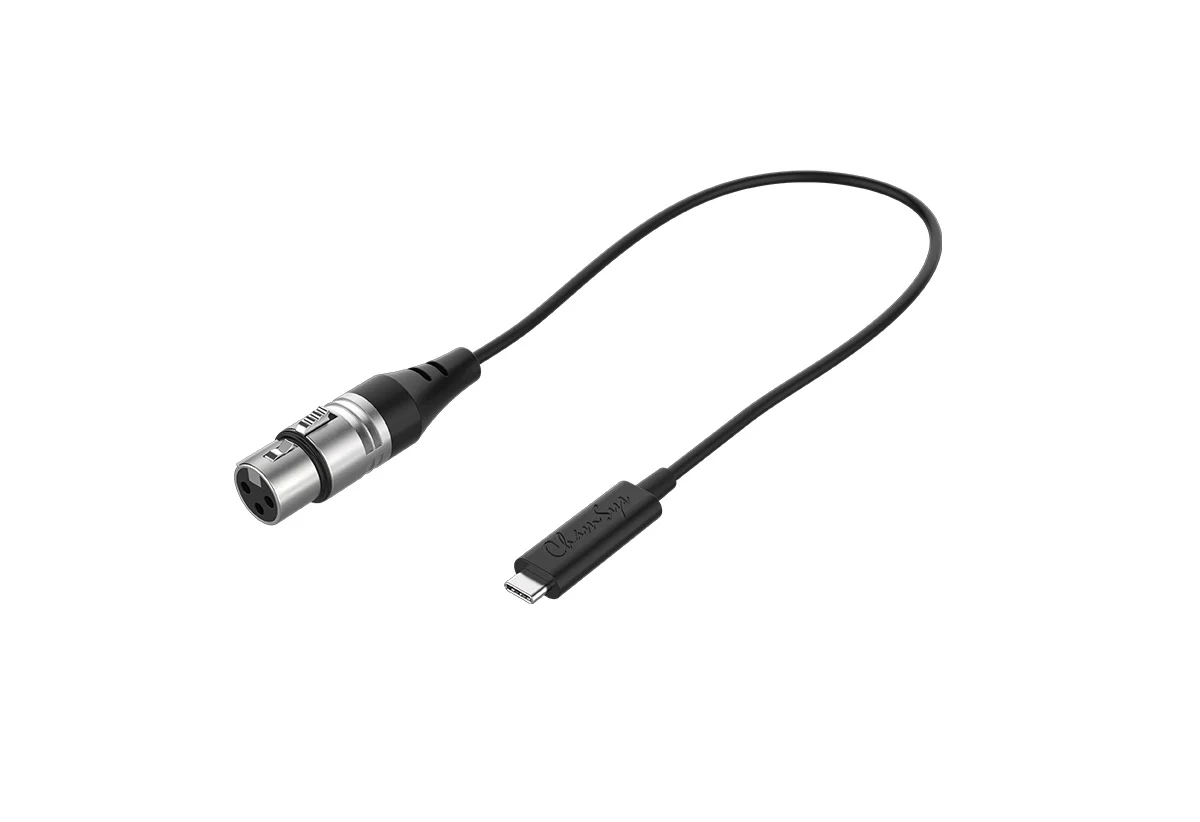

ChamSys MagicDMX Basic USB-C to 3-Pin Female DMX Interface

About: ChamSys MagicDMX Basic USB-C to 3-Pin Female DMX Interface

MagicDMX Basic interface is aimed at users wishing to evaluate and learn MagicQ, technicians wishing to test fixtures, as well as students wishing to learn lighting in schools and colleges. MagicDMX Basic supports output of a full DMX universe via a 3 pin female XLR connector. MagicDMX Basic is time limited to 5 hours continuous usage. After this time it is necessary to replug the device and to restart the MagicQ software.

• One Universe DMX output
• 3 pin female XLR
• USB-C connector
• Max session 5 hrs
• Basic electrical protection
• LED status indicator

​MagicQ features restricted when using MagicDMX Interfaces:

• Execute Window full screen
• Scheduled Events and Automations
• iOS / Android Remote app
• 10Scene Gateway and 10Scene remote app
• Remote Control Protocol (serial, or network)
• Web Server editing (viewing is supported)
• Auto starting Playbacks
• Startup in full screen / saved window positioning
• Playback Synchronisation
• Multi Programming including Net Sessions
• Triggering of playbacks using DMX input
• Mouse control of pan/tilt (only supported when connected to a MagicQ Wing with encoders)
• Audio control and playback synchronisation with Winamp (this is supported when connected via network to a MagicQ console)
• Timecode receive from ArtNet
• Midi Notes & Timecode from 3rd Party USB/Virtual interfaces.
• Audio input from PC/Mac sound card

Specifications

• Hardware
  • DMX Port(s): 1
  • RDM Support: No
  • USB Port(s): 1 (USB-C)
  • Unlocks ‘demo mode features: No
  • Time Restriction: 5 hours per session
• Software
  • Universes: 64
  • Channels: 32,768
  • Number of fixtures: upto 32,768
  • Cues: 5000
  • Cue stacks: 2000
  • Palettes: 4096
  • Groups: 5000
  • Media server support: 50 (each different content)
• Cased Weights and Dimensions
  • Width:135mm (5.3”)
  • Depth: 93mm (3.6”)
  • Height: 38mm (1.4”)
  • Weight (MagicDMX Inside case): 0.1kg (0.22lbs)

What's Included

• Soft Shell Carry Case

Note: MagicDMX does not unlock ‘demo mode’ features.
