Roland XS-62S HD Video Switcher w PTZ Control

Model: XS-62S

Roland XS-62S HD Video Switcher w PTZ Control
Roland XS-62S HD Video Switcher w PTZ Control
Roland XS-62S HD Video Switcher w PTZ Control
  • Free Shipping!
  • Not in-Stock: Estimated Lead Time 2-3 Days
  • Not yet reviewed

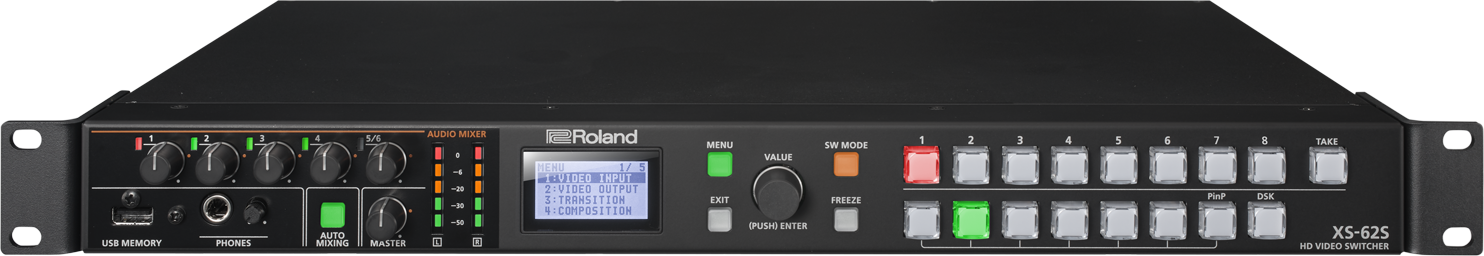

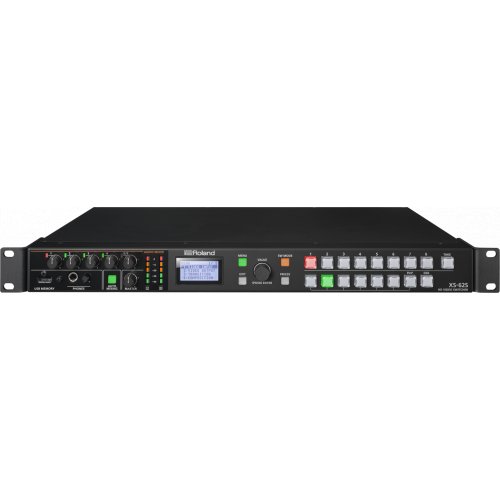

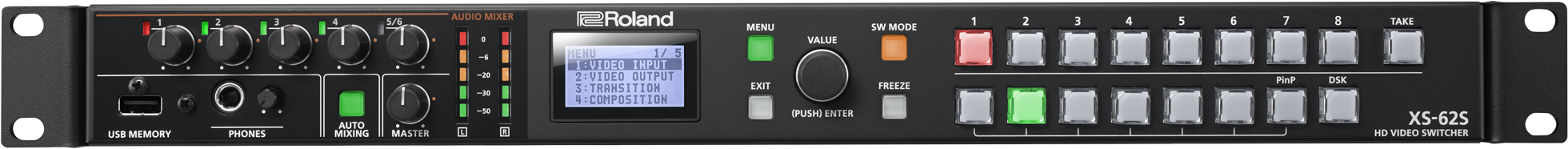

About: Roland XS-62S HD Video Switcher w PTZ Control

The XS-62S is a compact 1U rack mount, compact 6-channel video switcher with audio mixer and PTZ camera control capabilities for both permanent installs and on-site events. This powerful, integrated solution supports a wide range of applications including presentation and performance and special event venues, corporate AV conferences, classrooms for e-learning and more. The XS-62S is a great space saving unit that is easy to control from the front panel buttons and menu screen, or from a PC or Mac using realtime remote control software (RCS).

Live Production Studio

Content creation is a challenge for many companies looking to more efficiently produce product presentations, town hall meetings, and trainings. The XS-62S makes it easy to create content with an all-in-one switching and audio mixing system that streamlines the production process.

The XS-62S is easy to use from either the front panel controls or remote control software from a PC or Mac. Programmable presets allow one-touch recall of preset camera positions and angles, and the audio auto mixer takes care of audio mixing in the background, so the operator can focus on switching video. The XS-62S is the perfect size for installation into small spaces and portable enough to be used in multiple areas of a corporate office or other facility.

Performance Venue / Church

XS-62S is the ideal solution for hotel meeting rooms and banquet halls, houses of worship and live performance venues. The XS-62S Matrix Mode makes it easy to send different content to 2 to 3 screen destinations, from a single switcher all while mixing program audio and controlling PTZ remote cameras.

PGM / PST Mode works as a traditional switcher complete with cross-dissolve switching and Aux bus delegation for sending different video to a secondary destination such as a presenter’s confidence monitor or additional presentation screens.

Performance venues will benefit greatly from the built-in auto mixing function. The auto-mixing function automatically balances incoming audio sources such as microphones from a discussion panel, making it easy for the operator. The XS-62S’s audio processing also includes advanced effects such as EQ, dynamics and delay for mixing of vocal speech along with music and other audio embedded in video sources. These effects will provide improved sound quality for streaming applications, recording and sound reinforcement.

Live Streaming and Video Conference

The XS-62S is also suitable for live streaming and web conferencing systems. In this type of application, you could be using multiple PTZ cameras and PCs. With the XS-62S this can easily be operated by a small team or even a single person. PTZ camera control eliminates the need for individual camera operators, since everything can be controlled from the XS-62S while video is being switched by the same operator. The XS-62S’s audio capabilities make it easy to connect 4 microphones, mixing audio from computers and other video sources.

Video

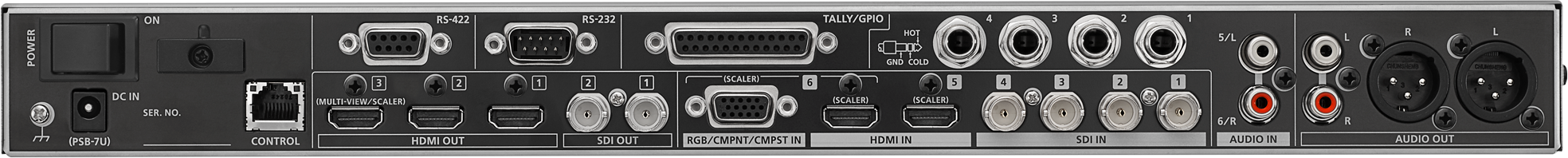

The XS-62S video switcher can seamlessly switch 6 inputs including 3G-SDI, HDMI and Analog (RGB, Component and Composite) sources along with 2 still images stored in internal memory. Three video switching modes can be selected, allowing a wide range of applications from the XS-62S.

  • 4 SDI Inputs (with de-interlacer)
  • 2 HDMI Inputs (scaled)
  • RGB/COMPONENT/COMPOSITE input (Scaled) - Shared with HDMI input 6
  • 2 SDI Outputs ‒ Assignable to PGM, PVW, AUX
  • 2 HDMI Outputs ‒ Assignable to PGM, PVW, AUX
  • 1 HDMI Output (scaled / Multi-view) – Multi-view or scaled output
  • TALLY/GPIO
  • RS-232 ‒ Remote control
  • RS-422 ‒ PTZ Control (VISCA) * coming Q2 2018
  • LAN ‒ Remote control and Smart Tally

UPC: 761294511619

Videos: Roland XS-62S HD Video Switcher w PTZ Control

Reviews: Roland XS-62S HD Video Switcher w PTZ Control

There are currently no product reviews.


Warranty: Roland XS-62S HD Video Switcher w PTZ Control

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

2 Year Warranty on Video products
