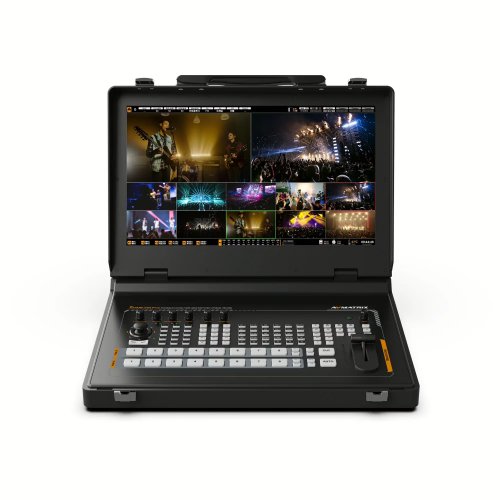

AVMatrix Shark S8X Plus 8-Ch SDI/HDMI/NDI Video Switcher w/ 17.3in IPS Screen
Model: SHARK S8X PLUS-N
About: AVMatrix Shark S8X Plus 8-Ch SDI/HDMI/NDI Video Switcher w/ 17.3in IPS Screen
Revolutionize your live streaming with the Shark S8X Plus Video Switcher, the all-in-one solution for live streamers.
- 17.3-inch FHD IPS display
- Inputs: 6x 3G-SDI and 2x SDI/4K HDMI, 1x BNC REF, 1x AUX (internal interface)
- Multi-view source routing function, supporting the definition of any input signal to any specified view
- AUX input: Video playback/UVC CAM/network pull stream/NDI
- Outputs: 2x HDMI(A/B) PGM (configurable), 4x SDI(A/B) PGM (configurable), 1x HDMI MV (source configurable), 1x REF output
- Streaming: RTMP(S)/SRT/RTSP/NDI
- Recording and playback: USB flash drive/SD card/2.5-inch SATA
- USBC port for UVC lossless capture
- Chroma key, luma key, custom position and size PIP×3, POP, DSK, LOGO overlay
- Transition: T-bar/Auto/Cut
- Professional XLR audio input and output, supporting 48V phantom power
- Audio : 8x input video embedded audio & 2x XLR/TRS balanced & 3.5mm stereo input; 3.5mm stereo & XLR balanced output
- 8-channel PTZ control, supporting PTZ speed setting, preset position setting and calling, automatic/manual white balance, automatic/manual color and automatic/manual focus control
- Macro script function, supporting macro recording, playback and user editing of macro scripts
- Tally GPIO port
