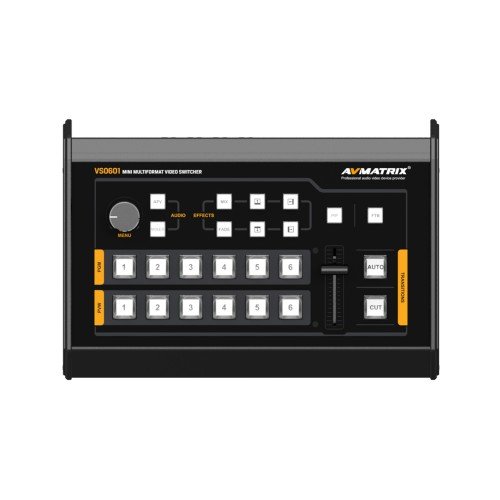

AVMatrix VS0601 Mini 6 Channel SDI/HDMI Multi-Format Video Switcher

About: AVMatrix VS0601 Mini 6 Channel SDI/HDMI Multi-Format Video Switcher

Mini 6-Channel SDI/HDMI Multi-format Video Switcher

• 6 channel inputs: 4×SDI and 2×HDMI inputs
• 2×SDI &1×HDMI PGM outputs, 1×SDI AUX output, 1×SDI &1×HDMI multiview outputs
• T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
• PiP mode, both size and position is adjustable
• Audio mixer: 3.5mm stereo/ RCA audio & SDI/ HDMI embedded audio
• GPIO interface for live tally system
• FTB for emergency situation

Multi-format & Scaler

With built-in scaling, the VS0601 accepts 6 input sources with different format and framerates. PGM output can be scaled to 1080i and 1080p

Multiview Monitoring

Multiview output makes it easy to monitor 6 channels as well as PVW and PGM simultaneously. A Clock and menu list are located in the lower right corner.

PiP

Simply adjust the size and position to apply a picture-in-picture to your program output

Transition Effects

Transition between PVW and PGM with Wipe / Mix / Fade effects through T-Bar & Auto

Audio Mixer

A built-in audio mixer can be used to mix 2 external sources from 3.5mm stereo or RCA inputs in addition to embedded audio.

Portable Handbag

Includes carry case

Specifications:

• Functions
  • Transitions: Manual T-Bar / Auto / Cut
  • Functions: Wipe / Mix / Fade / FTB
  • Layouts: PiP / Multiview
  • Audio Mixer: Following / Mixer

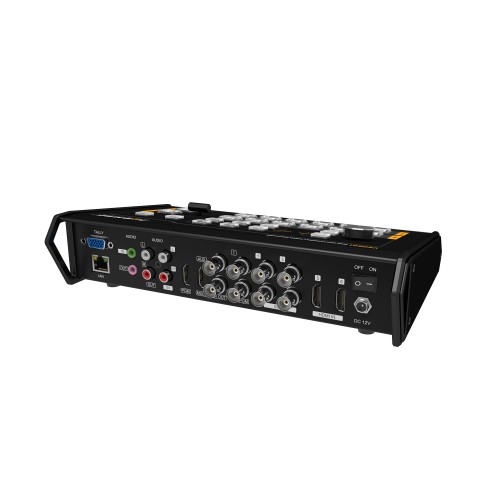

• Inputs
  • Video: SD / HD / 3G-SDI (x4), HDMI (x2)
  • Analog Audio: 3.5mm Stereo (x1), RCA (x1)
• Outputs
  • PGM: SD / HD / 3G-SDI (x2), HDMI (x1)
  • Aux: SD / HD / 3G-SDI (x1)
  • Multiview: SD / HD / 3G-SDI (x1), HDMI (x1)
  • Analog Audio: 3.5mm Stereo (x1), RCA (x1)
• Data Interface
  • LAN: RJ45
  • Tally: DB15
• Standards
  • SDI:
    • 1080p 60/59.94/50/30/29.97/25/24/23.98
    • 1080psF 30/29.97/25/24/23.98
    • 1080i 60/59.94/50
    • 720p 60/59.94/50/30/29.97/25/24/23.98
    • 625i 50 PAL, 525i 59.94 NTSC
  • HDMI
    • 1080p 60/59.94/50/30/29.97/25/24/23.98/23.976
    • 1080i 60/59.94/50
    • 720p 60/59.94/50/30/29.97/25/24/23.98
    • 576i 50, 576p 50
  • PGM Output: 1080p 60/50/30/25/24, 1080i 60/50
  • Multiview Output: 1080p 60
  • SDI Compliance: SMPTE 292M / SMPTE 259M / SMPTE 424M
• Size: 249.2 x 172.3 x 55 mm
• Weight: 1kg
