AVMatrix PKC4000 IP & Serial PTZ Camera Controller w/ Touchscreen

About: AVMatrix PKC4000 IP & Serial PTZ Camera Controller w/ Touchscreen

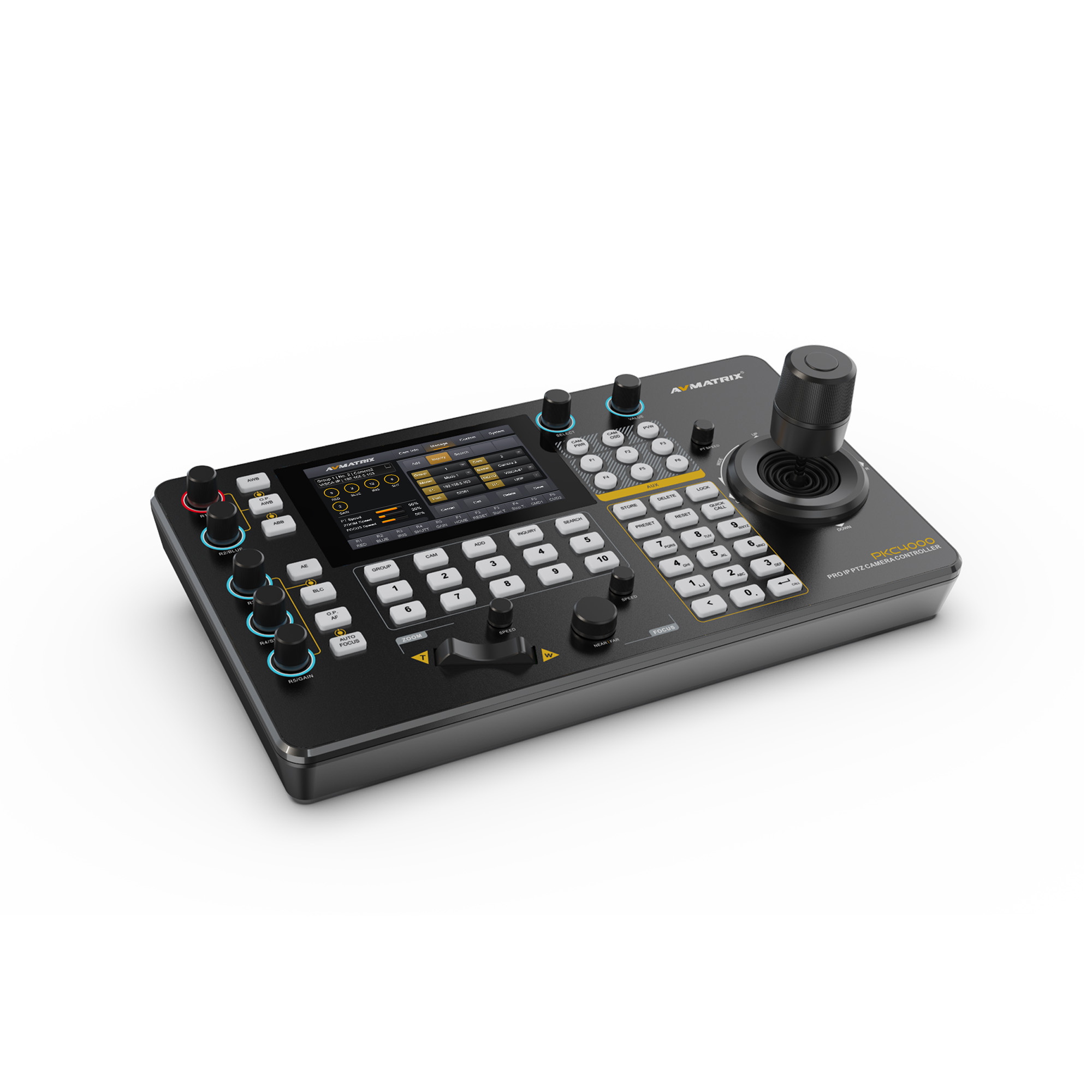

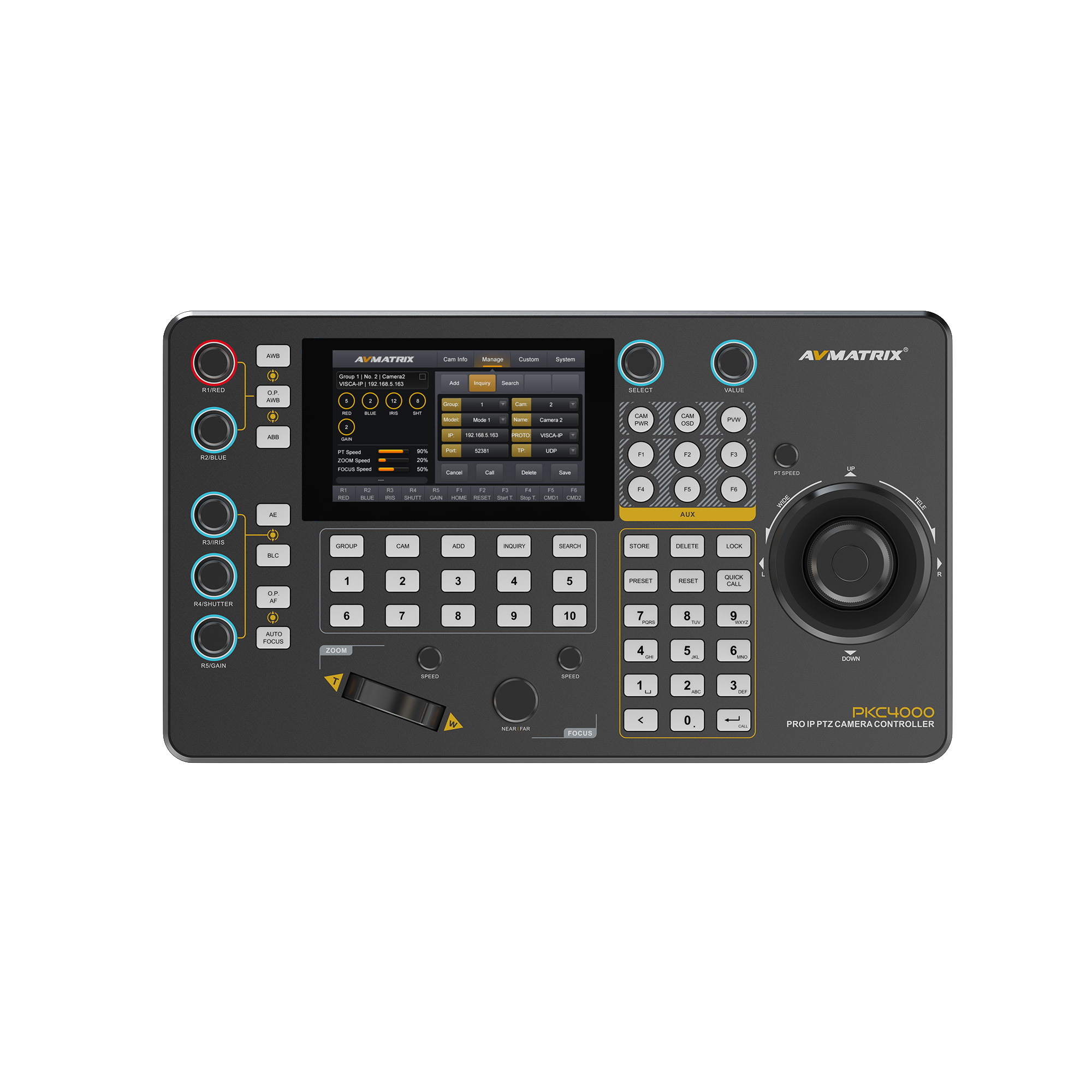

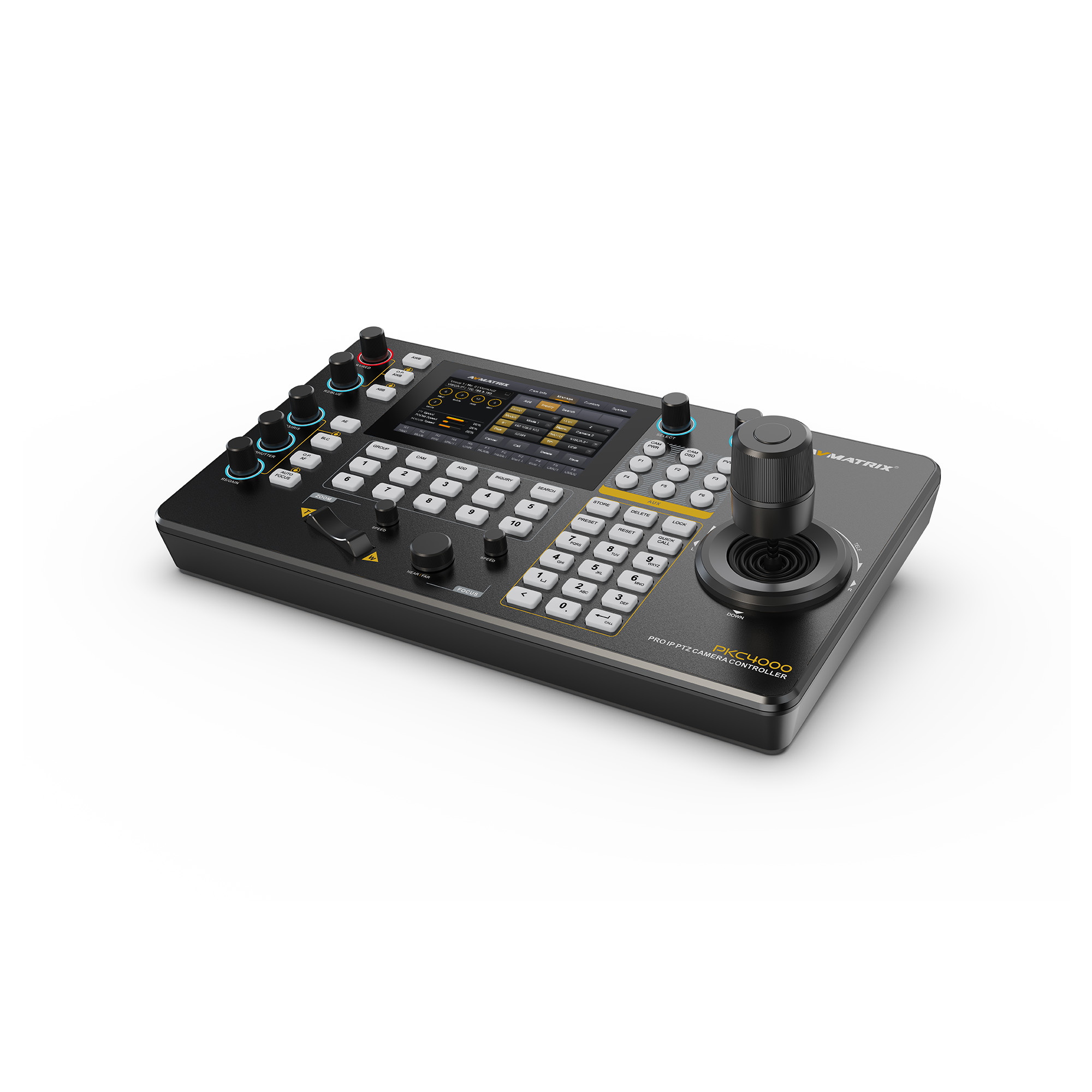

The AVMatrix PKC4000 is a PTZ Camera Controller with a host of additional features built in. A 5" screen allows for easy visibility of the built in functions of the monitor. Supporting an additional ONVIF, SDI - and optional NDI communications and control protocol, the unit can control up 100x PTZ Camera systems from a single controller point.

• Easy operation with a 5-inch touch screen and 4D joystick
• Supports video decoding for real-time monitoring
• Supports Visca, Visca Over IP, Pelco P&D & Onvif protocols
• Control via IP, RS-422, RS-485, and RS-232
• Automatic IP address assignment for quick setup
• Manages up to 100 IP cameras on a single network
• 6 user-assignable keys for quick function access
• Quick control of exposure, iris, focus, pan, tilt, etc.
• Supports PoE and 12V DC power supply
• NDI version for optional

Specifications

• CONNECTIONS

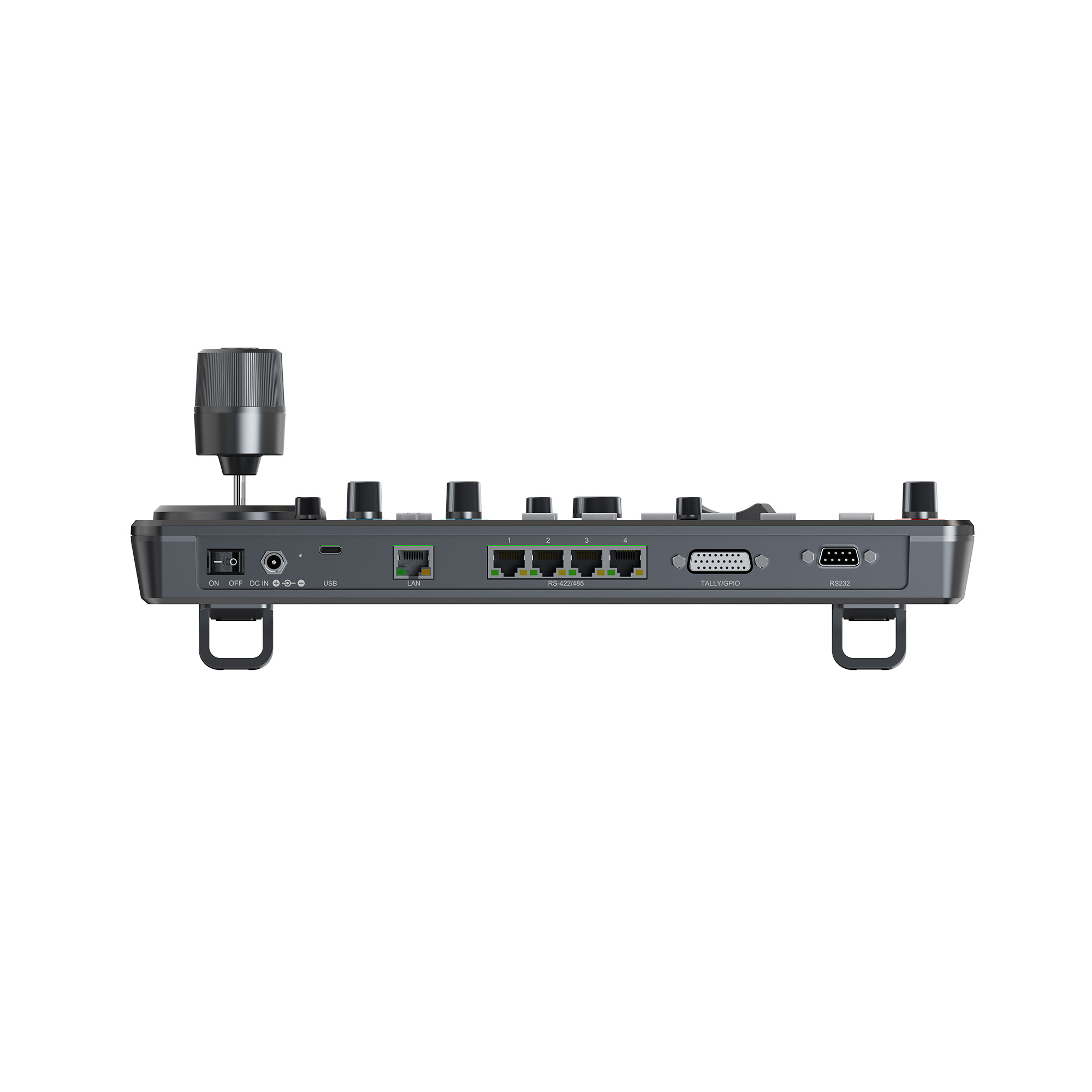

  • Interfaces
    • 1x IP(RJ45)
    • 1x RS-232
    • 4x RS-485/RS-422
    • 1x TALLY
    • USB2.0 (For upgrade)
  • IP Protocol: ONVIF, VISCA-IP
  • Serial Protocol: PELCO-D, PELCO-P, VISCA
  • Serial Baud Rate: 2400, 4800, 9600, 19200, 38400, 115200 bps
  • LAN Port: 1x 1000M (PoE/PoE+: IEEE802.3 af/at)
• USER INTERFACES
  • Display: 5 inch Touch Screen
  • Knob: Quickly control iris, shutter speed, gain,auto exposure, white balance, etc.
  • Joystick: Pan/Tilt/Zoom
  • Camera Group: 10 (Each group connect up to 10 cameras)
  • Camera Address: Up to 100
  • Camera Preset: Up to 255
• POWER
  • Power: PoE / DC 7~24V
  • Power Consumption
    • PoE: <8W
    • DC: <8W
• ENVIRONMENT
  • Working Temperature: -20C~60℃
  • Storage Temperature: -20℃~70℃
• PHYSICAL
  • ​Dimension (LxWxD): 13.4 x 7.7 x 1.95 inch (340 x 195 x 49.5mm)
    • w/ Joystick: 13.4 x 7.7 x 4.33 inch (340 x 195 x 110.2mm)
  • Weight: 3.81 lbs (1730g)
