Atlona PTZ Camera with HDMI Output and USB - Black

About: Atlona PTZ Camera with HDMI Output and USB - Black

The Atlona AT-HDVS-CAM-HDMI is an enterprise-grade PTZ camera designed for use in video conferencing and other applications such as lecture capture and distance learning. It features an HDMI output, as well as a USB 2.0 interface for video and camera control. Simultaneous video output is available over both interfaces. Through USB, the HDVS-CAM-HDMI seamlessly integrates with the Omega™ Series and AT-OME-MS42-KIT for a complete, automated conferencing system that includes AV and USB extension. The HDMI output is ideal for use with a video conferencing codec, lecture capture appliance, or PC equipped for video capture. The HDVS-CAM-HDMI delivers high performance, professional-quality imaging with video resolutions up to 1080p @ 60 Hz over HDMI and 1080p @ 30 Hz for USB 2.0, as well as fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. Also available is H.264 or H.265 streaming over IP with support for RTMP and RTSP protocols. This PTZ camera is ideal for a wide range of small to medium-sized meeting spaces, classrooms, training rooms, and many other environments. The HDVS-CAM-HDMI is available in black or white.

The HDVS-CAM-HDMI is part of a family of PTZ cameras that includes the HDVS-CAM with USB 2.0 interface, as well as the HDVS-CAM-HDBT with HDBaseT output. It includes a handheld IR remote control, plus mounting hardware for convenient on-wall installation. Available as an option is the AT-HDVS-CAM-CMNT for inverted ceiling mounting.

Applications

• Meeting spaces and conference rooms – The HDVS-CAM-HDMI works together with the USB extension capability of the Omega Series devices to enable simple, clean connectivity from the front wall to the meeting table. At the same time, the HDMI output can be used for monitoring on a secondary display.
• Classrooms and other instructional spaces – The HDVS-CAM-HDMI is ideal for distance learning and collaboration, as well as recording lectures. The HDMI and USB interfaces can be used simultaneously for conferencing and lecture capture applications.
• Legacy video conferencing systems – This camera can provide an effective upgrade to existing codecs, by delivering high quality imaging performance over HDMI. The HDVS-CAM-HDMI also brings software video conferencing capability via USB.

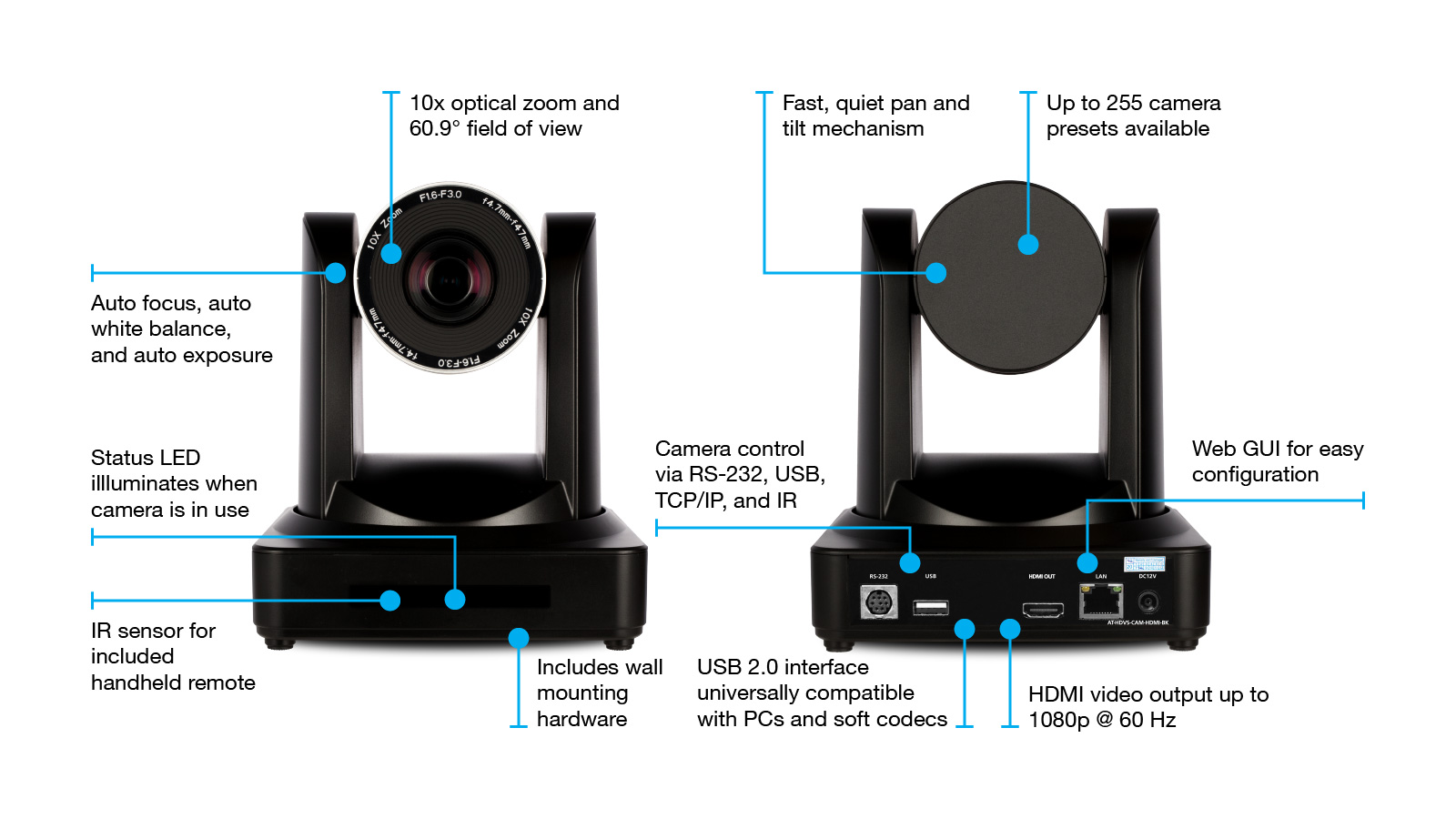

FEATURES

• Designed for video conferencing and other applications such as lecture capture and distance learning
• HDMI output
• USB 2.0 interface for video
• Simultaneous video output over HDMI and USB
• Universal PC compatibility through standard UVC 1.1 (USB Video Class) driver
• Works with popular soft codec and UC clients such as Microsoft® Teams, Zoom™, BlueJeans™, Slack™, WebEx®, and GoToMeeting®
• USB camera control available from compatible apps such as Zoom Rooms
• Up to 255 camera presets available, 10 accessible from IR remote
• Supports VISCA, Pelco-D, and Pelco-P camera control protocols
• Fast and accurate auto focus, plus auto white balance and auto exposure modes
• Fast and quiet pan and tilt mechanism
• Picture controls available for brightness, color, saturation, contrast, sharpness, and gamma
• H.264 and H.265 video over IP network streaming available, with support for RTMP and RTSP protocols
• Easy, GUI-based configuration using integrated web server
• TCP/IP, RS-232, USB, and IR control – convenient handheld IR remote control included
• Delivers HD video resolutions including 1080p @ 60 Hz (176×144 up to 1080p @ 30 Hz over USB 2.0)
• High performance imaging, fine detail, and color rendering with 1/2.8″ low-noise, HD CMOS sensor
• Multi-element zoom lens with 10x optical zoom and a 60.9° horizontal field of view
• Camera can be mounted on a wall, or inverted for ceiling installation with the optional AT-HDVS-CAM-CMNT ceiling mount kit
• Compatible with 1/4-20 UNC tripod screw thread standard
• Includes installation guide, wall mounting bracket, IR remote control, 2 meter (6.5 foot) USB Type-A male to male cable, VISCA to RS-232 DB-9 adapter, lens cap, and external universal power supply
• Available in black or white
• Limited product warranty: 10 years for electronic circuit and optics; 3 years for PTZ motor
