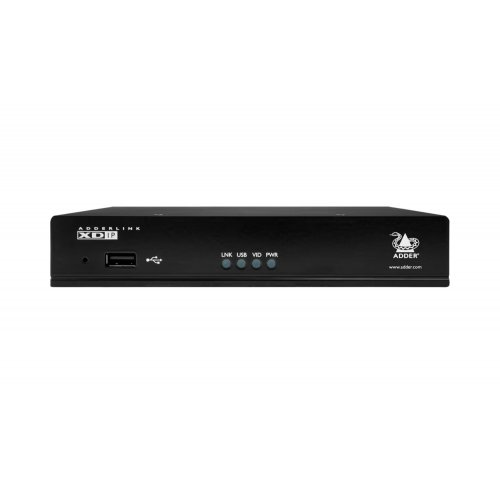

AdderLink XDIP Single Link w/PoE HDMI & USB Extender over IP with PSU

About: AdderLink XDIP Single Link w/PoE HDMI & USB Extender over IP with PSU

The ADDERLink XDIP is designed to improve IT scalability for small to medium businesses. Utilizing a standard 1Gb/s IP network, the XDIP enables users to extend and manage critical PCs with ultra-low latency and HD video. An intuitive API delivers remote control of the matrix and allows the XDIP to be integrated into larger systems, controlled by third party software.

Flexible and Scalable

Each XDIP unit can be configured as a simple extender, distributed KVM switch or for AV distribution. Each receiver can see up to 16 sources and each transmitter can connect to up to 256 receivers.

Configurable Units

The XDIP user and computer units are identical and can be configured as a transmitter or receiver. This means the solution can be built to suit the application, and should the application change, units can be re-configured to suit.

High Quality Video

The XDIP supports video resolutions of up to 1920x1200@60Hz.

Real-Time Control

XDIP combines low latency, high quality and 60Hz video compression to deliver an “at the PC” user experience, over a standard Gigabit LAN.

API Control

Users can remotely control their XDIP network via a RESTful API via HTTPS . By managing the receiver end points through an API, users can control the matrix. The XDIP is designed to work with any third party controller such as the Elgato Stream deck or Studio.

Power over Ethernet (PoE)

Compatible with most PoE switches, the XDIP can be easily installed without the need for additional power. Many PoE switches offer redundant power options which the XDIP can leverage for enhanced reliability.

EDID Management

Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration. Alternatively, a fixed EDID can be specified.

Plug and Play

The XDIP is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected. A simple setup wizard guides the user through set up when the device is connected.

Audio Capability

XDIP delivers bi-directional analog audio (16-bit sampling at 48kHz) passed between the local and remote units. Headphones are also supported (16 to 32 Ohms).

Local Feed Through Support

Video and USB feed through ports are available, enabling a local console at the source computer. A local computer is also supported at the user station.

Specification

• Video Information (For 1 Screen)
  • Maximum Resolution: 1920 x 1200
  • Frame Rate: 60
  • Colour Depth: 8 bpc
• Computer Connections
  • 1x USB-B
  • 1x HDMI
• Console Connections
  • 3x True Emulation (HID Only) USB A
  • 1x HDMI
• Link Ports
  • 1x 8p8c (RJ45)
• Audio Connections
  • Audio Type: Analog
  • Channels: 2
  • Audio In Ports: 1x 3.5mm jack
  • Audio Out Ports: 1x 3.5mm jack
  • Audio Direction: Bi-directional
  • Size (bit): 16
  • Speed (kHz): 48
• Cable Requirements
  • Recommended Cable Type: CAT5e and above
  • Maximum Cable Length: 100m / 328ft
• Network Support
  • Bandwidth: 1GbE
  • 10/100 Support: No
• Environmental
  • Operating Temperature: 0 to 40 °C / 32 to 104 °F
  • Storage Temperature: 0 to 40 °C / 32 to 104 °F
  • Operating Humidity (%): 10% - 90% (non-condensing)
  • Storage Humidity (%): 10% - 90% (non-condensing)
  • Altitude: 2000m / 6562ft
  • Mean Time Between Failure (MTBF): 700,000 h
  • MTBF Standard: Telcordia SR332 Issue 4 March 2016 Calculated @ 55C
• Power Source
  • 12V 3-pin: 1x
  • Input Power Supply: PoE (802.3.AF), External Power Supply Unit
• Physical Design
  • Construction Material: Robust metal construction
  • Width: 169mm / 6.7in
  • Height: 31mm / 1.2in
  • Depth: 120mm / 4.70in
  • Weight: 0.6kg / 1.3lb
• Compatibility
  • OS Compatibility: All known operating systems
  • System Requirements: Does not support HDCP or CEC control
• Approvals and Standards
  • Approvals: CE, FCC, KC, UKCA
  • Standards: EN55032 /CISPR 32, EN55035/CISPR 35, FCC pt15B
  • Other: Cal Prop 65, China ROHS, EU REACH, UK REACH

What's in the Box

• 1x 2 meter HDMI cable
• 1x 2 meter USB A to B cable
• 1x 2 meter 3.5mm jack audio cable
• 1x Quick start guide
• 1x PSU 12V
• 1x IEC Country specific cable
