Atlona 4K HDR Multi-Channel Audio Converter

About: Atlona 4K HDR Multi-Channel Audio Converter

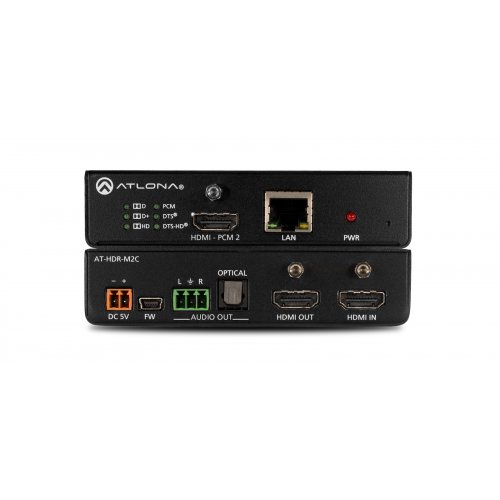

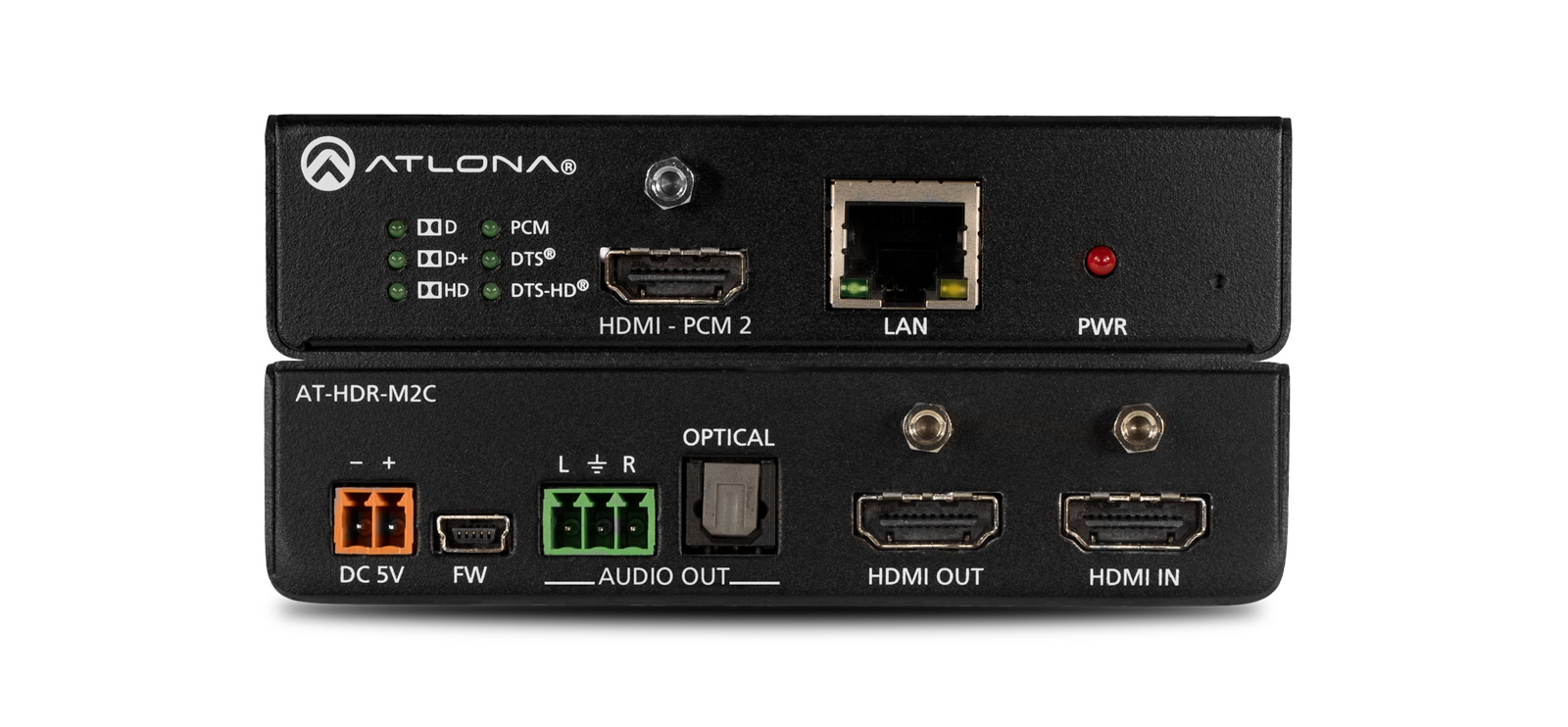

The Atlona AT-HDR-M2C is an audio converter for extracting and downmixing multi-channel PCM, Dolby, and DTS audio from HDMI sources. Part of the comprehensive family of Atlona 4K HDR integration products, it features an HDMI input with pass-through, and delivers stereo downmixed audio over a separate HDMI output, as well as unbalanced analog and TOSLINK digital audio outputs. The HDR-M2C is compatible with high dynamic range (HDR) formats and is HDCP 2.2 compliant. It supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. This audio converter includes EDID management features as well as audio volume and bass / treble controls, all available via Ethernet through Velocity Device Manager, the web GUI, or a control system. The HDR-M2C can conveniently serve surround sound and two-channel audio systems from a multi-channel audio source.

The HDR-M2C is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays.

Applications

• Residential and commercial installations – The HDR-M2C is designed for AV systems with the latest UHD and HDR sources such as Ultra HD Blu-ray players, plus compatible televisions and projectors.
• Audio compatibility – The HDR-M2C is ideal for applications requiring playback of multi-channel source content over displays and whole-house audio systems.

Features

• HDMI audio de-embedding and multi-channel audio downmixing
  • De-embeds HDMI audio with or without connection to a display or other destination
  • Provides easy integration of HDMI audio sources into whole-house and other audio systems
• Downmixes multi-channel PCM, Dolby, and DTS formats to stereo audio
  • Extracts, decodes, downmixes, and converts digital multi-channel bitstreams to two-channel signals
  • Supports PCM, Dolby® Digital, Dolby Digital Plus, Dolby TrueHD, DTS® Digital Surround, and DTS-HD Master Audio
• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
  • Ideal for new and emerging 4K/UHD and HDR-capable sources and displays
  • Compatible with 4K HDR10 and Dolby Vision @ 60 Hz, as well as HLG (Hybrid Log-Gamma) for 60p HDR broadcast services
• HDCP 2.2 compliant
  • Adheres to latest specification for High-bandwidth Digital Content Protection
  • Allows protected content stream to pass between devices
• Delivers downmixed audio to HDMI, TOSLINK digital audio, and analog audio outputs
  • Provides flexible options for integrating with displays and audio systems
  • Also passes through the HDMI input with no downmixing
• Volume and tone adjustments
  • Adjustment of output volume, plus bass and treble settings via the web GUI or Velocity Device Manager
  • Avoids the need for an external DSP to set gain and tone controls
• EDID management
  • Manages EDID communications with the source through a display’s EDID or internally stored EDID
  • Ensures desired audio formats and video resolutions are provided to the AV system
• IP control
  • Ready for integration with Atlona Velocity and third-party control systems
  • Flexible options for audio volume and bass / treble controls, as well as EDID management
• Intuitive GUI-based configuration using integrated web server
  • Offers menu-based configuration of network settings, audio, and EDID management
  • Allows fast configuration of internal product settings and troubleshooting from a mobile device or PC in the field
• Easy to configure and manage with Velocity Device Manager
  • Centralized, network-based configuration and management of Atlona IP-controllable products and systems
  • Manage configuration and firmware updates for AV devices spanning a facility, building, enterprise, or residence
  • Available as a part of Velocity control systems or as a free virtual machine software download
• Field-updatable firmware
  • Device can be updated in the field via the web GUI or Velocity Device Manager
  • USB port also available for firmware updates
• Front panel power and signal status LEDs
  • LED indicators provide power status and audio format identification
  • Provides easy setup and troubleshooting
• Low-profile, 1 inch (25 mm) high enclosure
  • Easy installation into racks and confined spaces
  • Keeps devices out-of-sight when placed in public spaces
• Included accessories
  • User guide, surface mounting brackets, external universal power supply, and captive screw connectors
