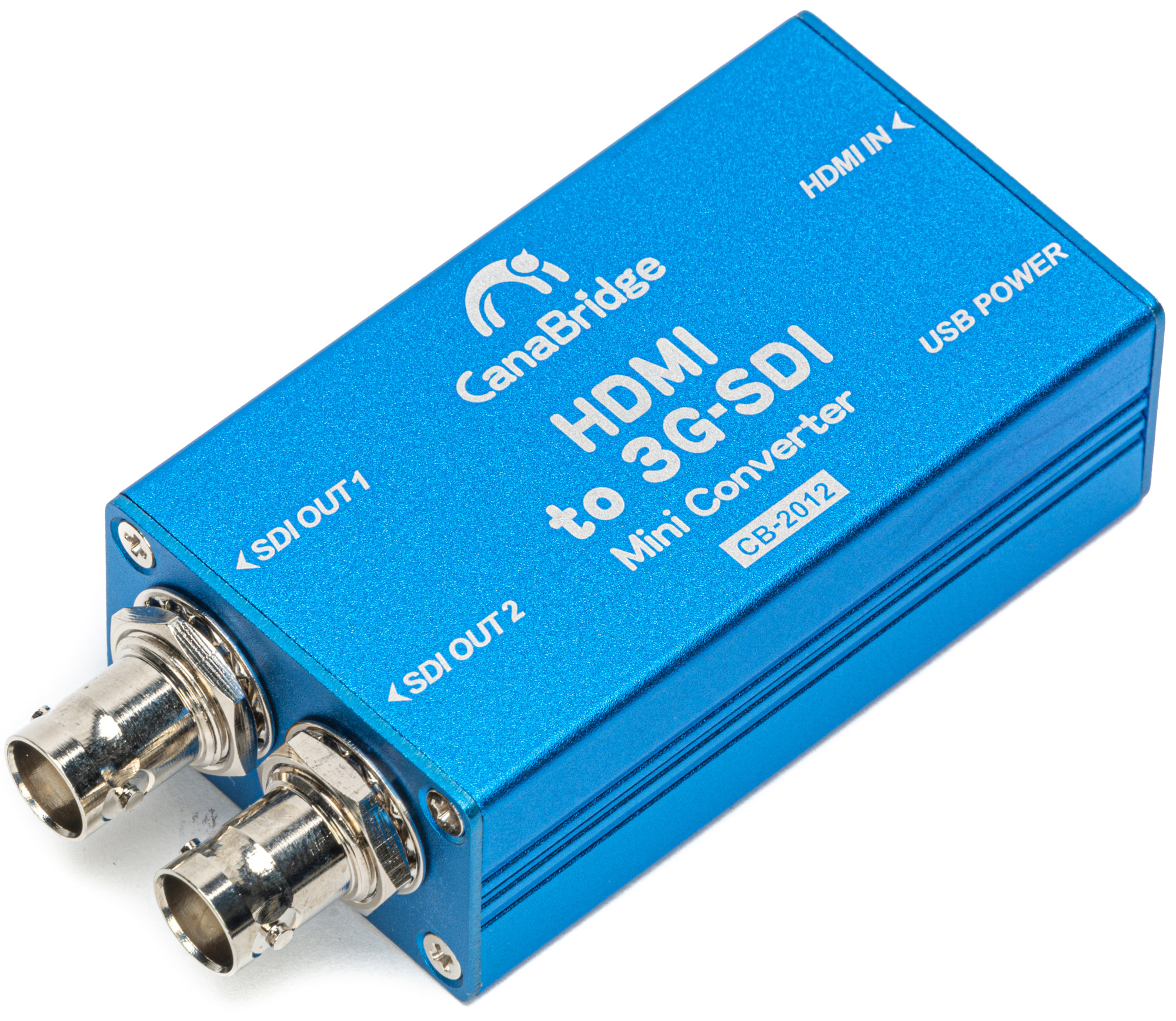

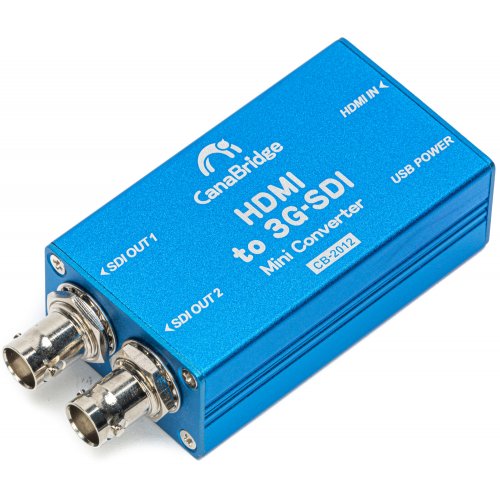

Canare HDMI to 3G-SDI Mini Converter
Model: CB-2012
About: Canare HDMI to 3G-SDI Mini Converter
The mini CB-2012 is a Pocket sized broadcast converters. CB-2012 can convert an HDMI signal to 3G-SDI signal and it has 2 output ports.
The miniature design makes it portable for indoors and outdoors. You can put it in your pocket and take it anywhere you want. The detachable mounting bracket comes with the product and it can be used for various scenarios.
One of the features of this series is that the power input is possible just by Micro USB connection. Power supply is possible not only from DC power plug pack or power bank, but also possible from laptop or computer. Its incredibly small power consumption, makes an uninterrupted 24 hours’ operation possible by a 5,000mAh power bank.
Connections
- HDMI Video Input: 1 x HDMI A
- SDI Video Output: 2 x SD/HD/3G-SDI (75Ω BNC)
- Micro USB: Power and software update
- Power LED: Power indicator
- SDI LED: SDI signal indicator
Functions and Standards
- HDMI Input Format:
- 1080p 50/59.94/60
- 1080p 23.98/24/25/29.97/30
- 1080i 50/59.94/60
- 720p 50/59.94/60
- 576i 50, 480i 59.94
- HDMI Color Space and Precision
- YCbCr 4:2:2
- YCbCr 4:4:4
- RGB 4:4:4
- SDI Output Format
- 1080p 50/59.94/60
- 1080p 23.98/24/25/29.97/30
- 1080i 50/59.94/60
- 720p 50/59.94/60
- 625i 50, 525i 59.94
- SDI Video Rate: SD/HD/3G-SDI
- SDI Standard
- SMPTE ST 259
- SMPTE ST 292-1
- SMPTE ST 424
- SDI Color Space and Precision: YCbCr 4:2:2
- HDCP: Signal with HDCP doesn't pass through
Power
- Power: Micro USB
- Power Consumption: 2.5W (Max)
- Voltage Range: USB 3.3-5.5V
Physical Specifications
- Dimension: 72.4 x 41 x 24.6mm
- Net Weight: 110g
- Gross Weight: 470g
Reviews: Canare HDMI to 3G-SDI Mini Converter
Warranty: Canare HDMI to 3G-SDI Mini Converter
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1-year limited
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
