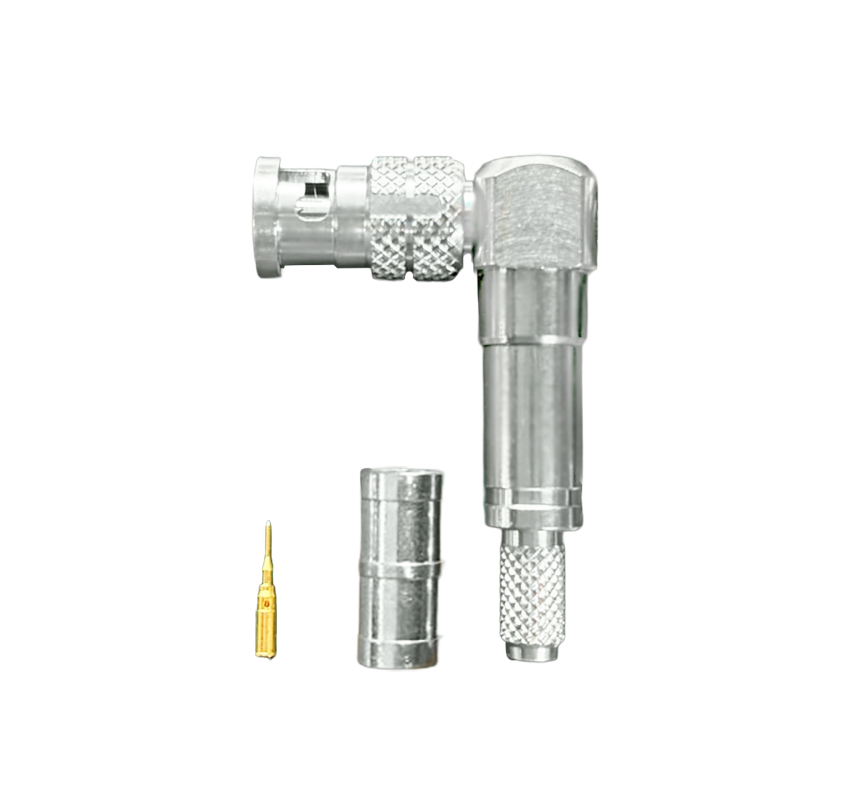

Canare HBCP-L 75-ohm Right Angle Micro BNC Crimp Plug for L-4.5CHD
Model: HBCP-LD53
About: Canare HBCP-L 75-ohm Right Angle Micro BNC Crimp Plug for L-4.5CHD
Canare's right-angle plug is suitable for Micro BNC installations with limited depth.
- Return Loss: 24dB @ 3GHz, 20dB @ 6GHz, 13dB @ 12GHz
- Canare crimp design ensures quick and reliable
- Gold plated “snap locks” center pin and beryllium copper outer contact.
- Gold plating on the contact pin prevents deterioration, even after years of use.
- Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the center pin.
Specifications
- Suitable Cable:
- Canare L-4.5CHD, V4-4.5CHD
- Belden 1694A
- Center Pin: BN1230
- Sleeve: BN7016
- Boot: -
- Die Set: TCD-D534F
