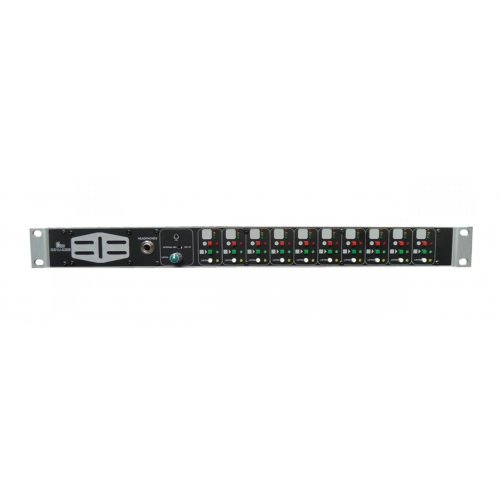

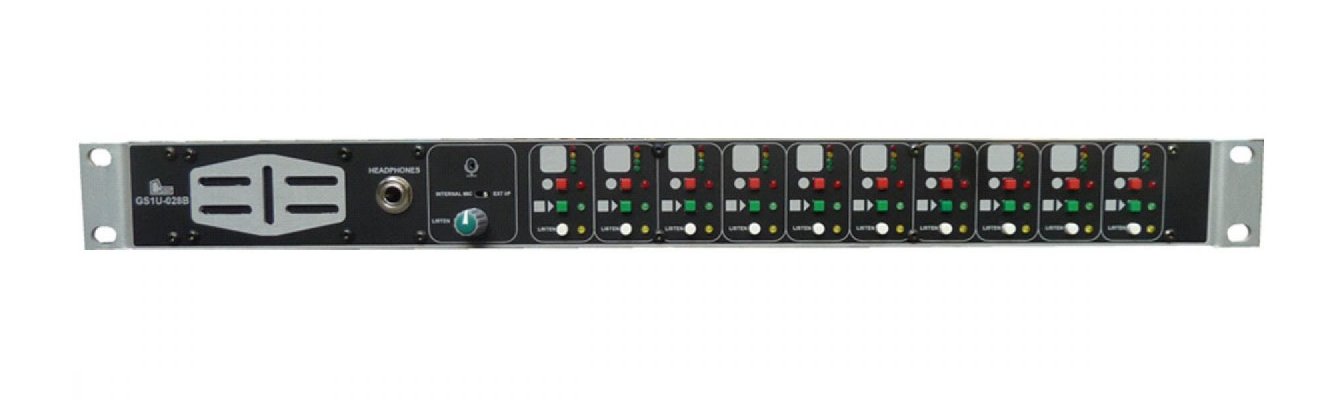

Glensound GS1U-028B High Quality 10 Channel Line Ident
Model: GS1U-028B
About: Glensound GS1U-028B High Quality 10 Channel Line Ident
Glensound GS-1U028B is a high-quality 10-channel line identification unit designed for use in professional broadcast studios and OB environments. It enables engineers to record short messages per channel, which are then looped with a 1kHz tone for easy line identification and level setting.
Features
- 10 independent line identification circuits
- Each channel can store a message up to 20 seconds long
- 1kHz tone at 0 dB added after the message during playback
- Messages and tone are played back in a continuous loop
- 4-segment LED PPM meters show playback level for each channel
- New recording IC with 12 kHz sampling for improved audio quality
- Non-volatile memory retains recordings after power loss
- Front panel loudspeaker and headphone jack for monitoring
- Individual listen switches route any channel to speaker/headphone
- Record/playback/listen switches on front panel for intuitive operation
- Front panel microphone and rear line-level input for recording
- Compressor/limiter on mic input ensures clean recordings
- Balanced XLR outputs per channel
- Remote control support via record and play loop inputs
- Labeling areas for easy channel designation
- Mains powered (100–250 VAC)
Specifications
| Channels | 10 independent line ident circuits |
|---|---|
| Recording Time | Up to 20 seconds per channel |
| Playback | Message + 1kHz tone at 0 dB, looped continuously |
| Audio Inputs | Front mic (with compressor/limiter), rear line-level input |
| Audio Outputs | Balanced XLR per channel |
| Monitoring | Front panel speaker, 6.35mm headphone jack with volume control |
| Remote Control | Record and play loop inputs |
| Metering | 4-LED PPM level indicators per channel |
| Power | Mains 100–250 VAC |
| Form Factor | 1U 19" rack-mountable |
