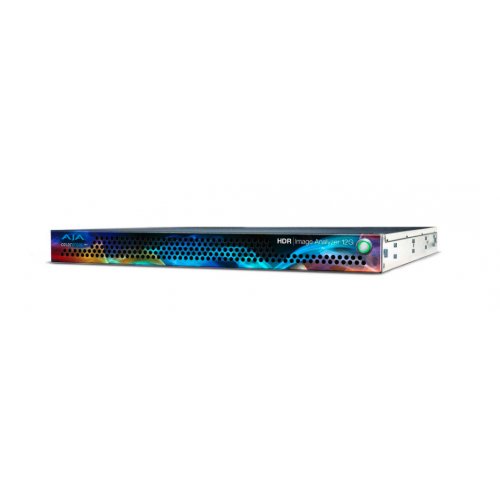

AJA HDR-IMGYZR-12G Multi-Channel HDR Image Analyzer 12G
Model: HDR-IMGYZR-12G
About: AJA HDR-IMGYZR-12G Multi-Channel HDR Image Analyzer 12G

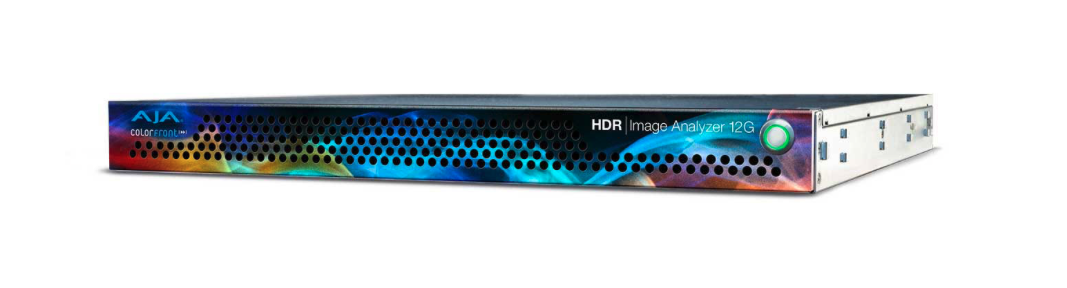

AJA HDR Image Analyzer 12G is a real-time HDR and WCG monitoring and analysis device designed for professionals in broadcast, post-production, and quality control. Developed in partnership with Colorfront, this 1RU device offers comprehensive tools for analyzing up to 8K/UltraHD2 content over a single 12G-SDI cable, ensuring precise and reliable HDR production and mastering.
Features
- Supports a wide range of HDR standards, including HLG, PQ (ST 2084), Rec.2020, and Rec.709
- Comprehensive analysis tools: waveform, histogram, vectorscope, and CIE chromaticity diagrams
- Advanced out-of-gamut and out-of-brightness detection with error tolerance settings
- Real-time monitoring up to 8K/UltraHD2 60p via 12G-SDI inputs
- Four bi-directional 12G-SDI connections for flexible I/O configurations
- DisplayPort outputs supporting up to UltraHD 60p for high-resolution UI display
- Support for camera LOG formats and SDR (Rec.709) content
- File-based error logging with timecode for streamlined QC processes
- Web-based user interface for remote configuration and control
- Audio level and phase metering for up to 16 channels of embedded audio
- False color modes for quick identification of out-of-range pixels
- Pixel picker tool providing precise nit-level and color value readings
- Support for 12-bit RGB input and display LUTs for accurate color representation
- Compact 1RU form factor suitable for various production environments
Specifications
| Video Input | 4 x 12G-SDI BNC, supporting up to 8K/UltraHD2 60p, 12-bit, 10-bit, and 8-bit |
|---|---|
| Video Output | 4 x DisplayPort, supporting up to UltraHD 60p |
| Audio Input/Output | 16-channel 24-bit SDI embedded audio, 48 kHz synchronous |
| Monitoring Tools | Waveform, vectorscope, histogram, CIE chart, false color, pixel picker |
| Supported HDR Standards | HLG, PQ (ST 2084), Rec.2020, Rec.709 |
| Control Interface | Web-based UI for remote configuration and control |
| Form Factor | 1RU rack-mountable chassis |
| Power | 100-240V AC, 50/60Hz |
UPC: 812321032109
Reviews: AJA HDR-IMGYZR-12G Multi-Channel HDR Image Analyzer 12G
Warranty: AJA HDR-IMGYZR-12G Multi-Channel HDR Image Analyzer 12G
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
