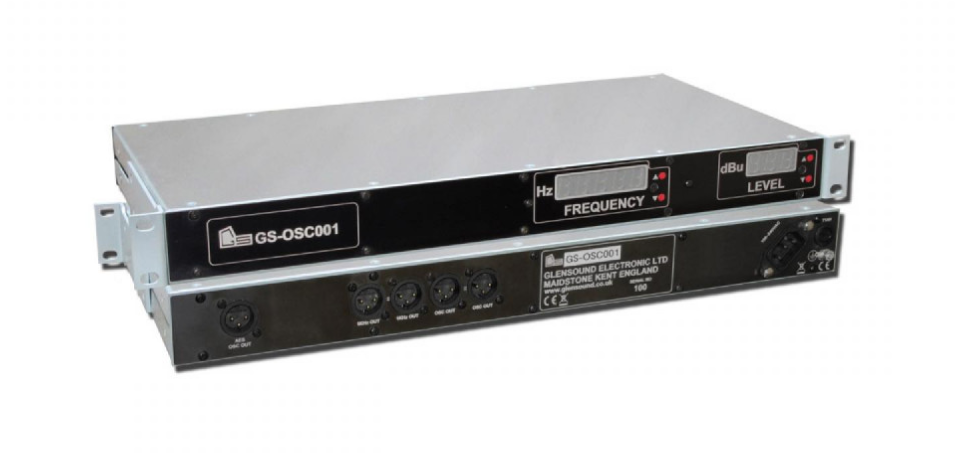

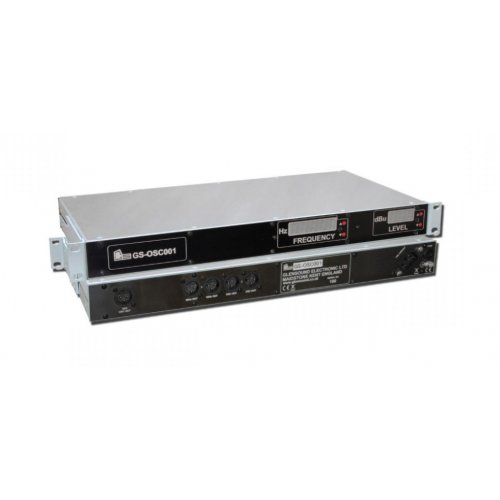

Glensound GS-OSC001 Variable Frequency Tone Generator
Model: GSOSC001
About: Glensound GS-OSC001 Variable Frequency Tone Generator
Glensound GS-OSC001 is a professional-grade variable frequency tone generator designed for broadcast ident and general line-up purposes. With both analogue and digital outputs, fixed and variable frequency options, and precise level control, it is an essential tool for engineers in studio and OB environments.
Features
- Digital tone generator with precise frequency and level control

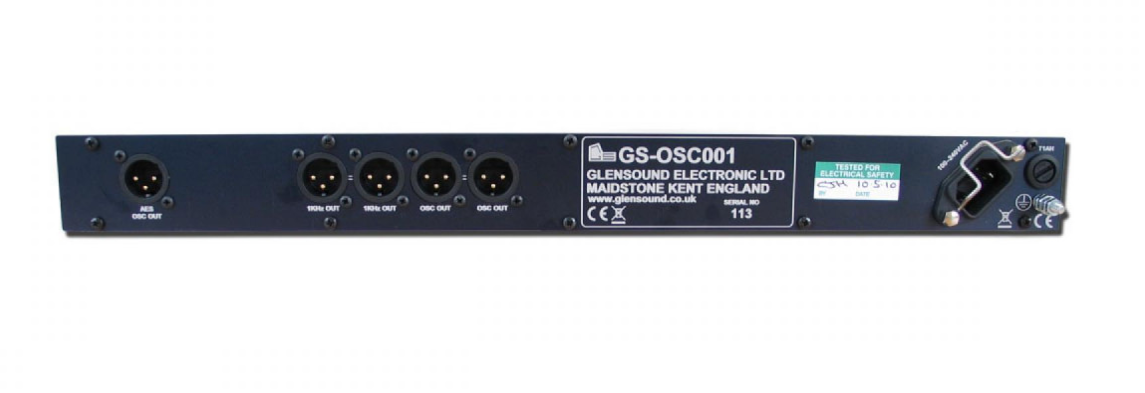

- Two variable analogue outputs and one AES digital output for selected frequency
- Two fixed analogue 1kHz reference outputs
- Selectable output frequencies: 40, 100, 1000, 2000, 6000, 10000, 12000, 15000 Hz
- Output level adjustable from OFF, -50 dBu, and -18 dBu to +18 dBu in 1 dB steps
- Fine level adjustment of ±0.4 dB per output (4 outputs total)
- 1RU 19-inch rack-mountable design with robust construction
Specifications
| Oscillator Frequencies | 40, 100, 1000, 2000, 6000, 10000, 12000, 15000 Hz |
|---|---|
| Frequency Deviation | < ±0.05 Hz |
| Frequency Distortion | < 0.01% at all frequencies |
| Audio Output Levels | OFF, -50 dBu, -18 dBu to +18 dBu (1 dB steps) |
| Fine Level Adjustment | ±0.4 dB (each of 4 outputs) |
| AES Output Reference | 0 dBFS = +18 dBu |
| AES Output Frequency | 48 kHz |
| AES Resolution | 24-bit |
| Analogue Output Impedance | 50 Ohms |
| Digital Output Impedance | 110 Ohms |
| Power Input | 100–240 VAC |
| Power Consumption | 3.5 Watts |
| Dimensions | 1RU 19", 208 mm deep (excluding connectors) |
| Weight | 1.62 kg |
| Recommended Operating Temperature | -5°C to +40°C |
