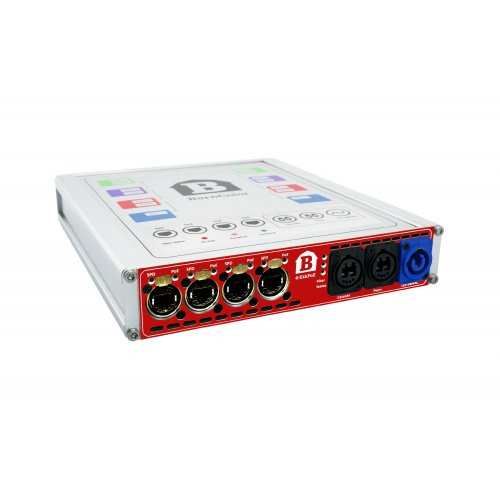

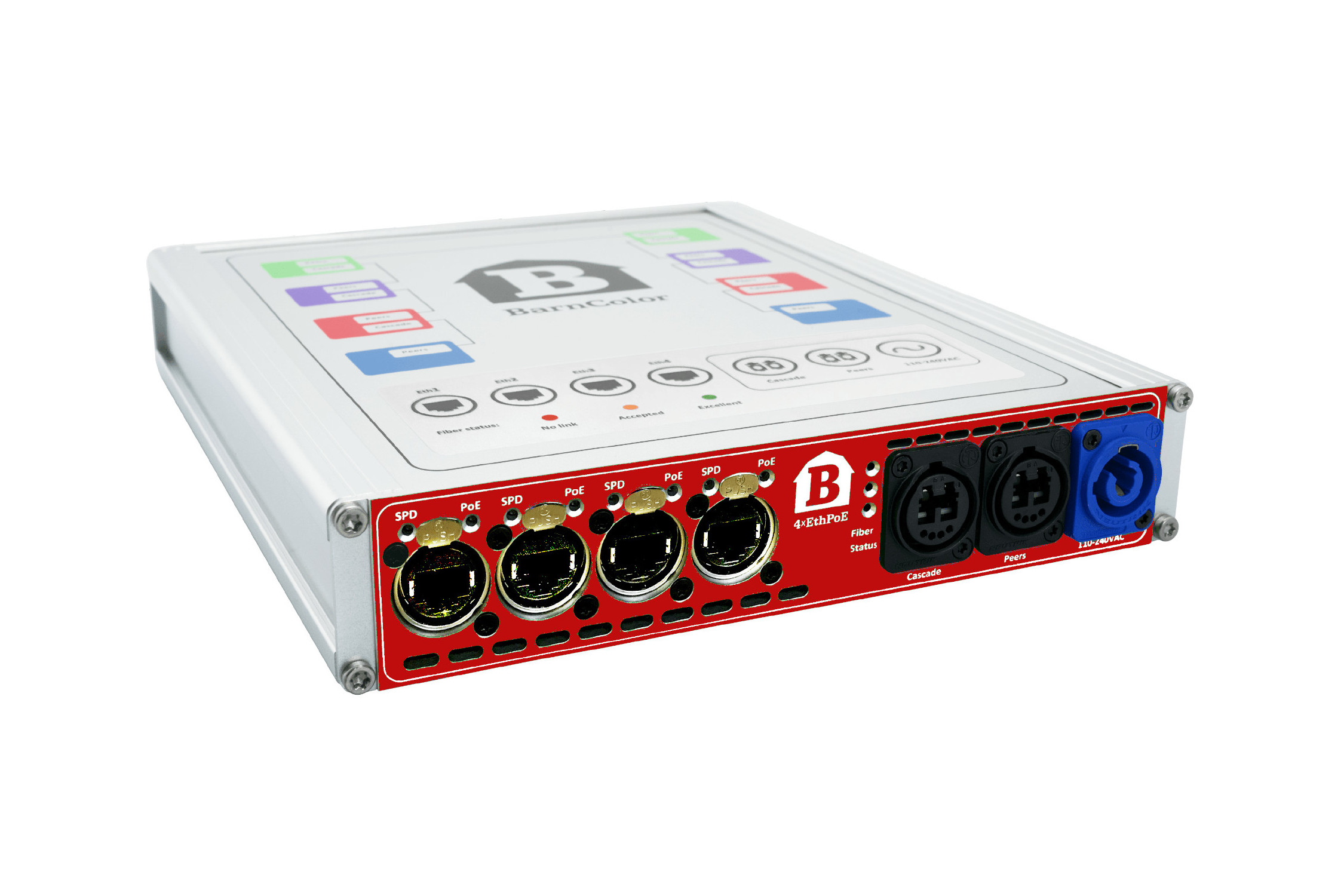

Barnfind BarnColor 4x1G RJ45 w/ PoE Video Transmitter - Red

About: Barnfind BarnColor 4x1G RJ45 w/ PoE Video Transmitter - Red

Designed to be a cost-effective and easy-to-deploy solution for transmitting multiple ethernet signals both directions on a single fiber cable up to 10km distance. BarnColor allows you to handle up to 16 separate 1Gbit/s links. Each BarnColor device handles up to 4 separate 1Gbit links and up to 4 different colors can be daisy chained. This flexible system is easy to install, upgrade and use. It is well suited for both fixed and temporary installations. Can be combined with any models in different colors.

• Cost effective solution
• Upgradable
• Easy to use
• Small form
• Plug and play - Save time and money for on-site rigging
• No Latency
• No Compression

The Concept

Each BarnColor unit is available as SDI or Ethernet version and can cascade maximum 4 boxes (colors) on each side. The boxes can be combined in any variation as long as color is different. Maximum transmission distance – medium range. Equipped with rugged connectors.

Compatibility

The BarnColor devices can be installed in colored pairs or used as satellites together with a BarnOne system. If building a pure BarnColor system you can start with any color-matching pair and extend the system later as your need expands. You can combine different models of BarnColors or use multiple of the same model in the same system as long as the colors are different.

We recommend using single mode fibers when linking the BarnColor devices.

Specifications

• RJ45-Ports
  • 10Mbit/s – 100Mbit/s – 1000Mbit/s
  • PoE 15Watt per port
• Fiber Port
  • Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC
• Power Plug
  • Neutrik powerCON or TRUE1
  • 100-240VAC
  • 90Watt
• Physical
  • Dimensions: 8.8 x 10.9 x 1.7 in (223 x 277 x 44mm)
  • Weight: 3.09 lbs (1.4 kg)

NOTE: Power cable not included.
