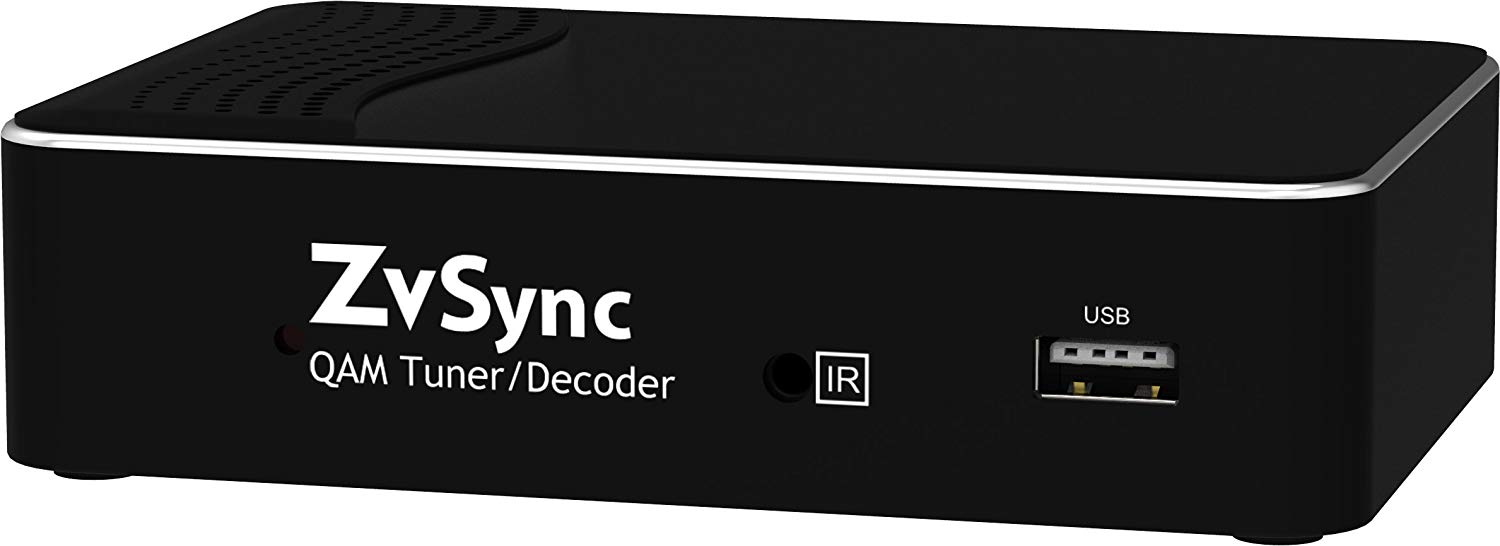

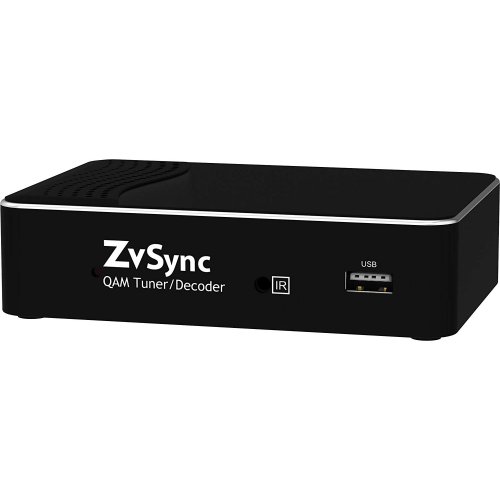

ZeeVee ZvSync-NA Digital Cable Tuner
Model: ZvSync-NA
About: ZeeVee ZvSync-NA Digital Cable Tuner
ZvSync QAM Tuner is a digital QAM/ATSC tuner/decoder providing video output via composite with analog audio or HDMI with embedded digital audio. Includes IR pigtail, IR remote control and power supply.
- Converts coax cable signal to either HDMI or composite video
- Small and easy to mount near a projector
- Digital audio output over HDMI or analog audio output via an RCA connection
Specifications:
- Compliance: UL, CE, TuV, CSA, FCCLow Voltage Directive 2006/95/ECEN60065:2002+A1:2006EMC Directive 2004/108/ECEN 55 013:2001+A1:2003+A2:2006,EN 55 020:2007EN 61 000-3-2:2006, EN 61 000-3-3:2008
- Warranty: 90 Days
TUNER
- Input Frequency Range: 48-862MHz
- RF Input Level: -20 to -82dBm
- IF Bandwidth: 6,7, and 8MHz
- Modulation: ATSC(8VSB) 16QAM, 64QAM, 256QAM
VIDEO
- Decoder Format: MPEG4 AVC/H.264 HP@l4, MPEG2 MP@ML/HL
- Output Format: 480i, 480p, 720p, 1080i, 1080p60Hz
- Aspect Ratio: 4:3, 16:9, Auto
- Output Ports: HDMI(v1.3C), CVBS
AUDIO
- Decoder Format: MPEG-1(layer 1 & 2 & 3), WMA, AC-3
- Audio Output: Digital Audio over HDMI, RCAx2(L/R)
USB2.0
- Supported Capacity: Unlimited
- Supported Media: MP3, WMA, JPEG, BMP, AVI
POWER
- Supply Voltage (Wall): 100-240VAC 50-60Hz
- Supply Voltage (ZvSync Unit): 5VDC
- Maximum Power Consumption: 10W
- Standby Power Consumption: <0.8W
- Nominal Power Consumption: 5W
ACCESSORIES (included)
- Remote Control: controls decoder with learning function for basic control of television
- AA Batteries (2x): remote control power
- Composite Cable: connects to television when using CVBS output
- IR Sensor: Connects to IR port, allows tuner to be installed in an unobtrusive location
- External Power Supply: connects to AC outlet. Provide low voltage DC to tuner unit
UPC: 812254010694
