Epiphan Pearl-Nano Streamer / Recorder

Model: ESP1610

Epiphan Pearl-Nano Streamer / Recorder
Epiphan Pearl-Nano Streamer / Recorder
  • Free Shipping!
  •  In Stock - Ship or Pick-up
  • Not yet reviewed




About: Epiphan Pearl-Nano Streamer / Recorder

Pearl Nano offers the ultimate blend of portability and versatility with a refined yet robust feature set that includes ingestion, encoding, HDMI pass-through, and recording. Use Nano as a powerful and reliable video distribution device or contribution encoder, or leverage the device’s streaming and recording functions as part of a more complex setup with additional production capabilities.

  • Front screen for basic configuration/control and confidence monitoring
  • Video inputs for HDMI and SDI
  • Audio inputs for line-level XLR, RCA, and USB
  • HDMI program out and pass-through for zero-latency content display
  • Custom layout builder for a tailored video program
  • Intuitive browser-based UI and local console
  • Cloud-based configuration and control via Epiphan Cloud
  • SRT, HLS, MPEG-DASH, RTMP, and RTMPS streaming protocol support
  • Comprehensive integration with Kaltura and Panopto
  • Power over Ethernet Plus (PoE+) and DC power
  • Save recordings directly to an SD card (user supplied)
  • Expansion bay for user-supplied M.2 SATA SSD
  • Automatically transfer recordings to a USB drive or networked server
  • 802.1x network access control
  • Lightweight Directory Access Protocol (LDAP)
  • Integration with Crestron Systems
  • Secure Sockets Layer (SSL)

Control Nano your way

Use Pearl Nano’s front screen for basic configuration and control, jump into the browser-based interface or local console to access all the features this small but mighty encoder has to offer, or centralize configuration and monitoring with Epiphan’s cloud-based platform.

Key functions at your fingertips

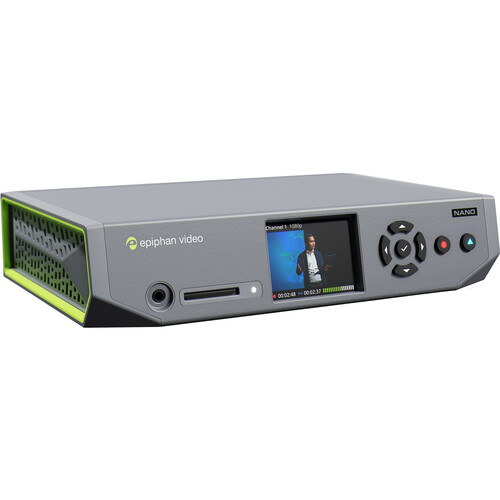

Nano’s front screen offers quick access to essential functions including basic configuration and easy streaming and recording. During events, the built-in screen serves as at-a-glance verification of your audio level and video program for production peace of mind.

Cloud-based configuration and monitoring

Streamline the configuration and monitoring of multiple Pearl Nanos and other Epiphan devices with centralized access to key device statistics including operational status, system load, unit temperature, available storage, and overall health.

Elevate your productions

Build a beautiful layout for your video program with Pearl Nano’s powerful custom layout designer. Create anything from simple picture-in-picture layouts to eye-popping compositions featuring dynamic backgrounds and other custom graphics – whatever suits your event best.

Ideal for SRT contributions

The compact and lightweight Pearl Nano supports Haivision’s open-source Secure Reliable Transport (SRT) protocol for secure, high-quality, low-latency video streaming over any given network.

Built-in video and professional audio inputs

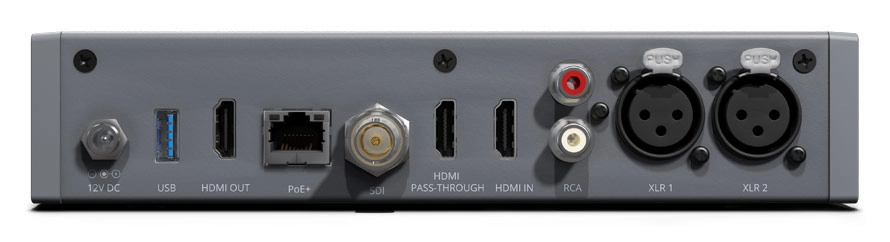

Simplify your streaming and recording setup with the ability to directly connect HDMI and SDI video sources and connect your audio using XLR, USB, and RCA.

HDMI pass-through

For easy confidence monitoring or content projection, Nano’s HDMI pass-through can display video sources on in-room monitors with zero latency.

Broad streaming protocol support

Stream to any content distribution network or streaming server using modern protocols like SRT, HLS, or MPEG-DASH, or more common ones like RTMP or RTMPS.

Power over Ethernet Plus (PoE+)

Streamline your setup even further with the ability to power Nano over Ethernet in addition to DC power.

Video inputs

  • Local video inputs: (1) 12G SDI, (1) HDMI™ 2.01
  • Video over Ethernet3: (1) RTSP, (1) SRT (push)
  • Connectors: (1) BNC (female), (1) HDMI type A (female), (1) RJ-45
  • Aspect ratios: 3:2, 4:3, 16:9, 16:10, and custom aspect ratios
  • Standard resolutions: PAL, PAL wide, NTSC, NTSC wide
  • Input resolution range: 640×480 to 1920×1080
  • Frame rate: Up to 60 fps
  • Video input color spaces: HDMI: RGB 4:4:4, YCRCB 4:2:2, YCRCB 4:4:4
  • SDI: RGB 4:4:4, YCRCB 4:2:2
  • Deinterlacing: Yes
  • Maximum cable length for SDI: 300 ft
  • Maximum cable length for USB 3.0: 6 ft

Audio inputs

  • Analog audio inputs: (2) XLR pro line level (+4.0 dBu) up to 12.3 VRMS, +24 dBu (balanced/unbalanced, mono or two L/R stereo pairs)
  • (1) RCA consumer line level -10 dBV (L/R stereo pair)
  • Connectors:
    • (2) XLR (female)
    • (2) RCA (female)
  • Digital audio inputs4:
    • (1) SDI5
    • (1) HDMI
    • (1) USB
    • (1) RTSP (from RTSP input over Ethernet)
    • (1) SRT (from SRT input over Ethernet)
  • Connectors:
    • (1) SDI (female)
    • (1) HDMI (female)
    • (1) USB (female)
    • (1) RJ-45 (female)
  • Audio gain control: 0 dB to +30 dB
  • Audio mute: Yes
  • Configurable audio delay: -300 ms to +300 ms

Video processing

  • Video output color space: 4:2:0, 8 bits per color
  • Video codec: H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8 bit color
  • – Encoding profile: High, Main, Baseline
  • – Profile levels: 3.0, 3.1,3.2,4.0,4.1, 5.1
  • Bitrate: 1 to 50 Mbps (selectable)
  • Bitrate control: Constant
  • Hardware accelerated video encoding: Optional
  • Video scaling: Software and hardware
  • Key frames: 1/2 s, and 1 s up to 5 s in 1 second intervals

Audio processing

  • Compression: MP3, AAC, and PCM
  • Sampling rate: MP3: 22 kHz, 44 kHz, 48 kHz
  • AAC: 16 kHz, 22 kHz, 44 kHz, 48 kHz
  • PCM: 22 kHz, 44 kHz, 48 kHz
  • Bitrate: 64 to 320 kbps (MP3 and AAC)

Video output

  • Signal types:
    • (1) HDMI 2.0 (port 1)
    • (1) HDMI 2.0a pass-through (port 2)
    • (1) H.264/AVC digital video over Ethernet
    • (1) RTSP
    • (1) SRT (push)
    • (1) HLS (push)
    • (1) MPEG-DASH (push)
  • Connectors:
    • (2) HDMI
    • (1) RJ-45 (female)
  • Streaming protocols:
    • MPEG-TS and FLV,
    • RTSP over TCP/UDP
    • RTMP/RTMPS
    • SRT (push) over UDP
    • HLS (push) over HTTP/HTTPS
    • MPEG-DASH (push) over HTTP/HTTPS
    • HLS (pull) – Native Apple HTTP/HTTPS stream for iPad, iPhone and iPod Touch
  • Stream encryption and authentication: SRT: 128 bits, 192 bits, or 256 bits AES encryption (negotiated) and configurable passphrase
    • HLS (push): MD5, SHA-256, and SHA-512
    • MPEG-DASH (push): MD5, SHA-256, and SHA-512
    • RTMPS: encryption plus CA certificate negotiation
  • Resolution ranges:
    • Recorded: 480p to 1080p
    • Streamed: H.264: 480p to 1080p
    • HDMI output ports: 480p to 1080p
    • Frame rate: Up to 60 fps
  • Formats: H.264/AVC (ITU H.264, ISO/IEC 14496-10) 4:2:0, 8 bit color
  • – Encoding profile: High, Main, Baseline
  • – Profile levels: 3.0, 3.1,3.2,4.0,4.1

Audio output

  • Analog audio output: (1) 3.5 mm stereo headphone jack
  • Digital audio outputs: RTSP and SRT audio over Ethernet
  • HLS and MPEG-DASH audio over HTTP/HTTPS
  • HDMI audio (embedded)

Monitor and control

  • Front screen: 2.2 inch screen monitor (built in) resolution: 320×240
  • Control key interface: Front panel control keys and multi-function keys
  • USB keyboard: Connect a standard USB keyboard (optional)
  • USB status light: Connect a single USB status light (optional), supported models:
  • -Kuando BusyLight models: UC Alpha and UC Omega
  • -Delcom Products USB HID single color and multi-color signal indicators

Recording and storage

  • Record formats: AVI, MOV, MP4, and MPEG-TS
  • Upload image formats: JPEG, PNG
  • SD card: Up to 512 GB67
  • File system for SD card: EXT4
  • Internal storage: SATA M.2 2280 SSD storage6 (M Key connector)
  • File transfer protocols: FTP, SFTP, SCP, AWS S3 client, and WebDAV client RSync
  • Network file share protocols: CIFS/SMB
  • File system for USB storage: FAT16, FAT32, XFS, EXT2, EXT3, EXT4, NTFS
  • External USB ports: (1) USB 3.0 (UAC)
  • Bitrate: Up to 50 Mbps

Communication

  • USB standards: USB 1.1, USB 2.0, and USB 3.0
  • HDCP compliant
  • Serial port: (1) Bidirectional RS-232 (via a USB to serial adapter)
  • Serial protocols: Data bits: 7 or 8 (default)
  • Stop bits: 1
  • Parity: None
  • Flow control: None, Hardware or Software
  • Serial port baud rate: 19200 bps
  • Ethernet host port: (1) RJ-45 (female)
  • Ethernet data rate: 10/100/1000 Base-T, half/full duplex with autodetect
  • Maximum Transmission Unit: 68 to 1500 MTU (configurable)
  • Protocols: DHCP Option 81, TLS 1.2, LDAP, mDNS, DDNS, UPnP, SAP, RTP, MPEG-TS & RTP and MPEG-TS/UDP, 802.1x, EAPOL, EAP-TTLS, EAP-TLS, PEAP, HTTP, HTTPS, NTP, PTP, FTP, SFTP, SCP
  • AWS S3
  • Network discovery/Announce: UPnP, SAP

UPC: 787790141747

Videos: Epiphan Pearl-Nano Streamer / Recorder

Reviews: Epiphan Pearl-Nano Streamer / Recorder

There are currently no product reviews.


Warranty: Epiphan Pearl-Nano Streamer / Recorder

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

1 Year Warranty
