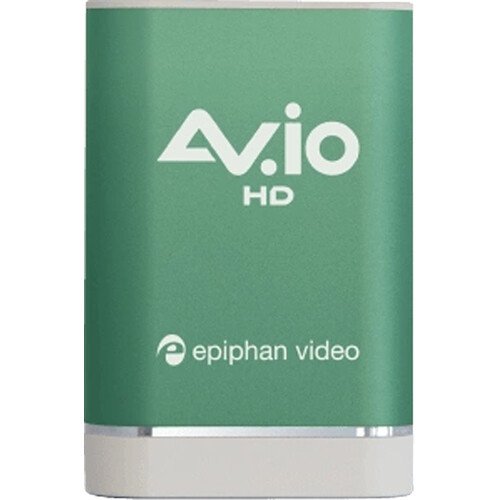

Epiphan AV.io HD+ HDMI to USB Video Capture Card

About: Epiphan AV.io HD+ HDMI to USB Video Capture Card

Epiphan AV.io HD+ brings USB plug-and-play convenience to your HDMI sources. You can easily capture 1080p video from any HDMI camera or device with nearly zero latency, bringing in audio through HDMI, the 3.5 mm input, or both. This card is compact and based on tough-as-nails technology that’s even been used in space, so you can confidently carry it wherever there’s video to capture.

Make video capture effortless

With AV.io HD+, capturing video from HDMI on Windows, Mac, or Linux is as easy as using a plug-and-play webcam. Just connect your device to one end of the capture card and your computer to the other, then select your device as a source in your software. That’s all there is to it – no driver installation required.

Ready to size and scale

There’s no need to think about video scaling or aspect ratios with this capture card. AV.io HD+ will automatically adjust your image based on the software you’re using, delivering superior video quality even when swapping between sources.

Elevate your favorite apps

You can use AV.io HD+ with any program that accepts USB as a video source. That includes video conferencing apps such as Zoom and Microsoft Teams as well as streaming software like Wirecast and OBS.

Tailored to your installation

The AV.io HD+’s Config Tool allows you to set specific EDID for your HDMI input, customize the output resolution, and label each device, simplifying the workflow for any project, particularly those that use multiple units in the same system.

Capture great audio

With high-quality audio capture and more ways to bring audio into your projects, AV.io HD+ ensures your content will sound as great as it looks.

Bring in your audio

Capture audio directly from your HDMI source, or through the 3.5 mm input to capture from a mixer or other external source. You can even bring in audio from both inputs simultaneously.

Minimize noise

Whisper-quiet performance makes AV.io HD+ a silent addition to your workflows, meaning it won’t add noise or distract from the task at hand.

Specifications

• Interface -  USB 3.0, USB 2.0
• OS drivers -  UVC and UAC device
• Connectors -  HDMI, USB 3.0 B-Type connector
• Input -  HDMI (including audio), 3.5 mm analog (audio)
• Input resolution -  Up to 1920×1200
• Output formats: (Note: Third-party software will set frame size and frame rate)
  • Available frame rates
    • 5 fps to 60 fps
  • Available resolutions
    • 320×240, 640×360, 640×480, 720×480, 720×576, 768×576, 800×600, 856×480, 960×540, 1024×576, 1024×768, 1152×864, 1280×1024, 1280×720, 1280×800, 1280×960, 1360×768, 1366×768, 1440×900, 1600×1200, 1600×900, 1680×1050, 1920×1080, 1920×1200
• Output color space -  YUV 4:2:2
• Capture latency -  Near zero (third-party applications may add to capture delay)
• HDMI audio (input) -  16-bit and 24-bit PCM encoded audio at 32 kHz, 44.1 kHz, and 48 kHz sampling rates
• Audio output -  16-bit 48 kHz stereo sampling rates
• LED -  One LED to indicate status (power, readiness, operation in progress)
• Power consumption -  <400ma
• OS support -  Windows 10 and up, Mac OS X 10.10 and up, Linux distribution with kernel 3.5.0 or higher
• HDCP compliance -  Can’t capture from video sources protected by HDCP (High-bandwidth Digital Content Protection)
• Dimensions -  3.54″ × 2.36″ × 0.91″ (90 mm × 60 mm × 23 mm)
