Barnfind BarnPalette OCS Optical Changeover Switch
Model: BarnPalette-OCS
About: Barnfind BarnPalette OCS Optical Changeover Switch

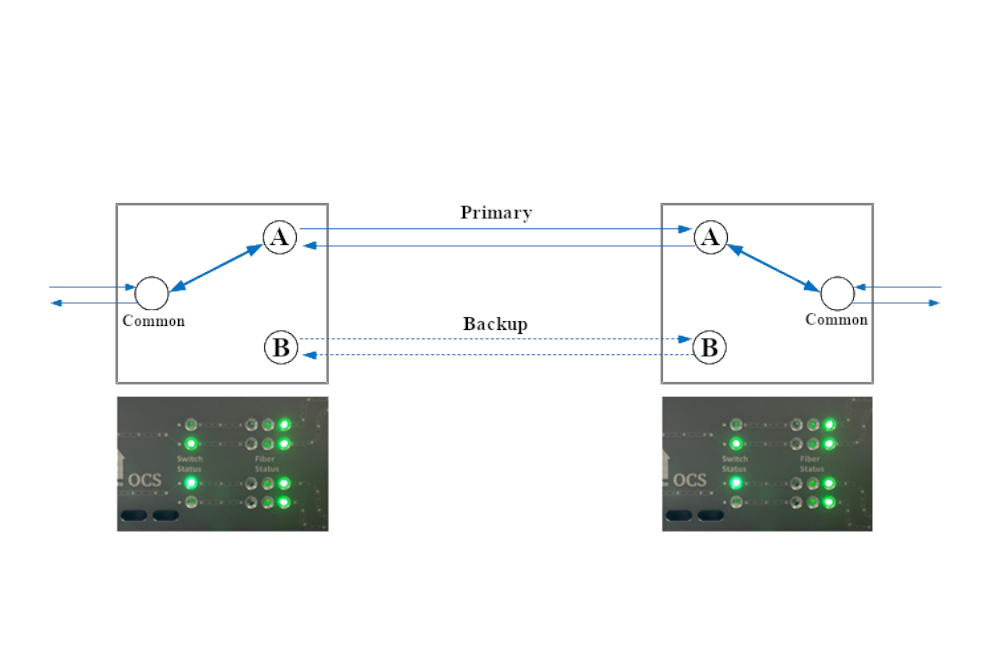

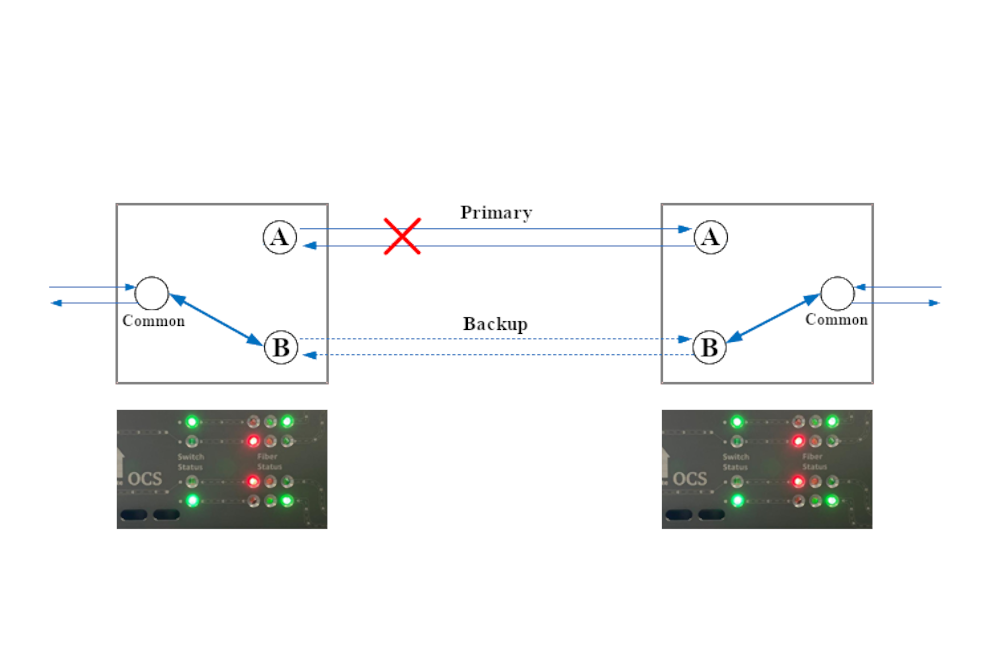

Designed to ensure uninterrupted fiber connectivity in mission-critical applications. This system comprises two units connected by dual fiber strands – primary and backup. The BarnPalette OCS continuously monitors the primary fiber, instantly switching to the backup strand if any issues are detected. This ultra high-speed transition guarantees maximum uptime and reliability, making it an indispensable tool for any high-stakes environment.
We recommend using single mode fibers when linking the BarnColor and BarnPalette devices.
Specifications
- Fiber port (Common, Ch. A and Ch. B )
- Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC
- Power plug
- Neutrik powerCON or TRUE1
- 100-240VAC, 15Watt
- Physical
- Dimensions: 8.8 x 10.9 x 1.7 in (223 x 277 x 44mm)
- Weight: 3.09 lbs (1.4 kg)
NOTE: Power cable not included.
