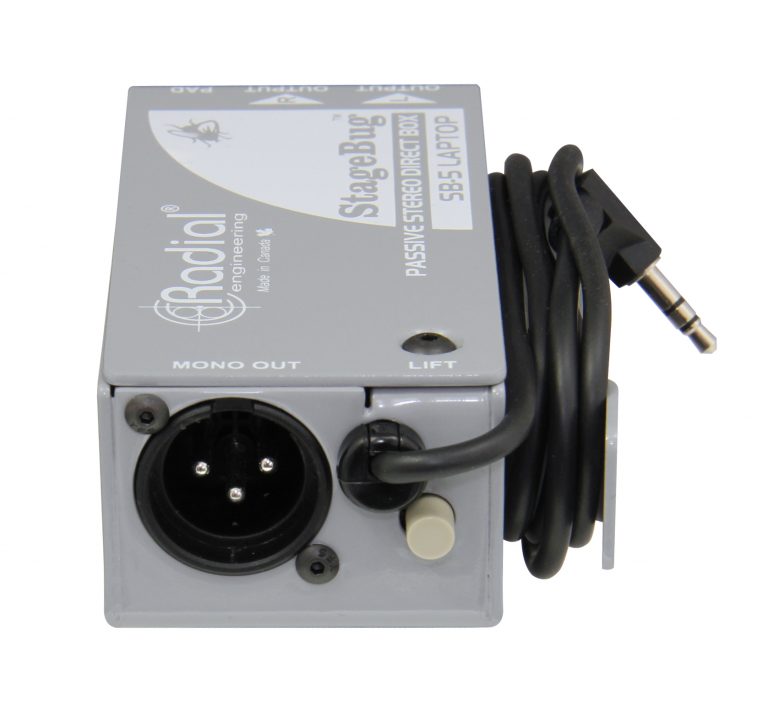

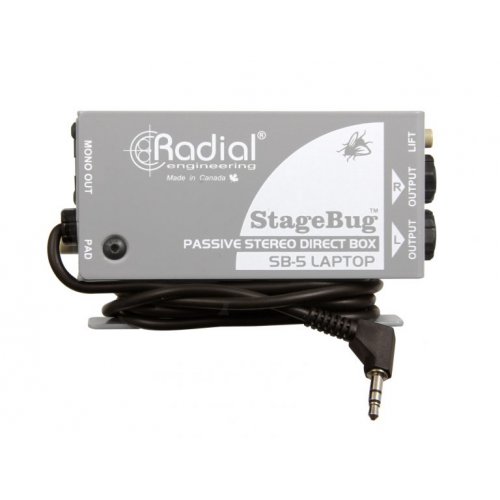

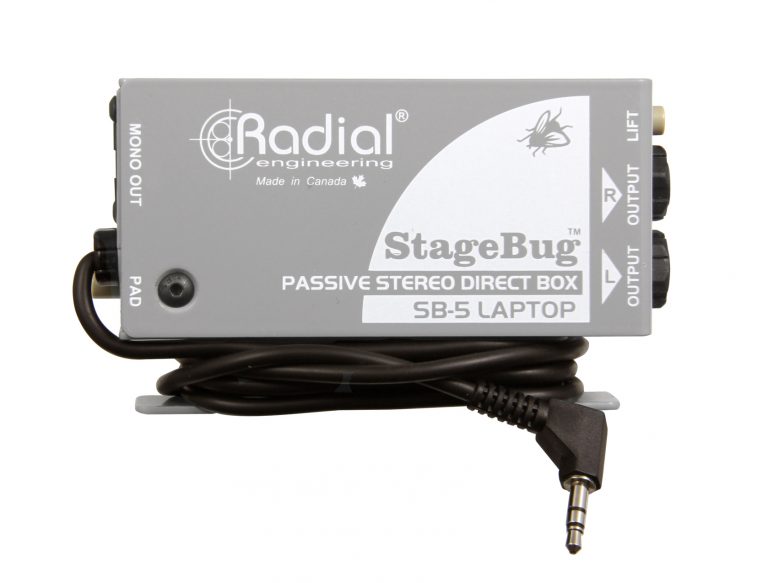

Radial StageBug SB-5 Laptop DI
Model: SB-5 Laptop
About: Radial StageBug SB-5 Laptop DI
- Stereo direct box for laptop computer
- Integral 1.5m cable with sidewinder cleat
- Transformer isolation eliminates noise
- Plug & play easy to use – no power required
The Radial Stage Bug SB-5 is a compact stereo direct box designed to accommodate laptop computers, tablets and other consumer audio products when amplifying the signal through a PA system.
The passive design begins with an integrated input cable that connects from the headphone out via a flexible 1.5m (5') cable that is terminated with a standard 3.5mm (1/8") stereo connector. The cable is secured via a clamping strain relief and is wrapped using the sidewinder cleat for easy storage. This of course eliminates having to locate a cable making it easier to deploy in fast paced work environments. Inside, the signal is sent to a pair of custom wound transformers where the impedance is lowered and the signal is balanced for long cable runs - upwards to 100 meters (300'). Transformers further benefit by isolating the computer from the PA system to help eliminate hum and buzz caused by ground loops. This is augmented with a ground lift switch to further reduce ground contamination.
A choice of output connectors is available including a stereo set of ¼" TRS jacks for full stereo operation or an XLR out that automatically sums the left-right program material to mono. This can save valuable channels on the PA system and makes setup easier in situations where full stereo reproduction is not required. A -15dB input pad may be engaged to reduce sensitivity and enable extra high output sources to be connected without distortion.
These features combine to make the SB-5 the perfect tool-kit DI for the AV technician, media manager or traveling musician equipped with a computer.
UPC: 676101040674
Reviews: Radial StageBug SB-5 Laptop DI
Warranty: Radial StageBug SB-5 Laptop DI
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All products sold by Radial come with a Transferable 3-Year Limited Warranty that is detailed in the product’s specific owner’s manual.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
