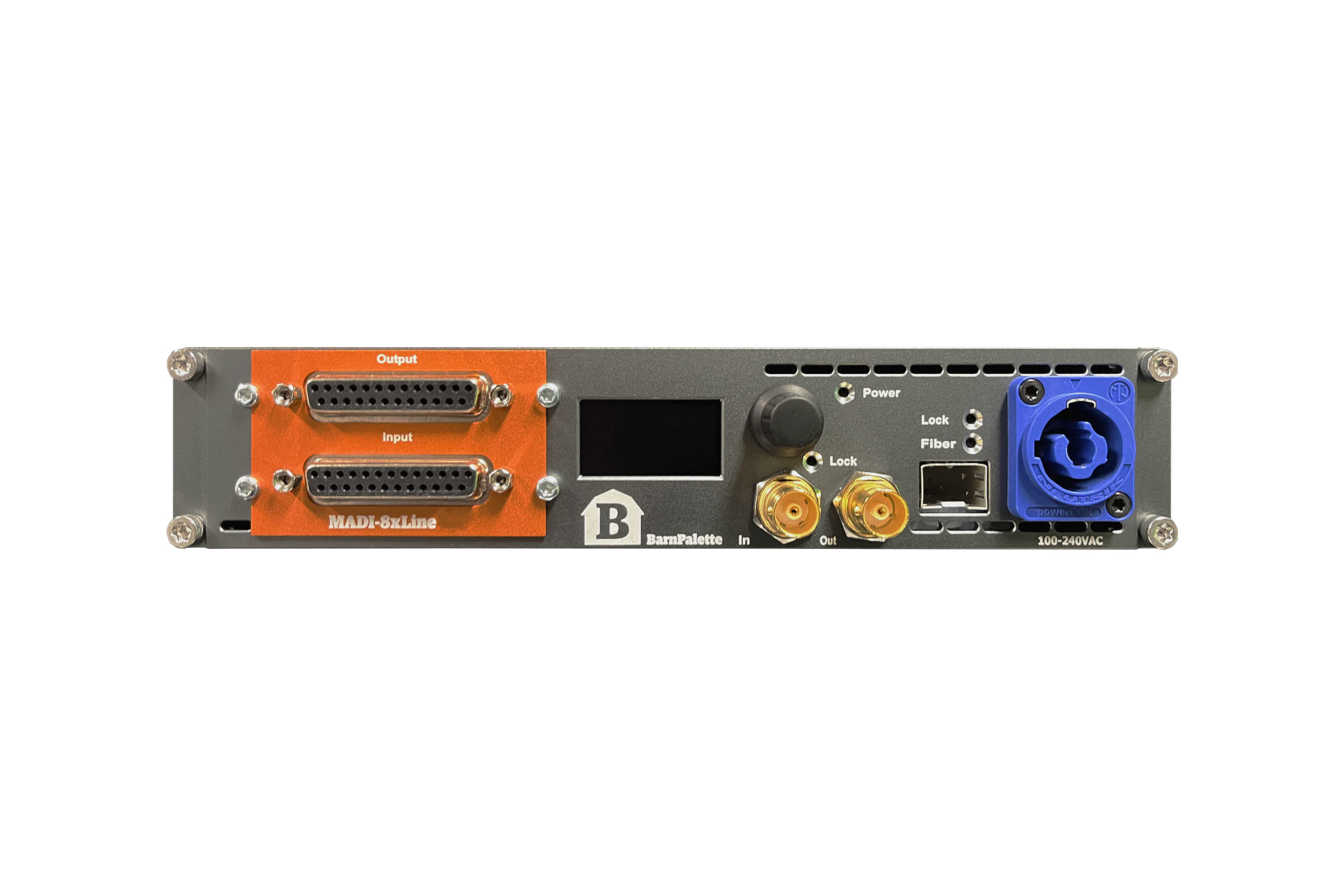

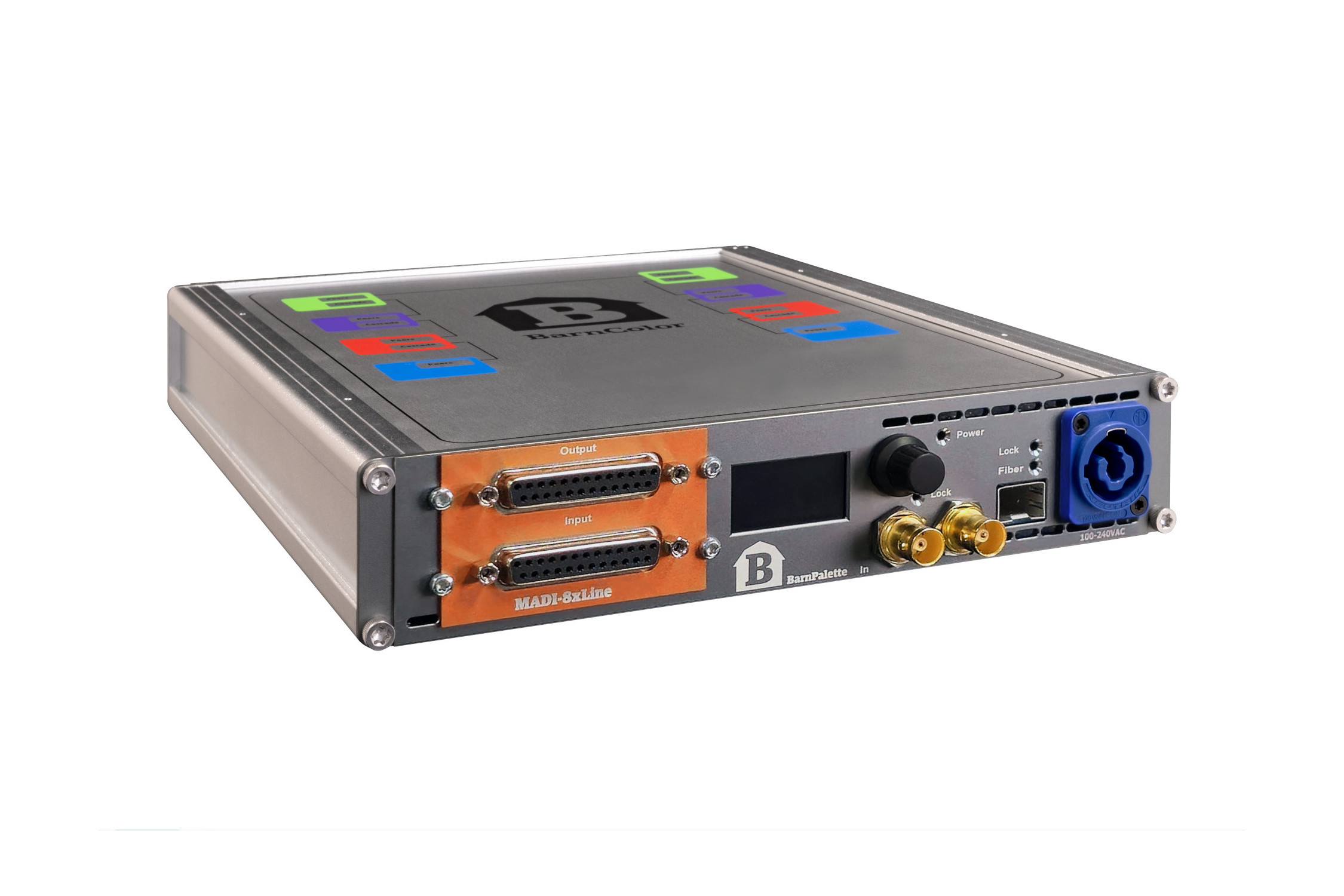

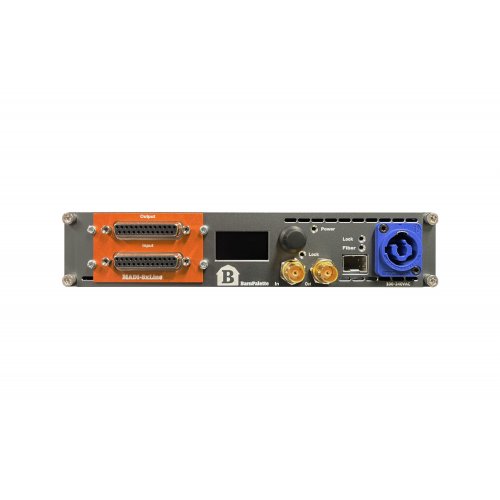

Barnfind BarnPalette MADI-8xLine
Model: BarnPalette-MADI-8xLine
About: Barnfind BarnPalette MADI-8xLine

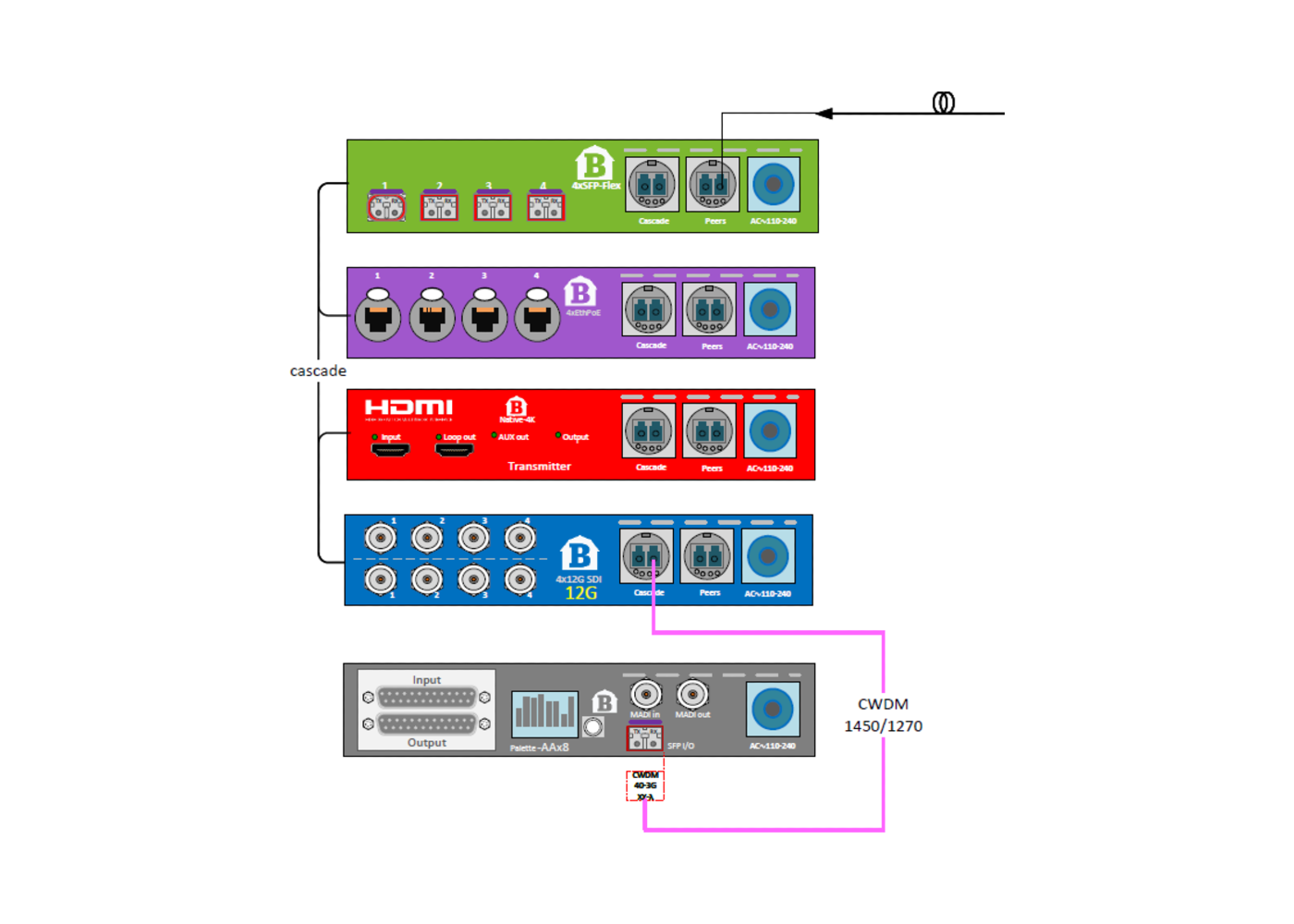

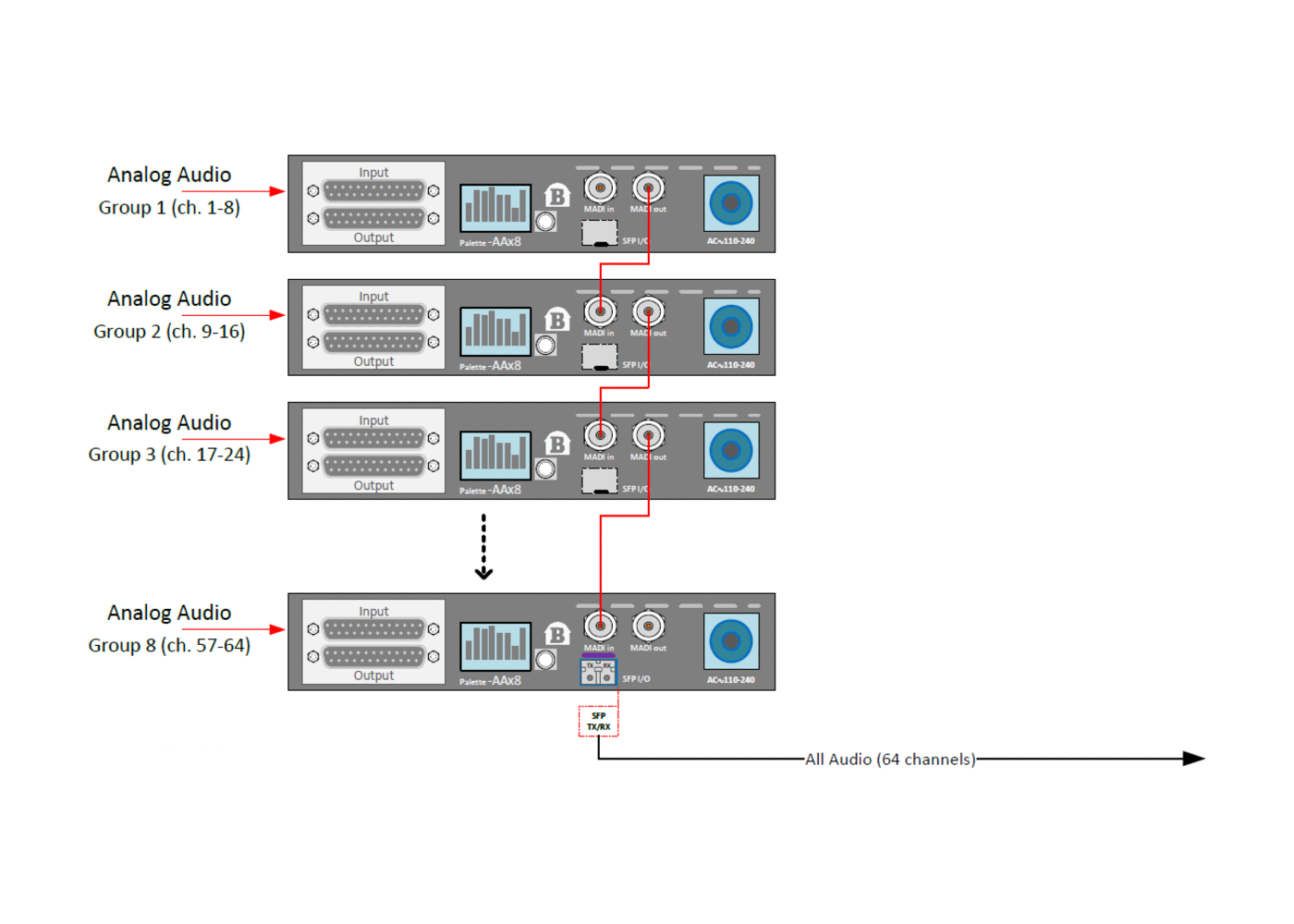

BarnPalette-MADI offers a high-quality and robust solution for transporting analog audio over either fiber or copper. Compatible with BarnColor system or as a standalone product, each unit features 8x audio inputs and 8x audio outputs, and multiple BarnPalette-MADI units can be inter-connected. Audio signals can be flexibly mixed and routed into a 64-channel MADI signal. MADI can be sent and received both via BNC ports and SFP port (fiber).
The BarnPalette-MADI is available in three variants:
- 8xLine I/O module: Provides 8x analog audio input and output channels, interfaced via 2x DSUB-25 connectors
- 8xMic.Line I/O module: Provides 8x analog audio input and output channels and microphone level (with phantom power), interfaced via 2x DSUB-25 connectors
- 4xAES I/O module: Provides 4x AES3 ports connect 8 audio channels of digital input and output signals via a DSUB-25 connector
We recommend using single mode fibers when linking the BarnColor and BarnPalette devices.
Specifications
- Connectors: 2 x DSUB-25 connector (input/output), according to AES59
- Reference Levels: +15 / +18 / +24 dBu via jumper
- A/D
- SNR: < -117,6 dB RMS (20 Hz – 20 kHz) / -119,9 dB(A)
- THD @ -1 dBFS: < -119 dB
- Frequency response: < -0,15 dB (10 Hz) / -0,15 dB (20 kHz)
- D/A
- SNR: -116,8 dB RMS (20 Hz – 20 kHz) / -119,5 dB(A)
- THD @ -1 dBFS: -109 dB
- Frequency response: -0,5 dB (10 Hz) / -0,15 dB (20 kHz)
- Power Supply: AC 100V～240V
- Power Consumption: 30W
- Power plug: Neutrik powerCON or TRUE1
- Dimensions: 8.8 x 10.9 x 1.7 in (223 x 277 x 44mm)
- Weight: 3.09 lbs (1.4 kg)
NOTE: Power cable not included.
