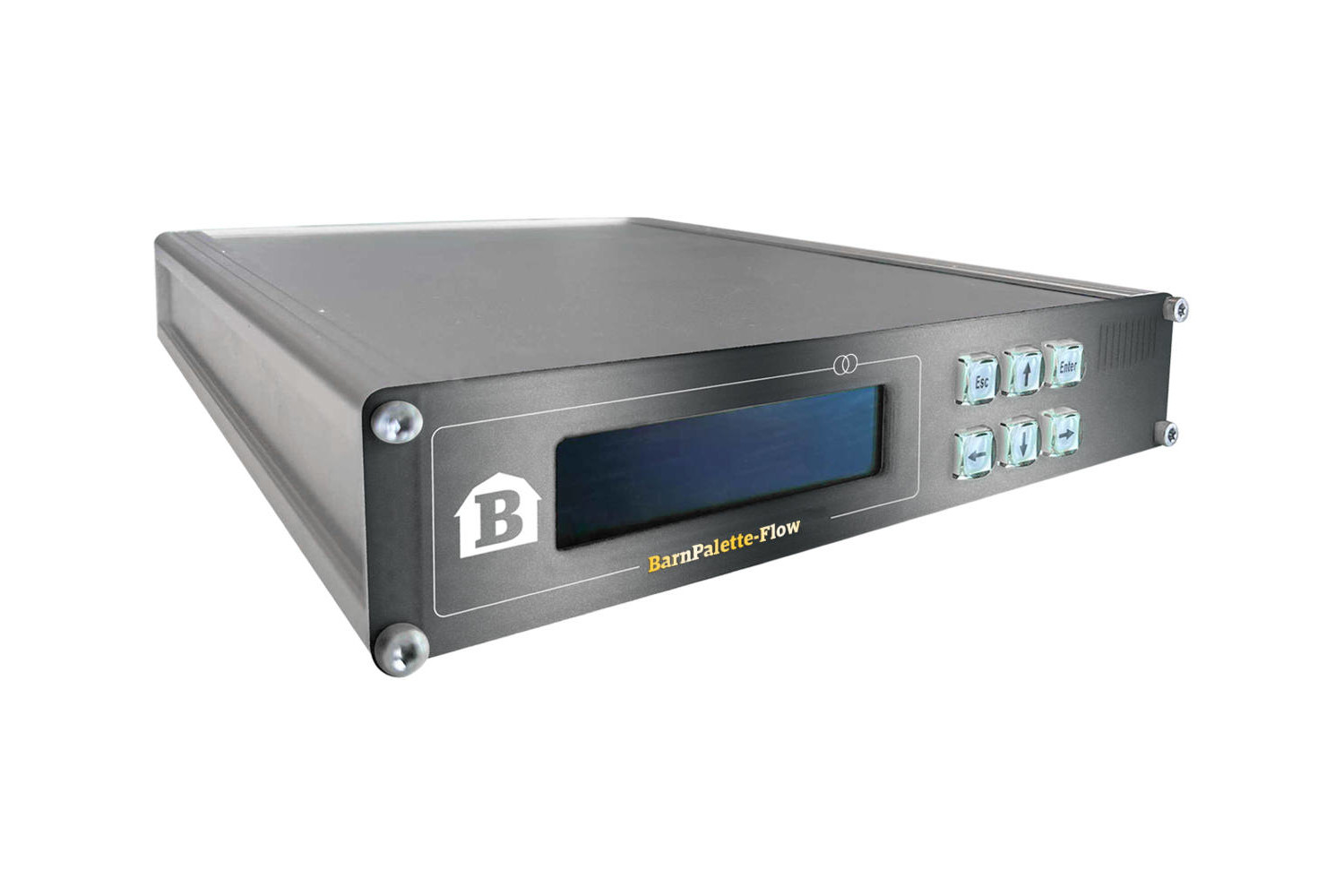

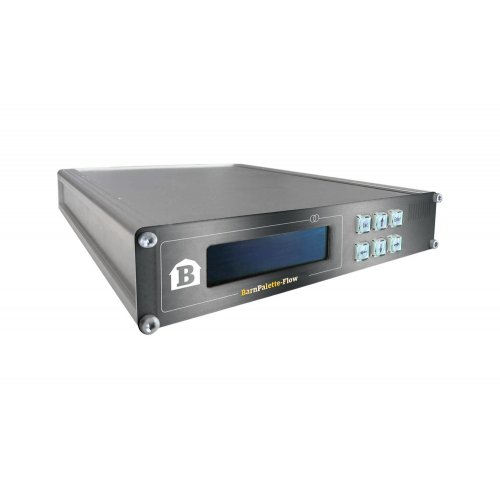

Barnfind BarnPalette Flow-XS-3G SDI to ST-2110 Encoder/Decoder
Model: BarnPalette-Flow-XS-3G
About: Barnfind BarnPalette Flow-XS-3G SDI to ST-2110 Encoder/Decoder

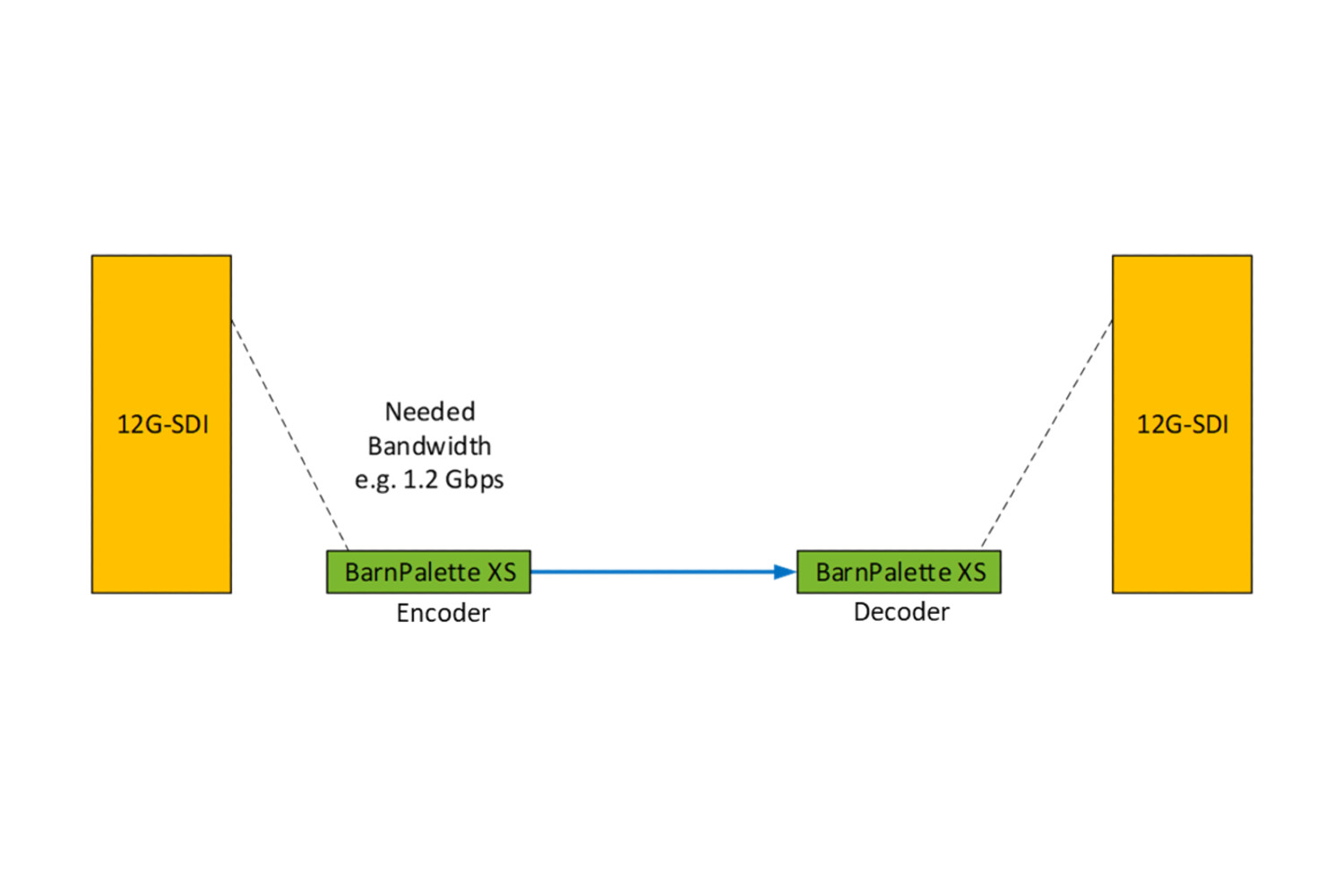

BarnPalette-Flow-XS is empowered with the visual lossless JPEG-XS codec and enables visually-loss-less conversion of 4K and HD/3G video signal into ST-2110-22 JPEG-XS stream, with optional ST-2022-7 redundancy for protection against data loss. The conversion is performed with ultra-low delay.
- 4K JPEG-XS – A hardware converter that performs the essential yet straightforward conversion between SDI and SMPTE 2110-20/-30/-40.
- NMOS Compatible – Supporting NMOS IS-04/05 enables smooth integration into systems.
- Full Control WebGUI – Mode changes and settings for ENC/DEC, as well as PTP synchronization status checks, can be easily managed through an intuitive GUI.
We recommend using single mode fibers when linking the BarnColor and BarnPalette devices.
Specifications

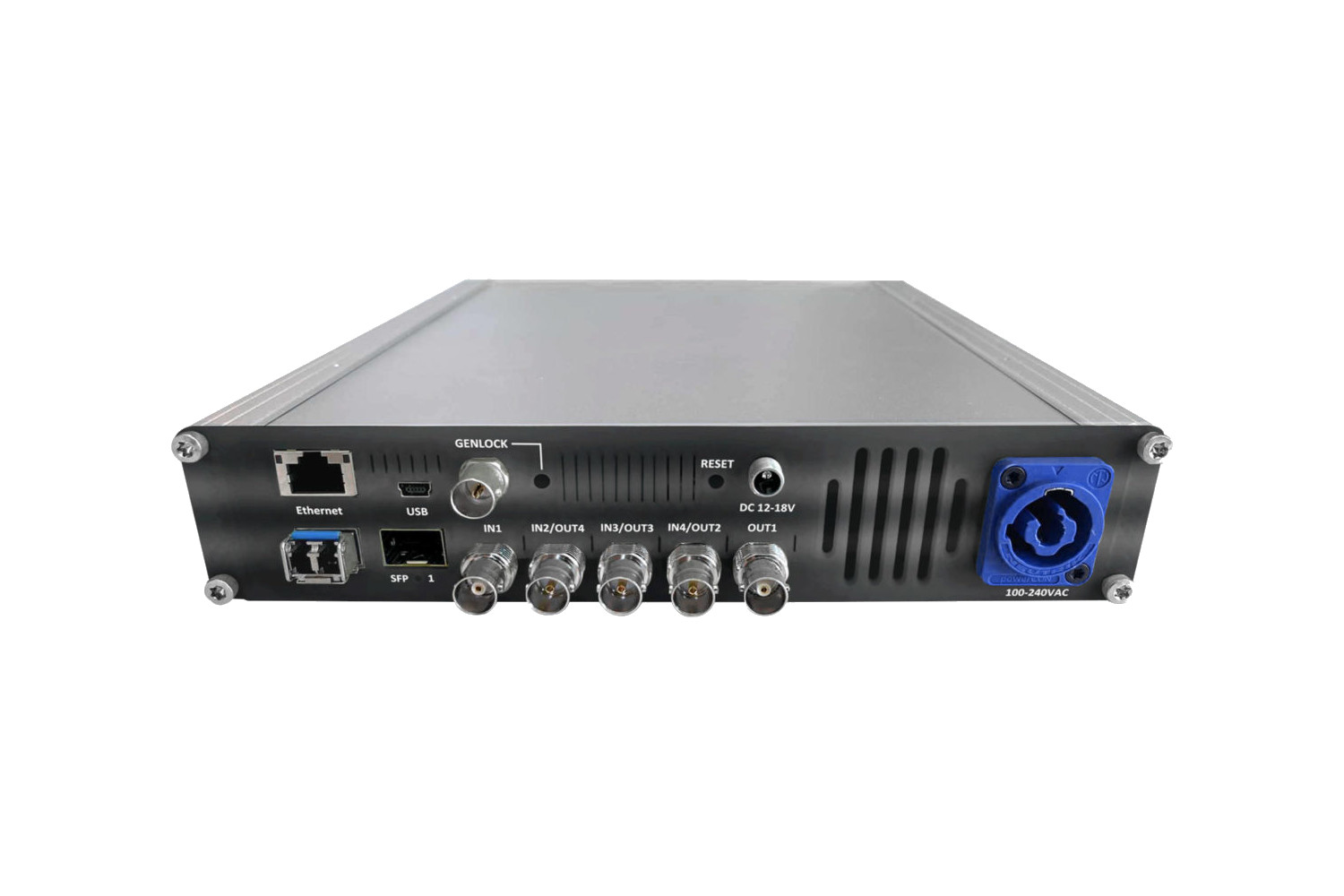

- SDI input (BNC 75Ω): HD-SDI, 3G-SDI Level-A
- Chroma: 4:2:2
- Bit depth: 10bit
- Frame Rate: 50p, 59.94p, 60p
- Encoder Input Format: 1x HD/3G-SDI
- Decoder Output Format: 1x HD/3G-SDI
- Power Supply: AC 100V～240V
- Power Consumption: 30W
- Power plug: Neutrik powerCON or TRUE1
- Operating Temperature: 0～35 C°
- Operating Humidity: 20%RH～80%RH
- Dimensions: 8.8 x 10.9 x 1.7 in (223 x 277 x 44mm)
- Weight: 3.09 lbs (1.4 kg)
NOTE: Power cable not included.
