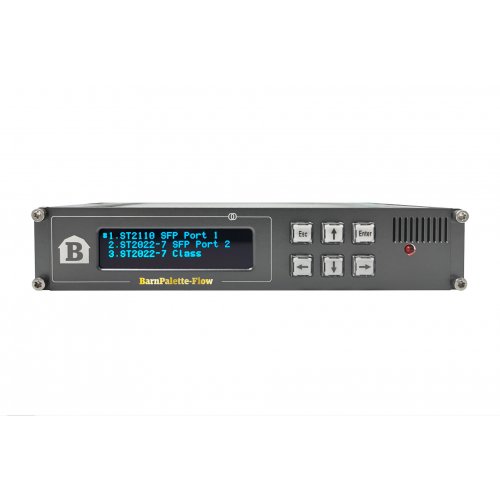

Barnfind BarnPalette Flow-12G SDI to ST-2110 Encoder/Decoder
Model: BarnPalette-Flow-12G
About: Barnfind BarnPalette Flow-12G SDI to ST-2110 Encoder/Decoder

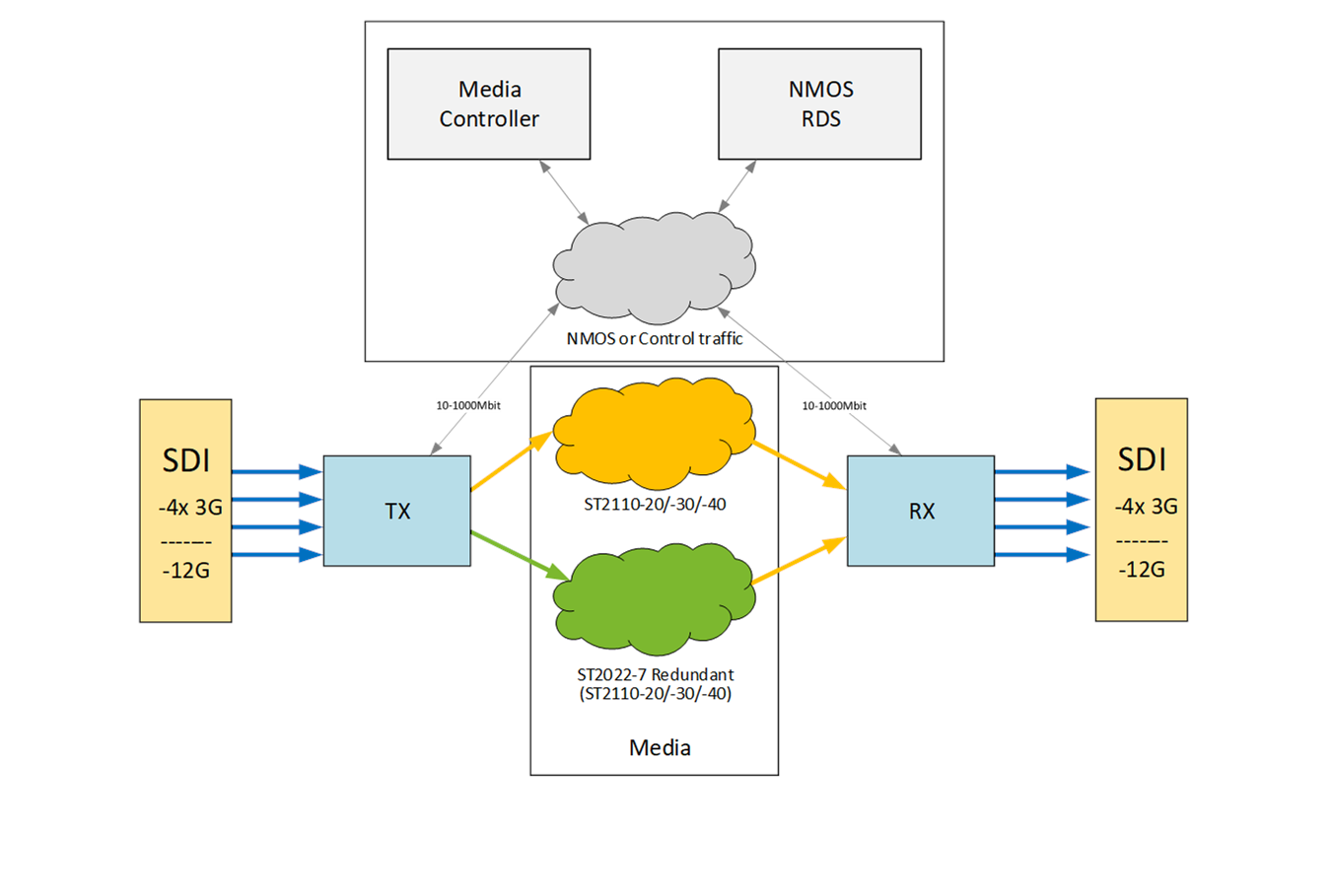

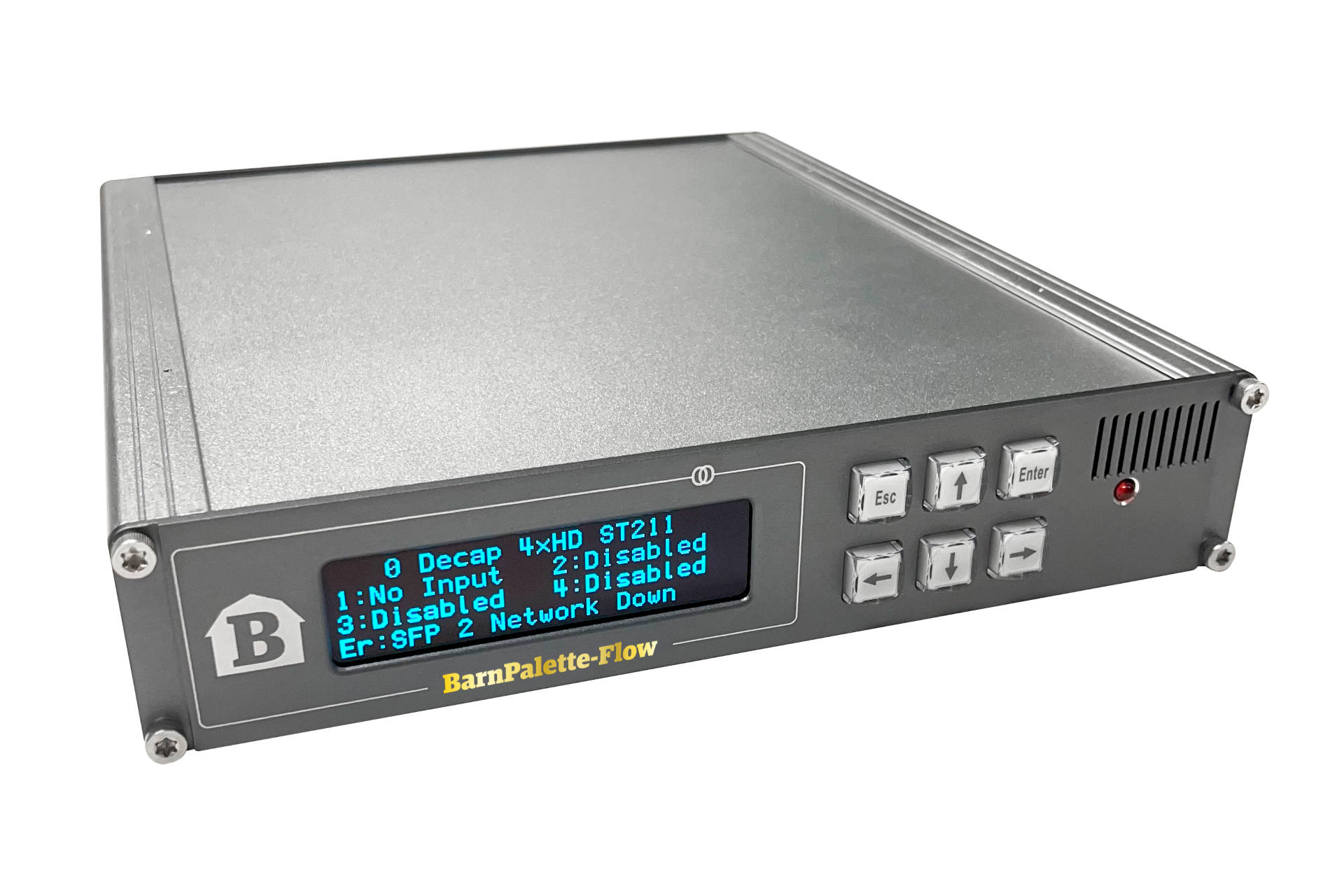

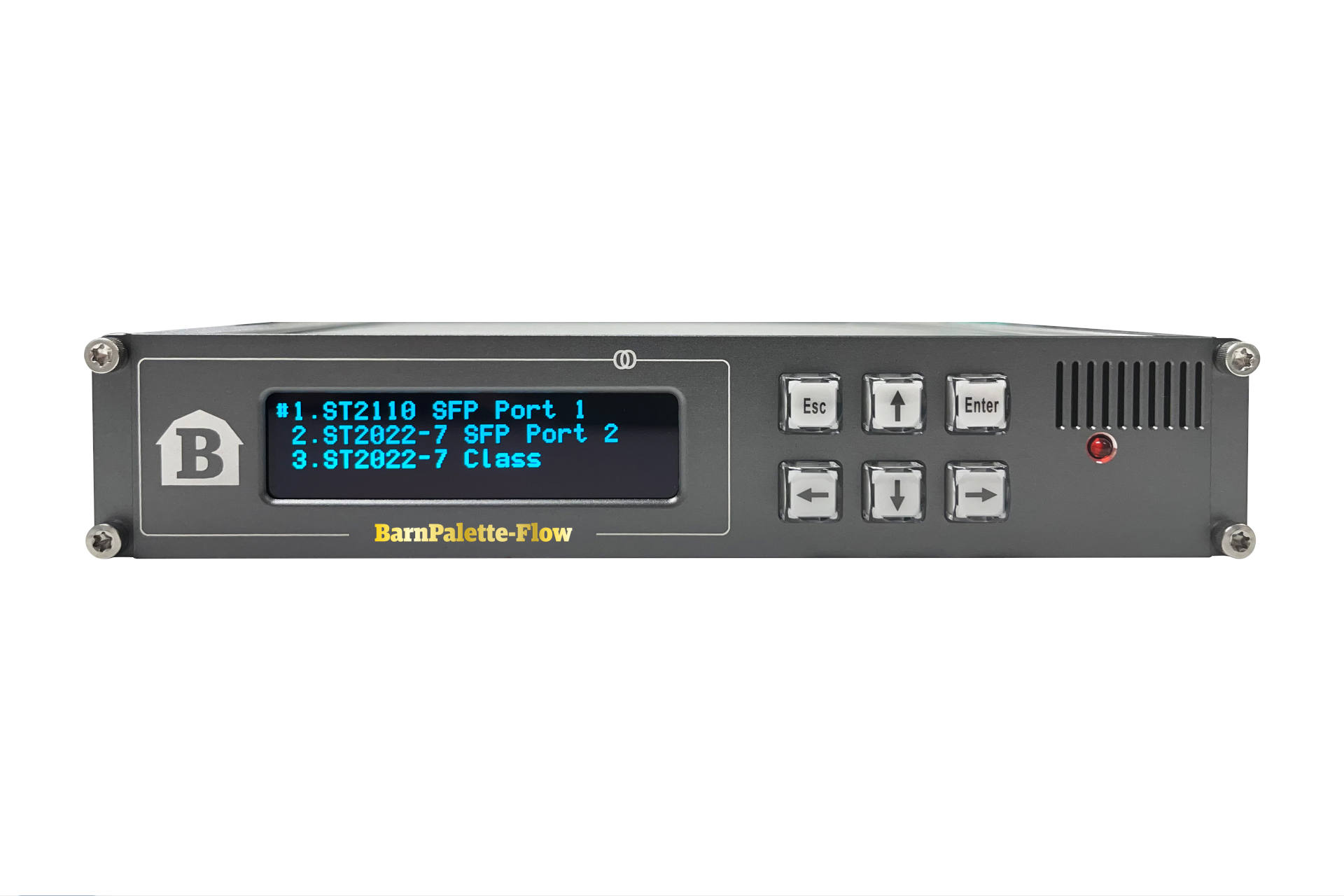

The BarnPalette-Flow-12G is a converter that is capable of transmitting 4x3G-SDI or 1x12G-SDI over ST-2110 IP signals, and the IP interface supports 25G. A single unit can handle up to four signals for encapsulate (ENC) or decapsulate (DEC). Users can easily switch between ENC and DEC modes via the front panel, and also possible through WebGUI. Video, audio, and ancillary data are compliant with ST-2110, ST-2059, and NMOS IS-04/05 standards.
- SDI Over IP – A hardware converter that performs the essential yet straightforward conversion between SDI and SMPTE 2110-20/-30/-40.
- NMOS Compatible – Supporting NMOS IS-04/05 enables smooth integration into systems.
- Full Control WebGUI – Mode changes and settings for ENC/DEC, as well as PTP synchronization status checks, can be easily managed through an intuitive GUI.
- Flexible sync options – Can select between using PTP synchronization, analog GenLock or using internal generated clock.
We recommend using single mode fibers when linking the BarnColor and BarnPalette devices.
Specifications

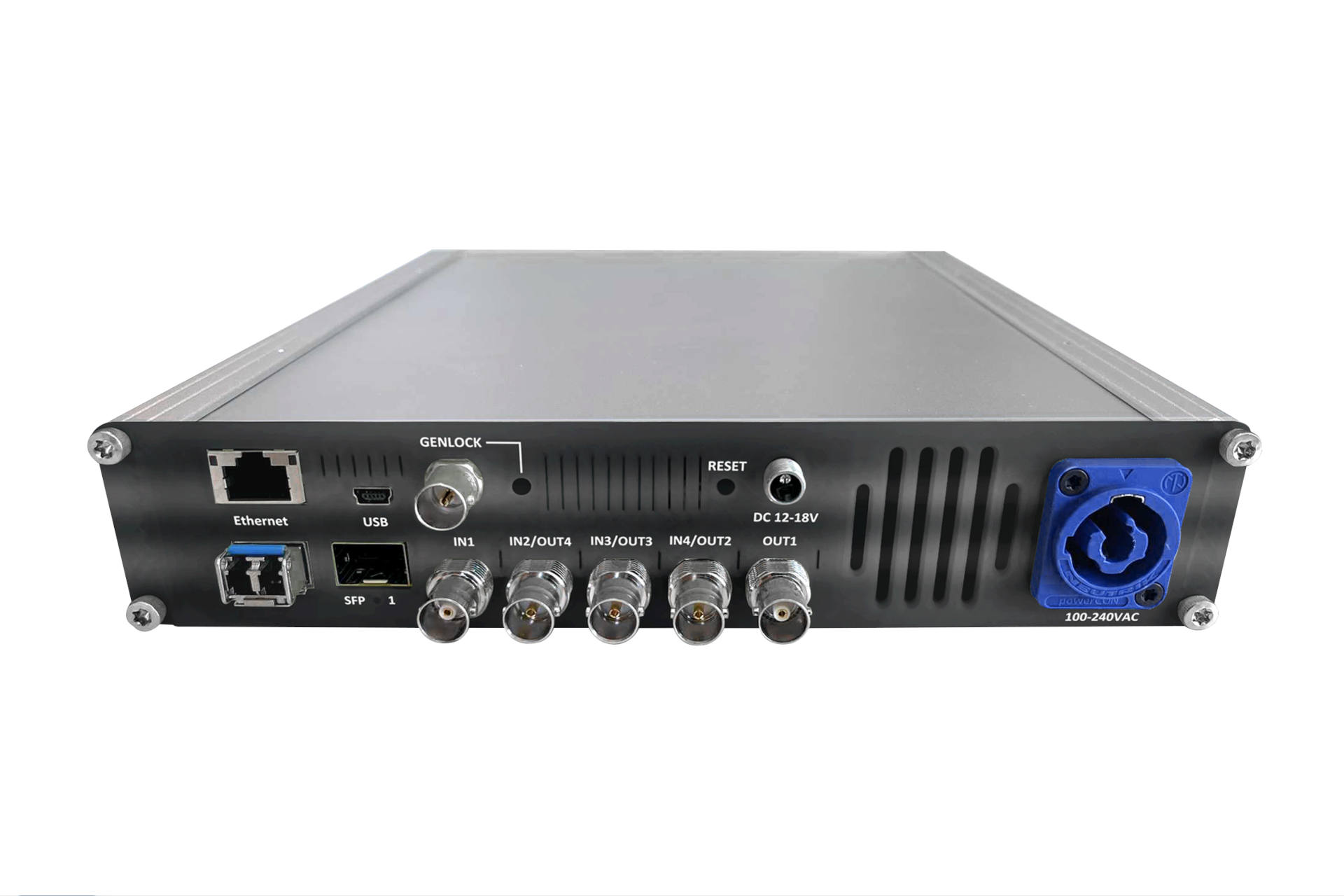

- SDI input (BNC 75Ω): HD-SDI, 12G-SDI
- Chroma: 4:2:2
- Bit depth: 10bit
- Frame Rate: 60/59.94/50p, 60/59.94/50i
- Encoder Input Format: 4K (4x 3G-SDI, 1x 12G-SDI)
- Decoder Output Format: 4K (4x 3G-SDI, 1x 12G-SDI)
- Power Supply: AC 100V～240V
- Power Consumption: 30W
- Power plug: Neutrik powerCON or TRUE1
- Operating Temperature: 0～35 C°
- Operating Humidity: 20%RH～80%RH
- Dimensions: 8.8 x 10.9 x 1.7 in (223 x 277 x 44mm)
- Weight: 3.09 lbs (1.4 kg)
NOTE: Power cable not included.
